TIMKEN WIRELESS SENSOR AND MONITORING SOLUTION: QUICK START GUIDE ® CONTENTS INTRODUCTION AND WARNINGS ..................................3 PRODUCT DESCRIPTIONS ......................................4 Gateway ...........................................4 Enclosed Gateway........................................4 Sensor ............................................4 SERIAL NUMBERS AND PASSWORD ..................................5 Gateway ...........................................5 Enclosed Gateway........................................5 Sensor ............................................5 GATEWAY SETUP ........................................6 Power Connection ........................................6 WiFi Mode..........................................7 On a Computer ........................................7 On a Mobile Device ......................................8... -
Page 3: Introduction And Warnings
TIMKEN WIRELESS SENSOR AND MONITORING SOLUTION: QUICK START GUIDE ® INTRODUCTION AND WARNINGS This Quick Start Guide covers the setup and activation of your Timken Wireless Sensor and ® Monitoring Solution. Please visit www.timkensensor.com for more information and resources, including the instruction videos, FAQ, the Terms of Use that apply to your use of this system, safety information, and important product warnings. -
Page 4: Product Descriptions

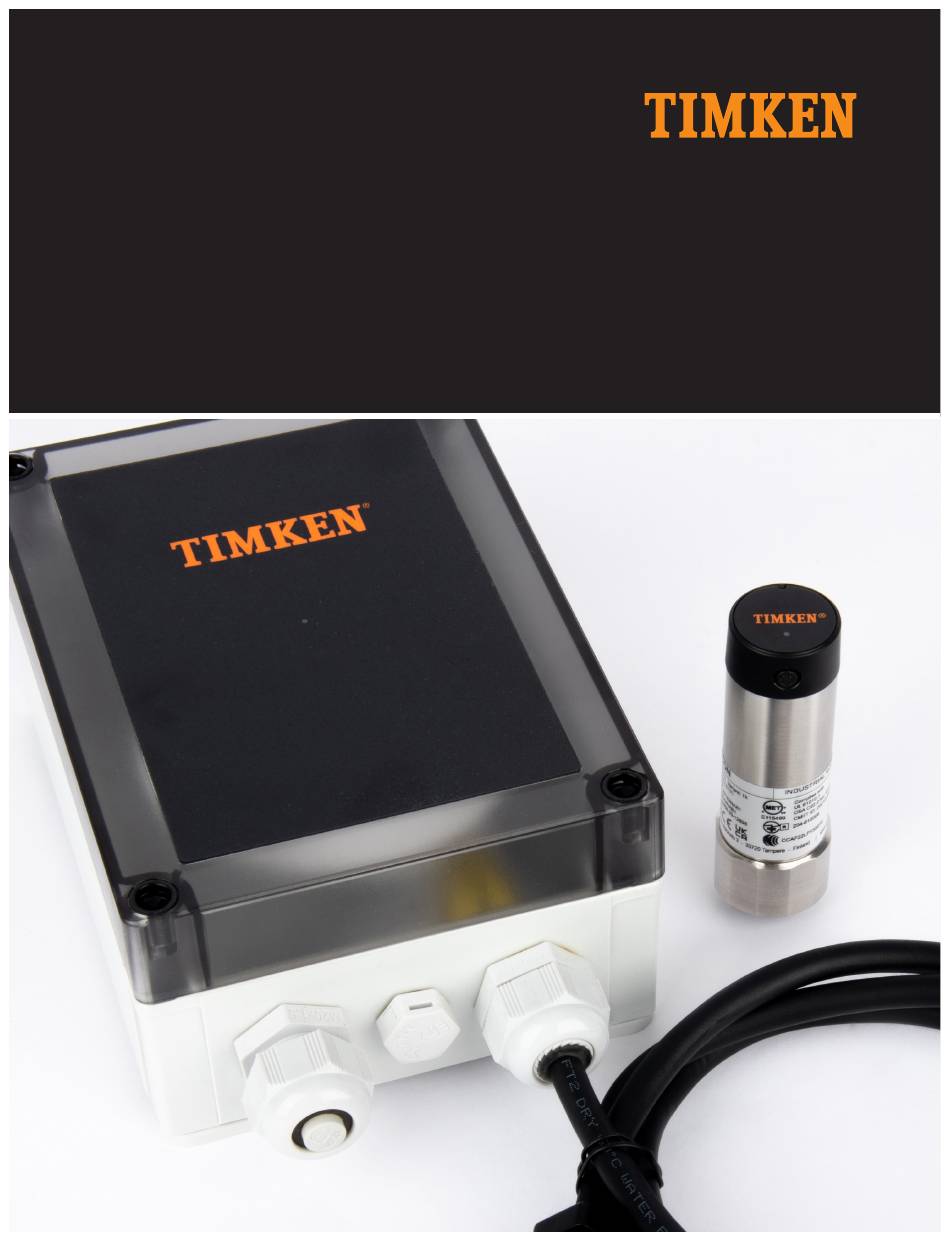

TIMKEN WIRELESS SENSOR AND MONITORING SOLUTION: QUICK START GUIDE ® PRODUCT DESCRIPTIONS Gateway Timken gateway pre-loaded with software. Enclosed Gateway Timken gateway pre-loaded with software. Encased in a protective enclosure rated IP66/IP67 for use in industrial or outdoor environments. Sensor Timken vibration and temperature sensor that comes standard with 1/8-27 NPT bolt. -
Page 5: Serial Numbers And Password
TIMKEN WIRELESS SENSOR AND MONITORING SOLUTION: QUICK START GUIDE ® SERIAL NUMBERS AND PASSWORD Gateway Serial number and Wi-Fi password are listed on the bottom of the gateway. Enclosed Gateway Serial number and Wi-Fi password are listed on the bottom of the gateway. The enclosure lid must be unscrewed and opened to access the gateway itself. -
Page 6: Gateway Setup
TIMKEN WIRELESS SENSOR AND MONITORING SOLUTION: QUICK START GUIDE ® GATEWAY SETUP Plan a location for the gateway near where the sensors will be mounted. It will require an electrical outlet and an ethernet port (for ethernet connection mode). An ethernet connection is required to access the gateway through a local network or to use the email alert and time server functions. -
Page 7: Wifi Mode
TIMKEN WIRELESS SENSOR AND MONITORING SOLUTION: QUICK START GUIDE ® WiFi Mode Next, you will need to connect to the gateway via the WiFi access point. This step applies whether you plan to use ethernet mode or not. On a Computer The Timken Gateway will appear as a WiFi access point named “timkengw1-[serial number of your gateway].”... -
Page 8: On A Mobile Device
TIMKEN WIRELESS SENSOR AND MONITORING SOLUTION: QUICK START GUIDE ® On a Mobile Device timkengw-1-bb729a7b “timkengw-1-bb729a7b” timkengw-1-bb729a7b Once the password has been entered, the computer will be connected to the gateway. Dashboard Access To access the dashboard, go to a browser (Chrome, Safari, Edge) and type 192.168.0.1 in the address bar. -
Page 9: Ethernet Mode
TIMKEN WIRELESS SENSOR AND MONITORING SOLUTION: QUICK START GUIDE ® Ethernet Mode If you will only be accessing the gateway via WiFi access point, skip to the next section. The ethernet cable must connect the gateway directly to a local network port. Please note that connecting to a personal computer or laptop instead will not work. -
Page 10: Dashboard Settings
TIMKEN WIRELESS SENSOR AND MONITORING SOLUTION: QUICK START GUIDE ® DASHBOARD SETTINGS Next, log into the Admin Menu by using the same password from the bottom of the gateway. Contact IT for Support If you are using the ethernet mode, you will need to consult your IT department for the best way to connect the gateway to your local network. -
Page 11: Email Settings
TIMKEN WIRELESS SENSOR AND MONITORING SOLUTION: QUICK START GUIDE ® Email Settings Similar to the ethernet settings, your IT department will have to help with the correct email settings. All setups will require an email server and at least one receiver email address. Multiple receiver addresses can be added if they are separated with semicolons. -
Page 12: Sensor Setup
TIMKEN WIRELESS SENSOR AND MONITORING SOLUTION: QUICK START GUIDE ® SENSOR SETUP Power on each sensor by pressing and holding the power button until the status light turns green. As you plan a location for each sensor, make note of the sensor serial numbers and locations. This will be how you identify the sensors during the registration process. -
Page 13: Register Sensors
TIMKEN WIRELESS SENSOR AND MONITORING SOLUTION: QUICK START GUIDE ® Register Sensors Now it’s time to register the sensors in the Admin -> Sensors section of the dashboard. Refer to your notes on the sensor serial numbers and locations. Begin with the sensor closest to the gateway and work outward from there. -
Page 14: Setting Alert Limits
TIMKEN WIRELESS SENSOR AND MONITORING SOLUTION: QUICK START GUIDE ® Setting Alert Limits Allow the sensors to gather data over a period of normal operation. The amount of time necessary varies by application, but it could be a few days or up to a week.
