Machine Translated by Google

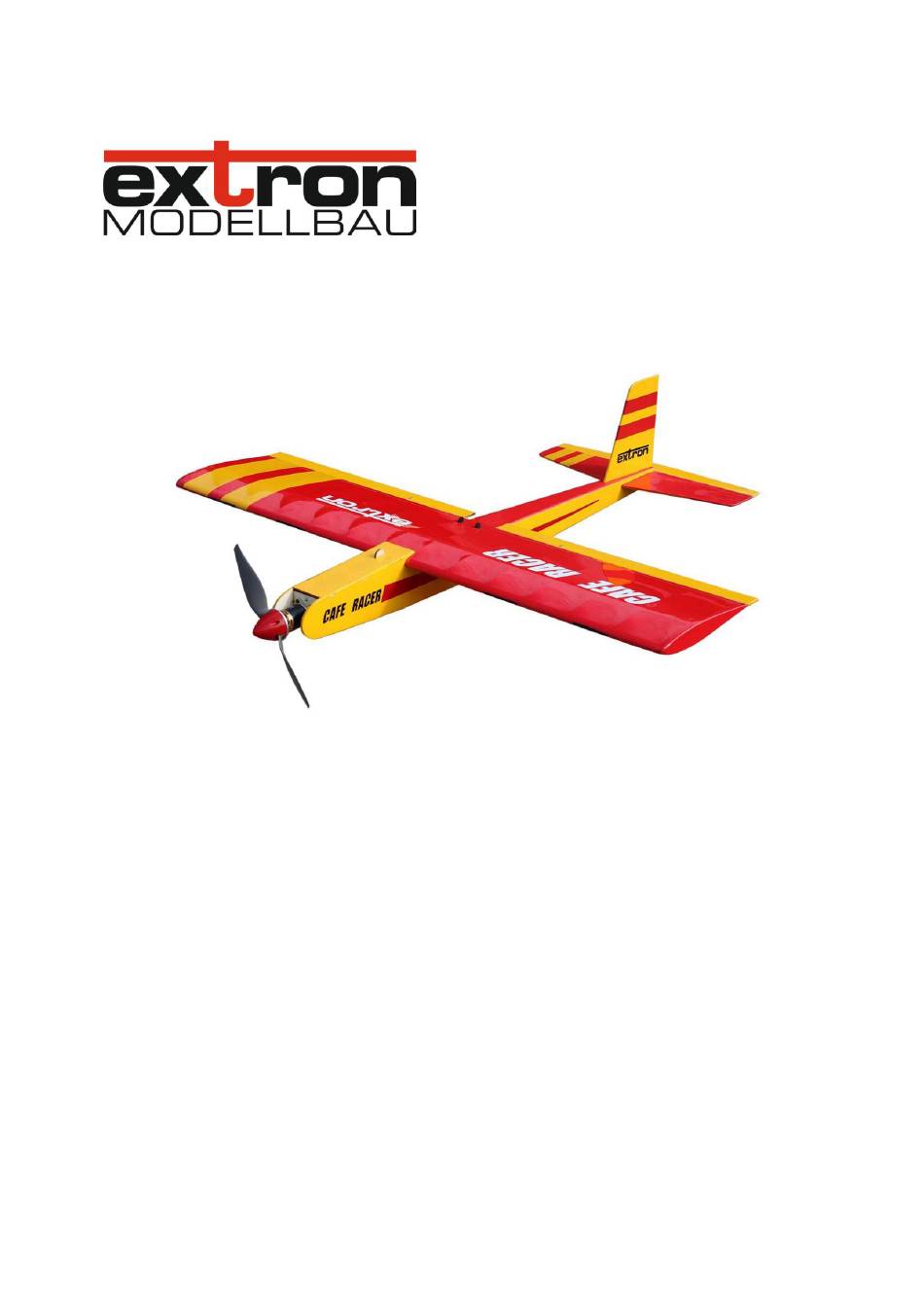

building instructions

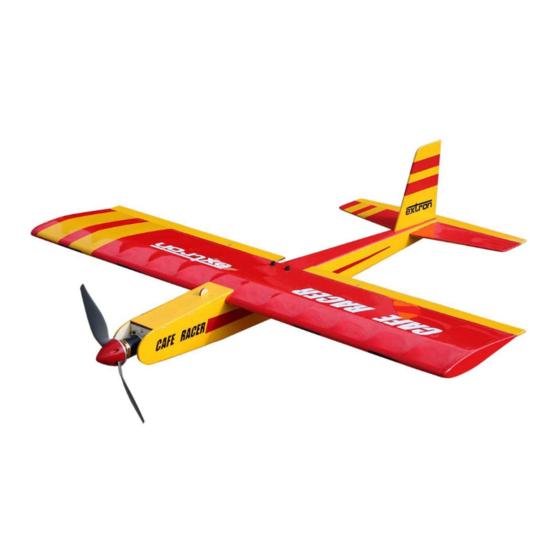

Cafe Racer #X5554
Wingspan 800mm
R/C flight model for electric drives
Control via 3 channels (elevator, aileron, motor)
MADE IN GERMANY
English Instructions
are available for download. Please check the product page on our
website
Instructions in French
available in téléchargement. Visit our website Internet.
Istruzioni in Italian
available for download. Visit our website on the web.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cafe Racer and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Extron electronics Cafe Racer

Summary of Contents for Extron electronics Cafe Racer

  • Page 1 Machine Translated by Google building instructions Cafe Racer #X5554 Wingspan 800mm R/C flight model for electric drives Control via 3 channels (elevator, aileron, motor) MADE IN GERMANY English Instructions are available for download. Please check the product page on our...
  • Page 2 Special accessories Please check the contents of the kit before starting construction. E-Brushless drive set for Cafe Racer, # X5555 [3] Servo EXTRON ED102, #X5608 LiPo battery EXTRON X2 1300-3S, # X6409 If any parts are missing or damaged, please let us know...
  • Page 3 Machine Translated by Google Tail units hull Glue the parts for the engine frame (2×E2). Glue spacer rings (2×E3) to the engine frame on the back. Staple and glue the parts for the vertical tail (I1, H5, H6) onto the building board. (Note: The spacer rings prevent damage After drying, sand the front edge round.
  • Page 4 Machine Translated by Google Insert and glue the upper back of the torso (D1). The wing underside of the two side parts should rest on the building board. Staple the lower main spar (B4) straight onto the building board Glue the rib comb (C2) onto it in the middle. To check, insert a rib as a test and, if necessary, Turn the fuselage over, insert and glue the lower Then align the rib comb.
  • Page 5 Machine Translated by Google Glue the block for wing screw connection from (F3, A5, E1 and F3). The two plywood parts lie in the middle between the balsa parts Use M4 screws as centering. Glue the servo holding frame (J4/J1) and cable gland (J6) to the underside of the wing.
  • Page 6 Machine Translated by Google Fasten the cover (J5) with the servo in the servo holding frame (J4/J1) with 4× screws 1.8×7 mm. Remove the wing from the fuselage and Lay the servo cable in the wing and pull it through sand the protruding parts of the block on both sides the hole in the cable gland (J6).
  • Page 7 Machine Translated by Google Insert the linkage from behind into the Screw the elevator servo into the servo board (E5). fuselage to the elevator servo. Determine and mark Bring servo to neutral position. the length on the servo arm. Bend the Z-end and hang it on the servo arm.
  • Page 8 Machine Translated by Google Control horns in elevator (J3) and aileron (J2) paste in. Glue the elevator and vertical stabilizer to the fuselage. The model's optimal center of gravity can be adjusted by moving the flight battery. Optimal center of gravity 63mm (Measured from the nose bar) Attach the controller to a fuselage side wall using double- Rudder deflections...
