'EXPOSED RACKS' INSTALLATION GUIDE [8-00-9607-BK, 8-00-9707-BK(RD), 8-00-9609-BK, 8-00-9709-BK(RD)]
FOR 2007 – 2018 JK (2dr) & JKU (4dr) JEEP WRANGLER WITH HARD TOP
PACKAGE

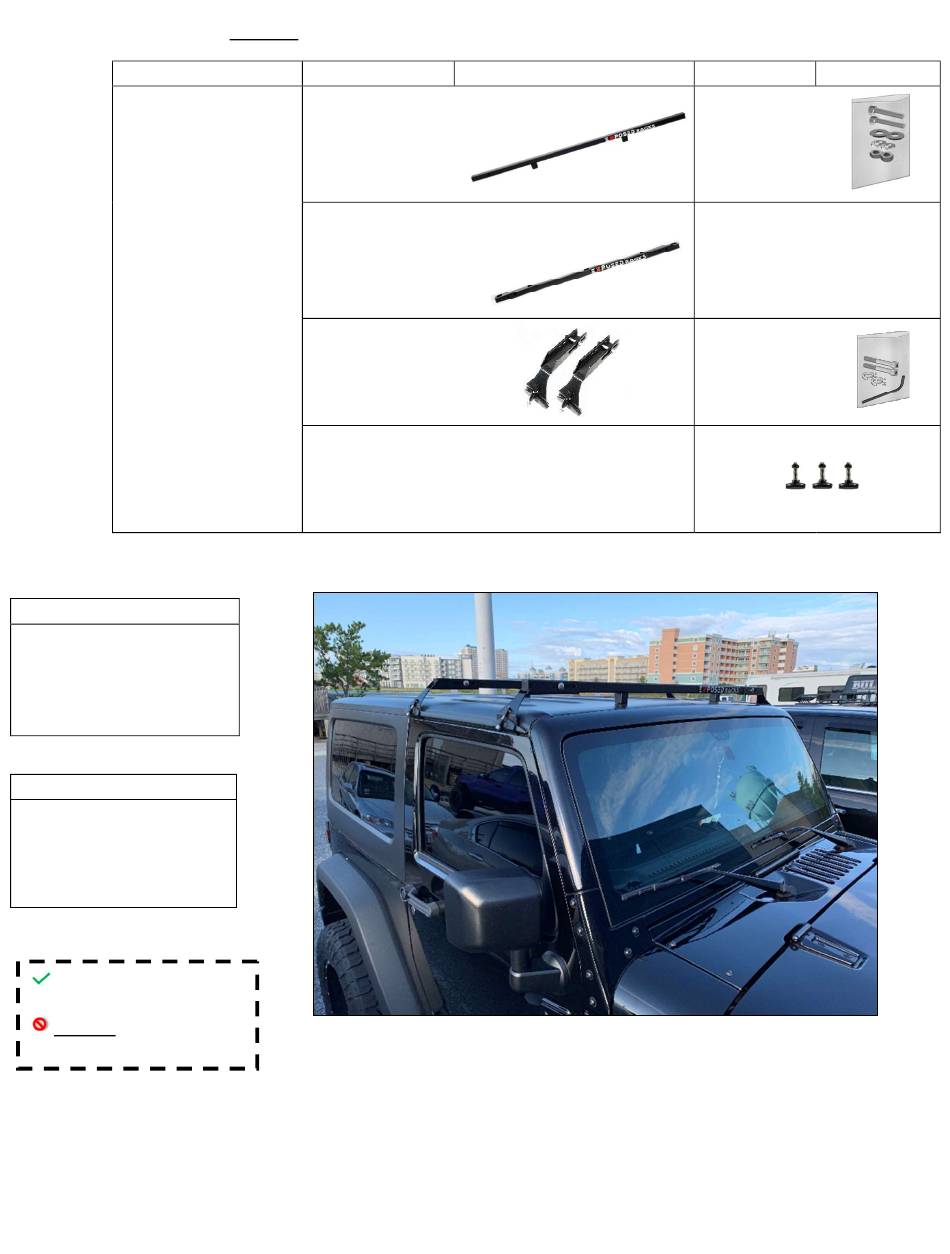

PARTS ID:
JK (2 dr) & JKU (4 dr)
8-00-9607-BK,
8-00-9707-BK,
8-00-9707-RD
JKU (4 dr)
8-00-9609-BK,
8-00-9709-BK,
8-00-9709-RD
TOOLS
NEEDED:
TOOLS
Adjustable Wrench
(not incl.),
Allen Key (incl.)
BEFORE STARTING:
UNPACK
Open and unpack all
items
HAND TIGHTEN ONLY!
-------------------------------------
DO NOT USE DRILL GUN
OR IMPACT WRENCH!
XBARS / BRACKET
8-00-9602
or
8-00-9702
8-00-9653
or
8-00-9753
8-00-9790
8-00-9915
8-00-9708-BK shown (with 8-00-
9915 feet)

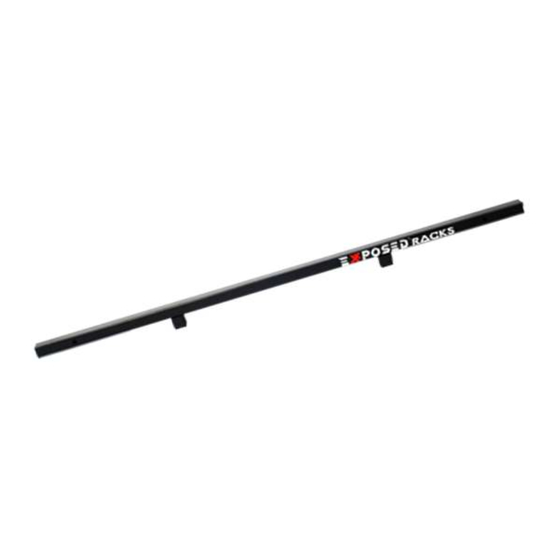

(2) 51" xbars installed, without the tent,
weight dist. Feet, or 40" bar installed yet.
PICTURE (of one)
51"
40"
1.5" Feet
874509681
HARDWARE
PICTURE (of one)
8-00-9905
or
8-00-9927
Uses Tent
mfg.
(not
hardware to
included)
install
8-00-9906
