Gima SKB1C02-1 Quick Start Manual

1. MANUAL INTRODUCTION
The manual stair stretcher is widely used in the home for the
old people, school security, hospitals, hotels etc for emergency
evacuation
Note:
Please carefully read this manual and strictly follow the steps
before installing and using. We require all users to have the
knowledge of user's manual and all the cautions.
►This manual is applicable to SKB1C02-1 manual stair stretcher.
It contains the installation method, operating instructions and
maintenance check points.
►The graphics in this manual are for users' reference only. In
actual use, please refer to the real object.
►This user manual includes the description, instruction, mainte-
nance and technical parameters of the product.
►Any questions, please contact the after-sale service center or
distributor.
►Anyone using or operating this product should read and comply
with it.
►Except for some unexpected situations, users are required to
be familiar with the usage and precautions.
I. Manual stair climbing wheelchair overview
SKB1C10 Climbing chairs made of aluminum alloy material,
lightweight, easy folding, easy to operate etc. The chair takes up
little storage space after folding, and is suitable for carrying in a
private car. Weight capacity:180KG

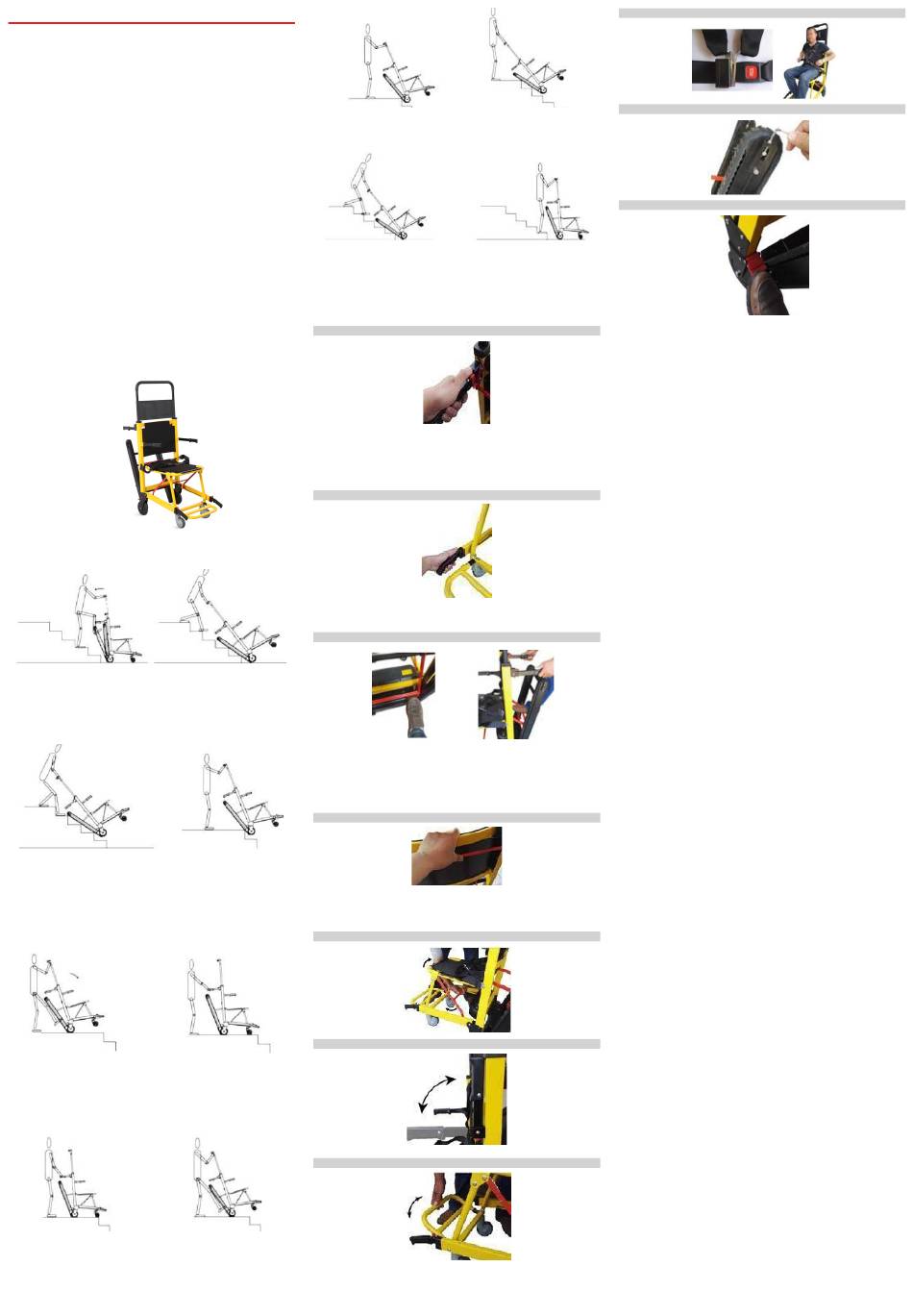

II. Wheelchair structure
III. Upstairs operation
1. Open the track frame, and 2. Put the chair on the stairs,
adjust the rod position. Pull press the power button on the
the lever with both hands, control box, and turn on the
place the right foot on the track power supply. Hold the upstairs
frame above the cross tube, button and the chair will move
and back down the chair. upwards.
3. If you need to stop halfway, 4. When reaching the last stair,
release the upstairs button. pull the tie rod with both hands
On the way up, the hands do and slowly pull up and lift the
not need to pull the chair up. chair on the ground. Climbing
It has to be in a vertical angle the stairs is not necessary, so
along the stairs. You only need the operation does not require
to hold the chair and apply a great effort.
little pressure.
5. When the front wheel enters 6. Grab the handle, lift the
the stairs, slowly lower down chair, and move to other
the chair with the right foot staircase.
until it reaches the floor.
IV. Downstairs operation
1. Push the stair climbing chair 2. Tread the lower cross pipe
through the floor until placing with the right foot, pull the tie
the front wheels on the edge rod back with both hands to tilt
of the stairs. the chair down. Then, press
down the key of the stairs.
ENGLISH
3. Slowly, put down the chair
on the first edge, and lean
down the stairs.
5. During the going down pro-
cess, place the hands slightly
down the rod to not produce
bumps. When you stop hal-
fway, loosen down the key.
V. Operation of each part
a. Handle
Open: Press the button. While pressing it, lift the handle up slightly
up, then release the button to fix it.
Lock: Press the button, lift the handle up, and release the button.
Then, it will be locked.
b. Front lifting handle
Press the red button to unlock the hole and extend the handle.
Release the button to fix the handle.
c. Rubber track frame
Open: Step on the foot pedal;
then, the track frame will
automatically open through its
gas lift system.
d. Pull rod
Push the bar inwards to unlock the lock system. Once it is
unlocked, pull the adjusting bar upwards or downwards to adjust it
to the needed height.
e. Folding wheelchair
f. Handrails
g. Pedal
Grasp the support rod and pull it downwards. When the lock slides
out of the curved slot, rotate the chair surface tube to fold the chair
surface.
h. Safe-belt, Headrest & Straps
i. Track Adjustment
4. Slightly lean to the angle of
the belt and the stairs.
j. Brakes
6. When the track reaches the
landing, release the button and
slowly lift the chair.
2. MAINTENANCE
1. In order to use the Manual Stair Stretcher safely, it is neces-
sary to perform regular safety inspections on the Manual Stair
Stretcher. It is recommended to check it every six months to
ensure that the connections are not loose and all operations
are normal.
2. When the Manual Stair Stretcher frame ages and it reaches a
certain servicing time, which the metal part of the Manual Stair
Stretcher and plastic parts of the Manual Stair Stretcher frame
can be recycle.
3. Avoid scratching the panel with sharp-angle appliances or kni-
ves during use, and clean it frequently to keep it clean and dry.
4. If the panel is accidentally stained with stains, it is recommen-
ded to clean it. Do not use alkaline or corrosive chemicals to
clean the Electric Stair Stretcher, which will cause the stainless
steel surface to rust.
5. Regularly check the casters to avoid hitting or overloading,
which will cause damage to the casters.
6. It is forbidden to force the casters to brake when braking, which
will cause damage to the brake system.
7. The wear of the tire surface of the wheel can be detected by
visual inspection. Some thread spun yarn and other accumula-
tions may be wrapped around the wheel, remove the bolts and
nuts of the wheel, clean up the debris, and check whether the
bearing of the wheel is damaged. If the parts are not damaged,
can be reassembled and used.
8. Judging whether the caster is replaced according to the time
used, wear and tear, you can replace the wheels and make
sure that the axles bolt and nuts are well put together and
connected. If possible, use a lock washers or locknuts to help
you with this process.
9. For the casters equipped with brakes, it is necessary to regu-
larly check whether the brakes are working properly. Check
the brakes once a day or before each use. For a bedside table
equipped with multiple brake casters, only one brake caster
can be locked at a time which will allow you to try and push
the bedside table also check whether one of the brake perfor-
mance of each caster is good. If the function of the brake fails
Lock: Lift the evac chair with
due to wear or damage to the wheels, immediately replace the
both hands and hold it down,
wheels and then retest the brake system.
press the crawler belt support
10. If the mechanism of the brake system of the caster is dama-
bar down until the pedal locks
ged, and the brake needs to be repaired or replaced, please
it again.
contact our after-sales service department or authorized dealer
provide by our company. Every time the brakes are replaced,
the brake performance of the casters must be retested.
3. PACKAGING, TRANSPORT, STORAGE
1. The packaging of trolley is carried out according to the contract
or product standard.
2. Avoid rushing out, violent vibration, and prevent from sunlight
and rain during the transportation of the trolley.
3. The trolley should be stored:
a) Ambient temperature: -10°C ~ +40°C.
b) Relative humidity: ≤ 85%.
c) Atmospheric pressure: 70 kPa ~ 106 kPa.
4. The max load is 180Kg
4. AFTER-SALES SERVICE
1. Please keep the files that comes with the machine and
invoices of this product properly, and you need to present these
files when the company performs warranty and maintenance
for the product.
2. If there is any problem in the process of using, please contact
our company in time, so that our company can provide you
with accurate and fast technical support and maintenance
services in a timely manner.
3. From the date of sale, if the product is broken or damaged due
to the correct installation and use according to the specifica-
tion,the product will enjoy one-year free warranty and lifelong
maintenance service with the "certificate" or invoice.
4. From the date of purchase, if it is indeed damaged or does
not work normally due to quality problems within one year,
the company will provide to the users a free repairing of the
product.
5. Lifetime service from manufacturer: JIANGSU SAIKANG
MEDICAL EQUIPMENT CO LTD
Notice!: any serious incident that has occurred in relation
to the device shall be reported to the manufacturer and the
competent authority of the Member State in which the user
and/or the patient is established.
Don't use the device in direct contact with the skin.
GIMA WARRANTY TERMS
The Gima 12-month standard B2B warranty applies
