Summary of Contents for Bricasti Design M19

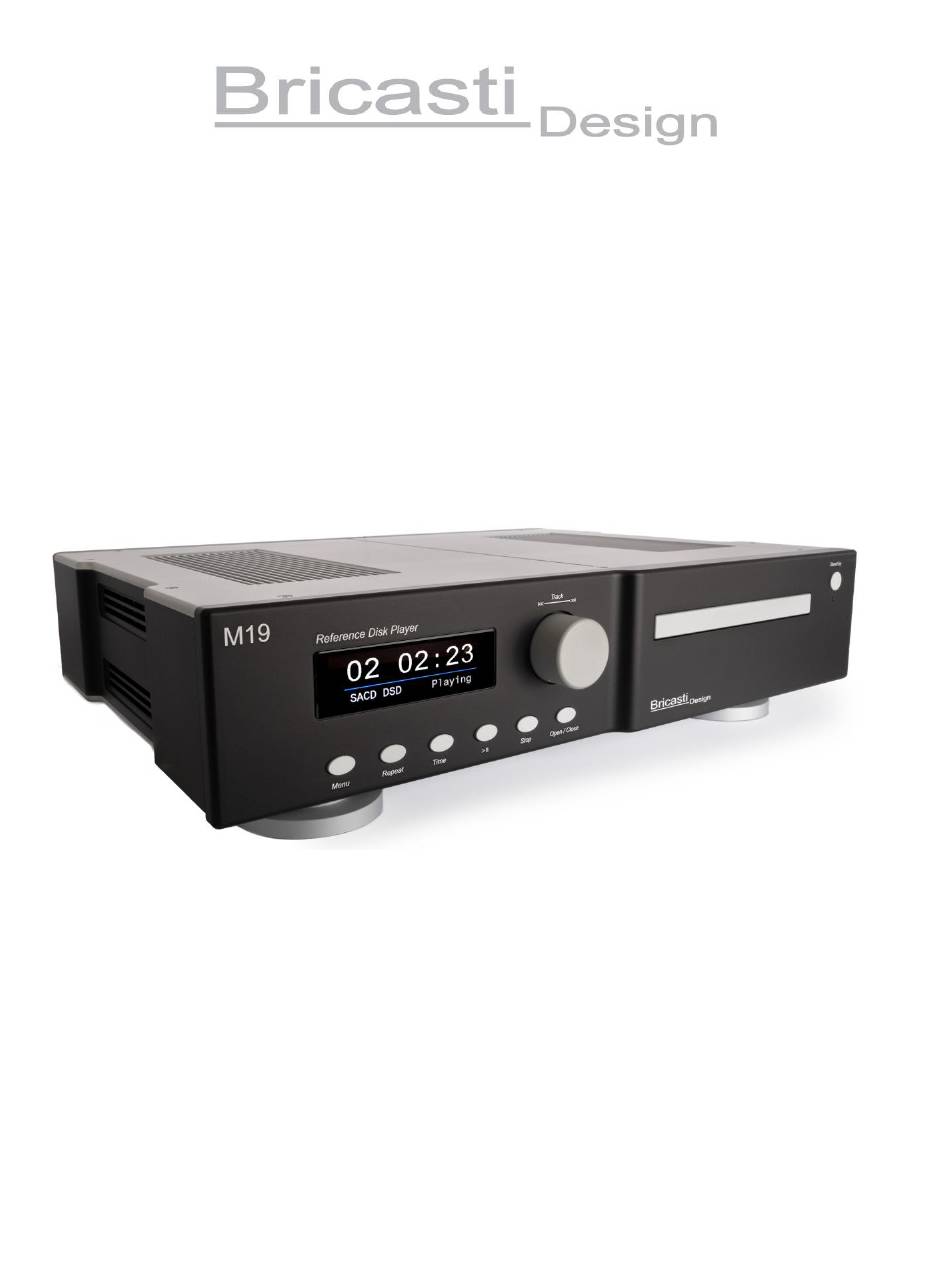

- Page 1 Reference SACD/CD Transport User Guide 10/23...
-
Page 2: Unpacking And Inspection
Unpacking and Inspection After unpacking the M19 save all packing materials in the event you ever need to ship the unit. Thoroughly inspect the M19 and packing materials for any signs of damage in shipment. Report any damage to the carrier at once Precautions The Bricasti Design M19 is a rugged device with extensive electrical protection. -
Page 3: Canadian Customers
This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numerous de la classe B est conforme a la norme NMB-003 du Canada. Certificate Of Conformity Bricasti Design, 2 Shaker Rd, Shirley, USA, hereby declares on its own responsibility the following products: M19 –Transport... -
Page 4: Product Overview
Product Overview The M19 is a simple CD and SACD compatible disk player. It is a transport, meaning the M19 has no D/A converter and is designed to be used with an external DAC. As such, the M19 has AES and SPDIF outputs as well as a proprietary I2S output designed to interface to our line of DAC products. -
Page 5: Important Safety Instructions
Important Safety Instructions Notice! Warning! • • Read these instructions. To reduce the risk of fire or electrical • shock do not expose this equipment to Keep these instructions. dripping or splashing water and ensure • Heed all warnings. that no objects such as vases are placed on •... -
Page 6: Design Overview
Bricasti products. Its pin out is not a normal standard and the M19 is supplied with an adaptor cable for use with other products that use the tip as the positive... -
Page 7: Front Panel Overview
The front panel has a large, simple, easy to read graphic display, an encoder for changing tracks adjusting and selecting settings, There is an IR receiver built in to the left side center of the display for using the M19 remote controller. -
Page 8: Setup And Operation
Connecting the M19 and power up When you power up the M19 it will power on and be ready to load and play a disk. All outputs are active all the time, so connect one or more of them to your dac and find what one best that matches your DAC’s inputs. You can simply load a disk and play. - Page 9 Pressing play with the drawer open, will auto load the disk and start play back The M19 display in playback mode: Top text left to right: track# : minutes, : seconds. Lower text left is disk type and right status of playing or paused. In stop, pause or play mode, the knob is used for track advance/retard.
- Page 10 M19 to be controlled remotely from your listening position. This is an IR device so it is important that line of sight to the M19 front panel where the IR receiver is mounted is maintained.
-
Page 11: Technical Specifications
Technical Specifications Digital Outputs Connectors: XLR: AES/EBU 24 bit Single Wire RCA or BNC option: SPDIF RJ45: Sample Rates AES, SPDIF: 44.1 kHz, or DSD 64fs as DoP Sample Rates I2S: 44.1 kHz, or DSD 64fs Native General Specifications Complies with: EN 55103-1 and EN 55103-2 FCC part 15, Class B RoHS... - Page 12 Copyright 06/2020- Bricasti Design Ltd.-2 Shaker Rd,- Shirley, MA 01464 USA...
