  • Page 1 Install Subwoofer QUICK START INSTALLATION GUIDE Rev A 230726 Theory iws12-9 QUICK START...
  • Page 2: Limited Warranty

    LIMITED WARRANTY Disclaimer : THEORY AUDIO DESIGN, LLC is not liable for any damage to loudspeakers or any other equipment that is caused by negligence or improper use or installation of this product, including damage caused by connecting Theory loudspeakers and subwoofers to third party ampli- fiers.
  • Page 3: Important Safety Instructions

    Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus that produce heat. Use only attachments/accessories specified by THEORY AUDIO DESIGN, LLC. Use only with hardware, brackets, stands, and components sold with the apparatus or supplied by THEORY AUDIO DESIGN, LLC. 10. Mount only to solid architectural walls and ceilings.
  • Page 4: Product Features

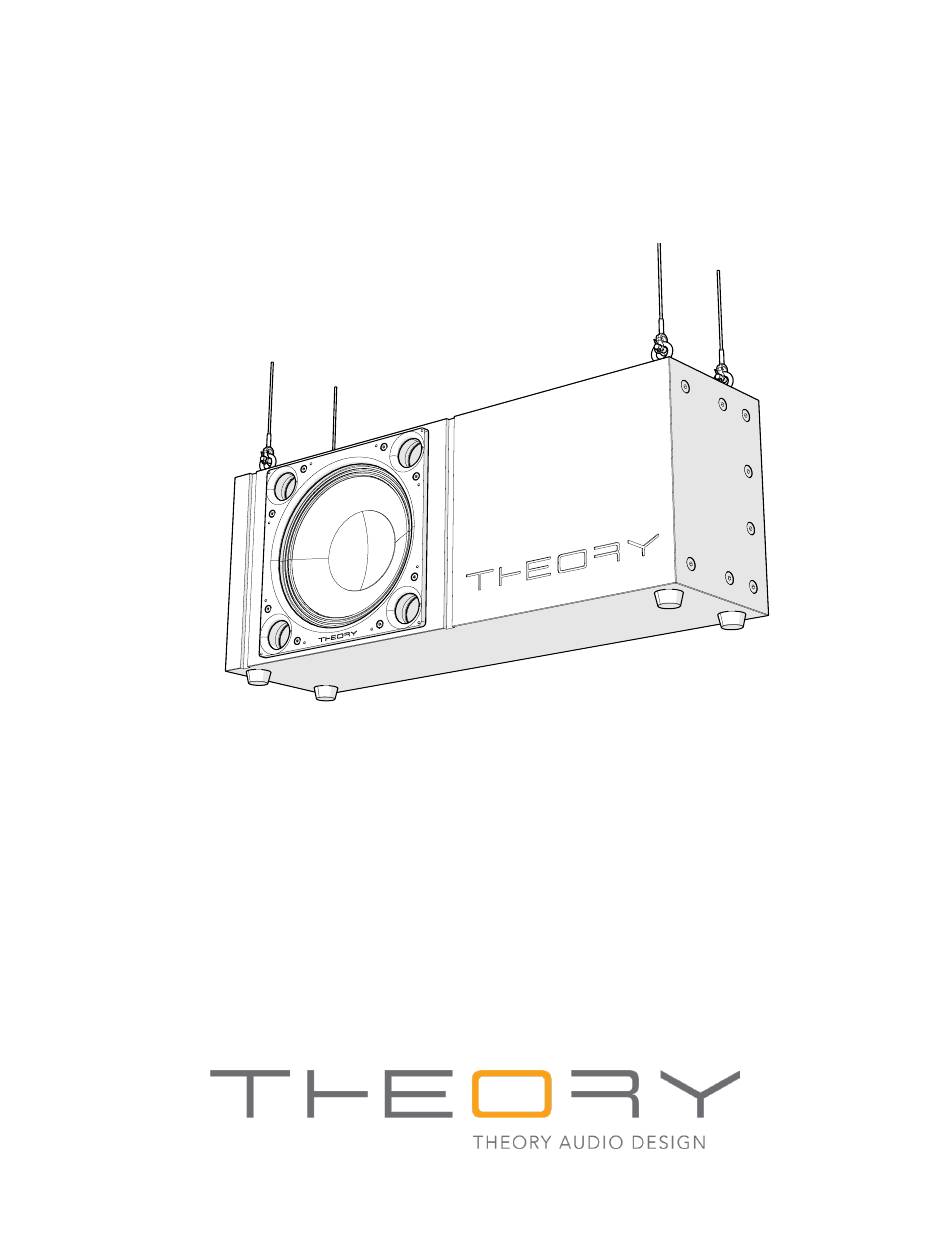

    Loudspeaker Controller channel. Do not exceed two units wired in parallel per channel. Your Theory iws12-9 Subwoofer System may be installed on the surface of ordinary architectural walls and ceilings, or may be flown overhead using proper cables and rigging hardware.
  • Page 5: Installation Options

    FLOOR, SURFACE, FLY Your Theory iws12-9 Subwoofer System can be installed in many different ways, making integration into even challenging interiors painless. Below is a list of installation options available. Before you begin your project, review the options and select the method that best suits your project.
  • Page 6 YOKE mounting bracket. 1f. - FLY To fly the iws12-9 Subwoofer System use the included M10 rigging eyebolts and four of the M10 rigging points on the top surface of the enclosure.
  • Page 7 The iws12-9 subwoofer system provides powerful and ex- FIGURE 2b. Perforated Aluminum Grille. tended low frequency response (to 24Hz!) To accomplish...
  • Page 8: Installation

    Eyebolts, washers and lock washers. WHEN FLYING. 3c. - STANDING To stand the iws12-9 Subwoofer System on its included rubber feet, simply determine a safe location for the sub- woofer to sit and place it carefully making sure it is out of harm’...
  • Page 9 Using the second (unused) set of “+” and “-” connections on the input Euro Plug, run two-conductor speaker wire from this plug to the input Euro plug of the second iws12-9 Subwoofer. DO NOT PARALLEL MORE THAN TWO iws12-9 SUBWOOFER SYSTEMS ON A SINGLE AMPLIFIER CHANNEL.
  • Page 10 Using the second (unused) set of “+” and “-” connections on the input Euro Plug, run two-conductor speaker wire from this plug to the input Euro plug of the second iws12-9 Subwoofer. DO NOT PARALLEL MORE THAN TWO iws12-9 SUBWOOFER SYSTEMS ON A SINGLE AMPLI- FIER CHANNEL.
  • Page 11: Specifications

    © 2023 THEORY AUDIO DESIGN, LLC. All rights reserved. Theory Audio Design routinely engages in programs to improve, modify and revise its products without notice or obligation. As such, your product may differ slightly from what is shown in this guide.
