V-TUF tufTURBO H1.007 Quick Start Manual

21" Surface Cleaner H1.007

WARNING:

To reduce the risk of injury, user must read and understand
the operator's manual for their pressure washer before using
this accessory. Fits most pressure washers. Ensure
compatibility and proper fit before using this accessory. Wear
eye protection marked to comply with Z87.1. Risk of fluid
injections. Do not point at people, pets, electrical devices or
the unit itself. Turn off the pressure washer before changing or
adjusting accessories. For cold water use only. Save these
instructions. Refer to them frequently and use them to instruct
other users. If you loan someone this tool, loan them these
instructions also.

PRODUCT SPECIFICATIONS

Connections..................................3/8 in. Quick Connect Plug Inlet
Deck Width........................................................................ 21 in.
Maximum Pressure........................................................4000 PSI
Maximum Water Flow.......................................................5 GPM
Maximum Water Temperature.........................................300°F

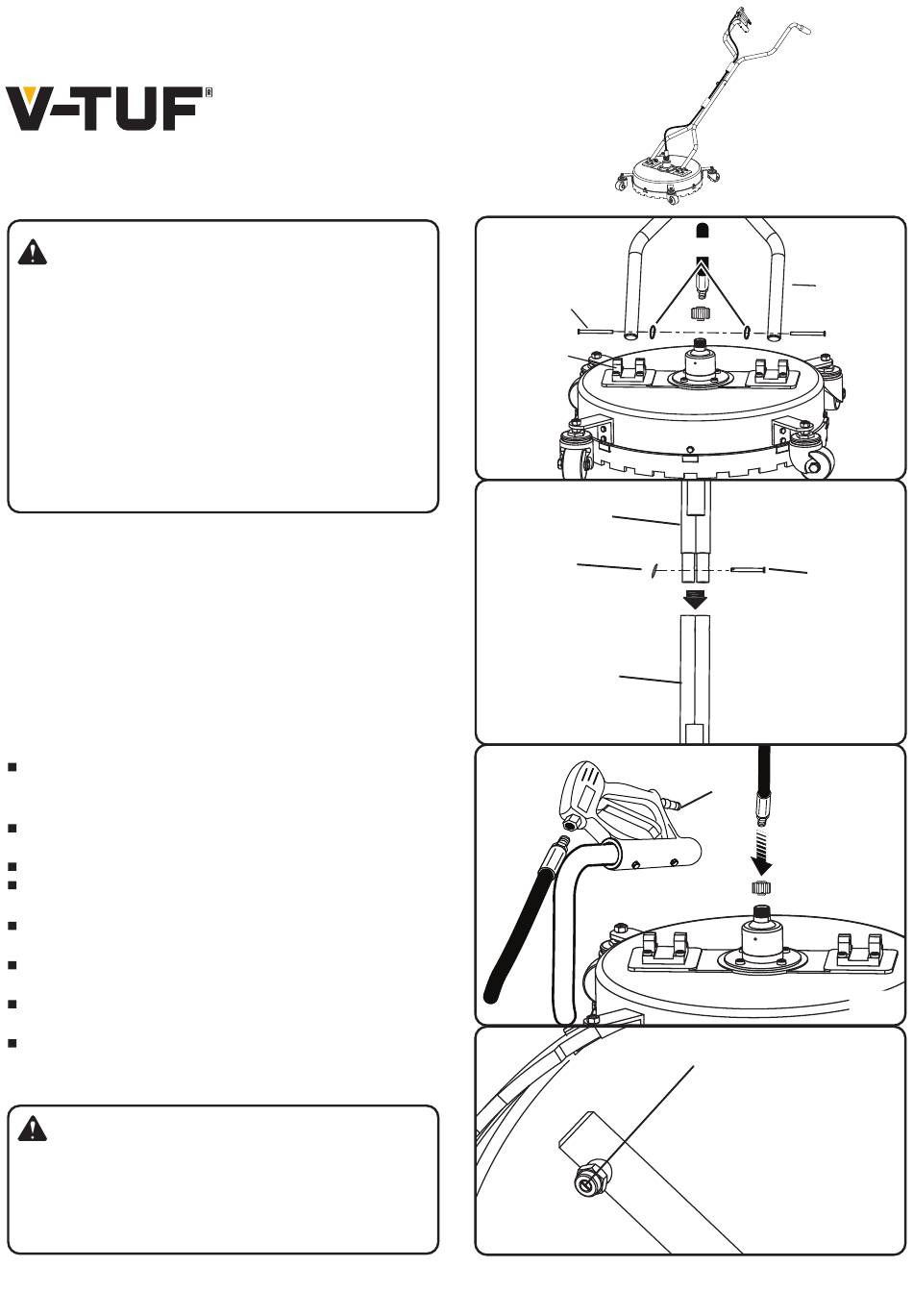

ASSEMBLING THE SURFACE CLEANER

See Figure 1 - 4.
Place the legs of the lower handle in the mounting brackets on
the surface cleaner deck. Align the holes in the legs with the
holes in the brackets.
Insert pin through the holes in the mounting brackets and legs.
Install split ring through hole on the end of the pin to secure.
Repeat this process to secure the other leg.
Attach the upper handle to the lower handle. Secure with pin
and split ring.
Apply high strength threadlocker liquid or teflon tape (if needed)
to the ends of the hose.
Attach the fixed end of the hose to the trigger handle inlet.
Securely tighten, but do not overtighten.
Attach the swivel end of the hose to the inlet on the top of the
surface cleaning deck. Securely tighten, but do not overtighten.
Check the bottom of the surface cleaner deck to verify that the
nozzles are tightened securely and are aligned correctly.
WARNING:
To reduce the risk of injection or injury, only use the surface
cleaner on flat, horizontal surfaces. Never lift the surface
cleaner from the cleaning surface while operating the
pressure washer.
SPLIT RING
PIN
MOUNTING
BRACKET
UPPER
HANDLE
SPLIT
RING
LOWER
HANDLE
SPRAY
GUN
NOZZLE OPENING
LOWER
HANDLE
LEG
Fig. 1
PIN
Fig. 2
INLET
PLUG
SURFACE CLEANER
Fig. 3
AFTER TIGHTENING
SECURELY,
NOZZLE OPENING SHOULD
BE POINTED
IN SAME DIRECTION AS
SPRAY BAR
Fig. 4
