Elecrow RPA08110C Instructions

Raspberry pi 5 acrylic case
Hide thumbs
1
2

Advertisement

Table of Contents

Product Parameters
Raspberry Pi 5 Acrylic Case
100mm
33.5mm
Instructions
www.elecrow.com
ELECROW All Rights Reserved.

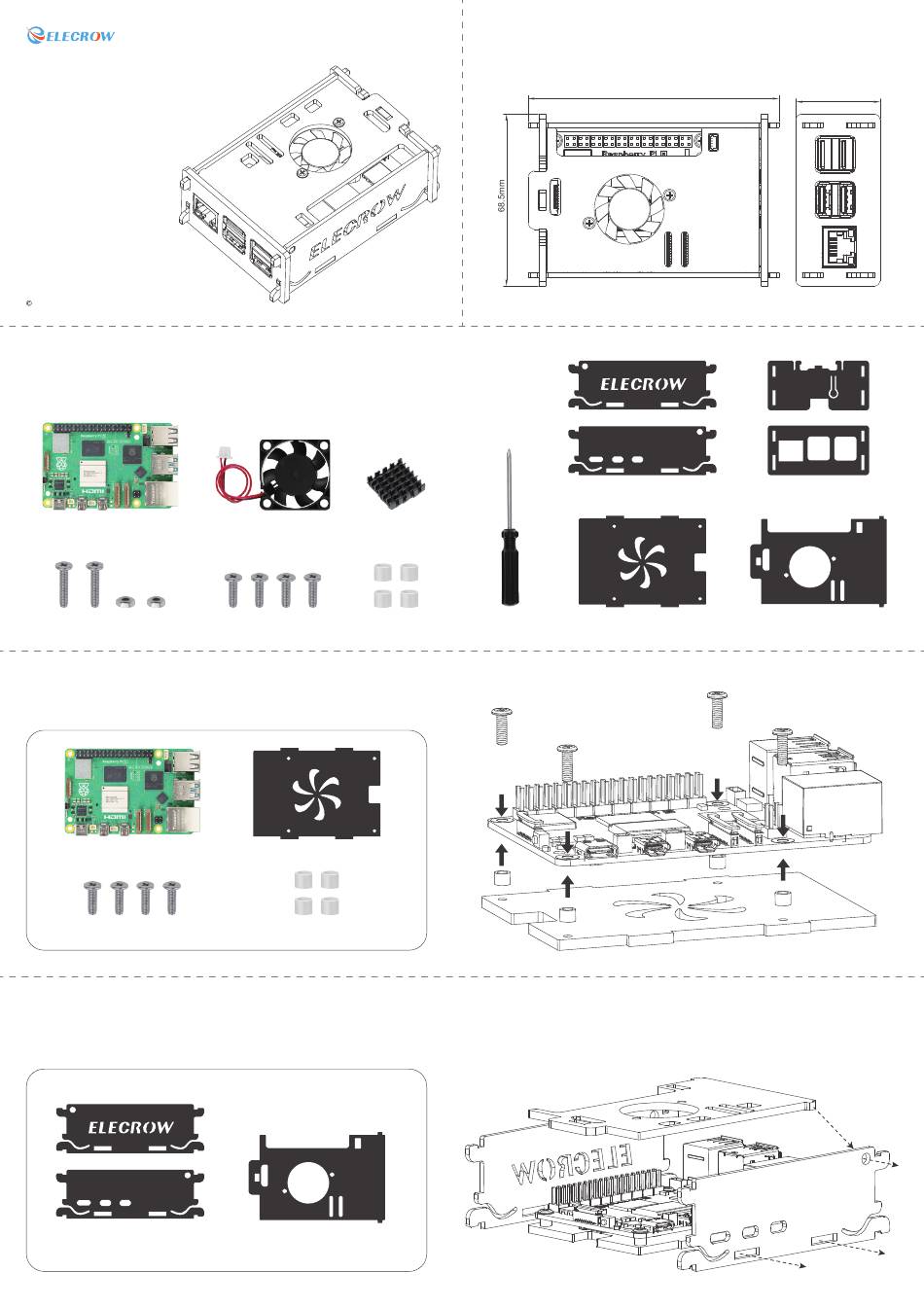

Step 1: Preparation

Note: Before installation, please remove the stickers on the acrylic panel.
Acrylic Left&Right Panel X2
Acrylic Front&Back Panel X2
Raspberry Pi 5 X1 (Not included)
Cooling Fan X1
Heat Sink X1
CM2.5X12MM Screws&Nuts X2
CM2.5X8MM Screws X4
Plastic Column X4
Screwdriver X1
Acrylic Base Panel X1
Acrylic Top Panel X1

Step 2: Install The Acrylic Base Panel

Fix the acrylic base panel to the bottom of Raspberry Pi 5.
Raspberry Pi 5
Acrylic Base Panel X1
CM2.5X8MM Screws X4
Plastic Column X4

Step 3: Install Acrylic Left and Right Side Panels and Top Panel

Place the corresponding port holes on the left and right acrylic panels to the
Raspberry Pi 5, and insert the acrylict top panel to the round holes on side panels.
Acrylic Left&Right Panel X2
Acrylic Top Panel X1
