Kit Part Number:
For Use with Rinnai Recess Box:
For Use with Rinnai Tankless
Water Heater Models:
WARNING
•
Failure to correctly assemble the components according to these instructions may result in electric shock, injury,
or death.
•
A trained and qualified professional must install and inspect the recess box before use.
•
Warranty will be voided due to any improper installation.
•
For outdoor installation only.
•
Make sure the recess box is accessible for servicing and maintenance of the water heater.

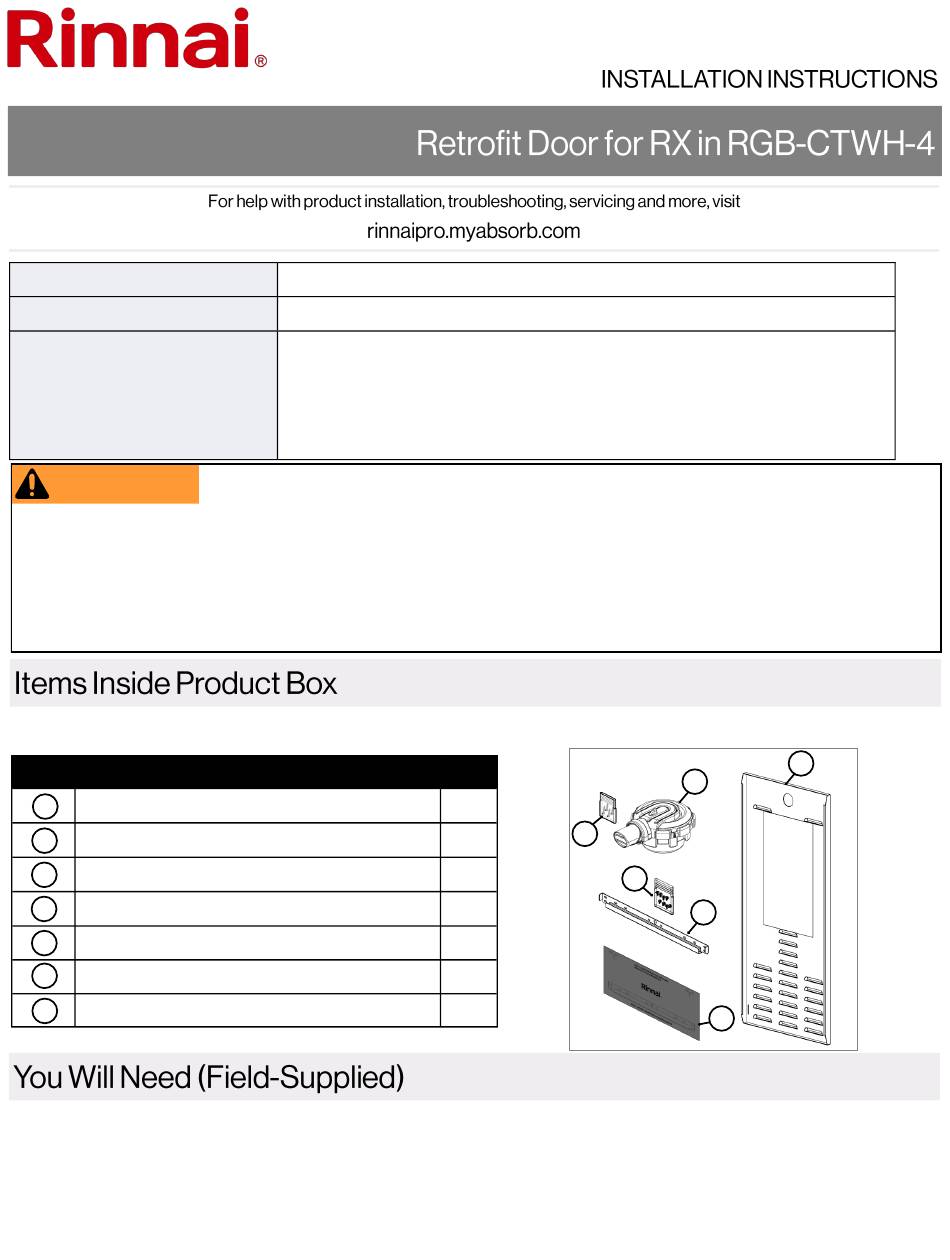

Before installation, please make sure all parts are located inside the product box.
Item #
1
Retrofit Door Panel
2
Mounting Bracket
No.10 Screws
3
Locator Label
4
Vent Cap
5
6
No.8 Screws
Installation Instructions (this document)
7
•
Standard plumbing tools, such as pliers, pipe wrenches and screwdrivers
•
Isolation Valve Kit
•
Sealant and Caulk Gun
•
Drill (for drilling pilot holes, piping connections and removing rivets)
•
Hex Head Nut Driver
•
Phillips Head Screwdriver
104000335
RGB-CTWH-4
•
RX199i (REU-NB3237FF-US)
•
RX180i (REU-NB2934FF-US)
•
RX160i (REU-NB2530FF-US)
•
RX130i (REU-NB2024FF-US)
•
RXP199i (REU-NBP3237FF-US)
Item
•
RXP160i (REU-NBP2530FF-US)
•
CX199i (REU-NB3237FFC-US)
•
CX160i (REU-NB2530FFC-US)
•
CXP199i (REU-NBP3237FFC-US)
•
CXP160i (REU-NBP2530FFC-US)
Figure 1
Qty
1
6
1
8
3
1
1
4
1
1
5
2
4
