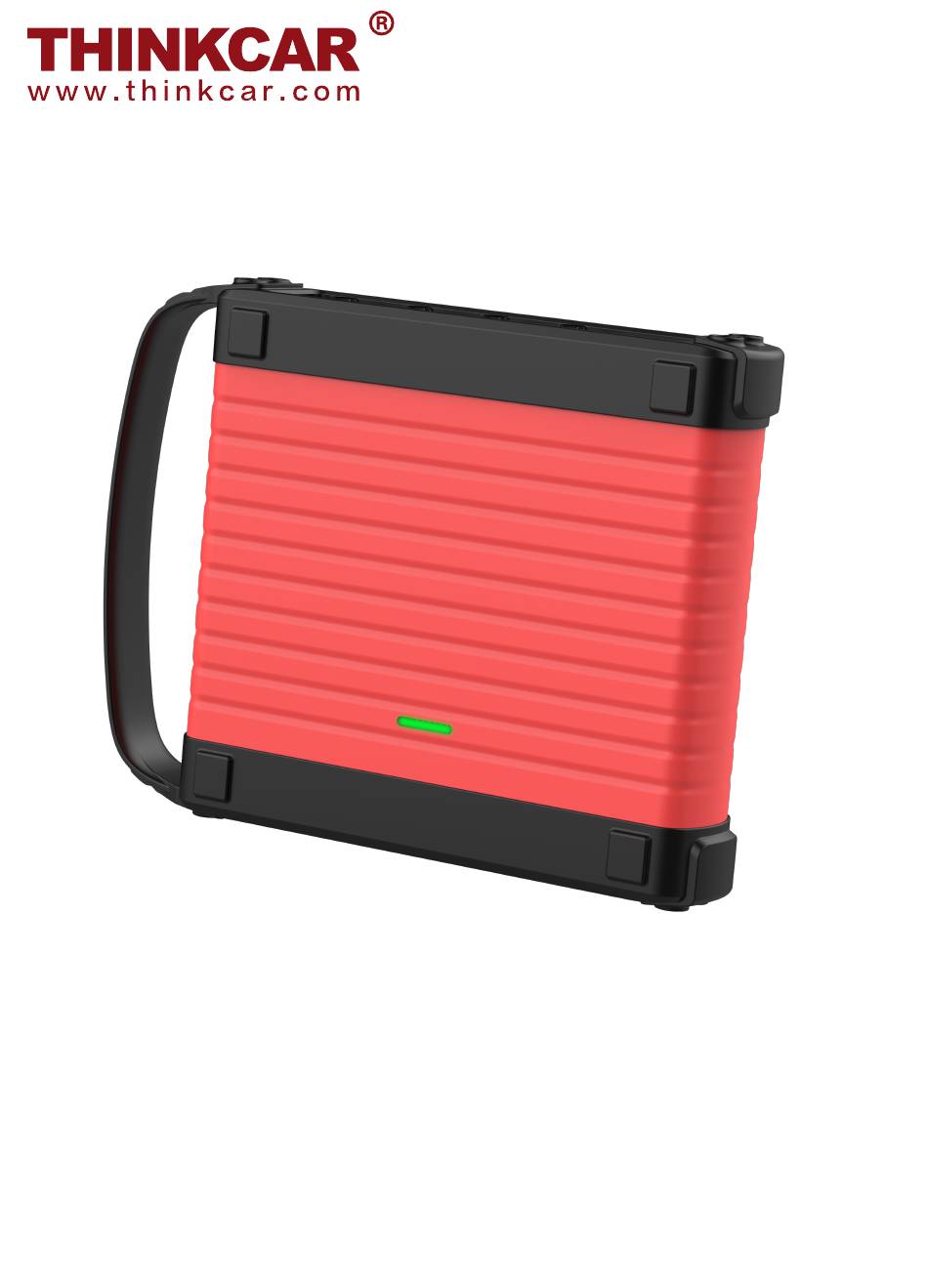

- Page 1 THINKTOOL Scope Box Quick Start Guide All information, illustrations and specifications contained in this manual are based on the latest information at the time of publication and we reserve the right to change without notice.
- Page 2 Overall Description of Appearance and Interface Horizontal waveform positioning Sample info Trigger instructions Zoom mode Cursor Main menu measurements Waveform area Waveform selection and motion Vehicle menu Fine adjustment Crank angle cursor Waveform Waveform Scope quick save selection bar Box cable Horizontal setting Indicator light View all terminal ratings: To avoid fire and the impact of excessive current, please check all ratings...
- Page 3 Wiring Instructions for Voltage Measurement Clip the clamp to the battery negative (ground), insert the needle into the charge connector of the required test connection plug, and connect the BNC wire signal end to the needle, or hook the high-frequency probe on the needle; Connect BNC terminal to the scope box.
- Page 4 Instructions of Secondary lgnition Probe Connection Please connect the BNC to the scope box, and the ground clamp to the battery negative(Ground); For the model with cylinder wire, clamp the secondary ignition probe on the cylinder wire; For COP independent ignition models, place the ignition probe directly above the ignition coil and ensure good contact.
- Page 5 Open and Close Channels and Use Vertical Menu Click the channel button to open or close the channel display, or to open the channel Settings menu.
- Page 6 Waveform Selection and Motion Click on the waveform to select the waveform, holding down the waveform to move the waveform horizontally or vertically. Note: when there is a large number of waveform, you can click the lower channel button to open the channel menu and select waveform.
- Page 7 Adjust Size and Density of Waveform When the waveform is too dense or too sparse, it is not conductive to observe.
- Page 8 Adjust Synchronized Electric Level When the waveform is unstable or cannot be synchronized, it is necessary to adjust the trigger source or trigger level to make it synchronous and stable. Automatic Measurement of Waveform Data Open the main menu, select the measured channel in the measurement, and add it.
-
Page 9: Cursor Measurements
Cursor Measurements In the shortcut menu below, you can quickly open the cursor, by sliding the cursor, measure the waveform of the voltage value, voltage difference, time difference, frequency, etc. (the difference value between the two vertical cursors is the time. It can measure period, other time difference or the engine speed, etc. - Page 10 Save and View Waveform Save: main menu - > save - > select saving channel and saving type, input waveform name - > click on “save” View: switch the channel interface, open Ref and select the waveform to be viewed.
- Page 11 Zoom Sometimes it is necessary to check and organize the waveform, such as the entire period of the crankshaft/camshaft; also , you need to look at the details, such as the waveform of one or two waveform of the crankshaft, and you need to use zoom.
-
Page 12: Probe Compensation
3. Product warranty starting date is based on the purchase date. Service Line: 1-833-692-2766 Customer Service Email: support@thinkcarus.com Official Website: www.thinkcar.com Products tutorial, videos, Q&A and coverage list are available on Thinkcar official website. Follow us on @thinkcar.official @ObdThinkcar...
