- Page 1 X-Rite i1Pro Spectrophotometer (VPX-ACC-8000) User Manual Version 1.0 Phone : (514) 328-7499 1 (844) 488-7499 - Toll Free USA/Canada EMAIL: support@vpixx.com www.vpixx.com...
- Page 2 User Manual IMPORTANT VPixx Technologies Inc. reserves the right to modify or otherwise update this document without notice as required by a constantly evolving marketplace, client requests or to adapt to new progress or constraints in engineering or manufacturing technology. The information contained in this document may change without prior notice.
-
Page 3: Table Of Contents
Software Installation Instructions for Mac OS X........................10 Driver and Software Installation Instructions for Windows ....................11 Software support .................................. 12 Monitor measurement ................................. 12 vputil Software Tool ................................13 Warranty ....................................14 Copyright © 2020 VPixx Technologies Inc. All Rights Reserved... -
Page 4: Table Of Figures
User Manual Table of Figures FIGURE 1 X-RITE I1PRO SPECTROPHOTOMETER ............................8 FIGURE 2 STATUS INDICATOR ................................... 8 FIGURE 3 VPIXX TOOLS SETUP WIZARD ..............................11 FIGURE 4 VPUTIL APPLICATION MAIN SCREEN ............................13... -
Page 5: Overview
E-mail at support@vpixx.com By creating your MyVPixx account on the VPixx Technologies website, you will have access to additional product documentation, demos, source code examples and the latest firmware and software drivers. WARNING - SAFETY INFORMATION & PRECAUTIONS... - Page 6 i1Pro User Manual To maintain the measurement performance of your i1Pro over its lifetime, it is important to observe the following rules and to periodically clean certain parts that are critical to measurement performance. A clean white reference ceramic tile is essential in providing accuracy to your measurements. The •...
-
Page 7: Compliance Information
2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose of the equipment as unsorted support@vpixx.com municipal waste. For more information call VPixx Technologies Inc. or email us at Declaration of RoHS Compliance This product has been designed and manufactured in compliance with Directive 2002/95/EC of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS Directive). -
Page 8: For The United States Of America
i1Pro User Manual For the United States of America NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 9: General Specifications

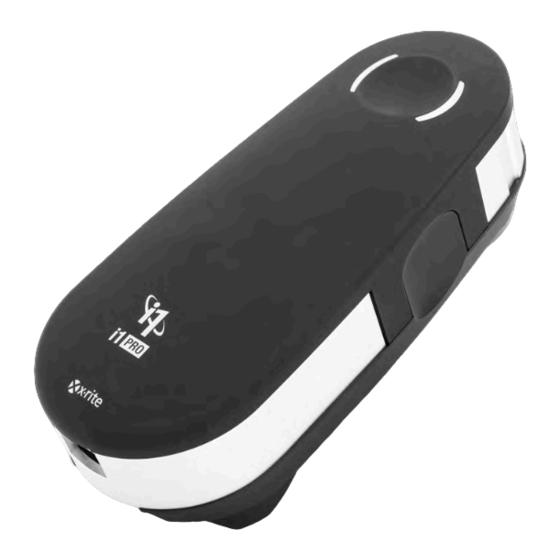

General specifications The X-Rite i1Pro is a true spectrophotometer, featuring greater accuracy than tri-stimulus photometers which are based on color filters. A new innovative Swiss-engineered design makes the i1Pro much more affordable than previous generations of spectrophotometers. The i1Pro is a contact spectrophotometer and includes hardware for holding the sensor against the region of the display being calibrated. -
Page 10: Spectral Engine Specifications
i1Pro User Manual SPECTRAL ENGINE SPECIFICATIONS Spectral analyzer: Holographic diffraction grating with 128-pixel diode array Spectral Range: 380 - 730 nm Physical sampling interval: 3.5 nm Optical resolution: 10 nm Spectral reporting: 380 ... 730 nm in 10 nm steps OPTICS Measurement geometry: 45°/0°... -
Page 11: I1Pro Installation
Connect the USB cable between the X-Rite i1Pro and your computer. The X-Rite i1Pro will not function if it is connected to the USB port on your keyboard or to a USB hub without an external power supply. i1Pro power rating: 5 Vdc - 500 mA. -
Page 12: Driver And Software Installation Instructions For Windows
When finished, you can toggle the power switch to the ON position and your device is ready for use. A shortcut of vputil.exe is copied on the Windows desktop as well as the Program Files in the VPixx Technologies folder;... -
Page 13: Software Support
VPixx Software Tools include a low-level ANSI C API as well as Psychtoolbox MATLAB / Octave and Python libraries for Mac OS X, Windows XP, Windows 7, Windows 8 and Linux. In addition, the X-Rite i1Pro is directly supported by the VPixx high-level application. -
Page 14: Vputil Software Tool
Software Tool The vputil tool can be run from the main VPixx Technologies directory under the Software Tools\vputil\bin folder. This utility allows the user to control some of the VPixx equipment features. It can also be used to generate built-in test patterns from the equipment. -
Page 15: Warranty
Warranty The i1Pro is warranted against manufacturing defects in materials and workmanship for one year for parts and labor from the date of purchase. Copyright © 2020 VPixx Technologies Inc. All Rights Reserved... - Page 17 VPixx Technologies Inc. 630 Clairevue West suite 301 Saint-Bruno, Qc Canada, J3V 6B4 TEL/FAX: (514) 328-7499 TOLL FREE: (844) 488-7499 (USA/CANADA) EMAIL: sales@vpixx.com...
