Miller Edge PS20-RF Installation Instructions

READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE BEGINNING INSTALLATION.
The PS20RF switch offers installation time savings and improved visual aesthetics as there is no need
to hard wire a coil cord or retracting reel. PS20RF switch includes a receiver which is wired to the motor
controls.
PS20 kits are available as either hard-wired (PS20A) or wireless (PS20RF) complete with receiver.
Kits may be installed on a doors up to 18 feet wide.
1-

Parts List

PART NUMBER
1. PS20-RF Transmitter/Air Switch Combination
2. HRH-375, Hard Hose, 4"
3. Battery, CR2032
2-

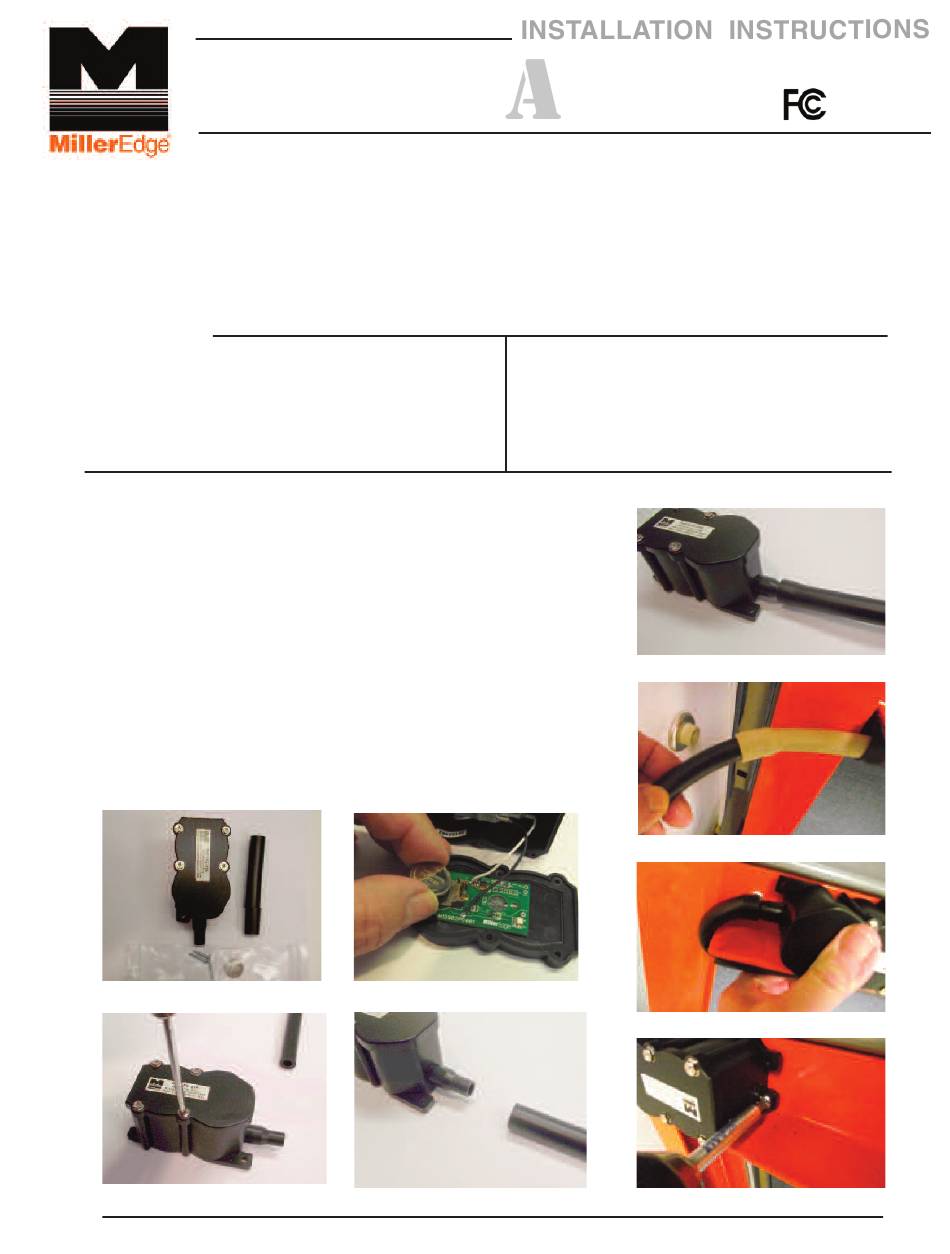

Install Transmitter / Air Switch Assembly

2-1. Open and unpack the battery and remove lid from the PS20-RF.
2-2. Install the CR2032 battery as shown with the "+" side up.
Notice that the RED LED blinks once upon insertion.
2-3. Replace the lid of the PS20-RF.
2-4. Insert the PS20-RF nipple into either end of the Hard Hose.
2-5. Insert remaining Hard Hose end into the Gum Rubber Hose
located inside the bottom astragal.
2-6. Position and attach the PS20-RF to the bottom angle or end stile
of the door, taking care not to pinch close the Hard Rubber
or Gum Rubber Hose.
P.O. Box 159 • West Grove, PA 19390 • 800-220-3343 • 610-869-4422 • Fax: 610-869-4423 • www.milleredge.com
6809 South Harl Ave., Suite A • Tempe, AZ 85283 • 800-887-3343 • 480-755-3565 • Fax: 480-755-3558
DR FT
2-1 2-2
2-3 2-4
IMPORTANT:
Tools Required:
1. 1/8" Phillips Head Screwdriver
2. Mounting Screws (not supplied)
2-4
2-5
2-6
2-6
Model # PS20-RF
Pending
