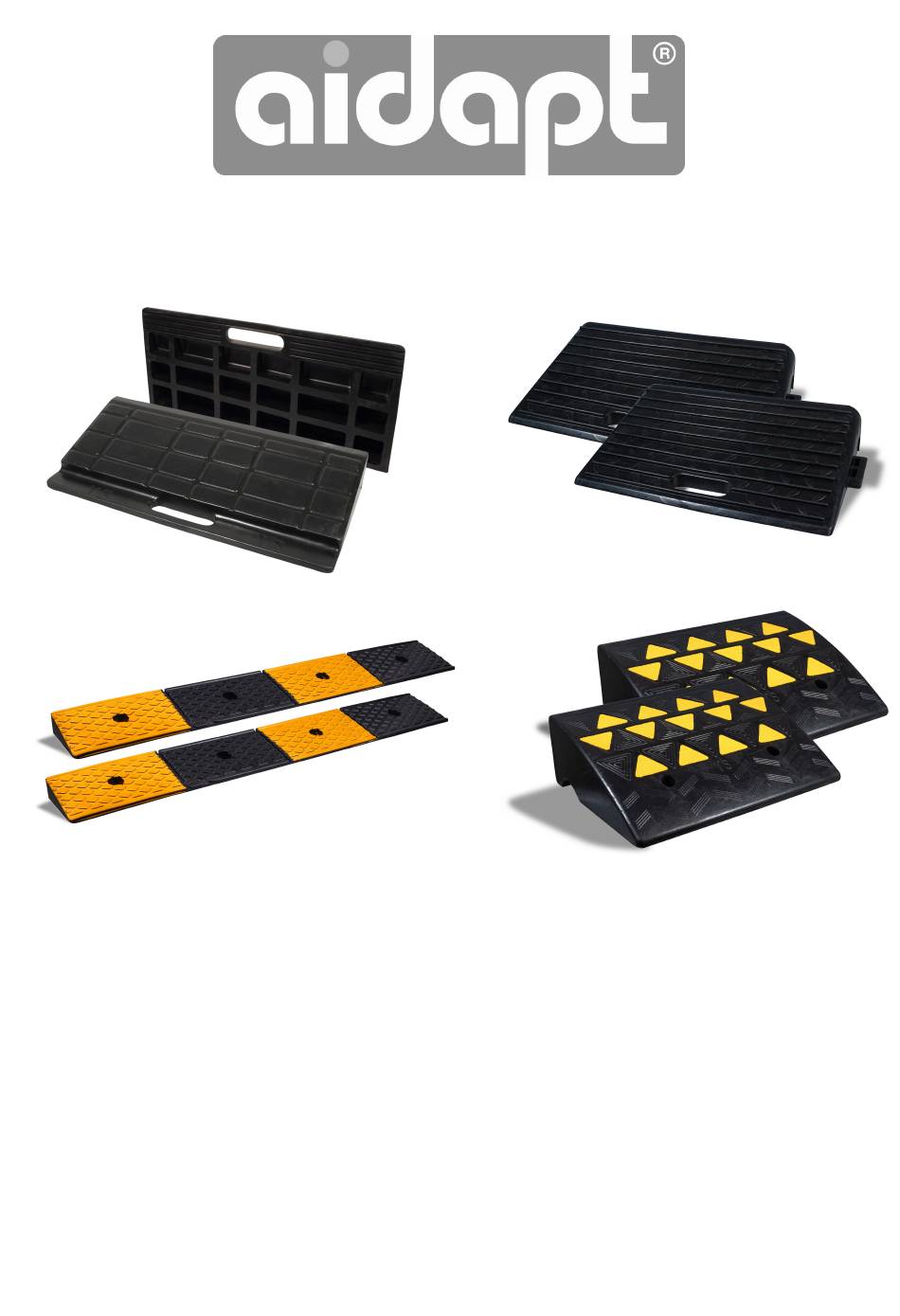

- Page 1 Kerb Ramps VA144P, VA144R, VA144T, VA144S Fitting and Maintenance Instructions Please read this manual before operation for installation instructions and safe usage of this ramp.
-
Page 2: Maintenance And Safety
N.B. This equipment must be installed by a competent person. INTRODUCTION Thank you for purchasing the Aidapt Rubber Kerb Ramp. The Aidapt Rubber Kerb Ramps are a cost effective and convenient way to allow vehicles and trolleys to mount kerbs easily. -
Page 3: Technical Specification
TECHNICAL SPECIFICATION VA144P Black rubber ramp featuring a carry handle. The ramp has a clever connection feature Height.......100mm that will allow multiple kerb ramps to slot Width......490mm together securely. Channel in the base Depth......310mm allows for cable management. VA144R Black and Yellow Ramp featuring yellow Height.......15mm... - Page 4 TECHNICAL SPECIFICATION - VA144P Fig. 1 VA144P Height......100mm Width......490mm Depth......310mm The ramp has a clever connection feature (See Fig. 3) Fig. 2 Fig. 3 The connection feature allows for multiple kerb ramps to slot together securely. (Fig. 4) Fig. 4...
- Page 5 VA144R TECHNICAL SPECIFICATION Height......15mm Width......500mm Depth......370mm Fig. 5 The VA144R is Black and Yellow ramp featuring yellow reflective panels. Underneath the ramp is a cable channel which is perfect for running cables or hose pipes across the road or pavement. Fig.
- Page 6 TECHNICAL SPECIFICATION VA144T Height......50mm Width......1000mm Depth......140mm Fig. 8 The VA144T is a Black and Yellow Rubber Ramp. This ramp has four fixing points and channels in the base which allow for cable management. Fig. 9 Portable ramp is convenient for negotiating kerbs and thresholds up to 2"...
- Page 7 TECHNICAL SPECIFICATION - VA144S VA144S Height......100mm Width......480mm Depth......320mm Fig. 11 The VA144S is an all Black Rubber Ramp featuring two fixing points and channels underneath the base to allow for cable management an to prevent water build up. Fig. 12 Can be permanently fixed into position if required (Fixings not supplied).
- Page 8 TECHNICAL SPECIFICATION CONTINUED... Fig. 14 Fig. 15 Usage and Maintenance Instructions...
- Page 9 TECHNICAL SPECIFICATION CONTINUED... Fig. 16 Fig. 17 Usage and Maintenance Instructions...
-
Page 10: Cable Management
(detailed below) if you have any queries concerning the assembly/use of your product. Aidapt Bathrooms Ltd, Lancots Lane, Sutton Oak, St Helens, WA9 3EX Telephone: +44 (0) 1744 745 020 • Fax: +44 (0) 1744 745 001 • Web: www.aidapt.co.uk Email: • sales@aidapt.co.uk Usage and Maintenance Instructions...
