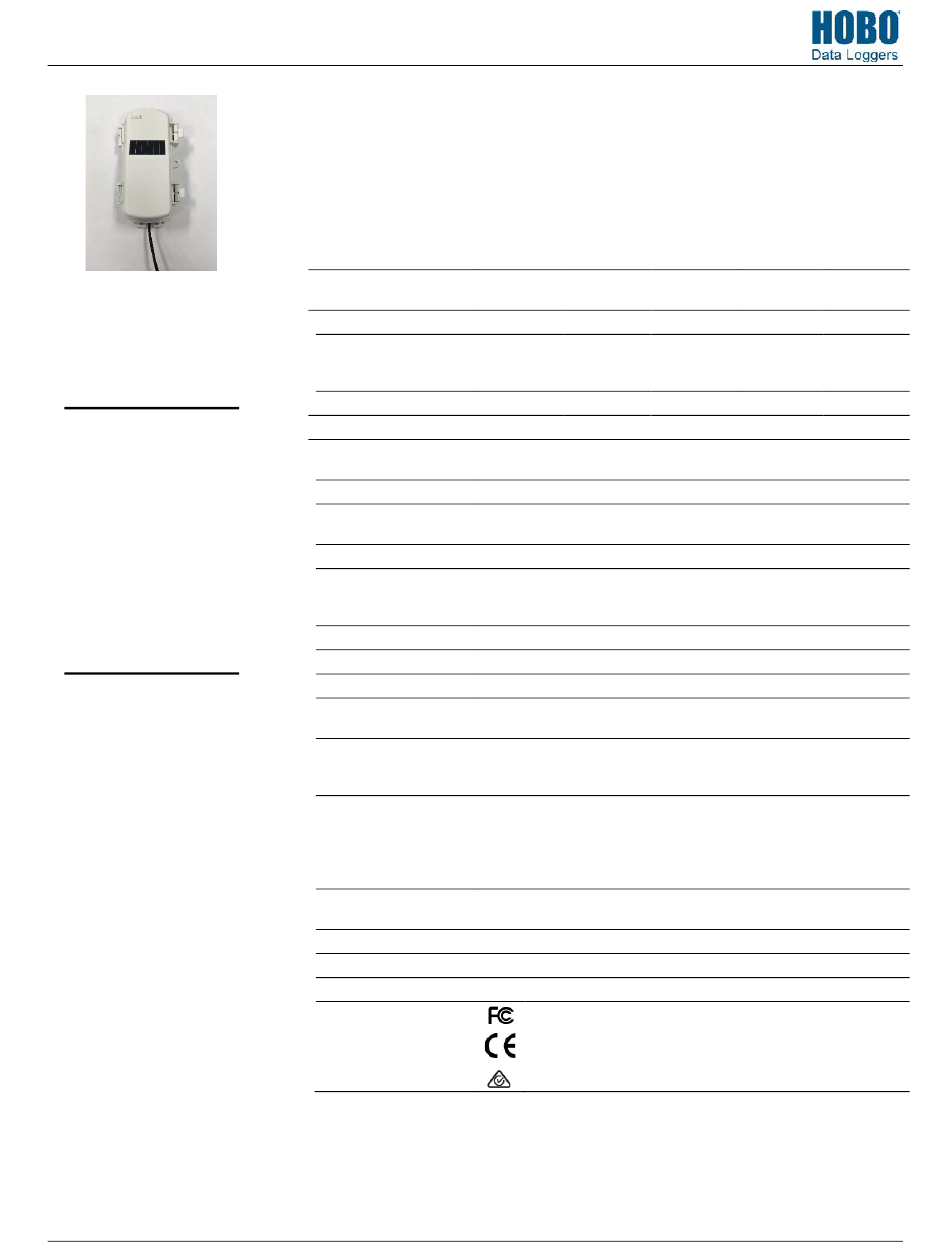

HOBO® RX Wireless Sensor Network
RXW Analog Input Sensor (RXW-ANA-xxx) Manual
RXW Analog Input
Sensor
Models:
• RXW-ANA-900 (US)
• RXW-ANA-868 (Europe)
• RXW-ANA-922
(Australia/NZ)
Items Included:
• Cable ties
Items Required:
• Supported cable and
sensor from
www.onsetcomp.com
22437-1
The mote supports one analog sensor and is designed to work with the HOBO RX Wireless
Sensor Network in which data is transmitted wirelessly from the sensor mote across the
network to the RX3000 station and then uploaded to HOBOlink® web-based software. With
HOBOlink, you can monitor sensor readings, view graphs, set up alarms, download data, and
more.
Specifications
Sensor with Cable Type
Measurement Range
Accuracy
Resolution
Wireless Mote
Operating Temperature
Range
Radio Power
Transmission Range
Wireless Data Standard
Radio Operating
Frequencies
Modulation Employed
Data Rate
Duty Cycle
Maximum Number of
Motes
Battery Type/
Power Source
Battery Life
Dimensions
Weight
Materials
Environmental Rating
Compliance Marks
CABLE-
CABLE-2.5-
CABLE-
4-20mA
STEREO
ADAP5
0 to 20.1 mA
0 to 2.5 V
0 to 5.0 V
±0.001 mA
±0.1 mV
±0.2 mV
±0.2% of
±0.1% of
±0.3% of
reading
reading
reading
0.3 µA
40 µV
80 µV
-25° to 60°C (-13° to 140°F) with rechargeable batteries
-40 to 70°C (-40 to 158°F) with lithium batteries
12.6 mW (+11 dBm) non-adjustable
At least 304.8 m (1,000 ft) line of sight at 1.8 m (6 ft) from the ground,
457.2 m (1,500 ft) typical
IEEE 802.15.4
RXW-ANA-900: 904–924 MHz
RXW-ANA-868: 866.5 MHz
RXW-ANA-922: 916–924 MHz
OQPSK (Offset Quadrature Phase Shift Keying)
Up to 250 kbps, non-adjustable
<1%
50 motes per one RX Wireless Sensor Network
Two AA 1.2 V rechargeable NiMH batteries powered by built-in solar panel
or two AA 1.5 V lithium batteries for operating conditions of -40 to 70°C (-40
to 158°F)
With NiMH batteries: Typical 3–5 years when operated in the temperature
range -20° to 40°C (-4°F to 104°F) and positioned toward the sun (see
Deployment and Mounting), operation outside this range will reduce the
battery service life
With lithium batteries: 1 year, typical use
Cable length: 2 m (6.56 ft)
Mote: 16.2 x 8.59 x 4.14 cm (6.38 x 3.38 x 1.63 inches)
223 g (7.87 oz)
PCPBT, silicone rubber seal
IP67
RXW-ANA-900: See last page
RXW-ANA-868: The CE Marking identifies this product as
complying with all relevant directives in the European Union (EU).
RXW-ANA-922: See last page
CABLE-
CABLE-
ADAP10
ADAP24
0 to 10 V
0 to 24 V
±0.4 mV
±1.0 mV
±0.3% of
±0.3% of
reading
reading
160 µV
384 µV
