Summary of Contents for Beveltools Bevel Mite TEBI 3.0

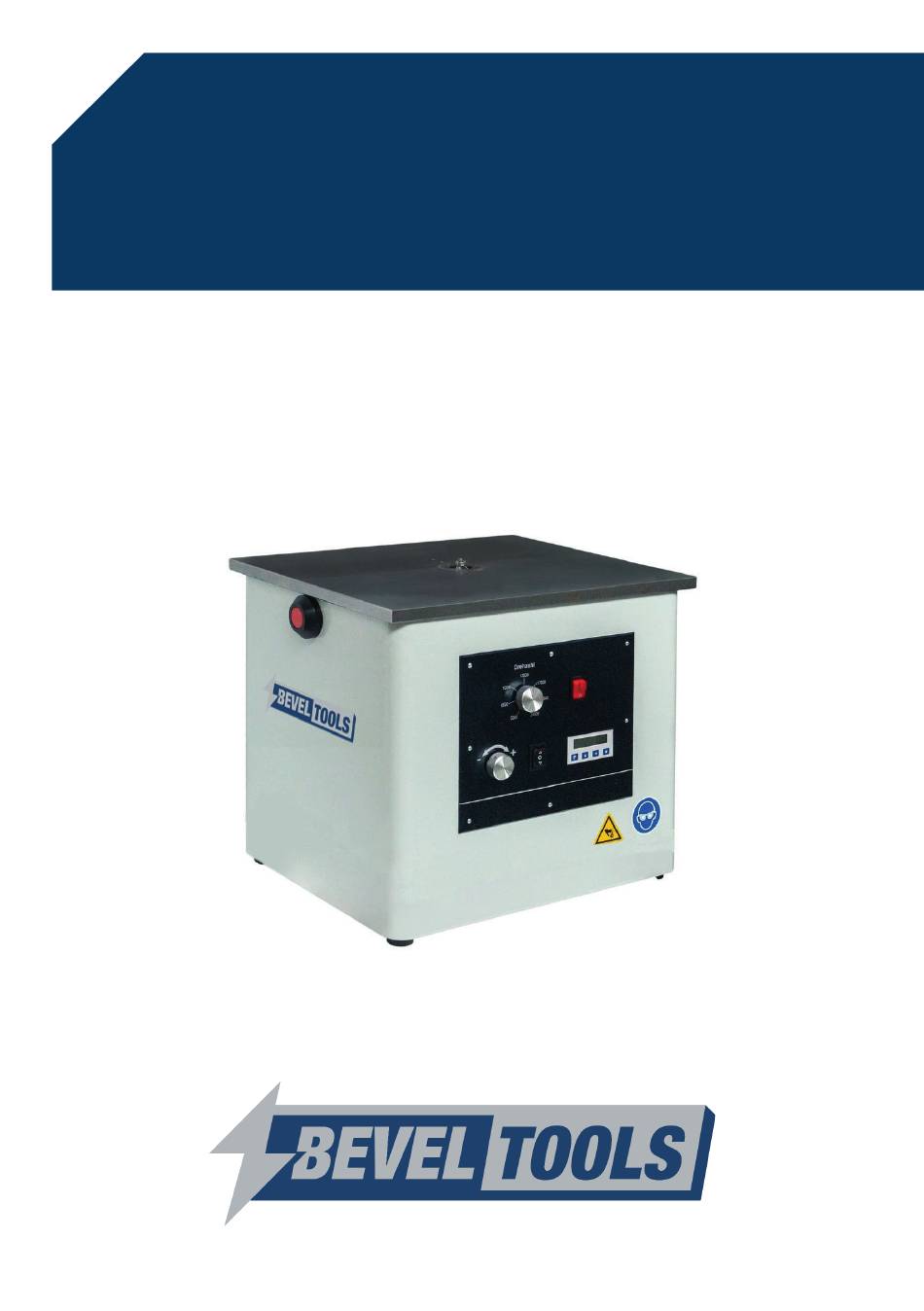

- Page 1 EN Instruction manual Bevel Mite TEBI 3.0 ® www.beveltools.com...
-
Page 2: Table Of Contents
Content Important basic information Scope of delivery Service address Legal information Safety Symbols used in the operating instructions Operator’s duty of care Intended use of the TEBI 3.0 Qualilification of the personnel Personal protective equipment Safety-relevant ambient conditions Residual dangers 2.7.1 During transport of the TEBI 3.0 2.7.2... - Page 3 Operation Safety Before switching on the TEBI 3.0 Switching on and setting the TEBI 3.0 and feeding the workpiece Switching off the TEBI 3.0 in an emergency Troubleshooting Switching off the TEBI 3.0 Troubleshooting Safety Service address Troubleshooting measures Maintenance Safety Maintenance schedule Replacing the cutter...
-
Page 4: Important Basic Information
- may be electronically or mechanically reproduced, distributed, modified, transmitted, translated into another language or used in any other way. Beveltools B.V. shall not be liable for any damage resulting from the fact that the operating instructions have not been observed or have been observed only in part. -
Page 5: Operator's Duty Of Care
The TEBI 3.0 may only be used in industry and trade. Intended use also includes observance of all the information in these operating instructions and compliance with the maintenance work. Beveltools B.V. is not liable for damage caused by incorrect use or by non-observance of these operating instructions. -
Page 6: Personal Protective Equipment
2.5 Personal protective equipment When working on the TEBI 3.0, it is mandatory to wear protective goggles! 2.6 Safety-relevant ambient conditions The TEBI 3.0 must not be operated in an explosive environment or outdoors. 2.7 Residual dangers 2.7.1 When transporting the TEBI 3.0 WARNING! When lifting the TEBI 3.0, there is a risk of it from falling over. -
Page 7: Workplace Of The Operating Personnel
Operation with defects on the TEBI 3.0 is strictly prohibited! 2.12 Emergency Procedures In case of an emergency, immediately switch off the TEBI 3.0 using the on/off switch! 2.13 Accident Information Immediately inform Beveltools about accidents and potential hazards that are identified. -
Page 8: In Case Of Fire
2.14 In Case of Fire In the event of a fire, immediately switch off the TEBI 3.0 using the on/off switch. When using unsuitable equipment for firefighting: . Toxic gases (vapors) can be generated, . There is a risk associated with electricity, . -
Page 9: Functional Description
Description On/Off switch Rotation speed adjustment dial Use safety goggles reminder Rotating cutter danger warning Cutter height adjustment speed dail Cutter height adjustment button Digital display for reading the cutter height Button for locking the spindle when changing the cutter Adapter for the cutter Power cable with Schuko plug Dangerous voltage safety sign... -
Page 10: Delivery, Internal Transport, Unpacking
5. Delivery, Intra-company Transport, Unpacking 5.1 Safety WARNING! When lifting the edge and contour milling machine, it can overturn, shift, or fall. Before lifting, all persons must leave the work area. Safety shoes must be worn! 5.2 Delivery The TEBI 3.0 is delivered on a pallet with the accessories (see scope of delivery). Pay attention to the symbols on the packaging. -
Page 11: Using The Tebi
6.3 Using the TEBI 3.0 Before using or turning on TEBI 3.0, ensure the following points are met: • The TEBI 3.0 must be securely positioned. • The TEBI 3.0 must be connected to 230V* via the Schuko plug (pre-fuse 16A). •... -
Page 12: Switching Off The Tebi 3.0 In An Emergency
• Turn on the TEBI by pressing the ON/OFF switch (1). • Set the required rotation speed using the controller (4). CAUTION! Never touch the cutter with the workpiece when the cutter is not rotating. In the following pictures, the arrow in de bottom-left points towards the operator. -
Page 13: Troubleshooting
Always adhere to the safety instructions in Chapter 1. 8.2 Service Address If a malfunction cannot be resolved following the troubleshooting steps below, promptly contact the following service address: Contact Beveltools B.V. Folrijnweg 33 Adress 6883 JN VELP The Netherlands... -
Page 14: Maintenance
9. Maintenance 9.1 Safety To avoid damage to the machine or life-threatening injuries during maintenance of the TEBI 3.0, the following points must be strictly observed: • Turn off the TEBI 3.0 using the On/Off switch and unplug the power cord. •... -
Page 15: Disassembly And Disposal
• Press the locking button (1), keep it pressed while turning the guide bearing(2) with the provided hex wrench until the internal locking mechanism snaps the spindle. From this point, keep turning the guide bearing until you can take the guide bearing out and remove the cutter. - Page 16 Beveltools B.V. Beveltools Inc. P.O. Box 190 11426 Moog Drive T +31 (0)26 369 92 22 T +1 855 882 3835 6880 AD Maryland Heights Velp (Gld) F +31 (0)26 369 92 23 F +1 314 567 0124 MO 63146 The Netherlands E info@beveltools.com...
