INSTRUCTION MANUAL
AR1400
Audio & Event Recorder
DOWN
ENTER
UP
PRE
MENU
NEXT
AR 1400
amperes
ACTIVE

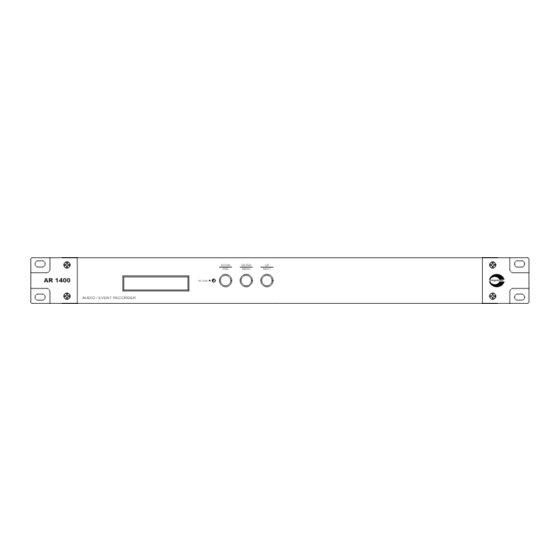

AUDIO / EVENT RECORDER
Thank you for choosing another quality product from Amperes Electronics.
AR1400 is developed from the extensive research and requirement from installer for event loggings for paging or voice alarm
activation in their PA system, which also records the audio in the same time. Though it is primary used for PA installation, it can
also be used as an audio recorder for capturing audio during meetings or conference.
It is developed around web technology, doing away with downloads of software to access the unit. Setup and access are made
easier by using browser, through a PC or tablet.
With its large memory capacity, AR1400 shall be able to record tenth of thousands of messages and events, therefore, it shall be
able to remain functional for years to come.
Ver 1 / 2022
Advertisement
Table of Contents
Summary of Contents for Amperes Electronics AR1400
- Page 1 It is developed around web technology, doing away with downloads of software to access the unit. Setup and access are made easier by using browser, through a PC or tablet. With its large memory capacity, AR1400 shall be able to record tenth of thousands of messages and events, therefore, it shall be able to remain functional for years to come.
-
Page 2: Parts Identifications
11. CHANNEL 2 AUDIO INPUT Audio recording of CH 2 with line balanced signal. The input level is controlled by the gain controller. It has input gain control and LED signal indicator. PAGE 2 AR1400 | Audio & Event Recorder... - Page 3 Application Schematic ( Conventional ) AR1400 | Audio & Event Recorder PAGE 3...
- Page 4 Application Schematic ( iPX System ) PAGE 4 AR1400 | Audio & Event Recorder...
- Page 5 Example : While a User recording is ongoing, and a PD mic is activated, it will stop User recording and starts AMP activity. Likewise, CH 2 accepts User and Remote Trigger recording with User has higher priority over Remote Trigger. iPX recording can be done simultaneously with other recordings. If concurrent paging mode is enabled,AR1400 able to record 4 iPD recordings simultaneously.
- Page 6 Device Setup via Browser AR1400 requires some basic setup and is done via web browser. The default IP address is 192.168.0.100. The login page shall appear with User ID and Passwords as “ admin ” IMPORTANT NOTE Gateway IP address of PC and AR1400 must be the same. Please set it to 192.168.0.1 ( default ) before trying to communicate with AR1400.
- Page 7 Activity logs page consists of 2 sets of activities from conventional and iPX devices. Both would list down the type of devices , its origin, time stamps and affected zones. The logs can be downloaded to CSV files. Audio source can be played at PC terminal or downloaded as .wav file. AR1400 | Audio & Event Recorder PAGE 7...
- Page 8 This allows configurations to be save to a file and restore when it is required. All data or recorded files shall not be saved. Restore defaults shall revert the device to factory default settings. PAGE 8 AR1400 | Audio & Event Recorder...
-
Page 9: Update Firmware
Click the Upload Firmware button to Find the updated firmware file. find the updated firmware file. button to upload the firmware. AR1400 After finish updating 394 KB firmware, the browser automatically restart. Updating progress AR1400 | Audio & Event Recorder PAGE 9... -
Page 10: Main Menu Exit
To retrieve the saved file, access the device by login Prev via web browser. Go to File Manager to retrieve or 1. RECORD Or Next to enter CH 2 play the file. 1. RECORD CH 1 recording PAGE 10 AR1400 | Audio & Event Recorder... -
Page 11: Technical Specifications
Web browser : Google, Firefox Dimensions 482 x 44 x 180 mm Weight 1.9 kg Note: The above specifications are correct at time of printing but subjected to changes without prior notice due to product improvements. AR1400 | Audio & Event Recorder PAGE 11... -
Page 12: Warranty Conditions
Only Amperes Electronics Service Centres are allowed to make warranty repairs : a list of Amperes Electronics authorized service centres may be asked by the purchaser or send directly to Amperes Electronics Sdn Bhd at 70 Jalan Industri PBP3, Tmn Perin- dustrian Pusat Bandar Puchong, 47100, Puchong, Selangor.
