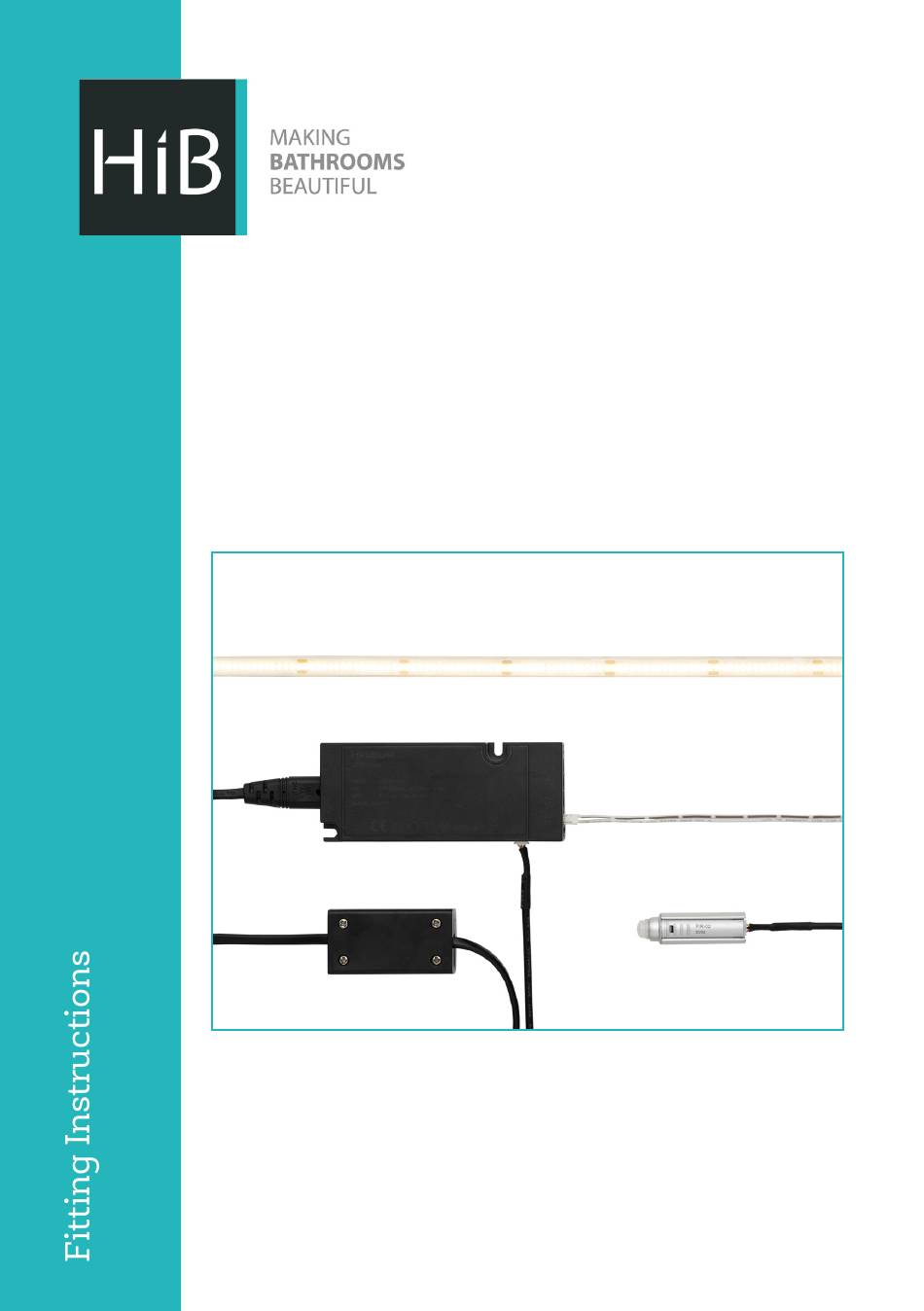

FURNITURE UNDERLIGHT WITH PIR SENSOR
120cm Cool White:
Art No. N0WBLPIR120CLW
120cm Warm White:
Art No. N0WBLPIR120WWH
200cm Cool White:
Art No. N0WBLPIR200CLW
200cm Warm White:
Art No. N0WBLPIR200WWH
Thank you for purchasing this HiB Novum product.
Please read through these instructions carefully and refer back to
them during installation to ensure that your product is fitted safely
and that it retains its high quality finish.
FI#04 012 R220601
Ver No.
1.0 June 2022
Advertisement
Table of Contents
Summary of Contents for HiB N0WBLPIR120CLW
- Page 1 Art No. N0WBLPIR200CLW 200cm Warm White: Art No. N0WBLPIR200WWH Thank you for purchasing this HiB Novum product. Please read through these instructions carefully and refer back to them during installation to ensure that your product is fitted safely and that it retains its high quality finish.
-
Page 2: Electrical Safety Information
Electrical Safety Information HiB recommends that all electrical bathroom products must be installed in accordance with current building and wiring regulations. If in doubt please consult an electrician. Before drilling ensure that there are no hidden cables or pipes in the wall. -
Page 3: Electrical Information
Neutral supply can be Blue or Black Neutral is Blue LUMINAIRE MAINS SUPPLY What’s in the Box? • COB LED strip • LED driver (Plug & Play) • PIR sensor with holder (with x2 installation screws) • Terminal block • LED strip end cap hib.co.uk... -
Page 4: Tools Required
Tools Required Pencil Drill bit Screwdriver Silicone Scissors Drill (optional) Figures A - LED strip B - LED driver C - PIR sensor (optional) D - Terminal block Fig. 1 - LED underlight components Fig. 2 - LED strip cuttable lines Fig. - Page 5 Fig. 4 - Installation on wall hung furniture Fig. 5 - Installation on floor standing furniture hib.co.uk...
-
Page 6: Installation
Please ensure that the domestic mains electricity circuit to which the item is being connected, is isolated before connection. HiB recommends installing the LED Driver inside an IP44 rated enclosure. Any cuts made to furniture units must be sealed with silicone or polyurethane sealant. - Page 7 4. Using a screwdriver, install the PIR sensor holder using the x2 screws provided in the plastic bag, see Fig. 4A & 5A. Clip the PIR sensor into the holder to complete installation, see Fig. 4A & 5A. Example PIR sensor location Fig.6 - PIR sensor activation zone hib.co.uk...
-
Page 8: Operation
Building 3, North London Business Park, Oakleigh Road South, New Southgate, London. N11 1GN ©HiB Copyright: No part of this document may be reprinted or duplicated without HiB consent. All sizes and measurements are approximate, but we do try and make sure they are as accurate as possible. In the interest of continuous product development, HiB reserves the right to alter specifications as necessary.
