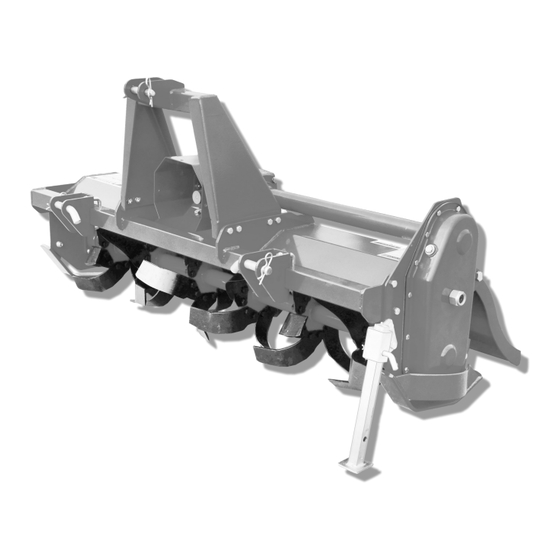

Rotary Tiller
TXG, YCT & YCT-R Series
Operator's Manual
Rev. 12/22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TXG Series and is the answer not in the manual?

Questions and answers

Related Manuals for Tar River Implements TXG Series

Summary of Contents for Tar River Implements TXG Series

  • Page 1 Rotary Tiller TXG, YCT & YCT-R Series Operator’s Manual Rev. 12/22...
  • Page 2 Rotary Tiller TXG, YCT & YCT-R Series Page left blank intentionally...
  • Page 3 Rotary Tiller TXG, YCT & YCT-R Series TO THE DEALER: Assembly and proper installation of this product is the responsibility of the Tar River dealer. Read manual in- structions and safety rules. Make sure all items on the Dealer’s Pre-Delivery and Delivery Check Lists in the Owner’s/Operator’s Manual are completed before releasing equipment to the owner.

  • Page 4: Table Of Contents

    Rotary Tiller TXG, YCT & YCT-R Series Table of Contents Introduction …………………………………………………………………………………………….. 5 Technical Specifications ……………………………………………………………………………….. 5 Safety …………………………………………………………………………………………………… 6 Safety Signal Words ……………………………………………………………………………………. 6 General Safety Guidelines ……………………………………………………………………………… 7 Safety Decal Care ………………………………………………………………………………………. 7 Before Operation ……………………………………………………………………………………….. 8 During Operation ……………………………………………………………………………………….. 9 Highway And Transport Operations ……………………………………………………………………...

  • Page 5: Introduction

    Rotary Tiller TXG, YCT & YCT-R Series Introduction Thank you for purchasing your Tar River Rotary Tiller. The TXG Series is specifically designed and engi- neered for compact tractors in the 15-30 horse power range. The YCT & YCT-R Series is specifically de- signed to tractors in the 30-60 horse power range.

  • Page 6: Safety

    Rotary Tiller TXG, YCT & YCT-R Series Important Safety Information Safety It is important that you read the entire manual and to become familiar with this product before you begin using it. This product is designed for certain applications only. The manufacturer cannot be responsible for issues arising from modification.

  • Page 7: General Safety Guidelines

    Rotary Tiller TXG, YCT & YCT-R Series Important Safety Information General Safety Guidelines Safety of the operator is one of the main concerns in designing and developing a new piece of equipment. De- signers and manufacturers build in as many safety features as possible. However, every year many accidents occur which could have been avoided by a few seconds of thought and a more careful approach to handling equipment.

  • Page 8: Before Operation

    Rotary Tiller TXG, YCT & YCT-R Series Important Safety Information How to install Safety Signs: Be sure that the installation area is clean and dry. • Decide on the exact position before you remove the backing paper. • Remove the smallest portion of the split backing paper. •...

  • Page 9: During Operation

    Rotary Tiller TXG, YCT & YCT-R Series Important Safety Information During Operation Children should not be allowed on the product. • Clear the area of small children and bystanders before moving the feeder. • If using a towing unit, securely attach feeder by using a hardened 3/4” pin, a metal retainer, and safety •...

  • Page 10: Highway And Transport Operations

    Rotary Tiller TXG, YCT & YCT-R Series Important Safety Information Highway and Transport Operations Adopt safe driving practices. • Keep the brake pedals latched together at all times. Never use independent braking with machine in tow • as loss of control and/or upset of unit can result. Always drive at a safe speed relative to local conditions and ensure that your speed is low enough for an •...
  • Page 11 Rotary Tiller TXG, YCT & YCT-R Series Important Safety Information Highway and Transport Operations Maneuver the tractor or towing vehicle at safe speeds. • Avoid overhead wires or other obstacles. Contact with overhead lines could cause serious injury or • death.
  • Page 12 Rotary Tiller TXG, YCT & YCT-R Series Operating Instructions Attaching PTO Shaft Attaching to Tractor Operating Instructions Operating Instructions Before attaching the rotary tiller to the tractor, check the unit to ensure there is oil in the top and side gearbox. See Maintenance section for lubricant specifications. Attaching the PTO shaft: Before installing the PTO shaft make sure that the RPM rating and the direction of rotation match those of the tractor.

  • Page 13: Operating Instructions

    Rotary Tiller TXG, YCT & YCT-R Series Operating Instructions Slip clutch adjustments Slip clutch must be adjusted before first use or after a storage period. 1. Using a marker, scribe a line across the exposed edges of the clutch plate and friction discs. 2.
  • Page 14 Rotary Tiller TXG, YCT & YCT-R Series Operating Instructions Working Depth Adjustment The working depth is controlled by raising or lowering the side skids. If the skids are raised, the working depth increases. By lowering the skids, the tilling depth with decrease. Tailgate adjustment The tailgate can be adjusted to help smooth and compact the tilled ground.

  • Page 15: Maintenance

    Rotary Tiller TXG, YCT & YCT-R Series Maintenance Performing Maintenance Good maintenance is your responsibility. Poor maintenance is an invitation to trouble. • Make sure there is plenty of ventilation. Never operate the engine of the towing vehi- • cle in a closed building. The exhaust fumes may cause asphyxiation. •...
  • Page 16 Rotary Tiller TXG, YCT & YCT-R Series Maintenance Lubrication Fluid Capacities - Gearboxes Model Location Type Capacity Center Gearbox 85-140 16 oz. Side Gearbox EP00 18 oz. Center Gearbox 85-140 30 oz. Side Gearbox EP00 24 oz. Side Gearbox: Fill Plug Run the tiller long enough to warm the •...
  • Page 17 Rotary Tiller TXG, YCT & YCT-R Series Maintenance Lubrication Gearbox Input Shaft: When attaching and reattaching the PTO driveline, be sure to lubricate all surfaces of the gearbox input • shaft with Multi-Purpose Grease. PTO Driveline: Grease the PTO Driveline U-joints with Multi-Purpose Grease every 8 hours of use. •...
  • Page 18 Rotary Tiller TXG, YCT & YCT-R Series Maintenance Lubrication Rotor Support: Lubricate the grease fitting on the RH end of the Rotor Shaft, with Multi-Purpose Grease every 8 hours of use.

  • Page 19: Torque Specifications

    Rotary Tiller TXG, YCT & YCT-R Series Torque Specifications Notes: This chart is an approximate estimate of torque values. Always tighten hardware to these values unless a different torque value or tightening procedure is listed for a specific application. Fasteners must always be replaced with the same grade as specified in the manual. Always use the proper tool for tightening hardware: SAE for SAE hardware and Metric for Metric hardware.
  • Page 20 Rotary Tiller TXG, YCT & YCT-R Series Page left blank intentionally...

  • Page 21: Parts Breakdown

    Rotary Tiller TXG, YCT & YCT-R Series Parts Manual Rev. 12/22...
  • Page 22 Rotary Tiller TXG, YCT & YCT-R Series TXG Series Rotary Tiller...
  • Page 23 Rotary Tiller TXG, YCT & YCT-R Series TXG Series Rotary Tiller Item Part # Description Qty. “R” Clip M4 YT1066010204 Hitch Pin TX0202 Lower Hitch Bracket TX0203 “U” Bolt, Lower Hitch Bracket NM12175 Hex Nut– M12 x 1.75 BM101530 Bolt- M10 x 1.5 x 30 Nut M10-1.5...
  • Page 24 Rotary Tiller TXG, YCT & YCT-R Series TXG Series Rotary Tiller...
  • Page 25 Rotary Tiller TXG, YCT & YCT-R Series TXG Series Rotary Tiller Item Part # Description Qty. TX0310 Lifting Hook Oil plug Vented - M16-1.5 OP1615V BM101525 Bolt– M10 x 1.5 x 25 YT1066050200 Stand Bracket R-Clip– M3 Pin - Stand...
  • Page 26 Rotary Tiller TXG, YCT & YCT-R Series TXG Series Rotary Tiller TXG Series Rotary Tiller...
  • Page 27 Rotary Tiller TXG, YCT & YCT-R Series TXG Series Rotary Tiller TXG Series Rotary Tiller Item Part # Description Qty. TX0403 Bearing Support TX0201 Side Panel - Right BM101525 Bolt– M10 x 1.5 x 25 GN061S Grease Nipple– Straight M6 x 1.0...
  • Page 28 Rotary Tiller TXG, YCT & YCT-R Series PTO Shaft - TXG PTO TXG Item Part # Description Qty. DP1075-40 PTO Yoke - Series 40 DP1076-40 Cross and Bearings - Series 40 DP1079-40 Female Yoke and Tube (tractor end) - Series 40 5SB3007 Safety chain DP1078-40...
  • Page 29 Rotary Tiller TXG, YCT & YCT-R Series Slip clutch complete 150mm -TXG Qty. Item Description DP1097-30 DP1083-150 180-510-30 DP1085-30 DP1090-30 DP1091-30 LNM1015 FW10 1215012-30 LNM12175 BM1217565 BM101585 DP1098-30 Slip clutch complete 150mm clutch...
  • Page 30 Rotary Tiller TXG, YCT & YCT-R Series YCT Series Rotary Tiller...
  • Page 31 Rotary Tiller TXG, YCT & YCT-R Series YCT Series Rotary Tiller Item Part # Description Qty.
  • Page 32 Rotary Tiller TXG, YCT & YCT-R Series YCT Series Rotary Tiller...
  • Page 33 Rotary Tiller TXG, YCT & YCT-R Series YCT Series Rotary Tiller Item Part # Description Qty.
  • Page 34 Rotary Tiller TXG, YCT & YCT-R Series YCT Series Rotary Tiller...
  • Page 35 Rotary Tiller TXG, YCT & YCT-R Series YCT Series Rotary Tiller Item Part # Description Qty. SNM3515 Nut- M35 x 1.5 SLW35 Special Lock Washer - M35 YT10660804 Gear - Rotor YT10660806 Shim– M55 x 40 x 2 SRI-100 Snap Ring - Internal M100 YT10660808 Gasket - Drive Rotor M168 x 115 x .05 B6309000...
  • Page 36 Rotary Tiller TXG, YCT & YCT-R Series YCT Series Rotary Tiller...
  • Page 37 Rotary Tiller TXG, YCT & YCT-R Series YCT Series Rotary Tiller Item Part # Description Qty. YT10660501 Pin - Stand R-Clip- M3 YT1066050200 Stand Bracket YT1066050100 Stand Leg YT10660600L Skid Weldment - Left YT10660600R Skid Weldment - Right BM162090 Bolt- M16 x 2.0 x 90 YT1060070100 Tailgate YCT-060 YT1066070100...
  • Page 38 Rotary Tiller TXG, YCT & YCT-R Series YCT-R60, YCT-R74 Front Shielding Item Part # Description Qty. YT10661075025 “U” Bolt M10 x 1.5 w/nuts YT106075025R Panel-60” Right YT107475025R Panel-74” Right BM101525 Bolt M10 x 25 NM1015 Nut M10 x 1.5 LW10 Lock Washer 10mm YT106075025M Panel-60”...
  • Page 39 Rotary Tiller TXG, YCT & YCT-R Series PTO Shaft YCT Item Part # Description Qty. DP1075-40 PTO Yoke - Series 40 DP1076-40 Cross and Bearings - Series 40 DP1079-40 Female Yoke and Tube (tractor end) - Series 40 5SB3007 Safety chain DP1078-40 Male Yoke and Tube (implement end) - Series 40 DP1074F-40...

  • Page 40: Decals

    Rotary Tiller TXG, YCT & YCT-R Series Decals...
  • Page 41 Rotary Tiller TXG, YCT & YCT-R Series Decals Item Part # Description Qty. RT1004E Decal Warning “Serious Injury or Death” D960 Decal Warning “Cancer & Reproductive Harm” RT1005 Decal Warning “To Prevent Serious Injury” RT1006 Decal Danger “Rotating Tines Hazard” RT1007 Decal Danger “Rotating Driveline Hazard”...

  • Page 42: Warranty

    Rotary Tiller TXG, YCT & YCT-R Series Warranty LIMITED WARRANTY Tar River Equipment warrants to the original purchaser of any new piece of machinery from Tar River Equipment, purchased from an authorized Tar River Equipment dealer, that the equipment be free from defects in material and workmanship for a period of one (1) year for non-commercial, state, and municipalities’...
  • Page 43 Rotary Tiller TXG, YCT & YCT-R Series Page left blank intentionally...
  • Page 44 Rotary Tiller TXG, YCT & YCT-R Series...

This manual is also suitable for:

Yct seriesYct-r seriesTxg-040Txg-050Txg-060Yct-050 ... Show all
