Summary of Contents for Arcom G9539

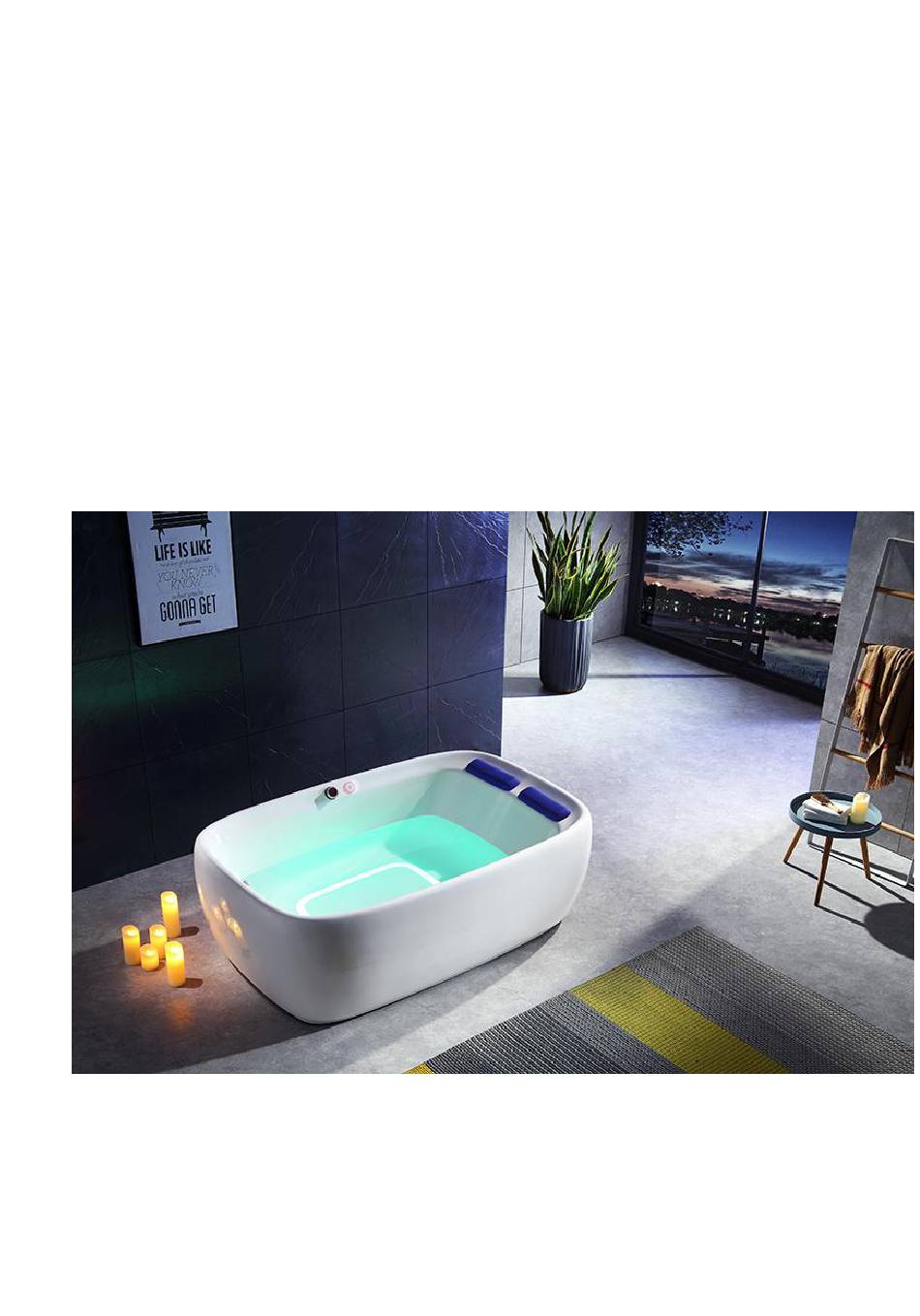

- Page 1 Waterfall massage bathtub installation manual ITEM NO：G9539 SIZE:1800*1200*600mm water massage; simple control panel; Led light; needle hole jets...
- Page 2 Plan drawing（unit：mm）...
- Page 3 Functional division diagram Water / Circuit diagram...
- Page 4 1.Electrical parameter Rated voltage/ Rated power Rated current Working voltage frequency 220V50Hz 2550W < 4A 2. Electrical installation 2.1 The power supply facilities of the house shall meet the national safety standards, and the voltage and frequency of the power supply shall conform to the requirements of the product.In particular, the leakage switch should be installed, and verify that the ground protection is effective;...
- Page 5 4.3 Adjust the anchor screws so that all the anchor screws touch the ground completely. 4.4 Install the drainage hose and take appropriate anti-leakage measures at the joint; 4.5 Connect the cold and hot water intake pipes of the massage bathtub, install the hand-held shower, connect the drainage hose to the downpipe, connect the power supply and verify the effectiveness of the grounding facilities.
- Page 6 7. Trouble shooting Fault Fault cause Elimination methods phenomenon Abnormal voltage Check the wiring The power plug comes off or the power is cut Re plug or replace the power cord Motor out of The air switch connection to the trachea falls Reconnect or replace service off or ruptures...
- Page 7 adults; 8.6 During massage, the water temperature in the bathtub should not be higher than the average body temperature. The ideal water temperature should be 32-37 ℃. 8.7 After each massage bath, the power must be cut off; 8.8 Under any of the following circumstances, persons are not allowed to have massage bath;...
- Page 8 I. Technical Parameters: 1. Power supply voltage: AC220V 50/60Hz 2. Total power of water pump: 1500W+750W=2250W 3. Air pump power: 300W 4. Power of underwater lamp: DC12V10W 5. Ozone function: DC12V 5W 6. Music Power: 10W (THD+N=10%, 1K) 7. Waterproof rating: IPX5 II.
-
Page 9: Functions Overview
key, volume adjustment +. 4. Press this button to switch between USB (MP3), BT (Bluetooth music of mobile phone) and FM radio, the status indicator lights up in different colors to indicate various states. 5. Status indicator Red: USB Blue: Bluetooth Pink: FM (flashing with +/- is optional) IV.Functions overview serial number... - Page 10 V. Attention 1. The system must be installed by qualified technicians. Please install the leakage switch plug in a place convenient for control. 2. The installation must be firmly grounded, if the grounding is bad caused by the loss of the factory is not responsible! 3.
