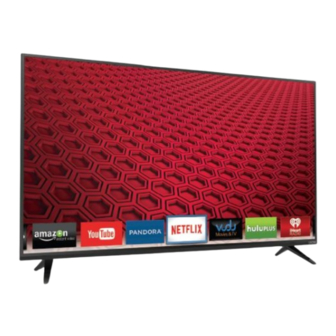

50"/ 55"LCD TV
Service
Service
Service
Description
Table of Contents.............................................................1
Important Safety Notice....................................................2
Revision List.........................................................3
1. General Specification...................................................4
2. Operating Instructions.............................................5
3. Input /Output Specification..........................................6
3.1Component Video Signal Input...............................6
3.2 HDMI Signal Input......................................................6
3.3 Preset & User Timings...............................................7
4. Mechanical Instructions............................................8
5. Repair Flow Chart...............................................14
6. PCB Layout.........................................................20
6.1 Main Board......................................................20
6.2 Power Board...................................................24
ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS
AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING
ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.
CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING

Table of Contents

Page
Description
6.3 IR Board....................................................28
6.4 Key Board...................................................29
7. Adjustment.............................................................30
7.1 White Balance Adjustment..............................30
7.2 Firmware Instruction......................................31
8. Block Diagram......................................................34
9. Schematic Diagram.......................................35
9.1 Main Board...................................................35
9.2 Power Board..............................................61
9.3 IR Board......................................................65
9.4 Key Board....................................................66
10. Exploded View.............................................67
11. BOM List.....................................................71
SAFETY NOTICE
1
Vizio E50-C1&E55-C1
Horizontal Frequency
15.734~78.6 kHz
Page

Advertisement

Table of Contents
loading

Related Manuals for Vizio E50-C1

Summary of Contents for Vizio E50-C1

  • Page 1: Table Of Contents

    50″/ 55″LCD TV Vizio E50-C1&E55-C1 Service Service Service Horizontal Frequency 15.734~78.6 kHz Table of Contents Description Page Description Page Table of Contents..….….........…...1 6.3 IR Board……..……………………..…..………..28 Important Safety Notice.........……..2 6.4 Key Board……..…………………..……….……..29 Revision List……………………..……………….…………3 7. Adjustment.............30 1. General Specification........………..4 7.1 White Balance Adjustment…..…….………………30 2.

  • Page 2: Important Safety Notice

    Important Safety Notice Proper service and repair is important to the safe, reliable operation of all AOC Company Equipment. The service procedures recommended by AOC and described in this service manual are effective methods of performing service operations. Some of these service operations require the use of tools specially designed for the purpose. The special tools should be used when and as recommended.

  • Page 3: Revision List

    Revision List Version Release Date Revision Instructions Customer Model TPV Model E50-C1 E50S42NKHLVUNNX Dec.24,2014 Initial Release E55-C1 E55S42NKHLVUNNX Mar.09.2015 Add new model E50-C1 E50F42NKHLVUNNX Apr.14.2015 Add new model E55-C1 E55F52NKHLVUNNX...

  • Page 4: General Specification

    1. General Specification Please refer to user manual...

  • Page 5: Operating Instructions

    2. Operating Instructions Please refer to user manual...

  • Page 6: Input /Output Specification

    3. Input/ Output Specification 3.1 Component Video The input signals are applied to display through component video cable. PIN NO. SIGNAL Red (Pr) Blue (Pb) Green (Y) Component Timing VA Large Size HDMI Video Timing 480i 59.94/60Hz 640 x 480p 59.94/60 Hz 720 x 480p 59.94/60Hz 720p 59.94/60Hz 1080i 59.94/60Hz...

  • Page 7: Preset & User Timings

    3.3 Preset & User Timings Component Timing VA Large Size HDMI Video Timing 480i 59.94/60Hz 640 x 480p 59.94/60 Hz 720 x 480p 59.94/60Hz 720p 59.94/60Hz 1080i 59.94/60Hz 1080p 60Hz HDMI Timing VA Large HDMI Video Timing Size 480i 59.94/60Hz 640 x 480p 59.94/60 Hz 720 x 480p 59.94/60Hz 720p 59.94/60Hz...

  • Page 8: Mechanical Instructions

    4. Mechanical Instructions E50-C1 1. Remove stands out of the base of the TV. (The stands are identical.) 2. Remove the screws to remove the Rear Cover.
  • Page 9 3. Remove the key board. 4. Remove the tapes, pins, screws, Speakers and IR board. 5. Remove the screws to remove the BKT.
  • Page 10 6. Remove the LVDS. 7. Panel...
  • Page 11 E55-C1 1. Remove the screws to remove the Stand. 2. Remove the screws to remove the Rear Cover.
  • Page 12 3. Remove the key board. 4. Remove the tapes, pins, screws, Speakers and IR board. 5. Remove the screws to remove the BKT.
  • Page 13 6. Remove the LVDS. 7. Panel...

  • Page 14: Repair Flow Chart

    5. Repair Flow Chart 1. No power No power (LED OFF) Check the AC IN and whether the power is Power on Whether power Replace the power board board output=12V? Check IR board and LED normal? Replace IR board Whether the model is ok? Replace main board...
  • Page 15 2. Can’t start Can’t start Whether power Replace the power board board output=12V? Check power Replace the key board key is under control? Check Replace the IR board receiver is normal? Replace main board...
  • Page 16 3. Abnormal display Abnormal display Check the source Reset the source is normal? Enter the factory mode to do EEPROM initial & reset Check the main Replace main board board is normal? Check the LVDS Replace LVDS wire wire is normal? Replace panel...
  • Page 17 4. No display No display (LED ON) Check backlight is on? Check VLED=12V? Replace power board Check the LVDS wire is normal? Replace LVDS wire Replace main board Check the model is ok? Replace panel...
  • Page 18 5. Sound problem No sound or abnormal sound Check audio source or TV channel are normal? Reset audio source or change TV channel TV is mute? Or the volume is too low? Cancel the mute or adjust the volume Enter factory to do reset Check the wire between main board and speaker is ok? Replace the wire...
  • Page 19 6. Remote control malfunction Remote control malfunction Check the battery of remote control is placed properly or no power? Replace the battery another remote control can work? Replace remote control Check IR board normal? Replace IR board Replace main board...

  • Page 20: Pcb Layout

    6. PCB Layout 6.1 Main Board 715G7126M01000004K...

  • Page 24: Power Board

    6.2 Power Board 715G6973P01000002H...

  • Page 28: Ir Board

    6.3 IR Board 715G7145R01000004K...

  • Page 29: Key Board

    6.4 Key Board 715G6284K01000004F...

  • Page 30: Adjustment

    7 Adjustment 7.1 White Balance Adjustment 1. Enter factory model，step MENU+ 1999+last ; 2. This TV adjust YPbPr source，example YPbPr source Normal temperature; 3. Choose “Current Source” to YPbPr whit remote control，“Color temp” as NORMAL; 4. Choose “WB Patten”=818（normal，computer，cool color temperature）; 5.

  • Page 31: Firmware Instruction

    2.2 Insert USB flash disk into TV’S USB one Connector when TV is power on. 2.3 Waiting for about 25 seconds,”V2.36.7-MP VIZIO Mar.9.2012”will display on the TV screen”, then TV will update S/W automatic.( Do not operate other thing When SW under process, and TV will restart automatic two times) , as Figure 2.2...
  • Page 32 Step 3: Check the F/W version 3.1 Way1: menu->help->system info 3.2 Way2: factory menu (“menu”+”1” “9” “9” “9”+”last”). Do as the figure3.1. Do the following steps rapidly: 1. Press “MENU”; 2. Press”1”+”9” +”9” +”9”; 3. Press ”last”; Figure3.1...
  • Page 33 Step 4: Reset to default 4.1 Press “menu +1999+lookback”to enter Factory. 4.2 Press “up or down” key to select “24.Reset press” Do as the Figure4.2 Figure 4.2. 4.3 Press “right” key to do reset 4.4 When turn to done means reset OK.

  • Page 34: Block Diagram

    8. Block Diagram...

  • Page 35: Schematic Diagram

    9. Schematic Diagram 9.1 Main Board 715G7126M01000004K Power Input +5VSB Q701 +5V_SW R741 C700 0R05 OH M 100nF 50V 0R05 OH M BL_ON CN 701 R737 BL_DI M R738 R703 R743 220R +-5% 1/ 16W C716 AO4449 -7A/ -30V Scan_BL_ EN PW_ON C761 47K 1/10W 5%...
  • Page 36 U401I 2G Byte Nand Flash OSDA0 3,5,6,7,8, 9,10,11,12,13, 14,15 OSDA0 POWE# OSCL0 OSCL0 POOE# POCE1# POCE0# TP417 POCE0# OPWRSB U0TX OPWRSB U0TX PDD0 U0RX Y 10 U0RX PDD1 PDD2 27M Hz CRYST AL PDD2 PDD3 PDD3 OSCL0 OXTALI AE21 PDD4 7,11 OSCL0 XTALI...
  • Page 37 NEARLY CONN. NEARLY YPBPR CON. NEARLY IC R102 10R 1/16W 1% CN101 SOY 1 Y PBPR_R_IN#1 YPbPr_R_In0 C102 C118 1.5nF 50V 2.2uF 10V R143 Y PBPR_L_IN#1 Y PbPr_L_In0 C119 Y _IN#1 Y 1P R107 C101 2.2uF 10V 10NF 50V 100R 1/16W 1% 18R 1% PR_IN#1 C107...
  • Page 38 Silicon Tuner TUNER POWER +3V3 AP1117E33L-13-77 SOT223 1A/3.3V Ground size needs to be larger for thermal +5V_SW +3V3TUNER FCN101 U102 C159 L103 L102 C160 AP1117E33L-13-77 1000pF 50V 8.2NH 27nH 1000pF 50V VOUT LNA_INP C130 C132 100N16V C131 100N16V L101 C162 C169 C161 100UF 16V...
  • Page 39 Close to CN601 Main filter Option YPbPr_R_In0 L601 YPbPr_R_In0 YPbPr_L_In0 LOUT+ YPbPr_L_In0 10uH R 105 U 401C ARC _OUT D601 R601 C 605 C606 30Kohm 1/16W +/-5% ARC _OUT Y PbPr_L_In0 AB19 AE24 C607 AIN 1_L_AAD C AL0_AD AC Y PbPr_R_In0 AB21 AD25 CN601...
  • Page 40 U401B LDM_VSY NC TX_AO0P LVDS TX Connector PANEL_VCC TCON0 AO0P TX_AO0N TCON1 AO0N TX_AO1P FB103 TCON2 AO1P TX_AO1N 220R/2000mA NEAR CN408 TCON3 AO1N TX_AO2P TCON4 AO2P PANEL_VDD_IN TX_AO2N TCON5 AO2N TX_AOCKP FB109 TCON6 AOCKP TX_AOCKN 220R/2000mA TCON7 AOCKN TX_AO3P TCON8 AO3P TCON9 TX_AO3N...
  • Page 41 U401A RVREF_ as closed to Main Chip RDQ0 RDQ0 RDQ1 RDQ1 U404 U403 RP401 RDQ2 1_RWE# 22 OHM RWE# DDRV RDQ2 RDQ3 1_RODT RODT RDQ0 1_RA0 RDQ16 2_RA0 RDQ3 RDQ4 1_RCAS# RCAS# RDQ1 1_RA1 RDQ17 2_RA1 RDQ4 RDQ5 1_RRAS# RRAS# RDQ2 1_RA2 RDQ18...
  • Page 42 U501 CN501 2014-0103 Change RX0_2 RX0_2 RX0_2B RX0_2B for EMI SHLD0 RX0_1 RX0_1 TMDSD2+ L501 RX0_1B RX0_1B SHLD2 DSHLD0 90oHM TMDSD2- 3,4,5,6,7,8,9,11,12,13,14,15 NC/AOZ8804DI U401D TMDSD1+ L502 RX0_0 RX2_0 DSHLD1 90oHM U502 HDMI_1_RX_0 HDMI_3_RX_0 RX0_0B RX2_0B TMDSD1- RX0_0 RX0_0 HDMI_1_RX_0B HDMI_3_RX_0B RX0_1 RX2_1 TMDSD0+...
  • Page 43 LDM_HSY NC +3V3SB LDM_HSY NC LDM_CS U401G LDM_CS LED_R LDM_DO R408 GPIO0 ADIN0_SRV LDM_DO LDM_CLK R411 R409 Controller GPIO1 ADIN1_SRV LDM_CLK LVDS_PWR_EN LDM_DI GPIO2 ADIN2_SRV LDM_DI GPIO3 USB_OC_COM GPIO3 ADIN3_SRV R4009 KEY _PAD0 0R05 1/10W GPIO4 ADIN4_SRV WIFI reset KEY _PAD1 GPIO5 ADIN5_SRV +5VSB...
  • Page 44 USB PORT 2 WIFI USB 3,4,5,6,7,8,9,10,11,13,14,15 DVDD3V3 FOR WIRELESS INTERNET USB_PWR_EN0 USB_PWR_EN0 FB107 WIFI reset R151 USB_DP_P0 0R05 1/16W USB_DP_P0 USB_DM_P0 USB_DM_P0 CN118 USB_DP_P1 120R/500mA USB_DP_P1 USB_DM_P1 USB_DM_P1 L106 USB_DM_P1 USB_OC_COM USB_OC_COM USB_DP_P1 C145 C144 WIFI reset 90 ohm WIFI reset 10UF 6.3V 20% 100N 16V CONN...
  • Page 45 VCCK VCCK PHY_LED0 U401H U401E PHY_LED0 CIGPIO0 CIGPIO0 CIGPIO30 CIGPIO1 VCCK VCCK CIGPIO1 CIGPIO31 VCCK VCCK CIGPIO2 CIGPIO32 VCCK VCCK CIGPIO3 CIGPIO33 VCCK VCCK CIGPIO4 CIGPIO34 VCCK VCCK R433 CIGPIO5 CIGPIO35 CIGPIO36 VCCK VCCK NC/0R05 OHM CIGPIO6 CIGPIO36 VCCK VCCK 3,4,5,6,7,8,9,10,11,12,14,15 CIGPIO7 CIGPIO37...
  • Page 46 600 OHM +5VSB +5VDB Option C128 D100 100N16V 9/22 Change (other & MEMC / FPGA I2C) for DQE precision RB520S30 test VIZIO definition : HDMI R166 0R05 1/16W VGA_SCL1 R174 0R05 1/16W VGA_SCL U0TX U0TX_1 CHANNEL pin14 R167 0R05 1/16W...
  • Page 47 CN803 +3_2V OUT C802 1uF25V FB803 NC/BEAD VLED-1+ FB10 VLED-2+ AMS_VDD FB804 NC/BEAD C803 +Vin 1uF25V Ver.C Q801 Q805 C801 2014-04-02 CONN AO4892 10UF 10V AO4892 FB-P2 FB-P1 R844 2.7R 1% U801 R866 2.7R 1% CN802 R824 2.2R 1% CN801 R836 2.2R 1% FB11 VLED-1+...
  • Page 48 715G7484M02000004K Power Input VER.E_10/20_Change for precision test +5VSB Q701 +5V_SW R741 C 700 0R05 OH M 0R 05 OHM 100nF 50V R737 BL_DIM BL_ON CN 701 C701 R 738 10nF50V R743 220R +-5% 1/16W R703 C 716 AO4449 -7A/ -30V Scan_BL_ EN PW_ON C761...
  • Page 49 U401I 2G Byte Nand Flash OSDA0 3,5,6, 7,8, 9,10,11,12,13,14,15 OSDA0 POWE# OSCL0 AC 5 OSCL0 POOE# AC 6 POCE1# AC 4 POC E0# POCE0# TP417 OPWRSB U0TX AC 2 OPW RSB U0TX PDD0 U0R X Y 10 U0RX PDD1 PDD 2 27MHz CRYSTAL PDD2 PDD 3...
  • Page 50 OSDA2 Close to chip MTK5580KUFI T P V ( Top Victory Electronics Co . , Ltd. ) OEM MODEL VIZIO MT5880 Series Model Size 絬 隔 瓜 絪 腹 TPV MODEL VIZIO E Series Key Component PCB NAME 称 爹...
  • Page 51 IF_AGC FAT_IN+ FAT_IN+ FAT_IN- FAT_IN- 3,4,5,7,8,9,10,11,12,13,14,15 T P V ( Top Victory Electronics Co . , Ltd. ) OEM MODEL VIZIO MT5880 Series Model Size 絬 隔 瓜 絪 腹 TPV MODEL Key Component PCB NAME 称 爹 Sheet Date...
  • Page 52 Line_Mute unplug 11/5 Q602 T P V ( Top Victory Electronics Co . , Ltd. ) OEM MODEL VIZIO MT5880 Series Model Size LMBT3904LT1G 絬 隔 瓜 絪 腹 TPV MOD EL Ke y Comp onent PCB NAME 称爹 Date...
  • Page 53 LVDSTX_AE0P TX_AE0P LVDSTX_AE1N TX_AE1N LVDSTX_AE1P TX_AE1P T P V ( Top Victory Electronics Co . , Ltd. ) OEM MODEL VIZIO MT5880 Series Model Size 絬 隔 瓜 絪 腹 TPV MODEL Key Component PCB NAME 称 爹 Date Sheet...
  • Page 54 10UF 6.3V 20% 22uF 6.3V 22UF T P V ( Top Victory Electronics Co . , Ltd. ) OEM MODEL VIZIO MT5880 Series Model Size 100N 16V 100N 16V 100N 16V 100N 16V 100N 16V TPV MODEL 絬 隔 瓜 絪 腹...
  • Page 55 R554 4.7K1/16W +3V3SB LMBT3904LT1G Q112 LMBT3904LT1G T P V ( Top Victory Electronics Co . , Ltd. ) OEM MODEL VIZIO MT5880 Series Model Size 絬 隔 瓜 絪 腹 TPV MODEL Key Compon ent PCB NAME 称爹 Sheet Date...
  • Page 56 T P V ( Top Victory Electronics Co . , Ltd. ) OEM MODEL VIZIO MT5880 Series Model Size Support WOL : Mount R473, remove R472. 絬 隔 瓜 絪 腹 TPV MODEL Otherwise : Mount RM472 , remove R473.
  • Page 57 CN103 R147 USB_OC_COM DVDD3V3 47K 1% T P V ( Top Victory Electronics Co . , Ltd. ) OEM MODEL VIZIO MT5880 Series Model Size 絬 隔 瓜 絪 腹 TPV MODEL Key Component PCB NAME 称 爹 Date Sheet...
  • Page 58 47 OHM 1/16W 3,4,5,6,7,8,9,10,11,12,14,15 R4028 R4029 NC/0.05R NC/0.05R T P V ( Top Victory Electronics Co . , Ltd. ) OEM MODEL VIZIO MT5880 Series Model Size 絬 隔 瓜 絪 腹 TPV MODEL Key Component PCB NAME 称 爹 Sheet Date...
  • Page 59 Debug mode -12V Factory mode T P V ( Top Victory Electronics Co . , Ltd. ) OEM MODEL VIZIO MT5880 Series Model Size -18V Option other 絬 隔 瓜 絪 腹 TPV MODEL Key Component PCB NAME 称 爹...
  • Page 60 T P V ( Top Victory Electronics Co . , Ltd. ) OEM MOD EL VIZIO MT5880 Series Model Size Custom TPV MOD EL 絬 隔 瓜 絪 腹 R ev Key Com ponent PCB N AME 称 爹...

  • Page 61: Power Board

    9.2 Power Board 715G6973P01000002H CN9903 NC / CONN F9901 FB9901 FUSE BEAD SG9901 NC/DSPL-501N-A21F F9902 5A 250V R9901 R9905 R9908 NR9903 NC / 510K 510K 1/4W 510K 1/4W C9911 220PF 250V C9913 220PF 250V L9901 C9907 BD9901 CN9901 CN9902 12mH NC / 47PF L9902 GBJ1008-FUC...
  • Page 62 BD9801 KBP208G-C 373G0174369L00 180uF C9814 NC / 47PF L9801 FB9801 220uH BEAD Vsin Vbus D9801 FMNS-1106S R9803 1MOHM +-1% 1/4W +VCC2 C9803 C9804 HS9801 C9816 1UF 450V 1UF 450V C9811 C9810 HEAT SINK 100N 50V 10UF 50V R9804 680K OHM +-1% 1/4W U9801 R9801 R9802...
  • Page 63 12VS T9101 380GL32P173N00 12V POWER X'FMR Vbus Q9103 L9101 NC / AOD4185 +12V_A C9106 2.2NF R9111 +VCC1 82K 2W R9147 D9108 R9110 750K 1% 1N4148 10 OHM 1/4W R9118 L9102 NC / 100K 1/8W 1% +12V D9102 FR107G-A0 C9111 R9148 D9104 NC / 1uF 750K 1%...
  • Page 64 HS8101 380GL52P193YS0 40V VLED1 HEAT SINK CN8101 D8104 NC/CONN FMEN-2308 L8101 R8101 380GL52P194YS0 24V +VLED 0.1R T8101 +VLED POWER X'FMR Vbus -VLED1 R8158 HS8102 NC/0R05 1/4W R8118 HEAT SINK C8101 5.1K 1/4W FB_LLC -VLED2 D8109 FMEN-2308 +VLED +VCC2 D8101 R8109 D8102 R8110 UF4007...

  • Page 65: Ir Board

    9.3 IR Board 715G7145R01000004K LED201 R202 470 OHM R 203 0R 05 1/16W +5V_STB +3.3V_STB C206 D201 1uF 10V VPOR T0603100KV05 C205 C N201 1uF 10V U202 I2C address :0X88 IN T AD DR +3.3V_STB JSA-1130 +5V_STB D203 D 202 VPOR T0603100KV05 VPORT0603100KV05 C ONN...

  • Page 66: Key Board

    9.4 Key Board 715G6284K01000004F CN0311 KEYPAD1 R0318 10 OHM +-1% 1/10W ZD0321 CONN SW0311 T P V ( Top Victory Electronics Co . , Ltd. ) OEM MODEL Size TPV MODEL 絬 隔 瓜 絪 腹 Key Component 02. key PCB NAME 715G5650-K0C-000-0040 称...

  • Page 67: Exploded View

    10. Exploded View E50-C1...
  • Page 68 ITEM DESCRIPTION BEZEL LOGO IR LENS ITEM DESCRIPTION SPK HOLDER Q02G707105000100XL SCREW BOLT RC HOLDER Q02G708105000100HX SCREW BOLT REAR COVER 0M1G1030 6 47 CR3 SCREW(SPK-HOLDER/PANEL) STAND ASSY 0M1G 940 6225 CR3 SCREW( STAND BKT/PANEL) MYLAR 0Q1G 930 5120 SCREW(IR BOARD/BEZEL) STAND BKT 001G6021 1 SCREW(SPK-HOLDER/PANEL)
  • Page 69 E55-C1...
  • Page 70 ITEM DESCRIPTION BEZEL BOLT IR LENS IR BOARD ITEM DESCRIPTION MAIN BOARD 0Q1G 930 5120 SCREW(IR BOARD/PANEL) SIDE BKT_IO 0M1G1730 8120 SCREW(RC HOLDER /PANEL) SCREW(SPEAKER HOLDER DOWN BKT_IO 0M1G1730 8120 /PANEL) RC HOLDER 001T6021 1 SCREW(SPEAKER /PANEL) SPEAKER 0M1G 940 6225 CR3 SCREW(STAND BTK /PANEL) HOLDER SPEAKER...

  • Page 71: Bom List

    HARNESS 14P PITCH2.0-10P PITCH2.0 650MM ECN406 395GH20016DT008000 HARNESS 16P PITCH2.0-14P PITCH2.0 550MM 2nd-source ECN406 395GH20016RT008000 HARNESS 16P PITCH2.0-14P PITCH2.0 600MM E398 398GR10BEVZ04J REMOTE VIZIO RC-GV122-420 ENGLISH 708GQA8201SX01 VIZIO 40HQ(504 USA) Q52G 1185 92 HCL TAPE Q50G 4 10 TIE (Y1900221) Q45G 77 5...
  • Page 72 RV9901 361G0046621KZE VARISTOR 620V 10% NR9902 361G0058109MYW008A NTCR 1R 20% 3.6W SCK15018MTY503 NR9901 361G0058109MYW008A NTCR 1R 20% 3.6W SCK15018MTY503 R9802 361G3SWJ10859B00TZ RST NWR 0.1R 5% 3W NKNP3WS0R1JMS10 R9801 361G3SWJ10859B00TZ RST NWR 0.1R 5% 3W NKNP3WS0R1JMS10 C9901 363G107K474BEC CAP X2 470NF 10% 275V 18*9*13.5 B32922L C9902 363G107K474BEC CAP X2 470NF 10% 275V 18*9*13.5 B32922L...
  • Page 73 Q8104 057G 417512 HF TRA MMBT3906G -0.2A/-40V SOT-23 R8160 061G0805000 JT RST 0805 0.05R MAX 1/8W R9126 061G0805000 JT RST 0805 0.05R MAX 1/8W R8121 061G0805000 JT RST 0805 0.05R MAX 1/8W R8126 061G0805000 JT RST 0805 0.05R MAX 1/8W R9814 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN...
  • Page 74 R8132 061G08055101FT RST CHIP 5K1 1/8W 1% R9140 061G08055101FT RST CHIP 5K1 1/8W 1% R9141 061G08055101FT RST CHIP 5K1 1/8W 1% R9138 061G08055103FT RST CHIP 510K OHM 1/8W 1% TZAI YUAN R9106 061G0805820 JY RST CHIP R 82OHM 1/8W +/-5% YAGEO R8119 061G08058201FT RST CHIP 8K2 1/8W 1%...
  • Page 75 C9104 065G080510432K CAP CHIP 0805 0.1UF K 50V X7R C8126 065G080510432K CAP CHIP 0805 0.1UF K 50V X7R C9117 065G080510432K CAP CHIP 0805 0.1UF K 50V X7R C8104 065G080510432K CAP CHIP 0805 0.1UF K 50V X7R C9128 065G080510432K CAP CHIP 0805 0.1UF K 50V X7R C9126 065G080510432K CAP CHIP 0805 0.1UF K 50V X7R...
  • Page 76 D8103 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL D8102 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL D8108 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL FOR C9902 006G 31502 EYELET FOR C9901 006G 31502 EYELET R8101 061G 30310852T SY RST FUSE 0.1R 5% 1W C8108 065G 1K101 2T6921 CAP CER 100PF 1KV K Y5P...
  • Page 77 RST WD 0.07R 5% 3W NKNP3WS0R07JMS10 R875 361G3SWJ70759B00TZ RST WD 0.07R 5% 3W NKNP3WS0R07JMS10 MAC-U409 370G0MAC500VIZ CD VIZIO IPTV SERIES MAC ADDRESS L852 373G0253265H00 BOOST CHOKE 33UH 10% 4A GL-12001 HA L851 373G0253265H00 BOOST CHOKE 33UH 10% 4A GL-12001 HA...
  • Page 78 D820 093G 60935 DIODE MBRF20100CT ITO-220AB 0M1G1730 8120 SCREW Q852 357G0600A01 MOSFET AOTF4126 19A 100V 42W TO-220F HS801 Q90G0219003A0000SY HEAT SINK 705TXE93110 D821+Q853+HS802 D821 093G 60935 DIODE MBRF20100CT ITO-220AB 0M1G1730 8120 SCREW Q853 357G0600A01 MOSFET AOTF4126 19A 100V 42W TO-220F HS802 Q90G0219003A0000SY HEAT SINK...
  • Page 79 RP407 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W RP401 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W RP410 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W RP405 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W RP411 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W...
  • Page 80 R503 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO R524 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO R519 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO R504 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO R102 061G04021009FT RST CHIP 10R 1/16W 1% R159 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN R157...
  • Page 81 R145 061G04021809FT RST 0402 18R 1% 1/16W TZAI YUAN R143 061G04021809FT RST 0402 18R 1% 1/16W TZAI YUAN R706 061G04022001FF RST CHIPR 2KOHM +-1% 1/16W FENGHUA R645 061G0402202 JT RST CHIP 2K 1/16W 5% TZAI YUAN R463 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN R464 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN...
  • Page 82 R728 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R152 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R492 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R146 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R154 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R799 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA...
  • Page 83 R705 061G0603123 JT RST CHIPR 12KOHM 1/10W TZAI YUAN R731 061G06031502FY RST CHIP 15K 1/10W 1% R7124 061G06031800FT RST CHIP 180R 1/10W 1% R560 061G06031800FT RST CHIP 180R 1/10W 1% R716 061G06032002FT RST CHIP 20K 1/10W 1% R702 061G0603202 JF RST CHIPR 2K OHM +-5% 1/10W FENGHUA R636 061G0603221 JY...
  • Page 84 R862 061G08052708FY RST 0805 2R7 1% 1/8W R861 061G08052708FY RST 0805 2R7 1% 1/8W R829 061G08052708FY RST 0805 2R7 1% 1/8W R841 061G08052708FY RST 0805 2R7 1% 1/8W R842 061G08052708FY RST 0805 2R7 1% 1/8W R863 061G08052708FY RST 0805 2R7 1% 1/8W R843 061G08052708FY RST 0805 2R7 1% 1/8W...
  • Page 85 C101 065G040210332K CAP 0402 10NF 10% 50V X7R C104 065G040210332K CAP 0402 10NF 10% 50V X7R C530 065G040210332K CAP 0402 10NF 10% 50V X7R C105 065G040210332K CAP 0402 10NF 10% 50V X7R C528 065G040210332K CAP 0402 10NF 10% 50V X7R C456 065G040210332K CAP 0402 10NF 10% 50V X7R...
  • Page 86 C419 065G040210412K CAP 0402 100NF 10% 16V X7R C532 065G040210412K CAP 0402 100NF 10% 16V X7R C447 065G040210412K CAP 0402 100NF 10% 16V X7R C460 065G040210412K CAP 0402 100NF 10% 16V X7R C137 065G040210412K CAP 0402 100NF 10% 16V X7R C657 065G040210412K CAP 0402 100NF 10% 16V X7R...
  • Page 87 C126 065G040247031J CAP 0402 47PF 5% 50V NP0 C177 065G040247232K CAP 0402 4.7NF 10% 50V X7R - C168 065G040247232K CAP 0402 4.7NF 10% 50V X7R - C184 065G040247312K CAP 0402 47NF 10% 16V X7R C103 065G040247312K CAP 0402 47NF 10% 16V X7R C446 065G040247505M CAP 0402 4.7UF 20% 6.3V X5R...
  • Page 88 C620 065G060333131J CAP CHIP 0603 330P 50V NP0 +/-5% C613 065G060333131J CAP CHIP 0603 330P 50V NP0 +/-5% C726 065G060347031J CAP 0603 47PF 5% 50V NP0 C741 065G060347031J CAP 0603 47PF 5% 50V NP0 C716 065G0603475A5K CAP 0603 4.7UF 10% 10V X5R CL10A475KP8NN C426 065G0603475A5K CAP 0603 4.7UF 10% 10V X5R CL10A475KP8NN...
  • Page 89 C735 067G 3113311CT EC SMD 330UF 20% 6.3V 6.3*7.7 C405 067G 3113311CT EC SMD 330UF 20% 6.3V 6.3*7.7 C747 067G 3113311CT EC SMD 330UF 20% 6.3V 6.3*7.7 C718 067G311C1013LT EC SMD 100UF 20% 16V 6.3*7.7 3000 HR 2 C132 067G311R1013LT EC SMD 100UF 20% 16V 6.3*5.3 C715 067G311R2213LT...
  • Page 90 U602 356G0616048163 AUDIO AD87588-LG48NAY 20W E-LQFP-48 150 U103 356G0667023 POWER SWITCH APL3511CBI-TRG SOT23-5 U801 356G0700048600 LED DRIVER AS3820E-ZQFT QFN-48 U409 356G333304A600 SAND FLASH THGBMBG5D1KBAIT 4G BGA 153 U706 356GD563008165 DC/DC AOZ3045PI 3A 0.8~6V SO-8 U705 356GD563008166 DC/DC AOZ3046PI 4A ADJ EPSO-8 Q803 357G0763100001 MOSFET AO4892 4A 100V SOIC-8...
  • Page 91 X15T9811101000GMZA BKT_IO X15T9812101000GMGH BKT_IO X15T981310100000ZA BKT_STAND X16G000202003800ZA GASKET X37T818601100000G1 BASE_ASS’Y TV55W-14PH05-PH09-PH12 NA X40G0002997A47 LABEL FTC LABEL FOR E50-C1 X40G0002997B17 LABEL FOR VIZIO AC POWER LABEL X40G2014050X0060XY IO LABEL X40G2014050X0070XY IO LABEL X44GQA821010YS CUSHION-T NA 120V/60HZUSA X44GQA822010YS CUSHION-B NA 120V/60HZUSA X44GQA82301EPE...
  • Page 92 X40G000199710A SN LABEL FOR VIZIO D43-C1 SN LABEL 39*1 X40G050099749A RATING LABEL FOR VIZIO E50-C1(102430602 Z40G0002ALL01A OTHER LABEL ECN118 395GH20006LT002000 HARNESS 5P PITCH1.25-6P PITCH2.0 700MM 2nd-source E55S42NKHLVUNNX LOCATION PART NUMBER DESCRIPTION REMARK ECN118 395GH20006HT002000 HARNESS 5P PITCH1.25-6P PITCH2.0 700MM 756TXFCB02K005020X...
  • Page 93 FOR CN9902 0Q1G 340 8140 SCREW Q1-SELF TAPING SCREW :Q X8.0 CN9102 311GW200C14AAX WAFER 2.0MM 14P V/T W2010-14SVA-S03 CN9101 311GW200C16AAL WAFER 2.0MM 16P RV9901 361G0046621KZE VARISTOR 620V 10% NR9901 361G0058109MYW008A NTCR 1R 20% 3.6W SCK15018MTY503 NR9902 361G0058109MYW008A NTCR 1R 20% 3.6W SCK15018MTY503 R9802 361G3SWJ10859B00TZ RST NWR 0.1R 5% 3W NKNP3WS0R1JMS10...
  • Page 94 Q8103 057G 417511 HF TRA MMBT3904G SOT-23 Q8104 057G 417512 HF TRA MMBT3906G -0.2A/-40V SOT-23 Q8105 057G 417512 HF TRA MMBT3906G -0.2A/-40V SOT-23 Q9107 057G 417512 HF TRA MMBT3906G -0.2A/-40V SOT-23 R8126 061G0805000 JT RST 0805 0.05R MAX 1/8W R8121 061G0805000 JT RST 0805 0.05R MAX 1/8W R9126...
  • Page 95 R8111 061G08054709FT RST 0805 47R 1% 1/8W R9123 061G0805472 JF RST CHIPR 4.7KOHM +-5% 1/8W FENGHUA R9141 061G08055101FT RST CHIP 5K1 1/8W 1% R9140 061G08055101FT RST CHIP 5K1 1/8W 1% R8159 061G08055101FT RST CHIP 5K1 1/8W 1% R8132 061G08055101FT RST CHIP 5K1 1/8W 1% R9138 061G08055103FT RST CHIP 510K OHM 1/8W 1% TZAI YUAN...
  • Page 96 C9809 065G080510332K CAP 0805 10NF 10% 50V X7R C9808 065G080510332K CAP 0805 10NF 10% 50V X7R C8126 065G080510432K CAP CHIP 0805 0.1UF K 50V X7R C8125 065G080510432K CAP CHIP 0805 0.1UF K 50V X7R C9117 065G080510432K CAP CHIP 0805 0.1UF K 50V X7R C9126 065G080510432K CAP CHIP 0805 0.1UF K 50V X7R...
  • Page 97 ZD9104 393G039SA2900T ZENER BZT52-B15 15V 0.41 SOD-123 D9105 393G060S060600 SCHOTTKY SS1060 1A 60V SOD-123 D9802 393G060S060600 SCHOTTKY SS1060 1A 60V SOD-123 D8108 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL D8103 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL D8102 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL FOR C9801 006G 31502 EYELET...
  • Page 98 RST WD 0.07R 5% 3W NKNP3WS0R07JMS10 R860 361G3SWJ70759B00TZ RST WD 0.07R 5% 3W NKNP3WS0R07JMS10 MAC-U409 370G0MAC500VIZ CD VIZIO IPTV SERIES MAC ADDRESS L852 373G0253265H00 BOOST CHOKE 33UH 10% 4A GL-12001 HA L851 373G0253265H00 BOOST CHOKE 33UH 10% 4A GL-12001 HA...
  • Page 99 FCN101 388G510F501ACL RF R/A 5P 1*1 - 9.3MM 705TXE57110 D820+Q852+HS801 D820 093G 60935 DIODE MBRF20100CT ITO-220AB 0M1G1730 8120 SCREW Q852 357G0600A01 MOSFET AOTF4126 19A 100V 42W TO-220F HS801 Q90G0219003A0000SY HEAT SINK 705TXE93110 D821+Q853+HS802 D821 093G 60935 DIODE MBRF20100CT ITO-220AB 0M1G1730 8120 SCREW Q853 357G0600A01...
  • Page 100 R793 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R602 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R741 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R708 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R737 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R128 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA...
  • Page 101 R104 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R423 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R176 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA R730 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA R162 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA R710 061G0402102 JF...
  • Page 102 R717 061G04022701FT RST 0402 2.7K 1% 1/16W TZAI YUAN R745 061G04022941FT RST 0402 2.94K 1% 1/16W R734 061G04022941FT RST 0402 2.94K 1% 1/16W R179 061G0402302 JY RST CHIPR 3KOHM £«-5£¥ 1/16W YAGEO R105 061G0402303 JT RST CHIP R 30KOHM 1/16W +/-5% TZAI YUAN R101 061G0402303 JT RST CHIP R 30KOHM 1/16W +/-5% TZAI YUAN...
  • Page 103 R515 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L R405 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L R522 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L R521 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L R406 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L R403 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L...
  • Page 104 R483 061G06033300FT RST CHIPR 330R +-1% 1/10W TZAI YUAN R610 061G06033309FT RST CHIP 33R 1/10W 1% R4014 061G06033901FF RST CHIPR 3.9KOHM +-1% 1/10W FENGHUA R4018 061G06033901FF RST CHIPR 3.9KOHM +-1% 1/10W FENGHUA R4102 061G06034701FT RST CHIP 4K7 1/10W 1% R750 061G0603472 JT RST CHIP 4K7 1/10W 5% TZAI YUAN R703...
  • Page 105 R861 061G08053908FT RST 0805 3.9R 1% 1/8W R829 061G08053908FT RST 0805 3.9R 1% 1/8W R841 061G08053908FT RST 0805 3.9R 1% 1/8W R815 061G08053908FT RST 0805 3.9R 1% 1/8W R862 061G08053908FT RST 0805 3.9R 1% 1/8W R863 061G08053908FT RST 0805 3.9R 1% 1/8W R842 061G08053908FT RST 0805 3.9R 1% 1/8W...
  • Page 106 C753 065G040210332K CAP 0402 10NF 10% 50V X7R C105 065G040210332K CAP 0402 10NF 10% 50V X7R C757 065G040210332K CAP 0402 10NF 10% 50V X7R C758 065G040210332K CAP 0402 10NF 10% 50V X7R C166 065G040210332K CAP CHIP 0402 10N 50V X7R +/-10% C655 065G040210332K CAP CHIP 0402 10N 50V X7R +/-10%...
  • Page 107 C4123 065G040210412K CAP 0402 100NF 10% 16V X7R C502 065G040210412K CAP 0402 100NF 10% 16V X7R C109 065G040210412K CAP 0402 100NF 10% 16V X7R C460 065G040210412K CAP 0402 100NF 10% 16V X7R C487 065G040210412K CAP 0402 100NF 10% 16V X7R C485 065G040210412K CAP 0402 100NF 10% 16V X7R...
  • Page 108 C103 065G040247312K CAP 0402 47NF 10% 16V X7R C446 065G040247505M CAP 0402 4.7UF 20% 6.3V X5R C164 065G040247931C CAP 0402 4.7PF 0.25PF 50V NP0 C165 065G040247931C CAP 0402 4.7PF 0.25PF 50V NP0 C428 065G060310031J CAP 0603 10P 50V NP0 +/-5% C701 065G060310332K CAP 0603 10NF 10% 50V X7R...
  • Page 109 C716 065G0603475A5K CAP 0603 4.7UF 10% 10V X5R CL10A475KP8NN C418 065G0603475A5K CAP 0603 4.7UF 10% 10V X5R CL10A475KP8NN C426 065G0603475A5K CAP 0603 4.7UF 10% 10V X5R CL10A475KP8NN C401 065G0603475A5K CAP 0603 4.7UF 10% 10V X5R CL10A475KP8NN C169 065G060356931D CAP CHIP 0603 5P6 50V NP0 +/-0.5PF C742 065G060368232K CAP 0603 6.8NF 10% 50V X7R...
  • Page 110 C132 067G311R1013LT EC SMD 100UF 20% 16V 6.3*5.3 C715 067G311R2213LT C SMD 220UF 20% 16V 6.3*7.7 FB103 071G 56A221 M CHIP BEAD 0805 220R/2000MA FB109 071G 56A221 M CHIP BEAD 0805 220R/2000MA FB705 071G 56K121 M CHIP BEAD 0805 120R 25% MGLB2012E121T-L FB601 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30...
  • Page 111 U706 356GD563008165 DC/DC AOZ3045PI 3A 0.8~6V SO-8 U705 356GD563008166 DC/DC AOZ3046PI 4A ADJ EPSO-8 Q801 357G0763100001 MOSFET AO4892 4A 100V SOIC-8 Q802 357G0763100001 MOSFET AO4892 4A 100V SOIC-8 Q808 357G0763100001 MOSFET AO4892 4A 100V SOIC-8 Q807 357G0763100001 MOSFET AO4892 4A 100V SOIC-8 Q803 357G0763100001 MOSFET AO4892 4A 100V SOIC-8...
  • Page 112 TAPE X15T9811101000GMZA BKT_IO X15T9812101000GMGH BKT_IO X15T981310100000ZA BKT_STAND X16G000202003800ZA GASKET X37T818601100000G1 BASE_ASS’Y TV55W-14PH05-PH09-PH12 NA X40G0002997A46 LABEL FTC LABEL FOR E55-C1(US+CA) X40G0002997B17 LABEL FOR VIZIO AC POWER LABEL X40G2014050X0060XY IO LABEL X40G2014050X0070XY IO LABEL X44GVA901010FA CUSHION-T NA 120V/60HZUSA X44GVA902010FA CUSHION-B NA 120V/60HZUSA...
  • Page 113 QSG E55-C1 ESP_FRE 040G 58162435A MANUAL P/N LABEL Q40G0001709 1A CARTON LABEL FOR 76_76 ROLL X40G0001624 2A LABEL FOR SCREW PE BAG X40G055099712A RATING LABEL FOR VIZIO E55-C1 FG Z40G0002ALL01A OTHER LABEL ECN118 395GH20006LT002000 HARNESS 5P PITCH1.25-6P PITCH2.0 700MM 2nd-source E50F42NKHLVUNNX LOCATION PART NO.
  • Page 114 Q50G 4 10 TIE (Y1900221) Q45G 77 5 PE PACKING ADTVE2420AD4 POWER BOARD NA Z40G0002ALL01A OTHER LABEL GND2 009G6005 1 GND TERMINAL GND4 009G6005 1 GND TERMINAL GND1 009G6005 1 GND TERMINAL U8102 056G 139 9 IC EL817M(X) PHOTOCOUPLER DIP-4 U9104 056G 139 9 IC EL817M(X) PHOTOCOUPLER DIP-4...
  • Page 115 SCREW 0M1G1730 8120 SCREW M3 8 Q9101 357G0667650006 MOSFET TK11A65D 11A 650V TO-220SIS HS9101 Q90T0236001A0000HG HEAT SINK 705TAE57127 TRANSISTOR ASSY (Q9102 ASS"Y) SCREW 0M1G1730 8120 SCREW M3 8 Q9102 357G0600100020 MOSFET AOTF298L 33A 100V TO-220F HS9102 X90G070810100000SY HEAT SINK 705TAE84025 FUSE ASSY(F9901 ASSY) FUSE CLIP 084G 34 14...
  • Page 116 R8164 061G08051001FY RST CHIP 1K 1/8W 1% R8131 061G08051001FY RST CHIP 1K 1/8W 1% R9134 061G08051002FT RST CHIP 10K 1/8W 1% R9816 061G08051002FT RST CHIP 10K 1/8W 1% R9109 061G08051002FT RST CHIP 10K 1/8W 1% R9135 061G08051002FT RST CHIP 10K 1/8W 1% R8112 061G08051002FT RST CHIP 10K 1/8W 1%...
  • Page 117 R8127 061G08052001FY RST CHIP 2K 1/8W 1% R9133 061G08052001FY RST CHIP 2K 1/8W 1% R9810 061G08052202FT RST CHIP 22K 1/8W 1% R9810 061G08052202FY RST CHIPR 22 KOHM +-1% 1/8W R8134 061G08052401FT RST CHIP R 2K4 +/-1% 1/8W R9127 061G08052401FT RST CHIP R 2K4 +/-1% 1/8W R9127 061G08052401FY RST 0805 2.4K 1% 1/8W RC0805FR-072K4L...
  • Page 118 R9137 061G12061002FT RST CHIPR 10KOHM +-1% 1/4W 1206 R9132 061G12061003FF RST CHIPR 100KOHM +-1% 1/4W FENGHUA R9806 061G12061003FT RST 1206 100K 1% 1/4W SMD1206100KF R9806 061G12061003FY RST CHIPR 100KOHM +-1% 1/4W YAGEO R9132 061G12061003FY RST CHIPR 100KOHM +-1% 1/4W YAGEO R9803 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W...
  • Page 119 R9904 061G1206514 JT RST CHIPR 510 KOHM +-5% 1/4W TZAI YUAN R9908 061G1206514 JT RST CHIPR 510 KOHM +-5% 1/4W TZAI YUAN R9805 061G12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA R9804 061G12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA R9804 061G12066803FF RST 1206 680K 1% 1/4W R9805 061G12066803FF...
  • Page 120 C9122 065G080510432K CAP CHIP 0805 100N 50V X7R +/-10% C8126 065G080510432K CAP CHIP 0805 100N 50V X7R +/-10% C8115 065G080510432K CAP CHIP 0805 100N 50V X7R +/-10% C9133 065G080510532K CAP 0805 1UF 10% 50V X7R C9111 065G080510532K CAP 0805 1UF 10% 50V X7R C9806 065G080510532K CAP 0805 1UF 10% 50V X7R...
  • Page 121 U8104 356G01585020HF SHUNT REGU TL431G-AE2-R SOT23-3 U9103 356G01585020HF SHUNT REGU TL431G-AE2-R SOT23-3 U9801 356G0379008232 PFC SSC-2005S SOP-8 U9101 356G0379008605 AC/DC LD5532 GS SOP-8 U9105 356GD563008617 DC/DC SP6018ES8RGB 1A 16V SOP-8 Q8106 357G0667600602 MOSFET AO3160 0.04A 600V SOT23A Q9802 357G0667600602 MOSFET AO3160 0.04A 600V SOT23A Q9106 357G0761A0100T SMALLTRAN BTC4672M3 5A 50V 0.6W SOT-89...
  • Page 122 J8105 095G 90 23 JUMP WIRE - - J9114 095G 90 23 JUMP WIRE - - J9107 095G 90 23 JUMP WIRE - - J8103 095G 90 23 JUMP WIRE - - J9113 095G 90 23 JUMP WIRE - - J9104 095G 90 23 JUMP WIRE - -...
  • Page 123 RST WD 0.07R 5% 3W NKNP3WS0R07JMS10 R860 361G3SWJ70759B00TZ RST WD 0.07R 5% 3W NKNP3WS0R07JMS10 MAC-U409 370G0MAC500VIZ CD VIZIO IPTV SERIES MAC ADDRESS L852 373G0253265H00 BOOST CHOKE 33UH 10% 4A GL-12001 HA L851 373G0253265H00 BOOST CHOKE 33UH 10% 4A GL-12001 HA...
  • Page 124 Q105 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC Q111 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC Q810 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC Q103 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC Q702 057G 419513 BC847C Q701 057G 763 79 FET AO4449 -7A/-30V SOIC-8 Q104 057G 763 79...
  • Page 125 R468 061G04021001FY RST CHIP 1K 1/16W 1% R475 061G04021001FY RST CHIP 1K 1/16W 1% R467 061G04021001FY RST CHIP 1K 1/16W 1% R454 061G04021001FY RST CHIP 1K 1/16W 1% R474 061G04021001FY RST CHIP 1K 1/16W 1% R177 061G04021002FT RST CHIPR 10K +-1% 1/16W TZAI YUAN R719 061G04021002FT RST CHIPR 10K +-1% 1/16W TZAI YUAN...
  • Page 126 R118 061G0402104 JY RST CHIPR 100KOHM +-5% 1/16W YAGEO R448 061G04021302FY RST CHIP 13K 1/16W 1% YAGEO R517 061G04021602FT RST 0402 16K 1% 1/16W R503 061G04021602FT RST 0402 16K 1% 1/16W R524 061G04021602FT RST 0402 16K 1% 1/16W R519 061G04021602FT RST 0402 16K 1% 1/16W R504 061G04021602FT...
  • Page 127 R436 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R114 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R435 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R799 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R729 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R728 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA...
  • Page 128 R4012 061G06031000FT RST CHIP 100R 1/10W 1% R4013 061G06031000FT RST CHIP 100R 1/10W 1% R646 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO R707 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA R440 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA R562 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA...
  • Page 129 R824 061G08052208FT RST 0805 2.2R 1% 1/8W R821 061G08052208FT RST 0805 2.2R 1% 1/8W R833 061G08052208FT RST 0805 2.2R 1% 1/8W R896 061G08052208FT RST 0805 2.2R 1% 1/8W R836 061G08052208FT RST 0805 2.2R 1% 1/8W R832 061G08052208FT RST 0805 2.2R 1% 1/8W R822 061G08052208FT RST 0805 2.2R 1% 1/8W...
  • Page 130 C663 065G040210232K CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB C521 065G040210232K CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB C108 065G040210332K CAP 0402 10NF 10% 50V X7R C104 065G040210332K CAP 0402 10NF 10% 50V X7R C101 065G040210332K CAP 0402 10NF 10% 50V X7R C750 065G040210332K CAP 0402 10NF 10% 50V X7R...
  • Page 131 C462 065G040210412K CAP 0402 100NF 10% 16V X7R C471 065G040210412K CAP 0402 100NF 10% 16V X7R C447 065G040210412K CAP 0402 100NF 10% 16V X7R C4104 065G040210412K CAP 0402 100NF 10% 16V X7R C720 065G040210412K CAP 0402 100NF 10% 16V X7R C657 065G040210412K CAP 0402 100NF 10% 16V X7R...
  • Page 132 C637 065G040222031J CAP 0402 22PF 5% 50V NP0 C633 065G040222031J CAP 0402 22PF 5% 50V NP0 C194 065G040222031J CAP CHIP 0402 22P 50V NP0 +/-5% C143 065G040222031J CAP CHIP 0402 22P 50V NP0 +/-5% C176 065G040222232K CAP 0402 2.2NF 10% 50V X7R C138 065G040233031J CAP CHIP 0402 33P 50V NP0 +/-5%...
  • Page 133 C808 065G060322031J CAP CHIP 0603 22PF J 50V NPO C806 065G060322031J CAP CHIP 0603 22PF J 50V NPO C805 065G060322031J CAP CHIP 0603 22PF J 50V NPO C743 065G060322232K CAP 0603 2.2NF K 50V X7R C116 065G060322422K MLCC 0603 220NF 25V X7R +/-10% SAMSUNG C647 065G0603225A5K CAP 0603 2.2UF K 10V X5R...
  • Page 134 C607 065G080547432K CAP 0805 470NF 10% 50V X7R C623 065G0805475A2K CAP 0805 4.7UF 10% 10V X7R CL21B475KPFN C624 065G0805475A2K CAP 0805 4.7UF 10% 10V X7R CL21B475KPFN C706 065G120610532K 1206 1UF K 50V X7R C736 065G120610625K CAP 1206 10UF 10% 25V X5R TMK316 BJ106K C727 065G120610625K CAP 1206 10UF 10% 25V X5R TMK316 BJ106K...
  • Page 135 X401 093G 22SA10 H CRYSTAL XSA027000FC1H-OX 30PPM 12P ZD101 093G 39SA09 T ZENER RLZ9V1B 9.01 MAX 0.5 LL-34 ZD100 093G 39SA09 T ZENER RLZ9V1B 9.01 MAX 0.5 LL-34 ZD700 093G 39SA09 T ZENER RLZ9V1B 9.01 MAX 0.5 LL-34 D604 093G 64S526SEM SWITCHING BAS316WS 250MA 100V SOD323 D102 093G 64S900 T...
  • Page 136 C866 067G 5153316KT EC 330UF 20% 35V 10*12 5000 HR C141 067G 3151014CB EC 100UF 20% 25V 6.3*11 GL101M025E110T02 C858 367G515X470JKT000S EC 47UF 20% 100V 10*12 5000 HR 800MA EV2 C868 367G515X470JKT000S EC 47UF 20% 100V 10*12 5000 HR 800MA EV2 C877 367G515X470JKT000S EC 47UF 20% 100V 10*12 5000 HR 800MA EV2...
  • Page 137 X15T9811101000GMZA BKT_IO X15T9812102000GMGH BKT_IO X15T981310100000ZA BKT_STAND X16G000202003800ZA GASKET X37T818601100000G1 BASE_ASS’Y TV55W-14PH05-PH09-PH12 NA X40G0002997A47 .ABEL FTC LABEL FOR E50-C1 X40G0002997B17 LABEL FOR VIZIO AC POWER LABEL X40G2014050X0060XY IO LABEL X40G2014050X0070XY IO LABEL X44GQA821010YS CUSHION-T NA 120V/60HZUSA X44GQA822010YS CUSHION-B NA 120V/60HZUSA X44GQA82301EPE...
  • Page 138 LVDS CABLE 51P(0.5MM)-32P(2.0MM) 750MM ECN408 395GLT5132R0030000 LVDS CABLE 51P(0.5MM)-32P(2.0MM) 750MM 2nd-source E398 398GR10BEVZ04J REMOTE VIZIO RC-GV122-420 ENGLISH 708GVA9001SX01 VIZIO 40HQ ( 354 NA ) 052G 1185 1 BIG TAPE(Y1200141) Q45G 77 5 PE PACKING Q50G 4 10 TIE (Y1900221) Q50G060046502A00BL...
  • Page 139 NR9902 361G0058109MYW008A NTCR 1R 20% 3.6W SCK15018MTY503 NR9901 361G0058109MYX008A NTCR 1R 20% 3.6W 1D2-15MCSF NR9902 361G0058109MYX008A NTCR 1R 20% 3.6W 1D2-15MCSF R9802 361G3SWJ10859B00TZ RST NWR 0.1R 5% 3W NKNP3WS0R1JMS10 R9801 361G3SWJ10859B00TZ RST NWR 0.1R 5% 3W NKNP3WS0R1JMS10 C9902 363G107K474BEC CAP X2 470NF 10% 275V 18*9*13.5 B32922L C9901 363G107K474BEC CAP X2 470NF 10% 275V 18*9*13.5 B32922L...
  • Page 140 SCREW 0M1G1730 8120 SCREW M3 8 HS9801 Q90T0236004A0000SY HEAT SINK U8103 056G 158501 DC/DC AS431ANTR-E1 150MA 40V SOT23-3 U8104 056G 158501 DC/DC AS431ANTR-E1 150MA 40V SOT23-3 U9103 056G 158501 DC/DC AS431ANTR-E1 150MA 40V SOT23-3 U8101 056G 379211 AC/DC SSC9522S-TL SOP-18 Q8103 057G 417511 HF TRA MMBT3904G SOT-23...
  • Page 141 R9119 061G08051003FT RST CHIP 100K 1/8W 1% R9119 061G08051003FY RST CHIP 100K 1/8W 1% R9818 061G08051003FY RST CHIP 100K 1/8W 1% R9104 061G08051003FY RST CHIP 100K 1/8W 1% R8163 061G08051003FY RST CHIP 100K 1/8W 1% R9118 061G08051003FY RST CHIP 100K 1/8W 1% R8109 061G08051009FT RST CHIP R 10OHM +/-1% 1/8W...
  • Page 142 R9807 061G08054703FT RST 0805 470K 1% 1/8W TAIZYUAN R8111 061G08054709FF RST 0805 47R 1% 1/8W FENGHUA R8114 061G08054709FF RST 0805 47R 1% 1/8W FENGHUA R8111 061G08054709FT RST 0805 47R 1% 1/8W R8114 061G08054709FT RST 0805 47R 1% 1/8W R9123 061G0805472 JF RST CHIPR 4.7KOHM +-5% 1/8W FENGHUA R9123 061G0805472 JY...
  • Page 143 R9114 061G1206270 JT RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN R9115 061G1206270 JT RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN R9113 061G1206270 JT RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN R9117 061G1206270 JT RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN R9131 061G1206302 JF RST CHIP 3K 5% 1/4W...
  • Page 144 C8123 065G080510332K CAP 0805 10NF 10% 50V X7R C9808 065G080510332K CAP 0805 10NF 10% 50V X7R C9808 065G080510332K CAP CHIP 0805 10N 50V X7R +/-10% C8123 065G080510332K CAP CHIP 0805 10N 50V X7R +/-10% C9809 065G080510332K CAP CHIP 0805 10N 50V X7R +/-10% C8142 065G080510432K CAP CHIP 0805 0.1UF K 50V X7R...
  • Page 145 C9116 065G080510532K CAP 0805 1UF 10% 50V X7R C9112 065G080510532K CAP 0805 1UF 10% 50V X7R C9108 065G080522232K CAP 0805 2.2NF 10% 50V X7R C9107 065G080522232K CAP 0805 2.2NF 10% 50V X7R C9108 065G080522232K CAP CHIP 0805 2N2 50V X7R +/-10% C9107 065G080522232K CAP CHIP 0805 2N2 50V X7R +/-10%...
  • Page 146 FOR C9901 006G 31502 EYELET FOR C9902 006G 31502 EYELET C9820 065G 1K1022ST CAP CER 1NF 10% 1KV Y5P C8101 065G 1K10293T CAP CER 1NF 10% 1KV R CK45-R3AD102K-SRY C9816 065G 1K10293T CAP CER 1NF 10% 1KV R CK45-R3AD102K-SRY C9816 065G 1K1029WT CAP CER 1000PF 10% 1KV R CT81-1KV-08D-2R C8101...
  • Page 147 RST WD 0.07R 5% 3W NKNP3WS0R07JMS10 R860 361G3SWJ70759B00TZ RST WD 0.07R 5% 3W NKNP3WS0R07JMS10 MAC-U409 370G0MAC500VIZ CD VIZIO IPTV SERIES MAC ADDRESS L852 373G0253265H00 BOOST CHOKE 33UH 10% 4A GL-12001 HA L851 373G0253265H00 BOOST CHOKE 33UH 10% 4A GL-12001 HA...
  • Page 148 TU101 394GPASEBIL06G TUNER LATAM TDST-H880F 705TXE57110 D820+Q852+HS801 D820 093G 60935 DIODE MBRF20100CT ITO-220AB 0M1G1730 8120 SCREW M3 8 Q852 357G0600A01 MOSFET AOTF4126 19A 100V 42W TO-220F HS801 Q90G0219003A0000HG HEAT SINK 705TXE93110 D821+Q853+HS802 D821 093G 60935 DIODE MBRF20100CT ITO-220AB 0M1G1730 8120 SCREW M3 8 Q853 357G0600A01...
  • Page 149 R741 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R737 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R793 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R708 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R128 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R602 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA...
  • Page 150 R808 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO R156 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO R4037 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R4035 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R493 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R498 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA...
  • Page 151 R717 061G04022701FT RST 0402 2.7K 1% 1/16W TZAI YUAN R734 061G04022941FT RST 0402 2.94K 1% 1/16W R745 061G04022941FT RST 0402 2.94K 1% 1/16W R179 061G0402302 JY RST CHIPR 3KOHM £«-5£¥ 1/16W YAGEO R105 061G0402303 JT RST CHIP R 30KOHM 1/16W +/-5% TZAI YUAN R101 061G0402303 JT RST CHIP R 30KOHM 1/16W +/-5% TZAI YUAN...
  • Page 152 R522 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L R553 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L R525 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L R406 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L R403 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L R620 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L...
  • Page 153 R4014 061G06033901FF RST CHIPR 3.9KOHM +-1% 1/10W FENGHUA R4018 061G06033901FF RST CHIPR 3.9KOHM +-1% 1/10W FENGHUA R4102 061G06034701FT RST CHIP 4K7 1/10W 1% R750 061G0603472 JT RST CHIP 4K7 1/10W 5% TZAI YUAN R703 061G0603473 JT RST CHIP 47K 1/10W 5% TZAI YUAN R482 061G0603512 JY RST CHIPR 5.1KOHM +-5% 1/10W YAGEO...
  • Page 154 R814 061G08053908FT RST 0805 3.9R 1% 1/8W R843 061G08053908FT RST 0805 3.9R 1% 1/8W R813 061G08053908FT RST 0805 3.9R 1% 1/8W R865 061G08053908FT RST 0805 3.9R 1% 1/8W R850 061G08053908FT RST 0805 3.9R 1% 1/8W R842 061G08053908FT RST 0805 3.9R 1% 1/8W R844 061G08053908FT RST 0805 3.9R 1% 1/8W...
  • Page 155 C421 065G040210332K CAP CHIP 0402 10N 50V X7R +/-10% C655 065G040210332K CAP CHIP 0402 10N 50V X7R +/-10% C183 065G040210332K CAP CHIP 0402 10N 50V X7R +/-10% C133 065G040210412K CAP CHIP 0402 100NF K 16V X7R C128 065G040210412K CAP CHIP 0402 100NF K 16V X7R C130 065G040210412K CAP CHIP 0402 100NF K 16V X7R...
  • Page 156 C447 065G040210412K CAP 0402 100NF 10% 16V X7R C4121 065G040210412K CAP 0402 100NF 10% 16V X7R C441 065G040210412K CAP 0402 100NF 10% 16V X7R C444 065G040210412K CAP 0402 100NF 10% 16V X7R C4123 065G040210412K CAP 0402 100NF 10% 16V X7R C462 065G040210412K CAP 0402 100NF 10% 16V X7R...
  • Page 157 C612 065G060310432K CAP CHIP 0603 0.1UF K 50V X7R C604 065G060310432K CAP CHIP 0603 0.1UF K 50V X7R C608 065G060310432K CAP CHIP 0603 0.1UF K 50V X7R C733 065G060310432K CAP CHIP 0603 0.1UF K 50V X7R C4002 065G060310432K CAP 0603 100NF 10% 50V X7R C722 065G060310512K CAP 0603 1UF 10% 16V X7R...
  • Page 158 C606 065G080510432K CAP 0805 100NF 10% 50V X7R GRM21BR71H10 C614 065G080510432K CAP 0805 100NF 10% 50V X7R GRM21BR71H10 C611 065G080510432K CAP 0805 100NF 10% 50V X7R GRM21BR71H10 C874 065G080510432K CAP CHIP 0805 100N 50V X7R +/-10% C809 065G080510432K CAP CHIP 0805 100N 50V X7R +/-10% C861 065G080510432K CAP CHIP 0805 100N 50V X7R +/-10%...
  • Page 159 FB606 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA FB607 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA FB107 071G 59S121 T CHIP BEAD 120R/500MA MMZ1608S121A FB702 071G3216330 6M CHIP BEAD 1206 33 OHM 25% 6A FB701 071G3216330 6M CHIP BEAD 1206 33 OHM 25% 6A FB708 071G3216330 6M...
  • Page 160 C475 365G080522606M000M CAP 0805 22UF 20% 6.3V X6S GRM21BC80J22 C440 365G080522606M000M CAP 0805 22UF 20% 6.3V X6S GRM21BC80J22 C425 365G080522606M000M CAP 0805 22UF 20% 6.3V X6S GRM21BC80J22 C602 367G311F101GLT EC SMD 100UF 20% 35V 8*10 2000 HR 850MA C603 367G311F101GLT EC SMD 100UF 20% 35V 8*10 2000 HR 850MA C875 367G311X101GCT...
  • Page 161 X16G000202003800ZA GASKET X37T818601100000G1 BASE_ASS’Y TV55W-14PH05-PH09-PH12 NA X40G0002997A46 LABEL FTC LABEL FOR E55-C1(US+CA) X40G0002997A53 OTHER LABEL COLOR DOT LABEL X40G0002997B17 LABEL FOR VIZIO AC POWER LABEL X40G2014050X0060XY IO LABEL X40G2014050X0070XY IO LABEL X44GVA901020FA CUSHION-T N/A 120V/60HZUSA X44GVA902010FA CUSHION-B NA 120V/60HZUSA X44GVA90301EPE...
  • Page 162 040G 58162435A MANUAL P/N LABEL Q40G0001709 1A CARTON LABEL FOR 76_76 ROLL X40G0001624 2A LABEL FOR SCREW PE BAG X40G000199710C LABEL SN LABEL FOR VIZIO 39X19 X40G055099714A RATING LABEL E55-C1（2ND) FG US+MEXIC Z40G0002ALL01A OTHER LABEL Q11G701015000L00JY PCB-SUPPORT...

This manual is also suitable for:

E55-c1

Table of Contents
