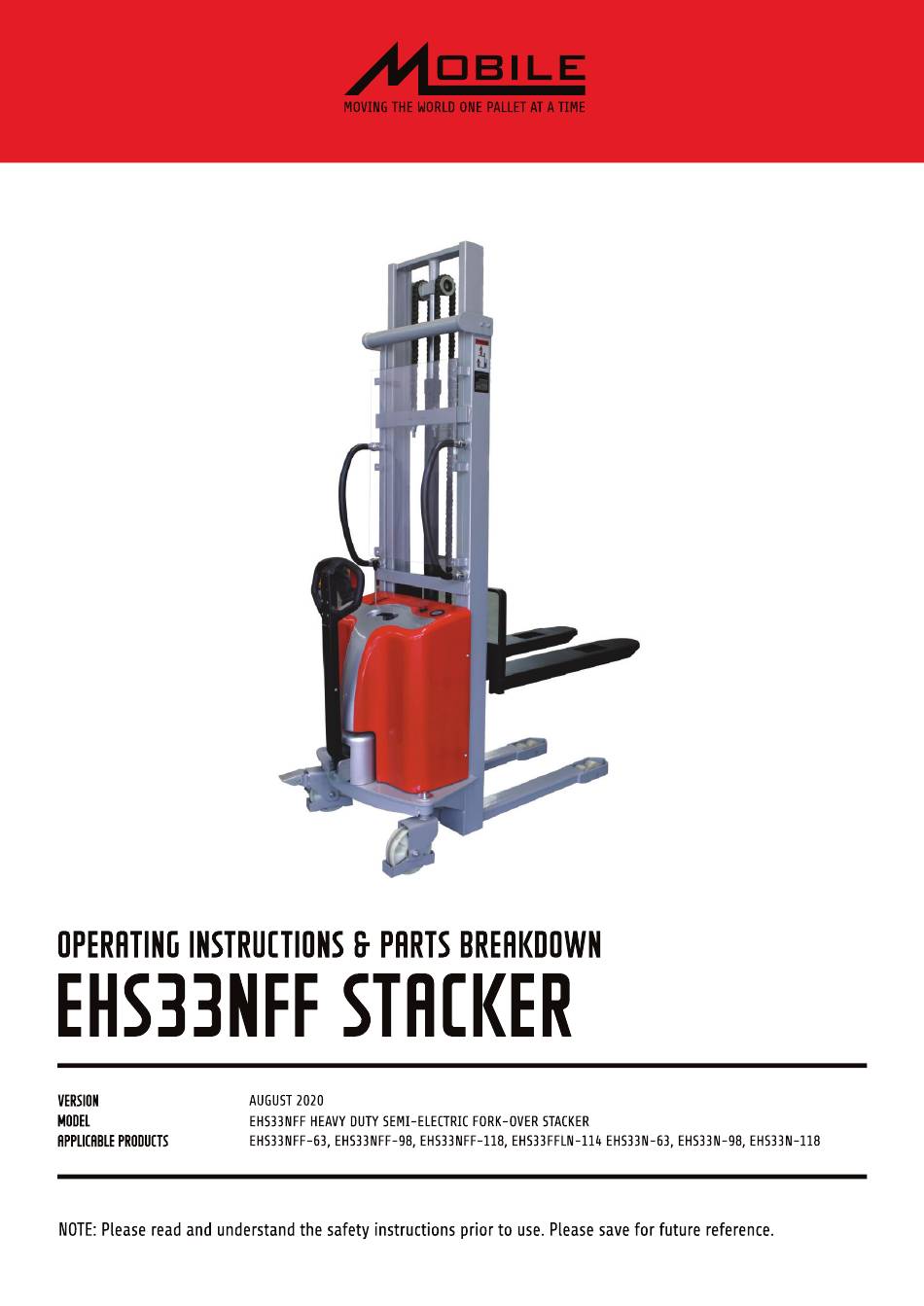

Summary of Contents for Mobile EHS33NFF
-
Page 2: Technical Specifications
Welcome to use our electric stacker. Your stacker is made of high quality steel and SPED mast and was designed to give a durable, reliable and easy to use product. For your safety and correct operation, please carefully read this instruction book and warnings on the stacker before using it. This Operation Instruction of the stacker is edited for you to completely acquire and master the safety operation of the stacker. -
Page 3: Technical Data
Technical Data EHS33N-114 Model of manufacture EHS33N-63 EHS33N-98 EHS33N-118 Drive: manual manual manual manual (electric-battery or mains,diesel,petrol,fuel gas,manual) Type of operation pedestrian pedestrian pedestrian pedestrian (hand,pedestrian,standing,seated,order picker) Load capacity / rated load Q (kg) 1500 1500 1500 1500 Load centre distance c (mm) Wheelbase y (mm) -
Page 4: Safety Guidance
Residual Capacity at different lifting height Up to h3 mm ACTUAL CAPACITY ( Q ) kg 1500 1500 2500 1500 3000 Load centre distance ( C ) 2 SAFETY GUIDANCE 2.1 Operator should read all warning signs and instructions here and on the stacker before using it. 2.2 Do not operate a stacker unless you are familiar with it and have been trained or authorized to do 2.3 Do not operate a stacker unless you have checked its condition. -
Page 5: Control Panel
Use motor oil or grease to lubricate all movable parts. 3.4 Maintenance of battery: Keep all the screw caps on each cell battery dry and clean. Each connecting terminal and cable terminal should be tightened and painted with clean grease. The exposed connecting terminal and connecting rod of battery should be covered with anti-slip insulated cover. -
Page 6: Troubles Shooting
6 TROUBLES SHOOTING Trouble Clause Fixing Methods The forks cannot be -The hydraulic oil is not enough. -Pour in the oil. up the max. height. The forks cannot be -Without hydraulic oil. -Fill in the oil. lifted up.(Motor -The oil has impurities. -Change the oil. -
Page 7: Hydraulic Flow Diagram
7 Hydraulic Flow Diagram 8 Electric Wires Diagram 8.1 CIRCUIT DIAGRAM... -
Page 8: Connection Diagram
8.2 CONNECTION DIAGRAM... -
Page 9: Parts List
9 Parts List 9.1 EHS33NFF-98 / EHS33NFF-118 Part List... - Page 10 EHS33NFF-98 / EHS33NFF-118 Part List Code Mobile # Description Qty. D13560035 EHS33NFF-101-25 Inner Mast 1525 D13560041 EHS33NFF-101-30 Inner Mast 1530 504040025 EHS33NFF-102 Locking Ring 349010119 EHS33NFF-103 Bearing 422260023 EHS33NFF-104 Roller For Chain 504030018 EHS33NFF-105 Locking Ring 5010808010C0 EHS33NFF-106 Screw 504030020...
- Page 11 Code Mobile # Description Qty. 503010068 EHS33NFF-154 Washer 503020012 EHS33NFF-155 Washer 502040020 EHS33NFF-156 D01640004 EHS33NFF-157 Foot Plate 504030004 EHS33NFF-158 Locking Ring 301726012 EHS33NFF-159 Shaft D01640003 EHS33NFF-160 Brake 302010116 EHS33NFF-161 Spring 422680028 EHS33NFF-162 Bolt 422680046 EHS33NFF-163 Sprocket Wheel 163A 349030011 EHS33NFF-163A...
- Page 12 9.2 EHS33N-98 / EHS33N-118 Part List...
- Page 13 EHS33N-98 / EHS33N-118 Part List Code Mobile # Description Qty. D13560038 EHS33N-101-25 Inner Mast 1525 T030403004 EHS33N-101-30 Inner Mast 1530 504040025 EHS33N-101 Locking Ring 349010119 EHS33N-102 Bearing 422260023 EHS33N-103 Roller For Chain 504030018 EHS33N-104 Locking Ring 5010808010C0 EHS33N-105 Screw 504030020...
- Page 14 Code Mobile # Description Qty. 502040020 EHS33N-156 D01640004 EHS33N-157 Foot Plate 504030004 EHS33N-158 Locking Ring 301726012 EHS33N-159 Shaft D01640003 EHS33N-160 Brake 302010116 EHS33N-161 Spring 422680028 EHS33N-162 Bolt 422680046 EHS33N-163 Sprocket Wheel 163A 349030011 EHS33N-163A Sprocket Wheel 422670019 EHS33N-164 Seat of Turning Wheel...
- Page 15 9.3 EHS33NFF-63 Part List...
- Page 16 EHS33NFF-63 Part List Code Mobile # Description Qty. EHS33NFF-101S 101S 422660013 Holding plate 504040025 EHS33NFF-102 Locking Ring 349010119 EHS33NFF-103 Bearing 422260023 EHS33NFF-104 Roller For Chain EHS33NFF-105 504030018 Locking Ring EHS33NFF-106S 106S 5010808010C0 Screw EHS33NFF-107 504030020 Locking Ring EHS33NFF-108 349010121 Bearing...
- Page 17 Code Mobile # Description Qty. 502040020 EHS33NFF-156 EHS33NFF-157 D01640004 Foot Plate EHS33NFF-158 504030004 Locking Ring EHS33NFF-159 301726012 Shaft D01640003 EHS33NFF-160 Brake 302010116 EHS33NFF-161 Spring EHS33NFF-162 422680028 Bolt EHS33NFF-163 422680046 Sprocket Wheel (φ25) EHS33NFF-163A 163A 349030011 Sprocket Wheel (φ30) EHS33NFF-164 422670019...
- Page 18 9.4 EHS33N-63 Part List...
- Page 19 EHS33N-63 Part List Code Mobile # Description Qty. EHS33N-101S 101S 422660013 Holding plate 504040025 EHS33N-102 Locking Ring 349010119 EHS33N-103 Bearing 422260023 EHS33N-104 Roller For Chain EHS33N-105 504030018 Locking Ring EHS33N-106S 106S 5010808010C0 Retaining ring EHS33N-107 504030020 Locking Ring EHS33N-108 349010121...
- Page 20 Code Mobile # Description Qty. EHS33N-158 504030004 Locking Ring 301726012 EHS33N-159 Shaft D01640003 EHS33N-160 Brake 302010116 EHS33N-161 Spring EHS33N-162 422680028 Bolt EHS33N-163 422680046 Sprocket Wheel (φ25) EHS33N-163A 163A 349030011 Sprocket Wheel (φ30) EHS33N-164 422670019 Seat of Turning Wheel 30301WH054 EHS33N-165...
- Page 21 9.5 EHS33FFLN-114 Part List...
- Page 22 EHS33FFLN-114 Part List Code Description Qty. Code Description Qty. T030403010 Inner Mast 304010009 Draw-Bar for Turning 504030013 Locking Ring 422660002 Seat of gas spring 422160028 Chain wheel 302990028 Gas spring 503010028 Washer 422660001 Shaft 422160052 Seat of chain wheel 504030002 Locking Ring 351410006 cylinder...
