- Page 1 Owner’s Manual Genesis S2 Streaming Music Centre...
- Page 2 Genesis S2 Streaming Music Centre INDEX Pages 3-5 Precautions and warranty information Page 6 Discovering S2: Front view Pages 7-8 Discovering S2: Rear view Page 9 Copying music files to the build-in SSD drive Page 10 Remote handset operation Pages 11-18...
- Page 3 Genesis S2 Streaming Music Centre Warnings and Precautions CAUTION: To reduce the risk of electric shock, do not try to open the device. No user serviceable parts inside. Refer servicing to qualified service personnel only. The lightning flash with an arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of un-insulated dangerous voltage within the product’s enclosure which may be of...
- Page 4 Genesis S2 Streaming Music Centre We thank you for your purchase of our YBA Genesis product. We are confident that it will provide you with many years of listening pleasure. YBA Genesis products have been manufactured with the same pride and attention to detail as every other product made since our creation in 1981.
- Page 5 Genesis S2 Streaming Music Centre YBA Warranty Policy Information YBA warrants this product to be free from defects in materials and workmanship subject to the following: The warranty period may vary from country to country and according to local regulations. Consult your dealer or distributor to confirm the warranty duration in your country.

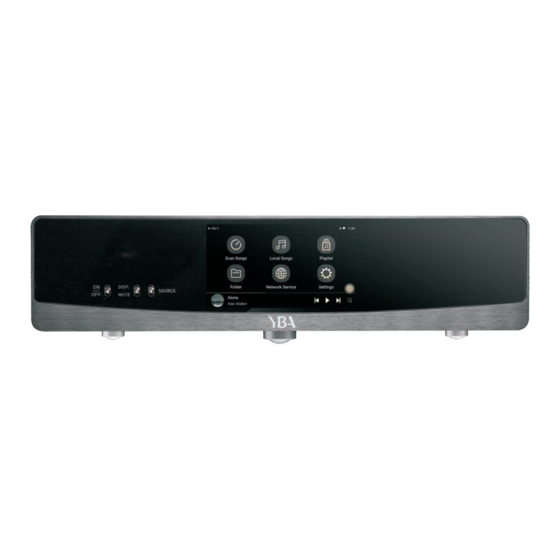

- Page 6 Genesis S2 Streaming Music Centre Discovering your S2: Front view DISP. SOURCE MUTE Power Switch Use this switch underneath the machine to power on or power off the S2 On/Off Toggle up to turn on from Standby / Toggle down to put in Standby...
- Page 7 Genesis S2 Streaming Music Centre Discovering your S2: Rear view ANALOG OUTPUT DIGITAL OUTPUT OPTICAL COAXIAL AES/EBU RCA 1 RCA 2 G e n e s i s S STREAMING MUSIC CENTRE XLR - R XLR - L ETHERNET OPTICAL...
- Page 8 Genesis S2 Streaming Music Centre Discovering your S2: Rear view XLR output Balanced outputs must be used with equipment with balanced inputs. YBA believes that RCA connections are of better quality than XLR connections, unless the cable connection is very long.
- Page 9 Genesis S2 Streaming Music Centre Copying music files to the build-in SSD drive S2 comes with a build-in 1TB NVME SSD drive for storing music files If you wish to copy your music library onto the drive, it's recommended to remove the drive from the S2...
-
Page 10: Remote Handset Operation
Genesis S2 Streaming Music Centre REMOTE HANDSET OPERATION Note: PRESS means a short press on a key while HOLD means to keep the key pressed for more than 3 seconds. Always point the remote towards the IR window of your S2 Select the device you want to control. -
Page 11: Operation
Genesis S2 Streaming Music Centre OPERATION Switching on/off Press the switch under the front panel on the left hand side. A red indicator will appear on the right hand side of the touchscreen. Toggle the front panel on/off switch upwards to on. Hold for 2-3 seconds. The red light will be replaced by a blue flashing light which will then become solid when the unit is ready for use. - Page 12 Genesis S2 Streaming Music Centre System Settings When navigating through these settings, in order to return to the options swipe from left to right across the screen. WLAN: Available networks will be listed. Select and then enter details of your network. Be sure that you have selected the On button on the top right hand side.
- Page 13 Genesis S2 Streaming Music Centre Next more personal preferences can be set Languages: Default is English. When using a keyboard screen other options will be available. Backup and reset: This will reset your S2 to the original factory settings and is best left untouched unless necessary.
- Page 14 Genesis S2 Streaming Music Centre Gain: ReplayGain function, set to either on/off. UV meter: Set whether the digital UV meter should show up on now playing screen. There are options for 3 different colors of the display. Select on or off. Here you can enter your own equaliser settings. Press Close. Next choose On and set to your preferences.
- Page 15 Genesis S2 Streaming Music Centre Local Songs: Choose Local Songs to begin to listen to your music. Remember you must have chosen local songs from your Input Switching Options. This gives you options of how to listen to the songs by Songs / Artist / Album / Genres and Playlists. Choosing one of those options you will see all songs/artist/album listed alphabetically.
- Page 16 Genesis S2 Streaming Music Centre Turn DLNA On or Off Add DLNA shared folder. DLNA Shared Folder list. NAS: Search for NAS servers. SyncLink: Enable to control S2 Local file playback over Bluetooth, using Eddict player app on your smartphone or tablet.
- Page 17 Genesis S2 Streaming Music Centre PreAmp Output // Line-Out. Switch between Pre-amplifier or Line-Out output, this will affect ability to control volume directly on the S2. Input Switching: Choose your input of choice, remembering that to listen to material on USB you choose Local Songs.
- Page 18 Genesis S2 Streaming Music Centre Streaming Services: Currently there are ten streaming options installed with more to follow in an upcoming firmware update. It is necessary to enter your account details in each of these and then login. These details will only have to be entered once.
- Page 19 Genesis S2 Streaming Music Centre S2 SPECIFICATIONS FILE FORMAT Supported formats AIFF, WAV(LPCM), FLAC, MP3, WMA, AAC Supported sampling rates DSD512 32 - 768KHz 16bit, 24bit, 32bit Supported resolution NETWORK Ethernet 10/100 Base-T (RJ45) WiFi IEEE 802.11b/g/n Compatible DLNA 1.0/1.5 compatible...
