Dear users, Thank you for choosing this product. Please read this manual carefully before installation and use. Please do not forget to include this manual if you send the product to a third party. 1. Safety Instruction Please make sure that the power voltage being used matches with the supply voltage of gate opener (AC110V or AC220V);...
Page 3

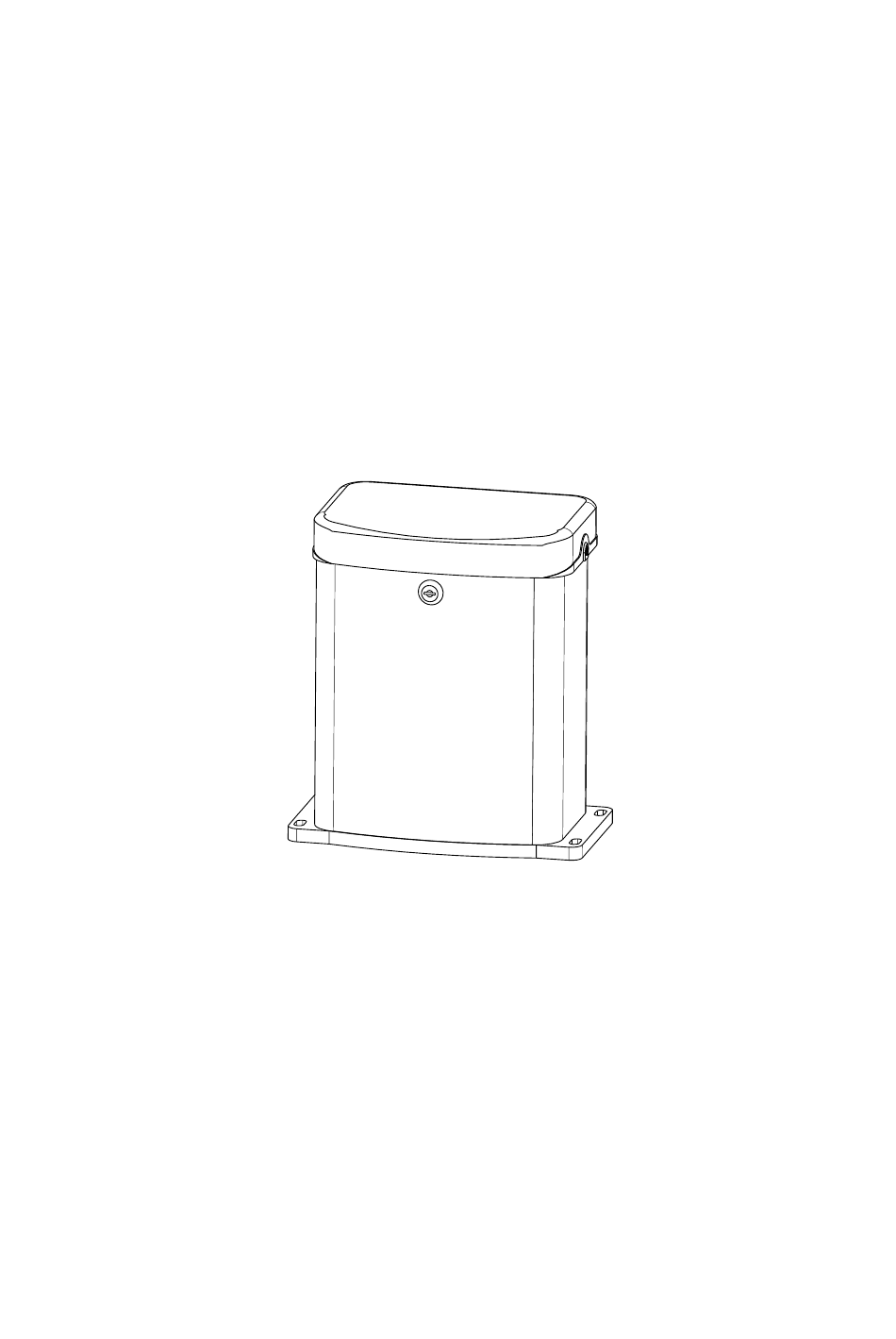

2. Packing List (standard) Picture Name Quantity Main engine Manual release key Remote control Accessories box Manual release bar...
2. Packing List (optional) Picture Name Quantity Steel gear rack 1m/pc Nylon gear rack 1m/pc Infrared sensor Wireless keypad Alarm lamp 3. Technical parameters PY300DC Model Power supply 220V/50Hz;110V/60Hz Motor power 100W Gate Moving speed 13m/min Maximum weight of gate 300Kg ≥30m Remote control distance...
4. Installation PY300DC sliding gate opener is applicable to gate weight less than 300kg, and length of the sliding gate less than 8m. The drive mode adopts the rack and gear transmission. This gate opener must be installed inside the enclosure or yard for protection. 4.1 Installation drawing ⑤...
Page 6
4.2.1 Size of main engine Figure 2 4.2.2 Size of mounting plate 200±0.2 4×φ10 Figure 3 4.3 Installation procedures 4.3.1 Preparation work before installation Please make sure that the sliding gate is correctly installed, the gate rail is horizontal, and the gate can be manually moved smoothly before installing the gate opener.
Page 7
Please precast a concrete pedestal with the size can be 400mm x 250mm, depth be 200mm in Please make sure the distance advance, so as to firmly install PY300DC gate opener. between the gate and gate opener is appropriate before casting the pedestal. Embedded screws Mounting plate Foundation bolt...
Page 8
⚫ Fix the mounting screws to the rack. ⚫ Put the rack on the output gear, make the rack engage with the output gear then weld the mounting screw to the gate (each screw with one solder joints firstly). ⚫ Manually move the gate (gate should be moved smoothly after motor unlocked) to check whether there is a fit clearance between rack and output gear, as shown in Figure 7.
Page 9
(optional) is correct and effective. 5. Control 5.1 Control board The SL300E sliding gate motor controlled by DC2 control board, which has following features: • Control one or two 12 or 24V DC motors. For Swing gates, Sliding Gates, Roller shutter doors etc.
Page 10
1. OPN open push button 2. CLS close push button 3. PED pedestrian open push button 4. OSC Open, Stop, Close push button 5. Gate status display, open green, close red 6. Mode selection DIP switch 7. Close motor force (reverse power) 8.
Page 11
DC2 PCB dimensions and mounting holes Control Terminals OPN ----- N/O open input. PED ------ N/O pedestrian open push button, only open motor-1 PEB ------ N/C photo electrical beams OSC------ N/O Open – Stop – Close--Open OL1 ------ Motor 1 open limit switch, N/C or N/O selected by DIP4 CL1 ------ Motor 1 close limit switch, N/C or N/O selected by DIP4 OL2 ------ Motor 2 open limit switch, N/C or N/O selected by DIP4 CL2 ------ Motor 2 close limit switch, N/C or N/O selected by DIP4...
Page 12
5.9 Timers setting Push Buttons functions Button SET ON---Setting SET OFF---Running Note Sync Delay Time Open gate Lock Pulse Time Lock pulse Time PE Trig Close Time PE Trig Close Time Auto Close Time Auto Close Time Set time settings Turn SET on, red and green LED flashes a little fast alternatively.
Page 13
6. Sliding gate motor (encoder) set up 6.1 Set up the travel distance (or called set limit switch) Encoder control (DIP4=ON) only working on M1, M2 does not working at this setting. 1) Install motor and mounting rack etc. move gate to the half way and engage the motor 2) Push and hold CLS button until CLSLED on and OPNLED off, then release CLS button, now CLSLED slowly flash, OPNLED off, this indicates controller get into closed position set up, push and hold CLS button bring gate to closed position, use OPN and CLS button find right closed position, then push OSC button to...
7.2 Troubleshooting Problems Possible Reasons Solutions 1.Switch on the power supply. 1.The power is off. 2.Check the transformer input The gate cannot open or 2.Fuse is burned. interface fuse, change the fuse close and LED does not 3.Control board power wiring with if burnt.
2.Remove the obstacle. Automatic close function has been Gate opens Change the running motor turned on DIP8=ON but with automatically direction--- Swap motor wires incorrect opening direction. Warranty Warranty Ordinance 1. To repair against this warranty card and invoice during the warranty period. 2.
