Microwave sensor KG001-12V instruction
The sensor is an active motion detector, it emits high-frequency electro-magnetic
wave （5.8GHz） and receives their echo. The sensor detects the change in echo from even
the slightest movement in its detection zone. A microprocessor then triggers the "switch
light ON" command. Detection is possible through doors, panes of glass or thin walls.
Important: persons or objects moving towards the sensor are detected best！
Technical specifications
Input voltage： 12V DC
Sensor principle：Microwave motion detector
HF system： 5.8GHz+/-75MHz CW radar，ISM band
Transmission power：<10mW
Detection range：1 -8m
Motion detection 0.3.....３m/s（1...10km/h）
Light control：2~2000LUX
Operating conditions：
Operating temperature： -10...70℃
Connection illumination
The sensor works with a main voltage of 12V DC version is available on request． The sensor has a
4-wire electrical interface：
N（-）Negative pole
L（+）Positive pole
L' (output)

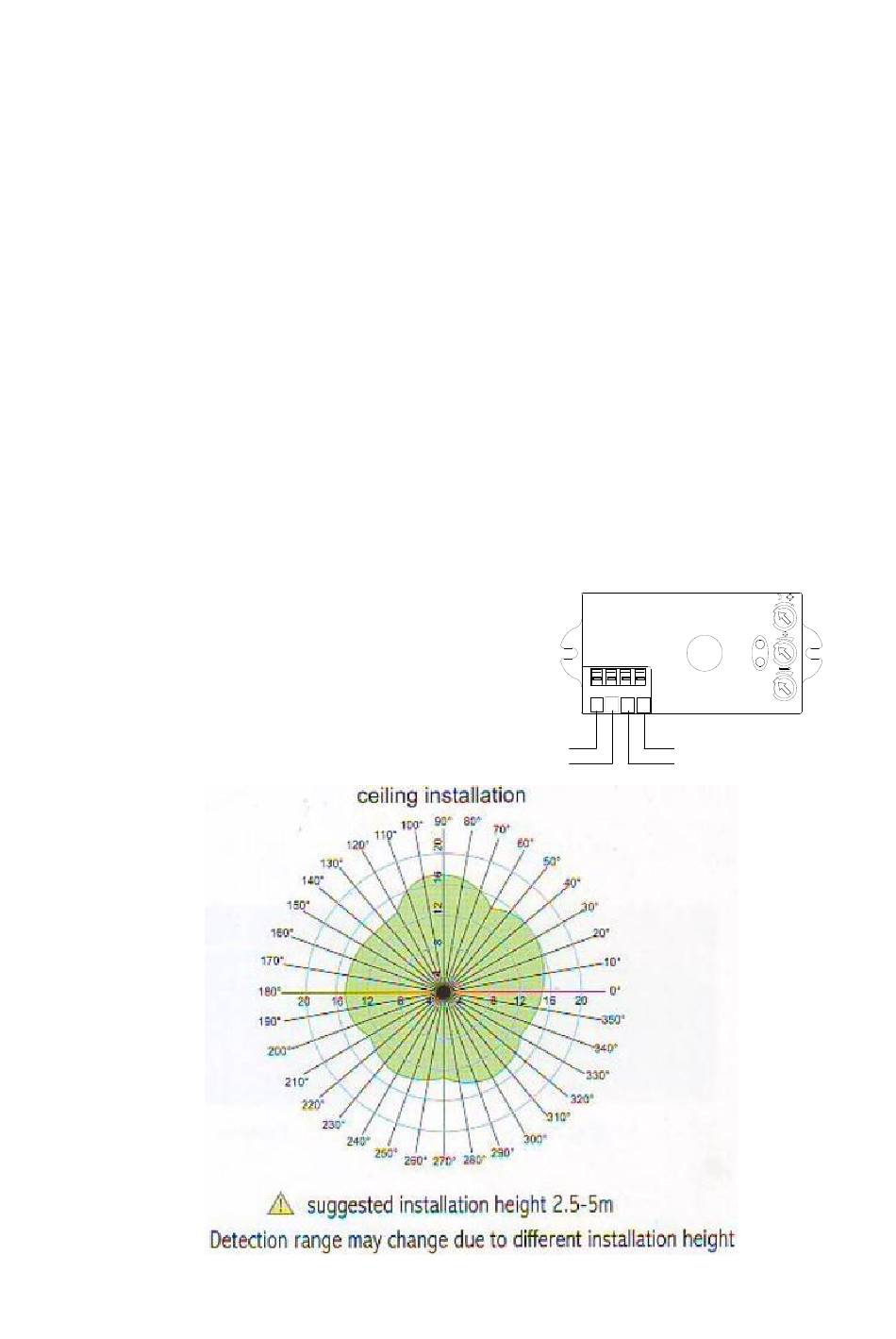

Detecting area chart
Output power： 12V DC
Installation sit： Ceiling mounting
Detection angle：360°
Time Setting：10sec to 5min
Power consumption：approx.0.9W
IP rating： IP 20 （ mounting inside a lamp）
N L N
L'
L'
N
12V DC
IN
OUT
L
N
12V DC
Advertisement
Table of Contents
Related Manuals for Ecosense KG001-12V
Summary of Contents for Ecosense KG001-12V
- Page 1 Microwave sensor KG001-12V instruction The sensor is an active motion detector, it emits high-frequency electro-magnetic wave （5.8GHz） and receives their echo. The sensor detects the change in echo from even the slightest movement in its detection zone. A microprocessor then triggers the “switch light ON”...
- Page 2 Reach setting (sensitivity) Reach is the term used to describe the radius of the circular detection zone produced on the ground. After mounting the sensor light at a height of 2.5m, turn the reach control completely in anti-clockwise direction to select minimum reach (approx.1 m radius), and turn the reach control completely 1-8m radii in a clockwise direction to select the maximum reach (approx.8m radius).
