Extralite Hyper3 Road Freewheel Kit Installation Manual

Hyper3 Road Freewheel Kit -
Compatible with HyperSmart3 R
WARNING: Execute these operations only on a well clean and well illuminated table, you'll have to handle delicate internal parts and
tiny springs, even small debris can compromise the freewheel engagement mechanism.
Carefully follow maintenance instructions step by step.
Schedule periodical cleaning and lubrication sessions; water and moisture stagnant inside hub will damage bearings in few weeks.

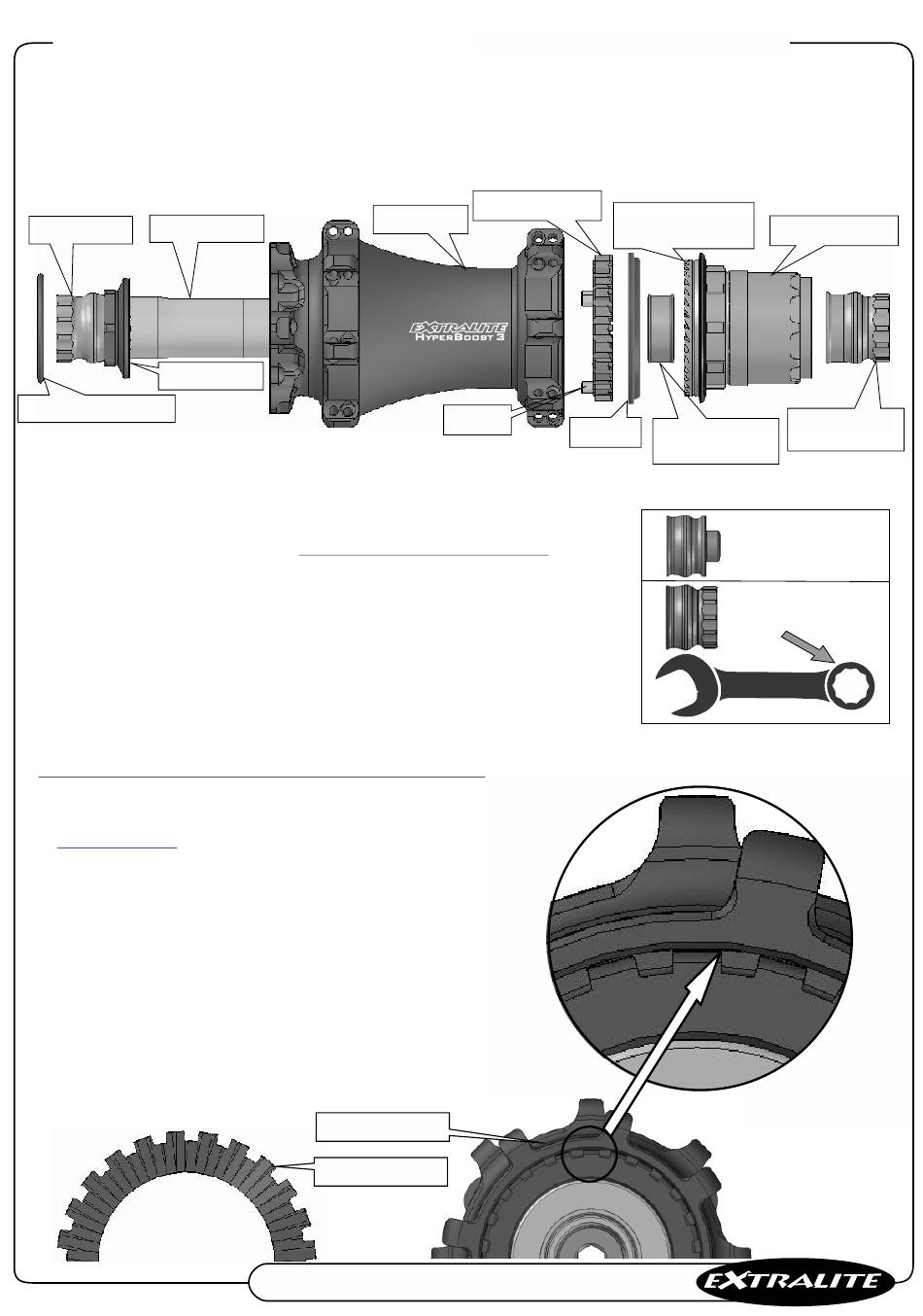

Axle Assembly
Left Axle End
Micro Tuner
External OR 27x1.5
Disassembling
1) Hold Left Axle End with a 17mm closed wrench (5mm hex wrench for 135mm).
2) Unscrew Right Axle End with another 17mm closed wrench (5mm hex wrench for 135mm).
3) Pull Freewheel Body and remove it.
4) Extract Bearing Spacer.
5) Remove Lip Seal from Hub Body.
6) Remove Floating Ring from Hub Body, you'll find 3 tiny springs on its back side.
7) Push out Axle Assembly and completely extract it from disc side.
Cleaning
8) Clean all parts (Do not use aggressive solvents).
9) Clean very carefully all Internal Splines.
Warning: even one small debris can void freewheel engagement.
Warning: carefully check hubshell Splines (see below).
Hubshell Splines Check - IMPORTANT!
Clean and degrease perfectly hubshell internal splines, all of them.
Once hub-shell internal is perfectly clean check well with eye magnifier all the 24 splines, see
image.
Every spline corners (clockwise corners) should be well square and flat.
In case your hub has 24 used splines and you are not sure about it contact
us info@extralite.com providing clear close-up photo.
Potential risk
When riding HyperHubs with dirt inside the hard particles of sand can badly
grind the hubshell splines. Shortly the sand wears the hub-shell splines till the
"floating ring" will not move freely anymore. This easily causes an
uncomplete freewheel engagement and damages permanently the
newly installed freewheel parts. In this case replacing "floating ring" and/or
"Freewheel body" does not solve. The expensive hub-shell should be
replaced (or eventually sent back for re-sharpening).
For more detailed informations check HyperHubs Tips on www.extralite.com
Floating Ring
Hub Body
Springs
Internal Splines
External Splines
Studio Riva engineering - Tel: ++39-0371-203059
info@extralite.com - www.extralite.com
installation manual
Freewheel
Engagement
Bearing Spacer
Lip Seal
( Black )
Teeth Freewheel Body
Right Axle End
9-10 Nm
135mm Axle End
5mm hex wrench
142/148 Axle End
17mm closed poligonal
wrench
