Summary of Contents for Robam CD70-9W6H40

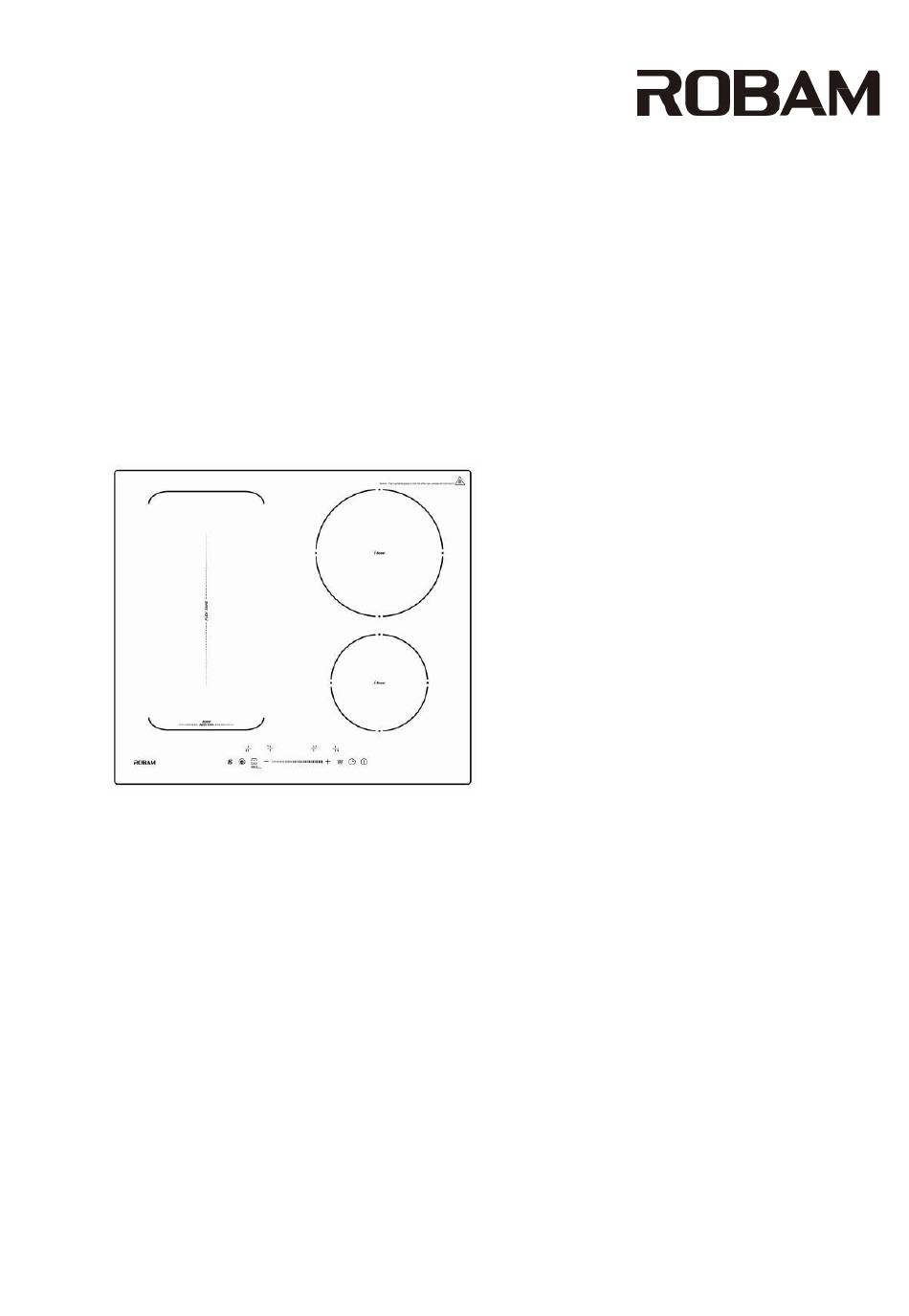

- Page 1 User Manual Before operating this unit, please read the user manual completely and keep it. If the manual is lost, you can send e-mail to overseas@robam.com, request for an electronic manual. CD70-9W6H40 INDUCTION COOKTOP...
-
Page 2: Table Of Contents
Contents Safety Warnings..................3 Technical Specification................8 Product Overview and Parameters............9 How to choose right cookware...............11 Use Instruction..................12 Cooking Guidelines................. 23 Care and Cleaning.................. 25 Troubleshooting..................28 Installation instruction................29... -
Page 3: Safety Warnings
Dear Users, Let us take this opportunity to thanks for your buying of ROBAM induction hob. We recommend that before the installation and using. Please read this manual and save it for your future reference. ROBAM is a professional enterprise in China’s household appliances and kitchenware. - Page 4 • No combustible material or products should be placed on this appliance at any time. • Please make this information available to the person responsible for installing the appliance as it could reduce your installation costs. • In order to avoid a hazard, this appliance must be installed according to these instructions for installation.
- Page 5 • Do not let your body, clothing or any item other than suitable cookware contact the Induction glass until the surface is cool. • Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot. •...
- Page 6 • Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured. • Do not leave children alone or unattended in the area where the appliance is in use. •...
- Page 7 This appliance can be used by children aged from 8 years and above and persons with reduced physical,sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 8: Technical Specification
For installation, please read the installation section. Read all the safety instructions carefully before use and keep this Instruction / Installation Manual for future reference. Technical Specification Cooking Hob CD70-9W6H40 Cooking Zones 4 Zones Supply Voltage 220-240V~ Installed Electric Power 6600 - 7400W Product Size L×W×H(mm) -
Page 9: Product Overview And Parameters
Product Overview and Parameters Top View 1. 2000 W B o o s t 2 6 0 0 W zone 2. 1500 W B o o s t 2 0 0 0 W zone 3. 2000 W B o o s t 2 6 0 0 W zone 4. - Page 10 A Word on Induction Cooking Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up.
-
Page 11: How To Choose Right Cookware
How to choose right cookware • Only use cookware with a base suitable for induction cooking. Look for the induction symbol on the packaging or on the bottom of the pan. • You can check whether your cookware is suitable by carrying out a magnet test. -
Page 12: Use Instruction
Use Instruction To start cooking 1. Touch the ON/OFF control. After power on, the buzzer beeps once, all displays show “ – “ or “ – – “, indicating that the induction hob has entered the state of standby mode. 2. - Page 13 If the display flashes alternately with the heat setting This means that: • you have not placed a pan on the correct cooking zone or, • the pan you’re using is not suitable for induction cooking or, • the pan is too small or not properly centred on the cooking zone. No heating takes place unless there is a suitable pan on the cooking zone.
- Page 14 Using the Boost function Boost is the function that one zone rises to a high power level in one second and lasts for 5 minutes. Then you can get a more powerful and faster cooking. Using b oost to cook at high power 1.Touch the heating zone selection button that you wish to boost, an indicator next to the key will flash.
- Page 15 Restrictions for using Boost four zones were divided into two groups. If you use boost on one zone, make sure that the other zone within the group is working at or below power level 5. the Keep Warm function Using The Keep Warm function is suitable for keeping food warm.
- Page 16 Flexible Area • This area can be used as a single zone or as two different zones, accordingly to the cooking needs anytime. • Flexible area is made of two independent inductors that can be controlled separately. • Important: Make sure to place the cookwares centered on the single cooking zone. When using a big pot, oval, rectangular and elongated pans, make sure to place the pans centered on the cooking zone covering both cross.
- Page 17 As two independent zones 1.To use the flexible area as two different zones with different power settings,press the flex zone selection button again and the zones will return into their previous settings. Using the Flex Zone function 1.Touch the zone selection button to active the zone, and then touch the flexzone key and hold for 1 seconds.Then the zones in the flex group will show the same power level,flex zone function active.
- Page 18 2.If you want to cancel the barbecue function, just touch the zone selection control which you choose and then touch the flex zone control for 1 second. Then the cooking zone indicator will display “0”.Now you can reset the power level. Locking the controls •...
- Page 19 Over spillage protection Over-spillage protection is a safety protection function. It switch off the hob automatically within 10s if the water flow to the control panel, while buzzer will beep 1 second. Detection of small articles When an unsuitable size or non-magnetic pan (e.g. aluminium), or some other small item (e.g.
- Page 20 Using the Timer as a Minute Minder 1. Make sure the cooktop is turned on. Note: You can use the minute minder even if you’re not selecting any cooking zone 2. Touch timer control, The minder indicator will start flashing and “30” will show in the time display.
- Page 21 Setting the timer to turn one cooking zone off 1. Touching the heating zone selection control that you want to set the timer off. 2. Touch timer control, The minder indicator will start flashing and “30” will show in the timer display.
- Page 22 6. When cooking timer expires, the corresponding cooking zone will be switch offautomatically and will show “H” Other cooking zone will keep operating if they are turned on previously. Setting the timer to turn more than one cooking zone off If you use this function on more than one heating zones, the timer indicator will show the shortest time.
-
Page 23: Cooking Guidelines
Cooking Guidelines Take care when frying as the oil and fat heat up very quickly. At extremely high temperatures oil and fat will ignite spontaneously and this presents a serious fire risk. Cooking Tips • When food comes to the boil, reduce the temperature setting. •... - Page 24 3. Preheat the pan briefly and add two tablespoons of oil. 4. Cook any meat first, put it aside and keepwarm. 5. Stir-fry the vegetables. When they are hot but still crisp, turn the cooking zone to a lower setting, return the meat to the pan and add your sauce. 6.
-
Page 25: Care And Cleaning
Care and Cleaning What? How? Important! Everyday soiling 1. Switch the power to the • When the power to the cooktop is on glass switched off, there will be no ‘hot cooktop off. (fingerprints, surface’ indication but the 2. Apply a cooktop cleaner marks, stains left cooking zone may still be hot! while the glass is still... - Page 26 Hints and Tips Problem Possible causes What to do The induction hob No power. Make sure the induction cannot be turned on. hob is connected to the power supply and that it is switched on. Check whether there is a power outage in your home or area.
- Page 27 Fan noise coming A cooling fan built into your This is normal and needs no from the induction induction hob has come on action. Do not switch the power to to prevent the electronics hob. the induction hob off at the wall from overheating.
-
Page 28: Troubleshooting
Troubleshooting If an abnormality comes up, the induction hob will enter the protective state automatically and display corresponding protective codes: Problem Possible causes What to do F3/F4 Temperature sensor of the induction Please contact the supplier. coil failure F9/FA Please contact the supplier. Temperature sensor of the IGBT failure. -
Page 29: Installation Instruction
Installation instruction Selection of installation equipment Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole.Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant work surface material to avoid larger deformation caused by the heat radiation from the from the hotplate. - Page 30 Adjusting the bracket position Fix the hob on the work surface by screw 4 brackets on the bottom case of hob (see picture) after installation. Screw Bracket Screw hole Bottom case Cautions 1. The induction hotplate must be installed by qualified personnel or technicians. We have professionals at your service.
- Page 31 To connect the hob to the mains power supply, do not use adapters,reducers, or branching devices, as they can cause overheating and fire. The power supply cable must not touch any hot parts and must be positioned, so that its temperature will not exceed 75˚C at any point Connecting the hob to the mains power supply This hob must be connected to the mains power supply only by a suitably qualified...
- Page 32 Disposal This appliance is labelled in accordance with European Directive 2012/19/EU regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials�...
- Page 33 Edition:A/0 Publication Date:December. 05.2022...
