FEIYUTECH VB4 Manual

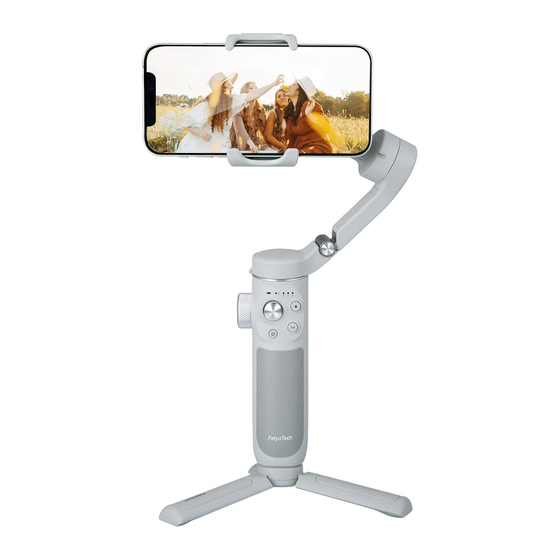

3-axis handheld gimbal for smartphone
Hide thumbs Also See for VB4:
Table of Contents

Advertisement

Quick Links

Download this manual
3-Axis Handheld Gimbal for Smartphone Manual
EN V 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VB4 and is the answer not in the manual?

Questions and answers

Related Manuals for FEIYUTECH VB4

Summary of Contents for FEIYUTECH VB4

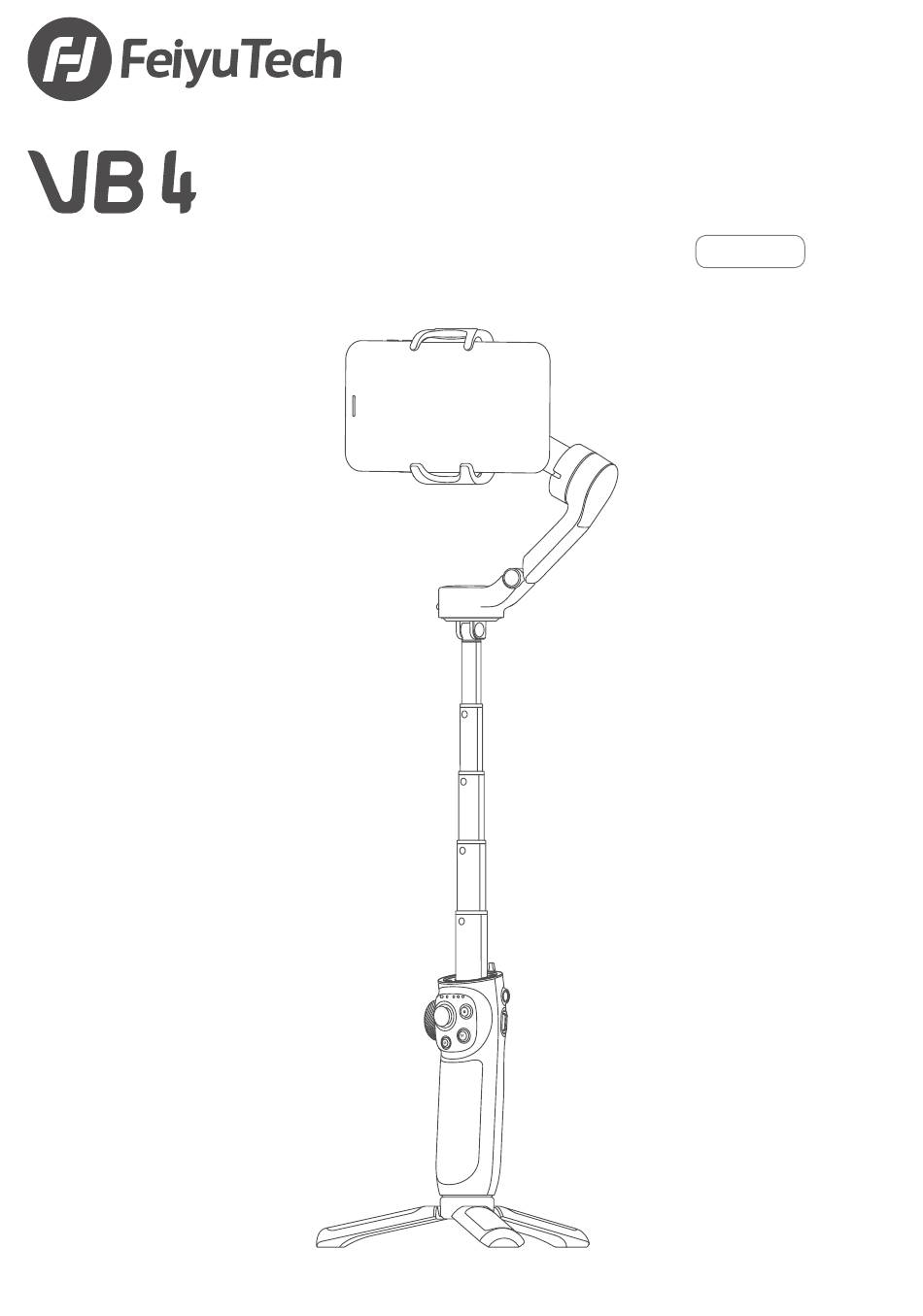

  • Page 1 3-Axis Handheld Gimbal for Smartphone Manual EN V 1.0...

  • Page 2: Table Of Contents

    Contents 1. Overview ………………………………………………………… 2 2. Quick Experience ……………………………………………… 3 3. Charging ………………………………………………………… 4 4. Landscape & Portrait Mode Switching ……………………… 4 6. Tripod …………………………………………………………… 5 7. Connection ……………………………………………………… 5 8. Common Operation …………………………………………… 9 9. Mode Introduction ……………………………………………… 12 10.
  • Page 3 1. Quick start guide 2. Online instruction Tutorial ·The tutorial videos can be watched at FeiyuTech official website or scan the QR code below. https://www.feiyu-tech.com/play/ · Watch tutorials in video skill page on Feiyu ON. Download the Feiyu ON App Scan the QR code to download the app, or search for "Feiyu ON"...

  • Page 4: Overview

    1. Overview [18] [19] [20] [10] [11] [12] [16] [13] [21] [14] [17] [22] [15] [23] [24] [25] [1] Roll axis [14] Knob function switching button [2] Cross arm [15] Album button [3] Tilt axis [16] Shutter button [4] Vertical arm [17] M button (custom functions in App) [5] Pan axis...

  • Page 5: Quick Experience

    2. Quick Experience Step 1: Unfold and fold Step 2: Smartphone Installation It is recommended to remove the smartphone case before installation. Keep the logo of the smartphone holder upward. Install the smartphone when the gimbal is power off. Keep the smartphone holder in center. If the smartphone tilted, please move the smartphone left or right to make it horizontal.

  • Page 6: Charging

    Step 3: Power ON/OFF/Standby It is recommended to install your smartphone and balance gimbal before power on the gimbal. Power ON/OFF: Long press the power button and release it when you hear the tone. Enter standby mode: Double tap the power button to enter standby mode. Tap again to wake up.

  • Page 7: Tripod

    5. Extend and Reset the Handle Hold the handle with one hand, hold the bottom of pan axis with other hand. Extending: Pull the extendable rod out to suitable length. Reset: Push upper grip to make the extendable bar down to handle part. Do not rotate the rod to extend or reset it.
  • Page 8 Method two: Turn on the smartphone Bluetooth, connect the gimbal Bluetooth in the setting of phone, e.g. FY_VB4_XX. If fail to find the Bluetooth: Method one: Shut down the App in the background. Method two: Move downward the joystick and triple tap the power button at the same time to reset the Bluetooth connection of gimbal.
  • Page 9 (5) You can control the gimbal via App, including remote control the gimbal to move, switch follow modes and set parameters, etc. If the connection timeout or fail, please check the Bluetooth connection. Or try to exit and log in the App again. a.
  • Page 10 Control Interface 4. Gimbal information 13. Remote Control 14. Upgrade 15. Tutorial 16. Settings FY_VB4_XX 17. Set waypoints for timelapse 18. Reset 19. Virtual Joystick 20. Pan mode 21. Follow Mode 22. All follow Mode b. Firmware Upgrade Upgrade type introductions: Fix/update or newly add button/touch screen/ Keyboard firmware update interaction functions.

  • Page 11: Common Operation

    (2) Select upgrade type. (3) Follow the prompts to upgrade the firmware. · Do not exit Feiyu ON or run it in the background while updating the firmware. Pay attention to on-screen prompts. Noted: Gimbal has an update protection function. When the update fails, restart the gimbal, it will return to the previous firmware.
  • Page 12 Diagram Button Condition Function Power off: ・Long press: power on ・Single tap: check battery level Power on: Basic ・Long press: power off ・Double tap: enter standby mode (tap again to wake up) ・Single tap: enter/quit shortcut menu in App Can choose video, photo, panorama, time-lapse modes，can set poweron default mode, M key shortcut mode ( power-on default mode and M key...
  • Page 13 Diagram Button Condition Function ・Rotate: When control focus/zoom: Knob control focus/zoom (default) Basic When control axes: control the movement of the roll (default)/tilt/pan axis Control the movement of the tilt and pan Basic axes ・Select setting option ・After enter album: Joystick move to left to choose previous photo/ video;...

  • Page 14: Mode Introduction

    Diagram Button Condition Function Album button Single tap: enter/exit album ・Long press: lock mode (release it to exit) Basic ・Double tap: recenter Trigger button ・Single tap: start AI face tracking ・Triple tap: switch front/rear camera ・Customize the function of single tap/long press 9.

  • Page 15: Operation Mode

    Follow Mode Pan Mode Lock Mode All Follow Mode (Default mode) 10. Operation mode The figures below depict the operation modes when using VB 4 in portrait mode. The same operation modes apply when used in landscape mode. Standard mode (Default): Double tap trigger button to recenter smartphone.
  • Page 16 Side grip mode: Rotate Vimble 3 to the right or left by 90° to make smartphone be horizonal to the ground. Low position mode: Extend the built-in extendable rod and adjust the angle as shown to enter low position mode. Use low position mode to shoot from a low angle.

  • Page 17: Indicator

    11. Indicator Bluetooth indicator Follow status indicator (P) Follow status indicator (T) Status/Battery indicator Follow status indicator (R) 11.1 Status/Battery indicator Indicator while charging: Status/Battery indicator Descriptions Green light stays on Charge completed Yellow light stays on Charging Flashes yellow and red alternately Low power Red light keeps flashing quickly Low power, will auto power off...

  • Page 18: Protection Mechanism

    11.2 Bluetooth indicator Bluetooth indicator Descriptions Blue light stays on Bluetooth connected Bluetooth disconnected/ Blue light flash Bluetooth connected, App disconnected Blue light keeps flashing quickly Reset Bluetooth connection of gimbal 11.3 Follow status indicator Follow status indicator Descriptions White lights turn on in turn then grow solid white Powering on Pan follow P T R...

  • Page 19: Gimbal Initialization

    13. Gimbal Initialization Initialization the gimbal when: (1) The camera is not in level. (2) Not use for a long period of time. (3) The ambient temperature changes abruptly. Method: Method 1: Initialize via App (Reset gimbal parameters). Method 2: Press album button and mode button together for 1 second; Please refer to the form in chapter 11.1 in P16 to check the indicator status.
  • Page 20 The relevant costs are borne by user. 4. Prolonged continuous operation may cause the product surface temperature to rise, please operate carefully. 5. DO NOT drop or strike the product. If the product is abnormal, contact FeiyuTech after-sales support. Storage and Maintenance: 1.
  • Page 21 Guilin Feiyu Technology Incorporated Company www.feiyu-tech.cn | support@feiyu-tech.com | +86 773-2320865 This document is subject to change without notice.

This manual is also suitable for:

Vb4se
