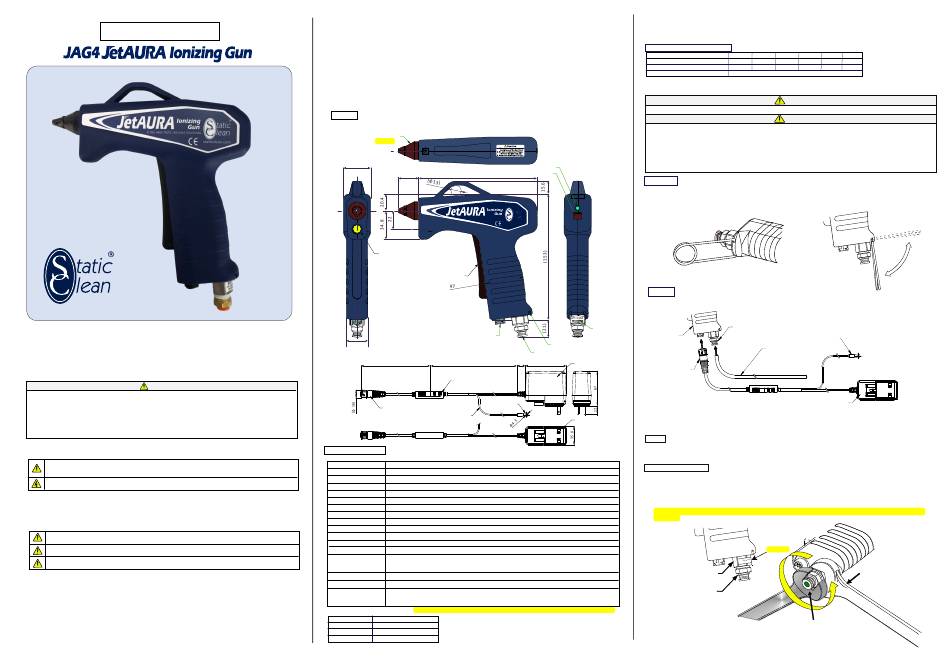

Static Clean JetAURA JAG4 Instruction Manual

Instruction Manual
Thank you for purchasing JAG4 JetAURA. As to the use of this unit, you must have sufficient considerations
after reading this manual carefully because it deals with alternating currents with high voltage of 2500V,
although the units is not stipulated as high-voltage equipment in the electric equipment standard.
Please read this manual before using the unit in order to fully understand its functions. Also make sure to store
this manual so that it can be referred to in the future.
Warning
• This unit is not specified as an Explosion-proof Type. Do not use this unit at a location or an atmosphere, in
which combustible gas or solvent is handled, or else ignition or explosion may occur.
• This unit emits ozone. Do not use in an enclosed space. The emitted ozone may be detrimental.
• A high voltage is applied to the discharge needle. Do not allow any conductive material, including your finger, any
part of your body, wire or any tool to get close to the discharge needle, or an electrical shock accident or a
malfunction of the unit may occur.
• The tip of the discharge needle is sharp, be careful not to touch the discharge needle.

1. Safety Precautions

1.1 Symbols on the main unit
The apparatus is marked with this symbol when the user should refer to the instruction manual in order to
protect against harm to the operator and to protect the apparatus against damage.
Indicates dangerous voltages.
1.2 Safety
Read this instruction manual before installation, wiring, operation, or maintenance of the unit in order to achieve
maximum performance. Improper use of this unit may cause an accident resulting in injury or may lead to a
malfunction of this unit. Our company will not be held liable for any usage outside this unit Specifications or any
accident caused by noncompliance with the Safety Precautions.
Danger Failure to follow instructions may lead to serious injury.
Warning Failure to follow instructions may lead to injury.
Caution Failure to follow instructions may lead to product damage (product malfunctions, etc.)

2. Precautions for CE Marking

This unit complies with the following EU Directives and EN standards.
• EMC Directives: EN61000-6-2 / EN61000-6-4
• Low-voltage Directive: EN61010-1
• Overvoltage Category (Installation Category): I
• Pollution Degree: 2
• Be sure to use a suppliedAC adapter ( JAG4-PA ).
Applicable standard: EN60950-1
Overvoltage category: II
Pollution Degree: 2

3. Outline

• This unit is an air gun type ionizer you hold with your hand and to use it freely.
• This unit is spraying ionized air on a charged object, neutralizing the static electricity of a charged object quickly and
effectively. Dust which has adhered to the charged object with static electricity is removed, and recontamination is
prevented.
• The high-voltage power supply and the solenoid valve are internal to the unit. External controllers are not necessary.
• Ionized air can be constant or pulsed(5Hz or 10Hz). By spraying pulsed ionized air, you can increase the dust removal
effect and save energy on air.
• Equipped with high brightness LED for lighting. Useful for checking foreign objects such as dust.

4. Specifications

Outlook
JetAURA Main body
OSHA Nozzle
OAG-S-US
33
(144)
24.5
Lighting LED
Trigger Lever
Power input connector
(Push-lock type)
26
AC adapter (JAG4-PA)
5050± 100 330±30
Cable clamp
Ring terminal
AC adapter connection cable
Ground wire（300± 30mm）
List of Specifications
*Ionizer Gun
Model JAG4 JetAURA Ionizer Gun
Discharge Method
High frequency AC corona discharge method
Input voltage
24 V DC ± 5%
Capacity 2.4 VA
High voltage output AC 2,500V approx. (3pF, 100MΩ)
Applicable fluid Air (dried clean air) or *Nitrogen
Air pressure range 7.25 to 87.02 psi (0.05 to 0.60 MPa)
Supplied air flow
13.42 cfm (380 ℓ/min (ANR)) or less
Dimensions (mm) 6.63"W x 1.29"D x 6.63"(168.5W x 33W x 168.5H (mm)) (Not including protruding parts)
310 g approx. (Not including cable)
Weight
Indoor, Altitude up to 6,561ft (2000 m)
Environment
Ambient temperature 32 to 104゜F (0 to 40 °C)
Ambient humidity 15 to 65 % (No condensation allowed)
Green: Connect to power supply (Lever OFF)
Indicator LED
Blue: Normal high voltage output (Lever ON)
Red: Abnormal high voltage output
0.04 ppm or less (by air pressure 29.00psi (0.2MPa) and 7.87" (200 mm) apart from the nozzle )
Ozone Level
Main body: PBT, Nozzle: PPS
Material
AC adapter connection cable 196.85" (5 m), AC adapter with US plug, UK plug, EU plug,
Accessories 1/4" OD x 78" (2m) black polyurethane air tube, Hanging hook (SUS),
OAGIV-DNT(
Discharge needle attachment/detachment tool), Instruction manual (This manual)
*When using nitrogen gas, please replace it with a dedicated nitrogen compatible nozzle (OAG-N-S-US).
*AC adapter
Model No. JAG4-PA
Rated input 100 to 240 V AC (50/60 Hz)
Rated output 24 V DC MaX1.0 A
Weight 330 g approx.

5. Static Removing Characteristics

Static Removing Characteristics
Air pressure PSI [Mpa]
+ Static charge removal time [sec.]
- Static charge removal time [sec.]
Ion balance [V]
*Typical value at a distance of 150 mm from the nozzle. (before shipment)
*Measuring instrument: Charged plate monitor (Plate size 150 mm x 150 mm, Electric capacity 20 pF)
*Static charge removal time: Decay time from ±1000 V to ± 100 V.
● Be sure to turn OFF the power and air before installing, wiring, or piping the unit.
• Be sure to earth the ground wire of the AC adapter. Incomplete grounding may cause damage to the main unit
and AC adapter. In addition, it causes a decrease in static elimination performance.
• For installation or using of this unit, pay attention to the contamination by oil/water, high temperatures or high
humidity. Especially, avoid a place subject to dew condensation.
• If the air includes water and oil, inside of the main unit or the nozzle gets dirty, the ability to remove electricity is
lowered, or causing deterioration of the main unit.
• Install the unit and AC Adaptor in a safe, secure manner, to prevent damage to the equipment.
Indicator light • Do not remove the air fitting at the bottom of the main body and attach another fitting.
Switch cover

Installation

• There is a hanging part at the top of this unit, but you can change the hanging direction of the main unit by
attaching the included hanging hook to the hanging hook mounting hole at the bottom of the main unit. If
necessary, use hanging hooks.
• In sert the included hanging hook into the hanging hook mounting hole at the bottom of the main unit as
shown in the figure below.

Wiring

Carry out wiring for the main unit and the AC adapter in accordance with diagram below.
Serial No. label
Main unit
Hanging hook mounting hole
Air fitting (1/4')
15 75 AC adpter
Connector
(Push-lock type)
• Connect the push-lock type connector of the AC adapter to the power input connector of the main unit.
• Connect an AC adapter to a power supply (AC100-240 V 50/60 Hz).
US plug
• When you connect the cable to the main unit and turn on the power to the AC adapter, the indicator light on the main unit lights up
in green.

Piping

Carry out piping for the main unit in accordance with diagram above.
• Install an air tube (outside diameter 1/4") to the air piping port of the main unit.
• Supply the main unit with clean, dry compressed air (not containing any water or oil portion).

Air fitting replacement

• This unit is equipped with a quick fitting for 1/4" air tube. If necessary, this fitting can be replaced.
• When replacing the air fitting, be sure to hold the bulkhead fitting and turn the air fitting to remove it. If you try
to remove the air fitting by holding the main body rather than the bulkhead fitting, the bulkhead fitting may
come loose and cause the unit to malfunction.
• In the same way as when removing the air fitting, when installing the air fitting, hold the bulkhead fitting and
turn the air fitting to install it.
• There is a serial number label on the bulhead fitting, so be careful not to damage the label when replacing the
air fitting.
Bulkhead fitting
(17 mm width across flats)
*Screw Rc1/4
Air fitting
(14 mm width across flats)
14 [ 0.1] 29 [0.2] 44 [0.3] 58 [0.4] 73 [0.5] 87 [0.6]
0.3 0.2 0.2 0.2 0.2 0.2
0.3 0.2 0.2 0.2 0.2 0.2
-10 to +10 V
Warning
Caution
90 °
Air piping port (1/4")
Ring terminal
(φ 4.3)
Air tube (1/4" OD) Connect to ground
Pipe to
Connect to power supply
air supply source
(AC100- 240 V)
AC adpter
Serial Label
Fix the spanner holding the bulkhead
fitting.
Turn the spanner holding the air
fitting counterclockwise.
Fig.1 Example of air fitting removal
