Product Overview
The WOS3-PC Wireless Occupancy/Daylight sensor is
designed for celiing installation on suspended celing tiles or
to drywall. This device is designed for energy savings based
on space occupancy status. The wireless communication
Product Overview
utilizes secure and reliable connection and help minimize
installation cost and complexity.
The WA200 series Room Controllers are ideally combined
with the WOS3-PC Ceiling Sensors and the WWD2 Wall
Station for a complete stand-alone room control solution
or as part of a larger networked lighting control system.
LED.com
© 2024 Current Lighting Solutions, LLC. All rights reserved. Information and specifications subject to change
without notice. All values are design or typical values when measured under laboratory conditions.

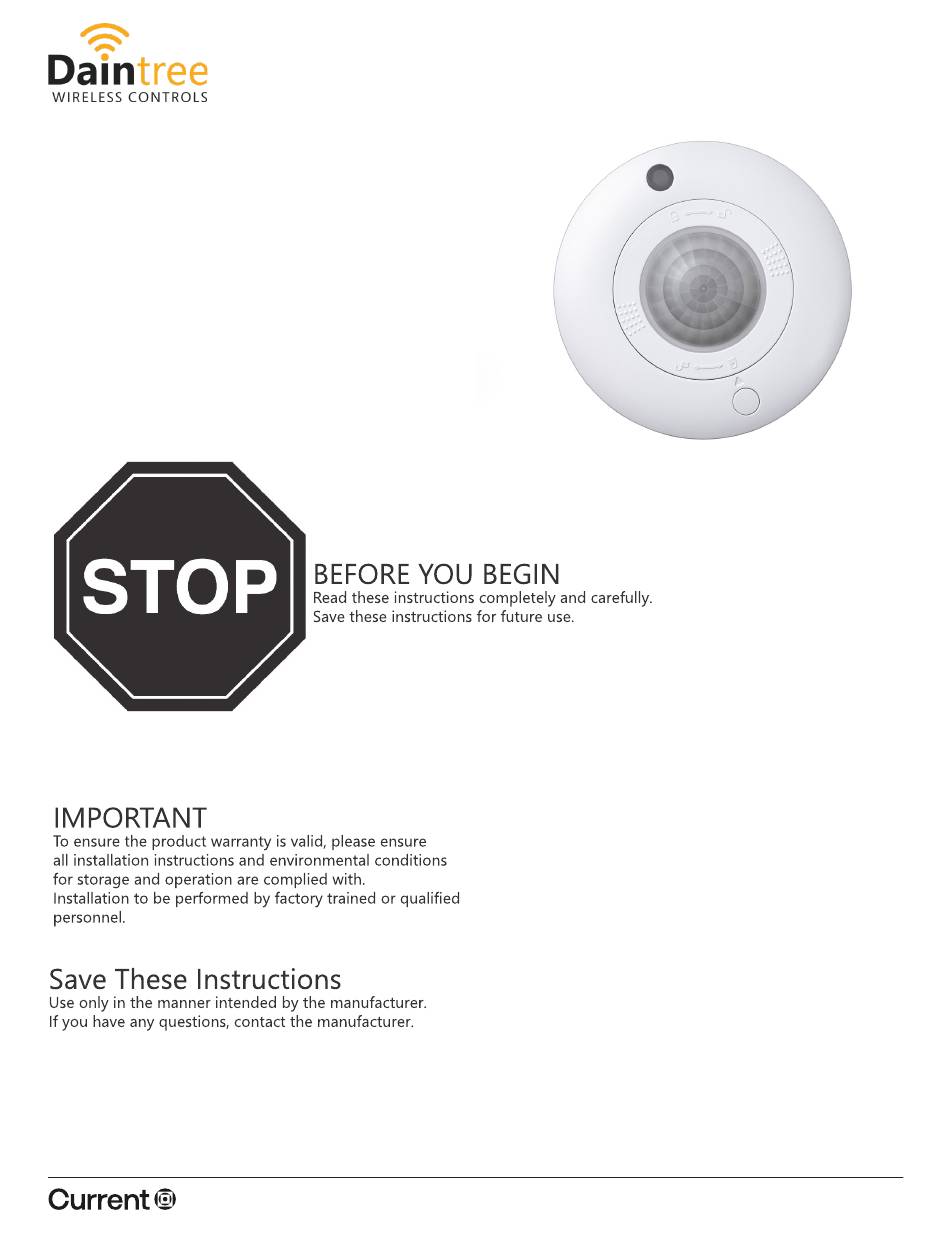

WOS3-PC
Installation Guide
.
WOS3_InstallSheet_R04
Page 1 of 8
Rev 02/26/24
Advertisement
Table of Contents
Summary of Contents for Daintree WOS3-PC
- Page 1 The WA200 series Room Controllers are ideally combined with the WOS3-PC Ceiling Sensors and the WWD2 Wall Station for a complete stand-alone room control solution or as part of a larger networked lighting control system.
- Page 2 The PIR sensor cannot be installed in places with strong air flow. The WOS3-PC sensor must have clear line of sight to the coverage area. It may not detect human body if it is blocked by furniture, fixtures, large plants, glass, curtains, etc.
- Page 3 WOS3-PC Installation Guide Installation of Device onto Back Plate Battery Replacement LED.com Page 3 of 8 Rev 02/26/24 © 2024 Current Lighting Solutions, LLC. All rights reserved. Information and specifications subject to change without notice. All values are design or typical values when measured under laboratory conditions.
- Page 4 (Optional) Masking Installation Product Dimensions Adding the WOS3-PC to a “Room” using the App To add the WOS3-PC to a ÒRoomÓ involves scanning the QR code and setting the device into network joining mode. “ “ The network joining mode is initiated either when the device is first time powered up or following a factory reset. Prior to commissioning the WOS3-PC the ÒRoomÓ...
- Page 5 WOS3-PC Installation Guide Product Operation Button Functionality Reset Button Short Press Double Short Press Hold 5 Seconds LED Indicator in Red Rapid flash 12 times per second for up to 30 seconds Solid ON for 10 seconds Flashes once 100ms duration...
- Page 6 WOS3-PC Installation Guide Technical Data Product Specifications Dimensions Weight Power Supply Battery Life Operating Environment Status Indicator Mounting Warranty Purpose of Control Frequency band of radio operation: Maximum radio transmit power: Product Availablity DESCRIPTION roduct NO Ceiling Mounted Occupancy Sensor...
- Page 7 WOS3-PC Installation Guide Supplier's Declaration of Conformity 47 CFR ¤ 2.1077 Compliance Information WOS3-PC SupplierÕs Address (USA): 25825 Science Park, STE 400, Beachwood, OH 44122 ‘s LED.com Page 7 of 8 Rev 02/26/24 © 2024 Current Lighting Solutions, LLC. All rights reserved. Information and specifications subject to change without notice.
- Page 8 Installation Guide SIMPLIFIED EU DECLARATION OF CONFORMITY: Hereby, Current Lighting Solutions, LLC declares that the radio equipment types WOS3-PC are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.LED.com LED.com...
