Summary of Contents for Comprehensive VersaHub VHUB-MST2HDA

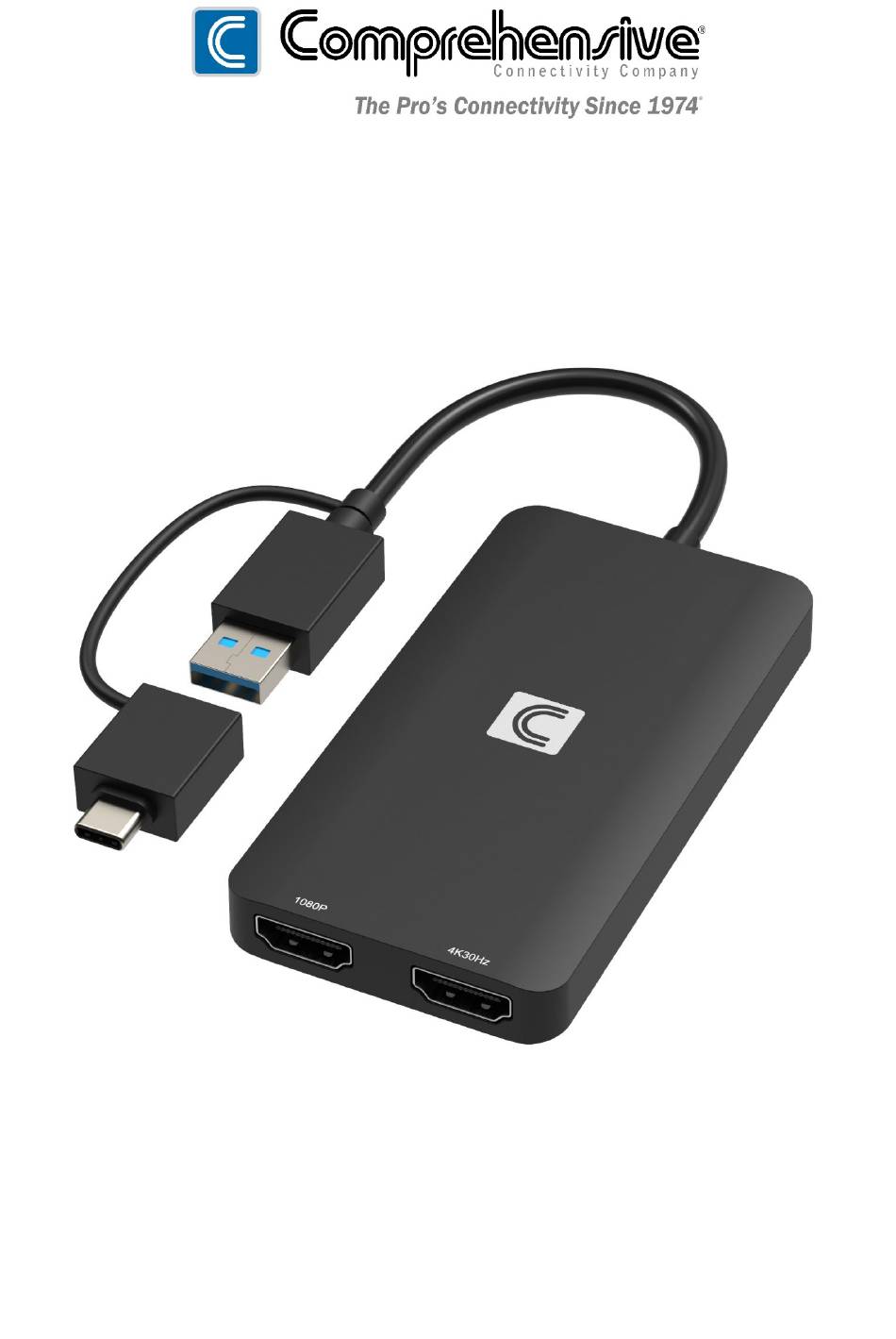

- Page 1 VHUB-MST2HDA VersaHub™ USB-C/A to Dual HDMI Multi-Display 4K Universal Adapter User Manual...
-
Page 2: Panel Description
Introduction The Comprehensive VHUB-MST2HDA is a USB™ 3.0 to Dual HDMI™ Multi-Display Universal Adapter that offers a convenient solution for expanding your display capabilities on MacBook® or Windows® computers. Acting as an external video card, this adapter enables you to connect two additional displays to your computer via the USB™... -
Page 3: System Requirements
System Requirements To ensure proper installation and operation of this product, please ensure that your system meets the following requirements: • Windows 7/8/8.1/10 and above or Mac OS 10.10.x and above. • CPU Processor: Core i5 and above. • RAM: 4GB and above. •... - Page 4 Note: If a security prompt pop-up appears, click “INSTALL” 2. After installation, click “REBOOT” to restart the computer Display Mode Setting...
- Page 5 For Windows 1. Right click the blank space on the desktop and select “Display settings” 2. At the “Display” area, click each of the display icons to set the needed resolution or other setting...
- Page 6 3. Scroll down to “multi display settings” and select the desired mode in the drop-down list For Mac OS 1. Left click the apple icon and select “System Preferences”, and click the “Displays”...
- Page 7 2. At the “Display” area, click each of the display icons to set the location or change to the mirror or extend mode...
- Page 8 3. Click the “Display Setting”, and choose each connected display to set correct resolution and mode Note • Please note that Mac-based devices do not support rotation mode, but M1/M2 Mac supports clamshell mode while Intel Mac does not. • To use this adapter, your USB-C™/USB3.0 equipped device must support USB 3.0 data transmission. •...
- Page 9 Supported Resolutions 1080p Port 4K30Hz Port Windows 1920x1080@60Hz 3840x2160@30Hz 1680x1050@60Hz 2560x1440@60Hz 1600x1200@60Hz 1920x1080@60Hz 1600x900@60Hz 1680x1050@60Hz 1440x1050@60Hz 1600x1200@60Hz 1440x900@60Hz 1600x900@60Hz 1280x1024@60Hz 1440x1050@60Hz 1280x800@60Hz 1440x900@60Hz 1280x720@60Hz 1280x1024@60Hz 1152x864@60Hz 1280x800@60Hz 1024x768@60Hz 1280x720@60Hz 800x600@60Hz 1152x864@60Hz 720x480@60Hz 1024x768@60Hz 640x480@60Hz 800x600@60Hz 720x480@60Hz 640x480@60Hz Mac OS 1920x1080@60Hz 3840x2160@30Hz 1920x1080@30Hz 2560x1440@60Hz...
- Page 10 Note: Specifications are subject to change without notice. Connection Diagram...
- Page 11 Package Contents • VersaHub™ USB-C/A to Dual HDMI Multi-Display 4K Universal Adapter • User Manual Troubleshooting Common Issues Q: My USB 3.0 to HDMI Dual Display Adapter is not working. What should I do? A: First, please check the following items: 1.
