To Reduce the risk of fire or electric shock,donot ex-
pose this appratus to rain or moisture;
To avoid electrical shock, do not open the cabinet.
Refer serving to qualified personnel only;
To prevent fire or shock hazard do not use this plug
with an extenslon cord receptacle or other outlet
unless the blades can be fully inserted to prevent
blade exposure.
Mains cord must only be changed at qualified ser-
vice shop.
CLASS 1 LASER PRODUCT
LUOKAN 1 LASERLAITE
KLASS 1 LASERAPPARAT
• This appliance is classified as a CLASS 1 LASER prod-
uct.
• The CLASS 1 LASER PRODUCT MARKING is located on
the rear panel.
• This product contains a low power laser device. To en-
sure continued safety do not remove any cover or attempt
to gain access to the inside of the product. Refer all ser-
vicing to qualified personnel only.

IMPORTANT SAFETY INSTRUCTIONS

1)
Read these instructions.
2)
Keep these instructions.
3)
Heed all warnings.
4)
Follow all instructions.
5)
Do not use this apparatus near water.
6)
Clean only with dry cloth.
7)
Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8)
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers)
that produce heat.
9)
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider
than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are
provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11)
Only use attachments/accessories specified by the manufacturer.
12) Unplug this apparatus during lightning storms or when unused for long periods of time.
13) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, has been exposed to rain or moisture, does not operate normally, or has
been dropped.
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids such as vases, shall be placed
on the apparatus.
WARNING
CAUTION
The use of optical instrument with this product will increse
eyes hazard. As the laser beam used in this CD/DVD player
is harmful to eyes, do not attempt to disassemble the cabi-
net.
Refer servicing to qualified personnel only.

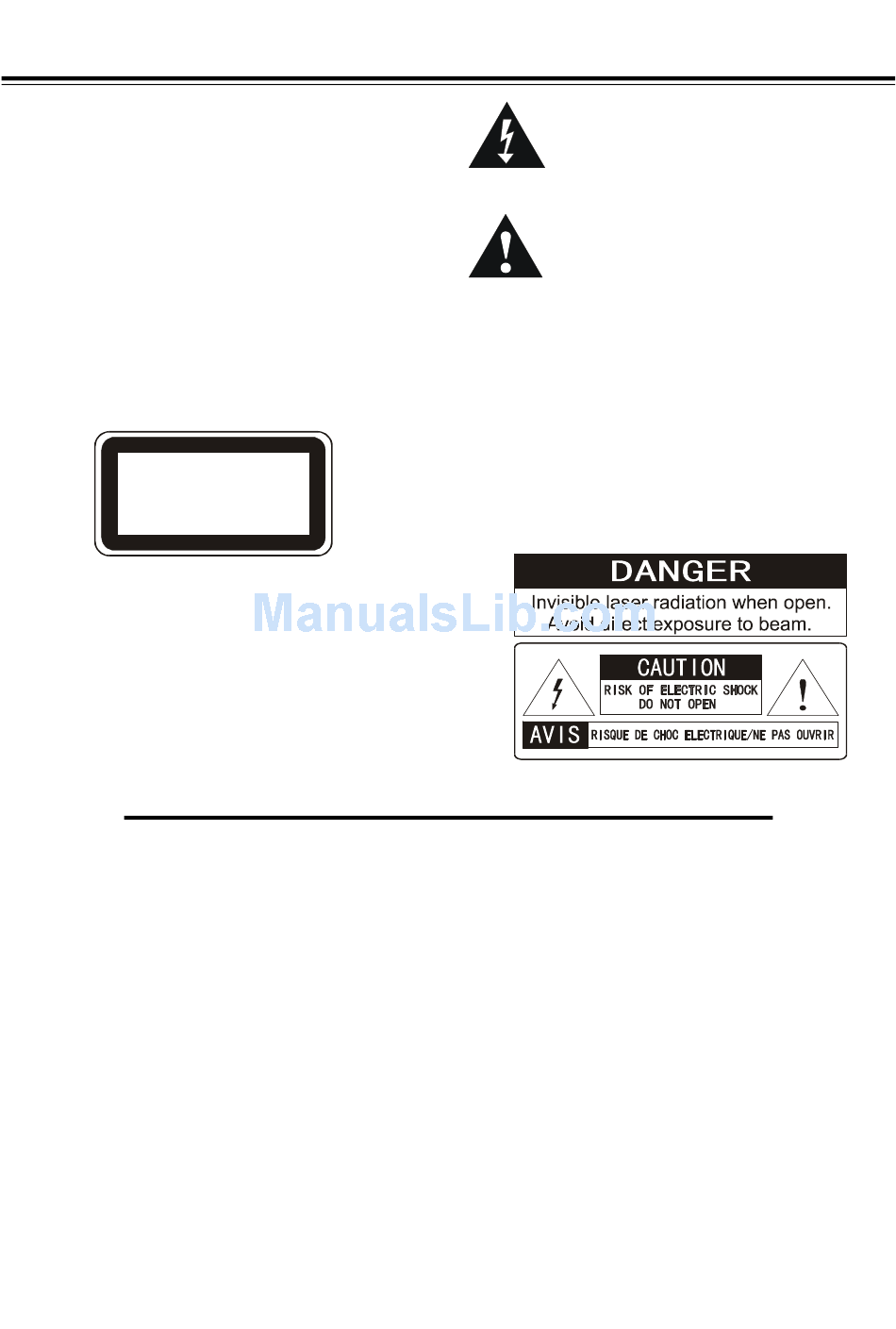

The following marking is printed on the rear panel.
2
The lightning fiash with arrowhead symbol,
within an equilateral triangle is in tended to
alert the user to the presence of uninsulated
"dangerous voltage" within the products en-
closure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and maint-
enance (servicing) instructions in the literat-
ure accompanying the appliance.

Advertisement

Table of Contents
loading

Summary of Contents for Yahoo! YDP-530

  • Page 1: Safety Page 2~3

    To Reduce the risk of fire or electric shock,donot ex- pose this appratus to rain or moisture; To avoid electrical shock, do not open the cabinet. Refer serving to qualified personnel only; To prevent fire or shock hazard do not use this plug with an extenslon cord receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure.
  • Page 2: Important Safeguards And Precautions

    (temperature, humidity, dust, ect.) in which the player is used. Do not attempt to clean the pickup lens yourself. For DVD Players with both 525p and 625p progressive scan outputs: “ CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE.
  • Page 3: Table Of Contents

    Customer Record Thank you for choosing YAHOO. The model and serial number are located on the back panel of this unit deck. Record these numbers in the space provided and retain this manual as a permanent record of your purchase. This will aid in the event of theft or loss.
  • Page 4: General Information

    General Information (Continued) Notes on disc Disc handling precautions • To keep the disc clean, handle the disc by its edge. Do not touch the surface. • Do not stick paper or tape on the disc. If there is glue (or a similar substance) on the disc, remove the glue completely before using the disc.
  • Page 5: Functions Overview Page 6

    Function Overview Front Panel 1.STAND BY Button 2. PLAY / PAUSE 4;Button 3.STOP < Button 4.PREV 9 Button 5.NEXT : Button 6.OPEN/CLOSE 7.Infrared receive (IR) for remote control 8.Please refer to page18, page19 for special details. Back Panel 1.COAXIAL(DIGITAL OUT) Jack 2.AUDIO OUT(LEFT/RIGHT) Jacks 3.VIDEO OUT(CVBS) Jack 4.S-VIDEO OUT Jack...
  • Page 6: Remote Control

    Remote Control 1. SETUP: To enter or exit the SETUP menu. 2. DISPLAY: To show the elapsed playing time,the track nu- mber and othe menu items. 3. TITLE/PBC: Display the title menu if present on the disc (DVD only) & Switch the PBC functions to on or off. 4.
  • Page 7: Connections

    Never make or change any connections with the power switched on. You must connect a TV to the DVD system in order to use the DVD player. You can connect other audio and audio/ visual components to the DVD system to enjoy your new YAHOO player’s super audio capabilities. Important! •...
  • Page 8: Basic Setup Page 9

    In the top menu select the setup menu option to make desired setup options. In setup menu ,select Setup Menu option to make desired setup options. For purposes of this manual, the setup options are described from top to bottom order,beginning of the Setup Menu.
  • Page 9 P-SCAN This feature is only applicable when you have connected this system to a Progressive Scan TV system through the Compo- nent Video jacks. OFF: Select this if a coventional TV set is connected to your system. ON: To enjoy the full quality potential offered by progres- sive scan feature, a progressive scan TV set is required.
  • Page 10: Language Setup

    DEFAULT If you select this funtion, all of the funtion will restore to the original default setting except the rating level. RESTORE LANGUAGE SETUP Press SETUP on remote control. Use 3/4/5/6 to select item you want. Press OK to confirm the selection. To exit the setup, press SETUP again.
  • Page 11: Video Setup

    DOWN SAMPLE You can use the 5/6 to select the DOWN SAMPLE function as your desired. DOWN SAMPLE 192K 48K: Play a disc recorded at the sampling rate of 48 kHz. 96K: Play a disc recorded at the sampling rate of 96 kHz. 192K: Play a disc recorded at the sampling rate of 192kHz.
  • Page 12: Disc Operations Page 13

    General operation CAUTION! • Do not move the disc player during playback. Doing so may damage the DVD system. • Do not push on the disc tray or put any objects other than disc on the disc tray. Doing so may cause the disc player to malfunction.
  • Page 13: Slow Motion Play

    Slow motion play Press SLOW to play in slow motion. • For DVD discs Press it repeatedly to select the slow motion speed: SF (forward) : SF 1/2, SF 1/3, SF 1/4, SF 1/5, SF 1/6, SF 1/7. Fast search 1 Press 7/8 to fast reverse or fast forward.
  • Page 14: Playback Functions Page 15

    Display status during playback 1 If you want to know the information of the disc press the DISPLAY button repeatedly to display the following information. It shows the chapter / track information of the disc being playing. 2 For DVD disc, Press DISPLAY 6 times to turn off the onscreen display.
  • Page 15: Program Play

    For DivX/MPGE4/DVD disc [ DIVX ]CHOST_GA . MPEG4 01 . DIVX 01 . - - - - - - 02 . - - - - - - 02 . - - - - - - 03 . - - - - - - 04 .
  • Page 16: Special Function Page 17

    Angle selection Some DVD discs contain scenes which have been shot si- multaneously from a number of different angles. For these discs, the same scenes can viewed from each of the different angles. 1 Press the ANGLE button to change the scenes from one angle to other angle(s).
  • Page 17: Usb Jack And Card Reader

    USB Jack and Card Reader This product has USB jack and 4 in 1 Card Reader. It can supports almost all kinds of the USB device for data transfer (except USB+HUB). It also can supports SD card, MMC card, MS card, SM card.
  • Page 18: Vu Meter And Bit Rate Meter

    VU meter and BIT RATE meter There has two meters on the front panel of the main unit. VU meter: This is for sound level output. The needle of this VU meter can swing along with the music volume. BIT RATE meter: The needle of this BIT RATE meter can swing along with the speed of disc reading.
  • Page 19: Troubleshooting

    If you experience any of the following difficulties while using the system, use this troubleshooting guide to help you rem- edy the problem. Should any problem persist, consult your nearest service center. No power • Is the power cord firmly plugged into the power outlet? •...
  • Page 20: Specifications

    DVD Player Pickup ... Semiconductor laser, Wavelength 650 nm Signal system ... NTSC / PAL Video signal horizontal resolution ... 480(NTSC) / 525(PAL) lines (DVD) Video signal-to-noise ratio ... 50 dB (DVD) Audio frequency response (at 2 CH stereo mode) ... DVD (PCM): 20 Hz ~ 20 kHz (+/- 3.0 dB) ...
