ROOKS OK-08.3101 Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Wheel Balancer Manual
OK-08.3101
Distributor:
Auto Partner SA
Ul. Ekonomiczna 20
43-150 Bieruń
www.rooks.pl

Advertisement

loading
Need help?

Need help?

Do you have a question about the OK-08.3101 and is the answer not in the manual?

Questions and answers

Summary of Contents for ROOKS OK-08.3101

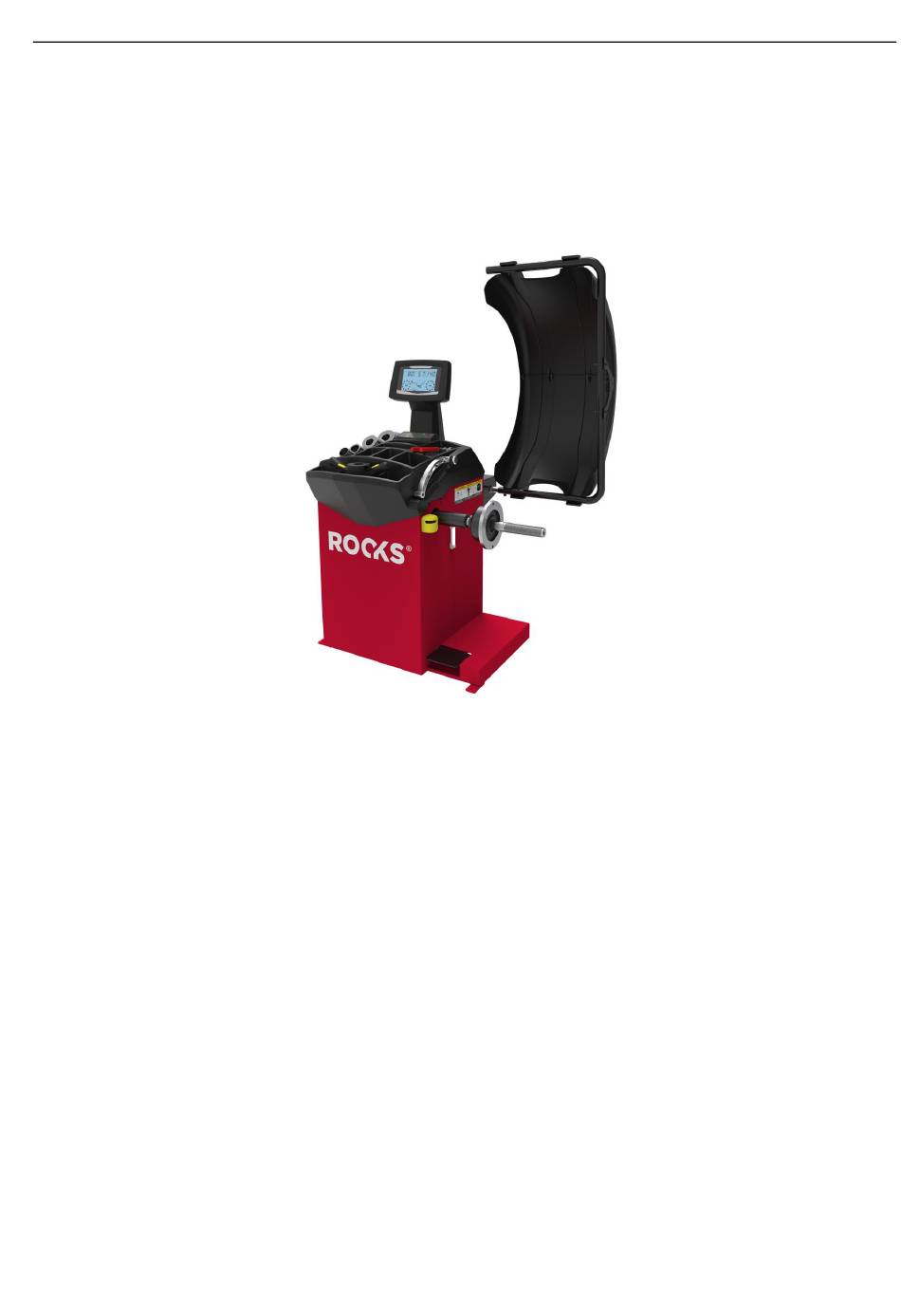

  • Page 1 Wheel Balancer Manual OK-08.3101 Distributor: Auto Partner SA Ul. Ekonomiczna 20 43-150 Bieruń www.rooks.pl...
  • Page 2 Warning ⚫ This manual is a necessary part of the product. Please read carefully. ⚫ Keep the manual for later use when maintaining the machine. ⚫ This machine can only be used for the designated purposes. Never use it for any other purpose. ⚫...

  • Page 3: Table Of Contents

    Contents 1. General-----------------------------------------------------------------------------------------------------------------1 2. Machine assembly----------------------------------------------------------------------------------------------------1 3. Controls and components--------------------------------------------------------------------------------------------3 4. Indication and use of wheel balancer------------------------------------------------------------------------------5 5. Machine Self-calibration-------------------------------------------------------------------------------------------11 6. Errors------------------------------------------------------------------------------------------------------------------17 7. OPT function --------------------------------------------------------------------------------------------------------18 8. Spare parts list and Exploded drawings -------------------------------------------------------------------------19...

  • Page 4: General

    1. General 1.1. Technical data： ⚫ Max wheel weight：65kg ⚫ Power：0.2kw;0.37kw ⚫ Power supply: 220v;230v;240v;110v;50hz;60hz  ⚫ Balancing accuracy： ⚫ 8 balancing modes: DYN, ALU1, ALU2, ALU 3，ALUS, ST ⚫ Balancing speed：180r/min ⚫ Cycle time：8s ⚫ Rim diameter：10〃～24〃(256mm～610mm) ⚫ Sound pressure level during work cycle：<70db 1.2.
  • Page 5 2.2. Install ⚫ The equipment should be installed on the stable ground, not wooden pallet, otherwise not accurate. ⚫ Keep the back panel 0.6M away from the wall for good ventilation. Enough room should be left on both sides for convenient operation. 2.3.

  • Page 6: Controls And Components

    Main shaft-wheel— Main shaft-suitable cone(big head towards inside) —wheel—quick handle nut suitable cone( small head towards inside)—quick handle nut Attention：May add a wheel, and hold the wheel to help install the thread hub. When installing or taking off wheel, do not let wheel move on the shaft, to avoid scratching shaft. 3．Controls and components Item Standard/Optional...
  • Page 7 Display plate (G) 1. inside amount of unbalance 2. Digital readout, inside position of unbalance 3. Digital readout, outside position of unbalance 4. outside amount of unbalance 5. “ALU” correction mode selected, can choose following different modes: Eight balancing modes Balancing Icon Operation...

  • Page 8: Indication And Use Of Wheel Balancer

    Key board (H) Icon Function Icon Function Selection of “ALU” modes Input rim data Data add key Stop/Cancel Data reduction key Start Unbalance display pitch and threshold Setting Key combination function Icon Function Icon Function Inch/mm conversion OPT function 4. Indication and use of wheel balancer 4.1．DYN (Standard/Default) mode 4.1.1.
  • Page 9 Main shaft-wheel— Main shaft-suitable cone(big head towards inside) —wheel—quick handle nut suitable cone( small head towards inside)—quick handle nut Attention：May add a wheel, and hold the wheel to help install the thread hub. When installing or taking off wheel, do not let wheel move on the shaft, to avoid scratching shaft. 4.1.2.
  • Page 10 4.1.7．Anticlockwise moving wheel slowly, until the left LED lit up full, clip weight on 12 o’clock position (Fig.4) Fig. 4 ，to perform balancing spin 4.1.8． After finishing clipping the counterweights, put down the guard and press again, if comes out 00 00，means balancing succeed. (Fig.5) Fig.
  • Page 11 Fig. 7 ，to perform balancing spin 4.2.7. After finishing mounting the counterweights, put down the guard and press again, if comes out 00 00，means balancing succeed. (Fig.8) Fig. 8 4.3．ALU－S mode This mode is used for special rim, if ALU1/ALU2 can not be used, you should choose ALUS mode. Input aI, aE, d value ⚫...
  • Page 12 4.3.2. Use a ruler to add weight ( Set LAS=OFF as 5.2 instruction) Fig. 10 Anticlockwise moving wheel slowly, until the right LED lit up full (Fig.11) Fig. 11 Take off proper counterweight to be hold by the gauge head as Fig. 13 Fig.
  • Page 13 Fig.16 Take off proper counterweight to be hold by the gauge head as Fig. 13 Pull out gauge until there is a square comes in the middle window (Fig. 17) Fig. 17 Release the counterweight and let it stick on rim (Fig. 18) Fig.

  • Page 14: Machine Self-Calibration

    4.4. ALUS split function Note: Only ALU-S mode can use this function. And Operator must be experienced. comes＞ In ALU-S mode, press By key to input the numbers of comes＞ spokes, then press Keep the next spoke( either direction is ok) on the comes＞...
  • Page 15 Calibration of diameter gauge Calibration of width gauge Calibration of laser Self-calibration 5.1. Self- diagnoses press keys to enter press keys to enter. select Select press for the next item, press Cancel Order Display Function Function normal Display All lit up Position pick up POS changes in 0-127 board...
  • Page 16 Light width On/off OFF: use gauge to stick weights Laser switch ON: laser position Tire weight On/off Safe guard on Put down safe guard to start spin Unit of weight Gram CAr：Car mode display [CAr] Wheel type operation Sco：Motorcycle mode display [Sco] for modification, for the next item, Save exit...
  • Page 17 ★“Display wheel type after turn on balancer” means after turn on machine, it comes signal to tell you it is a car mode or motorcycle mode. ★ 5.3 Rim distance gauge calibration press keys to enter press keys to enter. select Select pull gauge to position “0”...
  • Page 18 comes＞ Keep the protective cover in position Auto complete comes＞ Width gauge calibration finished 5.4．2 width compensation Tire installation required note (known tire width) A value must be entered explain＞ We're aiming the radar at the tires explain＞ Press at the same time to explain＞...
  • Page 19 5.5.Calibration of diameter gauge(Install a tire) press keys to enter press keys to enter. select Select operation＞ Enter diameters by move gauge to touch the edge of rim and keep still, press keys operation＞ to confirm. operation＞ Calibration finished Self-calibration 5.7.1 Self-calibration of wheel balancer Turn on balancer, install a medium size wheel (14″-18″)which can use clip-on weight, set “a b d”...

  • Page 20: Errors

    Open the safe guard and clip a 100 gram weight on the outside Step comes 12 o’clock position, put down safe guard and press to start spin, after spin stop Open the safe guard and clip a 100 gram weight on the inside 12 Step comes o’clock position, put down safe guard and press...

  • Page 21: Opt Function

    1．Computer board problem 1.Check or change computer board 2．Power board problem 2.Check or change Power board 1．Problem of gauge 1．Do self-calibration of gauge 2.Problem distance 2．Change distance potentiometer and do potentiometer self-calibration of distance gauge 1. The machine is locked 1.

  • Page 22: Spare Parts List And Exploded Drawings

    With the help of tire changer, change the rim and rubber to make C and D reference＞ match ＞＞＞＞ comes＞ If unbalance is less than before, OPT succeed Put down safe guard and press 8.Spare parts list and exploded drawings...
