- Page 1 PERFORMANCE INSURANCE PRODUCTION TOOLS • SHOW CONTROL • BACKUP SOLUTIONS OSCA-IO16 16-Way OSC General Purpose Input Output Interface USER GUIDE www.nemesis-research.com...

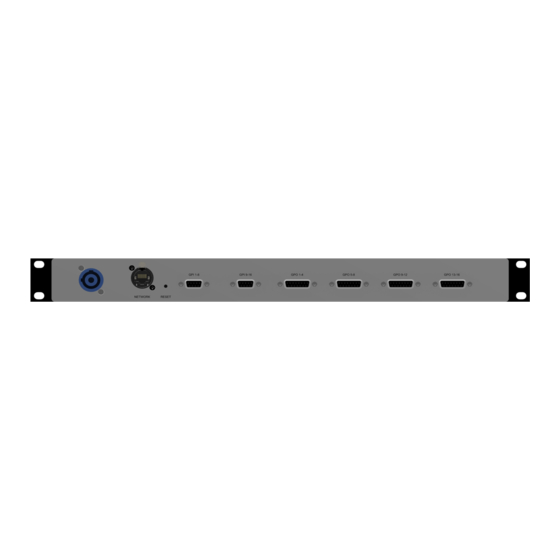

- Page 2 PERFORMANCE INSURANCE PRODUCTION TOOLS • SHOW CONTROL • BACKUP SOLUTIONS Overview The OSCA-IO16 is a next generation multiple command destination show control solution featuring OSC Network input, with 16 isolated inputs and 16 relay outputs. Front Panel GPI 1 -16 – Indicate the current status of each general-purpose input.
- Page 3 53500 In order to change settings navigate to the device's IP address (default: 192.168.1.253) on the network using a web browser or use its network name (default: OSCA-IO16) and navigate to the “Network page” In order for changes to take effect press save and then restart (Please note if you have changed IP address or device name the page may not refresh, and you will need to open a new tab in your browser with the new user settings).
- Page 4 For example, 1 will be sent as an integer, 1.00 as a float and one as a string. OSCA will also automatically read the entered OSC command (String) and determine what is the address and argument(s). For further information please see http://www.nemesis- research.com/opensoundcontrol A debounce time can be set per input in milliseconds.
- Page 5 Output 1,2,3 On for 500ms Firmware Update If connected to the internet you can use the Firmware update page to install the latest firmware from the Nemesis server. Additional Information Incoming OSC OSCA will react to incoming OSC messages on the port specified.
- Page 6 RLY4 NC RLY4 COM RLY4 NO GPI: 9 Pin Female D-Sub. Inputs 1- 8 and 9-16: Closed contact to GND, opto-isolated input. Option Function Input 1 Input 2 Input 3 Input 4 Input 5 Input 6 Input 7 Input 8 www.nemesis-research.com...
- Page 7 We herewith declare that said products are in conformity with the provisions of the respective EC directives including all applicable amendments. A detailed declaration is available on request and can be ordered from Nemesis Audio. WEEE Declaration (Disposal) Electrical and electronic equipment must be disposed of separately from normal waste at the end of its operational lifetime.
