Summary of Contents for Gopel Electronic Easy CON - 1000Base-T1

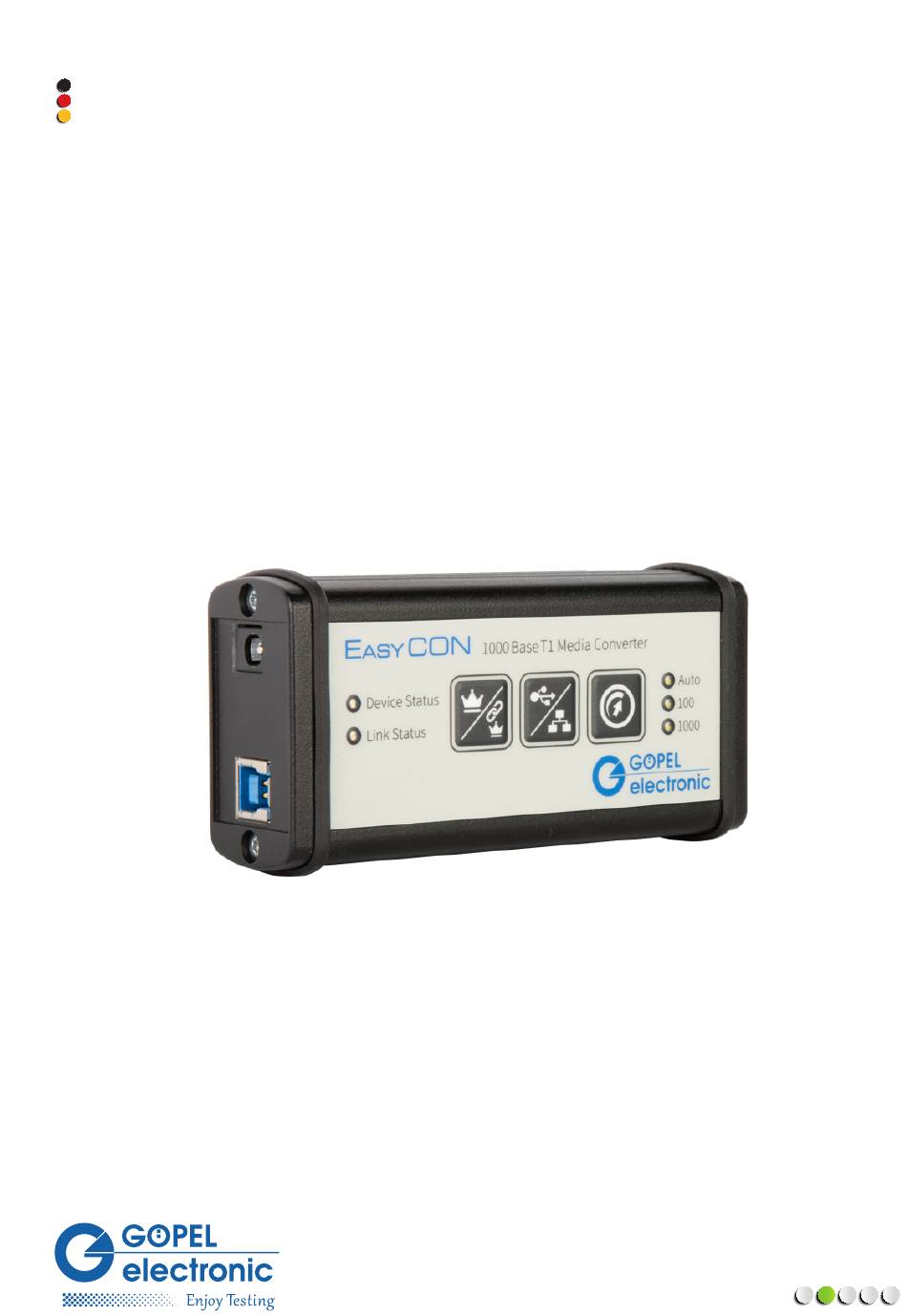

- Page 1 Easy CON - 1000Base-T1 Media Converter Manual (Original Documentation)
- Page 2 © Copyright 2020 GÖPEL electronic GmbH. All rights reserved. The software described in this manual as well as the manual itself are supplied under license and may be used or copied only in accordance with the terms of the license. The customer may make one copy of the software for safety purposes.
- Page 3 Table 1: List of changes to this document Date Editor Comment 2020-09-18 E. Richter 2.0.0 Document created in LaTex 2021-05-21 E. Richter 2.0.1 Driver information expanded...
-
Page 4: Table Of Contents
Contents 1 Introduction Notes on this Document ......... . Intended Use . -
Page 5: Introduction
The device is intended for indoor use only and to be used only at an ambient temperature of 0 °C - +45 °C. It must not be exposed to extreme temperatures, temperature fluctuations, heating and cooling systems, direct sunlight, high levels of dust, vibration and impact, extreme humidity or moisture. Easy CON - 1000Base-T1... -
Page 6: Emc - Protection Measures
Never try to stretch cables to enable a connection. The cables must always have enough clearance. Damage caused by improper use or failure to observe the safety instructions and warnings is not covered by the warranty. For consequential damages no liability is assumed by GÖPEL electronic! Easy CON - 1000Base-T1... -
Page 7: Liability And Warranty Exclusion
Easy CON Media Converter. 1.7 Supplied Accessories As accessories to Easy CON you get: • 1 adapter cable RJ45 to D-Sub 9-pin • 1 USB 3.0 cable Figure 1.1: Accessories Easy CON - 1000Base-T1... -
Page 8: Technical Description
Speed Modi LEDs Node 3 (Socket ”USB”) Socket ”Supply” Placeholder nameplate Node 2 (Socket ”Automotive Ethernet”) Node 1 (Socket ”Ethernet”) The interfaces on the outside of the Easy CON are marked on the bottom of the device. Easy CON - 1000Base-T1... -
Page 9: Technical Specifications
The power supply can optionally be purchased to the Easy CON device via the GÖPEL electronic sales department. 2.3 Interfaces 2.3.1 Node 1 Socket ”Ethernet” Physical Layer: 100Base-T / 1000Base-Tx Ethernet Auto-crossover MDI-X Connector type: RJ45 socket with status LEDs Easy CON - 1000Base-T1... -
Page 10: Node 2
Connector type: USB 3.0 socket type B 2.4 Status Indication The Easy CON provides various information about the operational status and status of both Ethernet links. 2.4.1 Device Status LED The Device Status LED indicates the following states: Easy CON - 1000Base-T1... -
Page 11: Link Status Led
No link • 2 times flashing: Link OK / Activity The right 100 Mbit/s Phy Status LED (green) indicates the following states: • constantly off: No link • constantly on: Link OK • flashing: Data traffic Easy CON - 1000Base-T1... -
Page 12: Speed Modi Leds
Switch between Auto Negotiation - 100 Mbit/s - 1000 Mbit/s - 1000 Mbit/s with Legacy Mode (if available) In Auto Negotiation Mode the Auto Negotiation LED and the LED of the determined transmission speed as well as the corresponding master / slave configuration light Easy CON - 1000Base-T1... -
Page 13: Commissioning
If the device is to be connected to a PC via USB (Node 3) a USB 3.0 cable should be used. After installing the driver, a network adapter named EasyCON1000BaseT1 is available. Easy CON - 1000Base-T1... -
Page 14: Legacy Mode - Phy Compatibility Mode
If the opponent is an A0 transceiver, this is detected and the Legacy Mode (with 1000 Mbit/s) is set. The Legacy Mode can also be set manually using the Speed Modi button. When Legacy Mode is set the white Speed Modi LED 1000 flashes. Easy CON - 1000Base-T1... -
Page 15: Service And Support
If the warranty has expired, we will of course also repair your test system in accordance with our general installation and service conditions. If necessary, please contact our support service: GÖPEL electronic GmbH ATS-Support Goeschwitzer Str. 58 / 60 D-07745 Jena Tel.: +49-3641-6896-597 E-Mail: ats.support@goepel.com http://www.goepel.com Easy CON - 1000Base-T1... -
Page 16: Disposal
At the end of the service life of disposable batteries / rechargeable batteries, these must not be disposed of with the normal household waste. Dispose of the disposable batteries / rechargeable batteries at a recycling center for disposable batteries and rechargeable batteries. Please dispose of only discharged disposable batteries / rechargeable batteries. Easy CON - 1000Base-T1... - Page 17 Ethernet socket, Housing Labeling, Interfaces, Keypad, LED, Legacy Mode, Liability, Pinout Adapterkabel, Automotive Ethernet Socket, Power Supply, Safety, Status Indication Automotive Ethernet Phy Status, Device Status, Ethernet Phy Status, Link Status, Speed Modi, Technical Specifications, USB, Easy CON - 1000Base-T1...
-
Page 18: A Anhang A Declaration Of Conformity
APPENDIX A. ANHANG A DECLARATION OF CONFORMITY GÖPEL electronic GmbH Anhang A Declaration of Conformity Easy CON - 1000Base-T1...
