Summary of Contents for FXLuminaire PX TRANSFORMER

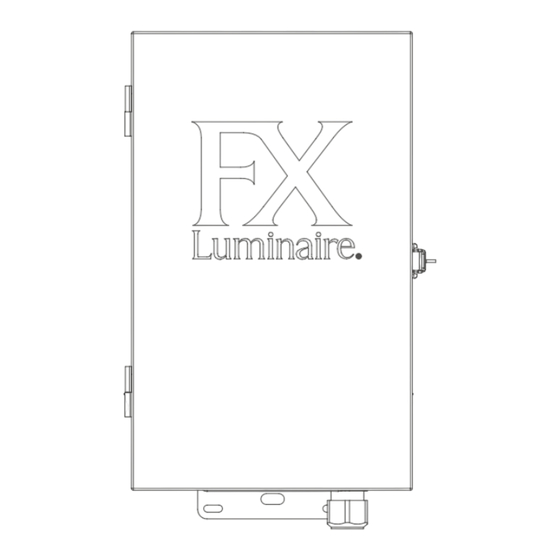

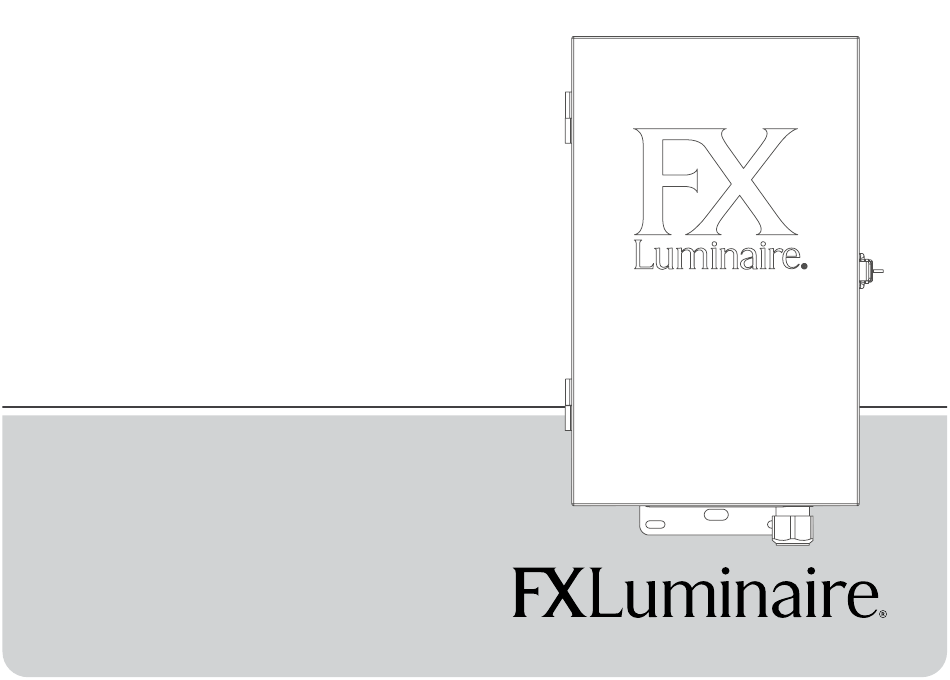

- Page 1 PX TRANSFORMER C1 FORMAT REVISION 11/20/2017 Landscape Lighting Transformer Owner's Manual and Installation Instructions for PX Transformer...
-
Page 2: Table Of Contents
Table of Contents 3 PX Transformer Overview 6 PX Transformer Installation Installing the photocell Circuit breaker Mounting the transformer 10 System Diagnotics and Troubleshooting 10 Troubleshooting the lighting system 11 System Maintenance 11 Transformer maintenance 11 Lighting fixtures and lamps... -
Page 3: Px Transformer Overview
PX Transformer Overview ➊ 304 stainless steel cabinet ➍ Terminal block ➋ Magnetic circuit breaker ➎ 120 V wiring compartment cover B1 FORMAT REVISION 1 / 11 / 2018 ➌ 120 V accessory receptacle ➏ 120 V power cord 6' (1.8 m) CONFIDENTIAL AND PROPRIETARY THIS DRAWING/DOCUMENT CONTAINS TRADE SECRET INFORMATION OF HUNTER INDUSTRIES, INC. - Page 4 PX Transformer Overview Left Right Back Bottom 1" 3/8" 3/8" 1/4" 1/2" 11/2" Knockout Sizes and Locations...
- Page 5 PX Transformer Overview • This transformer shall be connected to a 120 V covered This power supply is for use with landscape lighting systems GFCI receptacle marked “WET LOCATION” while in use. only. Do not submerge the transformer. • Mount the transformer at least 1' (0.3 m) above ground •...
-
Page 6: Px Transformer Installation
PX Transformer Installation 1. Install transformer(s) in a well-ventilated area away 5. Tighten screws until the transformer is secure. from direct irrigation spray and central to the proposed 6. Split 12/2, 10/2, or 8/2 cable approximately 3" (80 mm), CONFIDENTIAL AND PROPRIETARY installation site. -
Page 7: Installing The Photocell
PX Transformer Installation Installing the photocell 1. With the transformer unplugged, remove the two screws on the side of the transformer and the two screws on the Circuit #1 Low-Volt Low-Volt Low-Volt Low-Volt 120 V 120 V Photocell Photocell Common Common back of the transformer. -
Page 8: Mounting The Transformer
PX Transformer Installation Mounting the Transformer anchor holes and install anchors. Place the transformer back on the top anchors and install screw(s) into the Wall mount: By code, all transformers must be installed a bottom anchors to secure the transformer to the wall. - Page 9 PX Transformer Installation All PX Transformers come with a 3' (914 mm), 12 AWG (2 mm), three-pronged electrical power cord to be used in conjunction with a typical 120 V electrical receptacle. Use the PX power cord only in conjunction with a GFCI-protected 120 V exterior receptacle.
-
Page 10: System Diagnotics And Troubleshooting
System Diagnostics and Troubleshooting SOLUTION PROBLEM CAUSE Reset the circuit breaker in the main panel or the GFCI, usually located Tripped breaker No power at the plug or GFCI in a bathroom, garage, or kitchen. Transformer is cycling on and off Reduce lamp wattage or fixture quantity, or increase the size of the Excessive wattage load or short... -
Page 11: System Maintenance
System Maintenance Periodic system maintenance is required to keep your Lighting Fixtures and Lamps Lumascape lighting system operating at peak performance. Important: When replacing lamps, be sure to use lamps of Practicing these maintenance suggestions will lengthen the the same wattage and beam spread. life and enjoyment of your outdoor lighting design. - Page 12 Warranty Statement of Warranty electrical power surges, or unconditioned power supplies. If replacement products are repurchased, the price to the Hunter Industries Incorporated (“Hunter”) warrants FX Distributor for such products will be the one in effect at the Luminaire (“FXL”) Transformers and Controllers to be time of return.
- Page 13 Warranty accepted, no matter the timeline or condition. This includes Once FXL Products are shipped from Hunter, it is Hunter’s (but is not limited to): Line-Voltage Series Fixtures standard policy not to accept returns of new Product(s) (i.e., Apex Collection), special order products, uncommon except under special circumstances.
- Page 14 Notes...
- Page 15 Notes...
- Page 16 Our mission is to create the most energy-efficient lighting products in the world while maintaining the highest level of quality and reliability. In every instance we will back our innovations with the unwavering support our customers need to succeed. Denise Mullikin, President, Landscape Irrigation and Outdoor Lighting FX LUMINAIRE | LANDSCAPE &...
