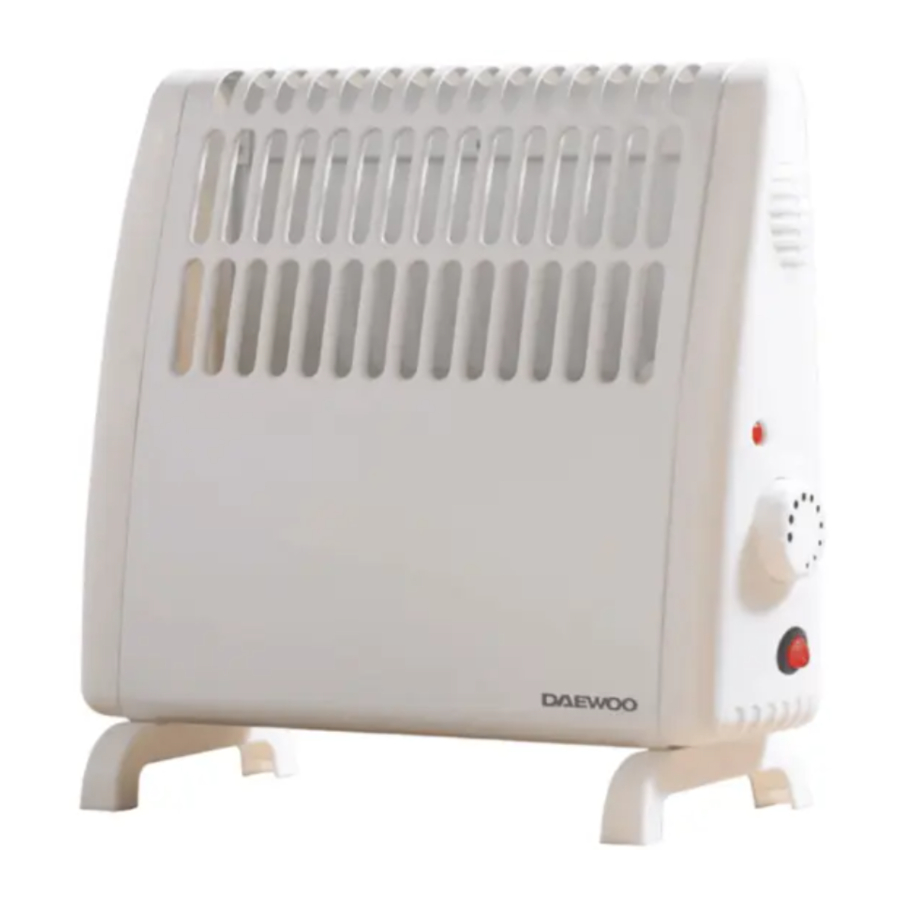

Daewoo HEA1439 - 450W Mini Convector Heater Manual

Description of parts

Assembling your Mini Convector Heater

Fitting the Feet

Before using this heater, the feet must be fitted to the unit. These are attached to the base of the heater using the four self-tapping screws provided, take care to ensure that they are located correctly in the holes at either end of the base of the appliance:

Operating Your Mini Convector Heater

1. Insert the mains plug into the nearest mains socket.
2. Press the On/Off switch at the bottom right hand side to the on position by pressing 'I', the switch will illuminate to show the unit is powered up.
3. Rotate the Thermostat clockwise to increase the room temperature, rotate anticlockwise to decrease the temperature.
4. The heat indicator lamp will go on and off during use to show that the set temperature is being maintained – this is quite normal.

Hint on setting the correct temperature

1. Set the heater to the desired heat setting as above.
2. Rotate the Thermostat to the maximum position and allow the room to warm up. Once the desired room temperature has been reached turn the Thermostat anticlockwise until the heater just clicks off then turn it back up clockwise very slightly. The Thermostat will now maintain the room temperature, if necessary, further increasing or decreasing the thermostat control may be required to 'fine tune' the ideal room temperature.

Care and Use of your Mini Convector Heater

• Always disconnect the heater from the mains power supply before cleaning.
• Clean outside of the heater with a clean damp cloth. Never clean with harsh or abrasive cleaners.
• Do not submerge any part of heater in water or any other liquids.

Technical Data

Voltage: 220-240V AC 50Hz
Rated power: 450 W
Model Number: HEA1439

Electrical Connections

This appliance is fitted with a fused three-pin plug to BS 1363. If the plug has to be removed, it should be cut off and carefully disposed of immediately. To avoid a possible shock hazard, do not insert the discarded plug into a mains socket.

Fitting a new plug

The mains lead must be connected as shown below. The wires are coloured with the following code - Brown wire = Live (L), Blue wire = Neutral (N), Green & Yellow = Earth (E).

• The Blue wire must be connected to the terminal marked N or coloured Black.
• The Brown wire must be connected to the terminal marked L or coloured Red.
• The Green and Yellow wire must be connected to the terminal marked E or coloured Green.
• Check that there are no cut or stray strands of wire inside the plug.
• Use a 13 Amp BS 1362 fuse, only use BSI or ASTA approved fuses.
• If you are in any way unsure which plug or fuse to use, always refer to a qualified electrician.
• After replacing or changing a fuse on a moulded plug, the cover must be refitted to the plug; the appliance must not be used without a fuse cover.

Do not wrap the cord around the heater for storage.

ERP Data

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed. These instructions should be saved for future reference:

• Read and familiarise yourself with all operating instructions before using this Mini Convector Heater.
• Before plugging your unit into the mains, visually check that the unit is intact and has not suffered any transit damage.
•
  In order to avoid overheating do not cover the heater.
• Do not install the heater directly below an electrical socket.
• Do not use this heater with a programmer, timer, separate remote control system or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
• Do not use this heater with an extension cable.
• Check that the voltage indicated on the data plate corresponds with that of the local network before connecting the heater to the mains power supply.
• Close supervision is required when using the appliance near children.
• Never leave this appliance within reach of children.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience or knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children of less than 3 years shall be kept away unless continuously supervised.
• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in it's intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
•
  Some parts of this appliance can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
• This product shall not be installed in a bath or shower room or swimming pool.
• Do not immerse the appliance or it's cord in water or any other liquids.
• Do not leave the appliance unattended during use.
• Do not leave the appliance unattended whilst connected to the mains supply.
• Always use this appliance on a solid, level, heat resistant surface.
• Do not use the appliance outdoors.
• It is imperative to unplug the power cord after the appliance has been used, before it is cleaned and whilst being repaired.
• Repairs to electrical appliances should only be carried out by qualified persons. Improper repairs may place the use at serious risk.
• Do not operate the appliance with a damaged plug or cord, after a malfunction or after being dropped or damaged in any way.
• Regular periodic checks should be carried out on the mains cable to ensure no damage is evident. Should there be any signs of damage the appliance should not be used.
• If the power cable is damaged it should only be replaced by the manufacturer or a suitable qualified after sales service in order to avoid a hazard.
• Do not allow the mains cable to hang over sharp edges or come into contact with hot surfaces.
• Do not run the power cable under carpets, rugs etc.
• Allow the heater to cool before storing away.
• Before cleaning disconnect the heater from the mains supply and allow to cool.
• Never place the heater near to flammable material or high pressure containers. (e.g. Paper, wood, petrol, solvents, spray canisters etc).
• This heater is intended for household use only and should not be used for industrial or commercial purposes.
• Do not use any accessories or attachments with this appliance other than those supplied or recommended by the manufacturer.
• Do not use this appliance for any other purpose than it's intended use.
• Do not push objects into any openings as damage to the appliance and/or electric shock may occur.
• Ensure the appliance is sited in an open area, do not allow it to come into contact with cupboards, curtains, wall coverings, clothing or any other flammable materials.
• This heater should not be installed in areas which have a fire risk, such as garages, stables or wooden sheds, this is applicable also for rooms in which highly flammable gases or dust can develop. Danger of fire.
• Unplug after each use. Grasp the plug not the cord.
• NB During the first few minutes of initial use, you may notice a slight odour and a little smoke. This is normal and will quickly disappear, It is the coating applied to the heating elements to prevent any corrosion during transit.
