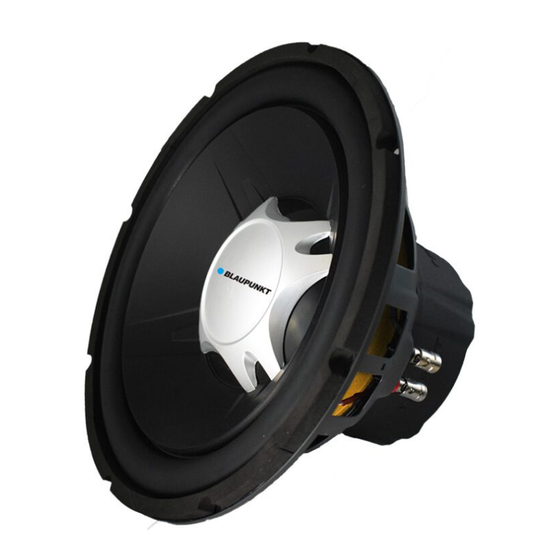

- Page 1 VELOCITY POWER HIGH-POWERED SUBWOOFER DRIVER MPW 5-12 Operating and Installation Instructions...
- Page 2 Do not install the device near the trunk springs/lid/ gas tank/fuel lines. Disclaimer In no event shall Blaupunkt be liable for any direct, indirect, punitive, incidental, special consequential damages to property or life and whatsoever arising out of or connected with the use or misuse of our products.
-
Page 3: Specification
SPECIFICATION 312mm 158mm 151mm 143mm 284mm • Speaker Diameter : 12” • Overall Outside Diameter : 12.40" • Normal Ouput Power (RMS) : 550 watts • Overall Depth : 6.45" • Max. Power Handling : 1100 watts • Ba e Cut-out Diameter : 11.25" •... -
Page 4: Installation
INSTALLATION Subwoofer WIRING DIAGRAM Series Connection Headunit... -
Page 5: Troubleshooting
TROUBLESHOOTING If any of the following problem occur, please resort to Troubleshooting for the possible solutions. Consult Blaupunkt authorized dealer if problem persist. Problems Possible Causes Solutions Subwoofer does not Incorrect or loose wiring connection. Ensure proper wiring connections of subwoofer. - Page 6 Blaupunkt Car Entertainment - Asia Paci c Competence Centre 1 114 23 004 68 01...
