Summary of Contents for D-CUT CB-060

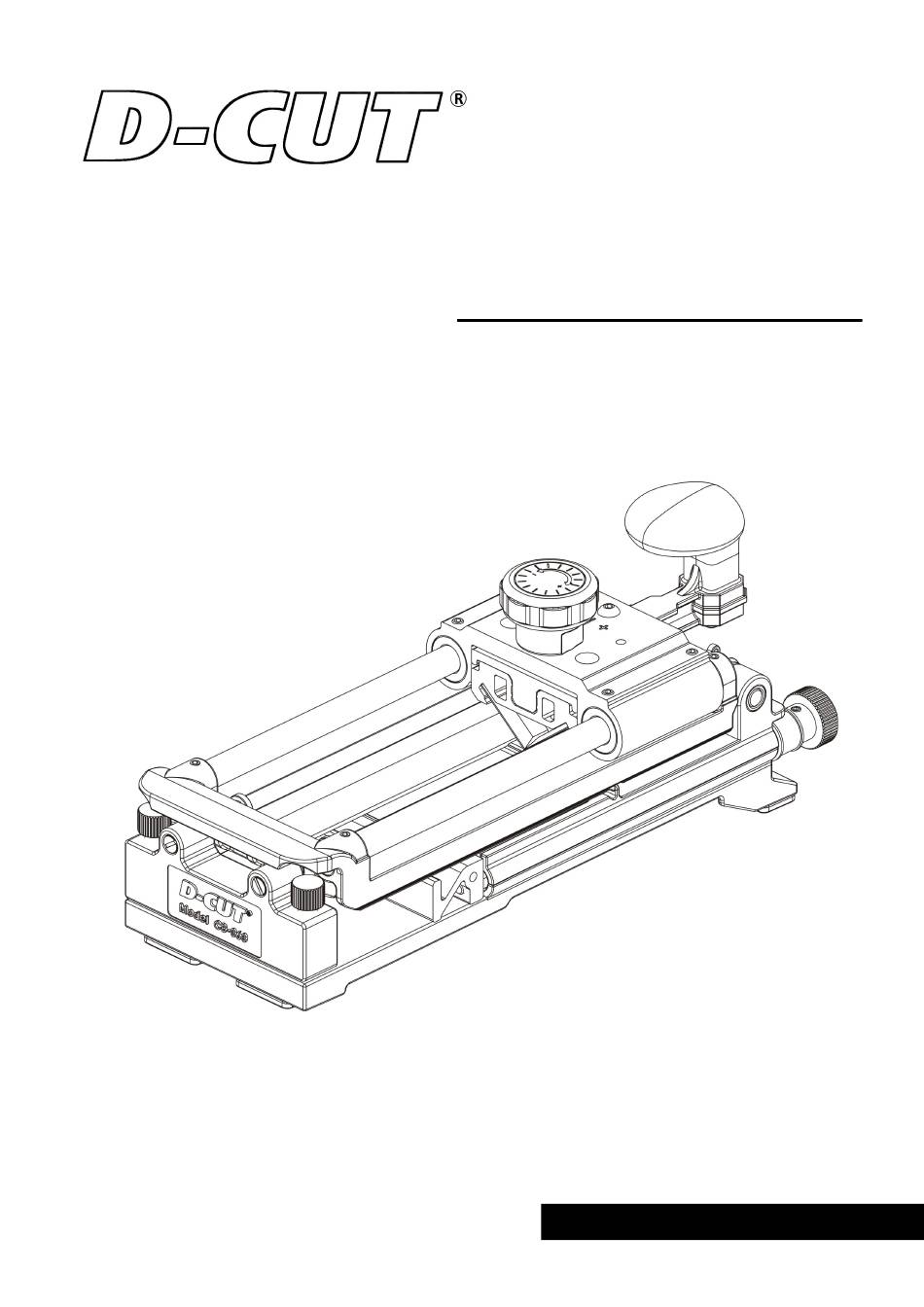

- Page 1 OPERATION MANUAL D-Cut Covebase Groover CB-060 www.dcutproducts.com...
- Page 3 Groove a covebase with toe between 4" to 6 1/4" Push the handle forward to open the top plate, or use two thumbs to push Pic. 1 two spring pins to open the top plate. CUTTING AND C Lay the covebase with its backside Pic.
- Page 4 Push down the top plate down towards the Pic. 4 bottom plate until it locks with the bottom plate. Push the handle forward to finish the Pic. 5 grooving. Pic. 6 Turn the grooving depth dial knob to adjust the grooving depth in order to reach the result you need.
- Page 5 Grooving a covebase with toeless 1. lay the covebase on the grooving area Pic. 7 with the backside facing up and make the thinner edge (top of the covebase) touch the little wall. 2. Turn the rotary wheel on the back of the groover to make sure the covebase is fully supported by the bottom plate, not above the slot.
- Page 6 Set the 2.5” adapters onto the sliding Pic. 10 tube as shown. Lay the covebase with its backside facing up on the grooving area. And it is important to line up the thinner Pic. 11 edge of the covebase with the starting red line drawn on the grooving area as shown by turning the rotary wheels.
- Page 7 Odd examples: 1. For some of the covebases, you may need to adjust the grooving depth during the process by turning the grooving depth knob, which means that you may start with a grooving depth to do a part of the job and adjust the grooving depth and finish the grooving for the rest of the job. Part List Parts Q’ty...
