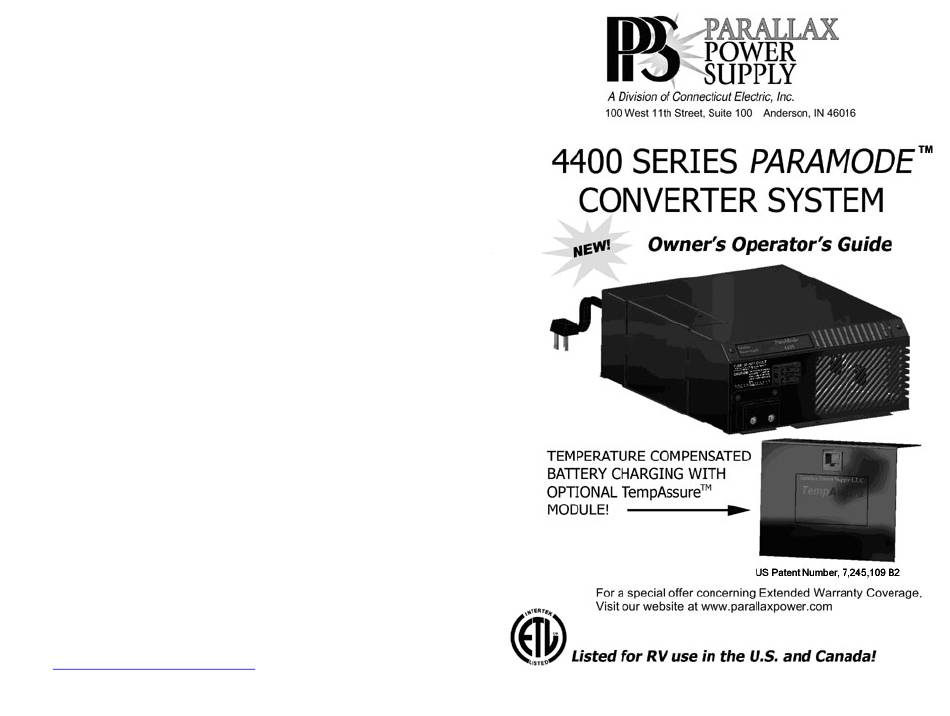

PPS PARAMODE 4400 Series Owner's Manual

Mounting Location
The 4400 series converter is designed for indoor use only! Do not mount in
engine compartment or other harsh environments; avoid areas where high levels of
dust, dirt, or moisture may occur.
The Parallax 4400 series power converter is of solid state design and does not
contain relays or mechanical devices that produce arcs or sparks, but in the unlikely
event that an electronic component would fail, Parallax does not recommend mounting
the power converter in battery compartments or in areas where flammable materials
are stored.
Wire Routing
In order to minimize radio and T.V. interference, avoid routing supply and output
wiring across fan intake or adjacent to ventilation slots on rear of converter.
Mounting Position
The 4400 series fan cooled converters may be mounted in any position as long as
adequate ventilation is allowed for fan intake and exhaust. Mount the 4400 series
converter utilizing the mounting holes in the front and rear flanges and using fasteners
appropriate for the mounting surface.
Input Supply Requirements
Connect to a 120VAC 60HZ 3-wire grounded supply with no larger than 20 ampere
circuit protection.
Mounting Clearances
Provide a minimum of three inches to the front and rear of the converter. Do not
mount in zero clearance compartments; overheating and thermal shut down will result.
Warranty Statement
Parallax Power Supply warrants each converter product to be free from defects in
materials or workmanship under normal use and service and limits the remedies to
repair or replacement.
This warranty extends for two years from the date of purchase and is only valid to
the original owner and within the continental limits of the United States and Canada.
If a problem should occur with your converter product within the first 24 months of
purchase, please contact a dealer that handles warranty on your brand of RV.
No user serviceable parts inside.
This warranty does not cover damage due to improper installation, abuse or
accidents.
You may download the Parallax Power Supply Warranty Policy at:
http://www.parallaxpower.com/warranty.htm
011-4400-100 Rev. C
™
