Summary of Contents for Elk Products ELK-7TS

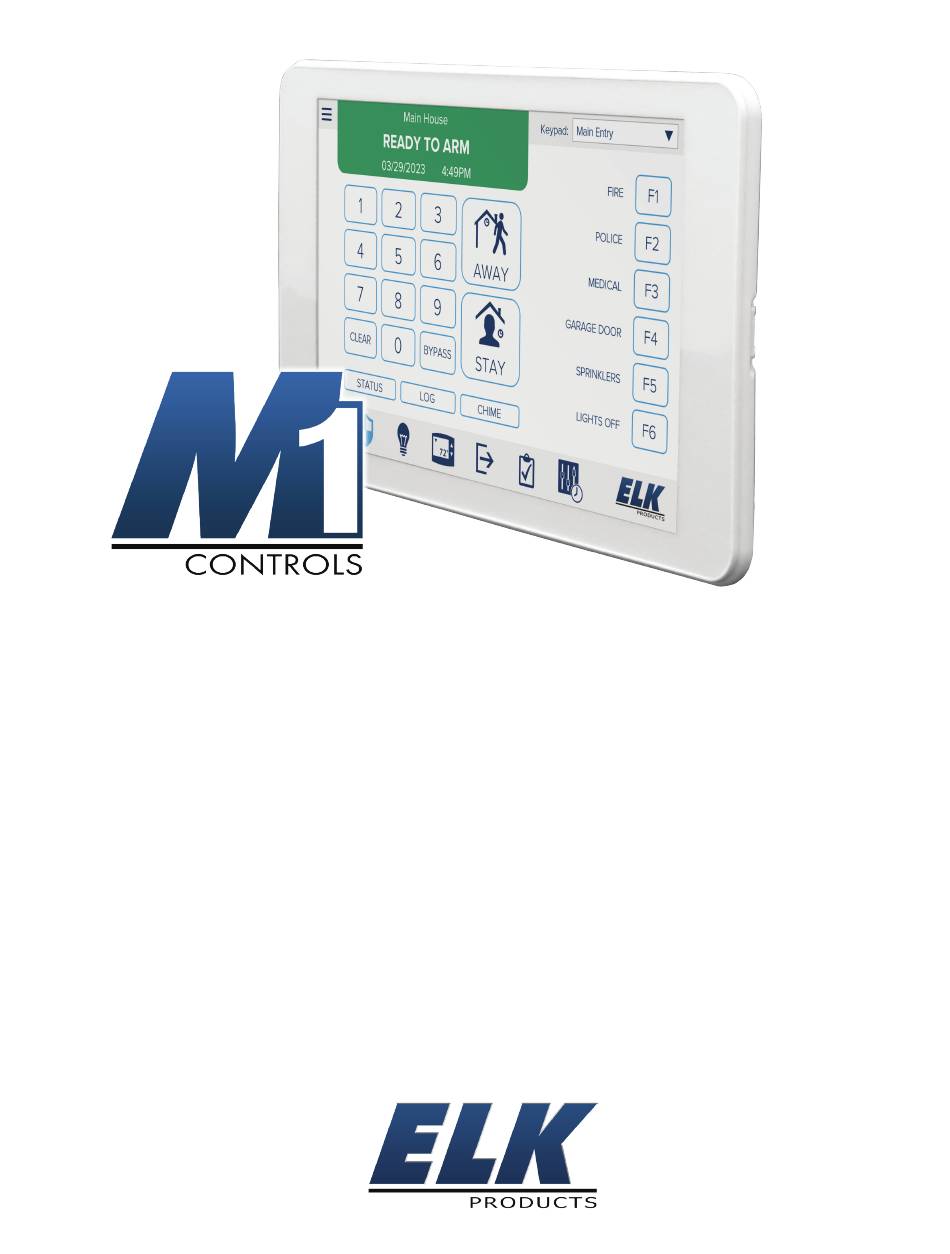

- Page 1 ELK-7TS Touchscreen Reference Guide for M1 Controls www.elkproducts.com...
-
Page 2: Table Of Contents
Installation & Wiring ..........4 Wiring a 12VDC Power Supply ............4 Connecting the ELK-POE47TS Ethernet & PoE Adapter ....4 Mounting the ELK-7TS using the wall mount plate ......5 Mounting the ELK-7TS to the Desk Stand ........5 Configuration ............6 Getting Started .................6 Connecting to Wi-Fi .................6... -
Page 3: Elk-7Ts Product Overview
ELK-7TS Product Overview The ELK-7TS is a 7” touchscreen, complementing the Alarm Engine and M1 Cross Platform Control. Installers can seamlessly choose the desired platform during setup. A touchscreen version of ElkConnect ensures a consistent user experience for Alarm Engine installations, while an all-new M1 touchscreen application introduces users to a fresh and modern interface for M1 systems. -
Page 4: Installation & Wiring
Connect the black wire on the harness to the negative terminal of the power supply. Be careful to observe polarity! When using this method to power the ELK-7TS, the touchscreen can be connected to the local network via Wi-Fi. Alternately, the ELK-POE47TS can be used to connect the touchscreen to a standard (Non-POE enabled) network router or switch. -
Page 5: Mounting The Elk-7Ts Using The Wall Mount Plate
Mounting the ELK-7TS using the wall mount plate Ideal keypad mounting height is 50-58 inches above the floor. Select a location with an ambient temperature range between 32° and 120° F (0° to +49° C). Avoid direct sunlight if possible. -
Page 6: Configuration
Getting Started The ELK-7TS touchscreen is designed to work with ELK’s Alarm Engine and M1 Controls. When the touchscreen is powered up for the first time, an app selector will be presented. Select M1 Controls to install the M1 app on the touchscreen. The M1 app will be installed. -
Page 7: Installer Settings
Installer Access code is 172839. From this page, installers can edit their contact information. This information is viewable by the user when accessing the Help page. Installers can also change the Installer Access Code, perform updates to the touchscreen software, and factory default the touchscreen. ELK-7TS Touchscreen Reference Guide - M1 Controls... -
Page 8: Operating Guide
Operating Guide The M1 app on the ELK-7TS provides a clean modern user interface for controlling an M1 system. It is not designed or intended for M1 system programming or configuration. Basic Navigation Home Page This page provides quick access to all the main category pages in the app. -
Page 9: Security
Voice, and Off. Click the Chime button to toggle between the selections. The Status Window will display the Chime mode as the key is pressed. When the chime is active the button is illuminated. ELK-7TS Touchscreen Reference Guide - M1 Controls... - Page 10 Each page displays up to 12 zones at a time. If the system has more than 12 zones additional pages of zones to be accessed using the navigation buttons at the bottom of the page or swiping left /right. ELK-7TS Touchscreen Reference Guide - M1 Controls...
- Page 11 The event log displays information for each event including the date and time the event occurred and a description of the event. You can view the newest 20 events or the entire log by clicking the corresponding button. ELK-7TS Touchscreen Reference Guide - M1 Controls...
-
Page 12: Lights
► Not all light formats support bright/dim commands. If these commands are not supported, use of the slider will automatically result in an ON command. ELK-7TS Touchscreen Reference Guide - M1 Controls... -
Page 13: Climate
Off, Heat, Cool, Auto Buttons: These buttons allow you to change the thermostat mode. Hold: This button allows you to turn the Hold setting On or Off. Fan: This button allows you to change the fan setting to Manual or Auto. ELK-7TS Touchscreen Reference Guide - M1 Controls... - Page 14 Each page displays up to six temperature sensors at a time. If the system has more than six temperature sensors, additional pages can be accessed using the navigation buttons at the bottom of the page or swiping left /right. ELK-7TS Touchscreen Reference Guide - M1 Controls...
-
Page 15: Outputs
Each page displays nine outputs at a time. If the system has more than nine outputs, additional pages can be accessed using the navigation buttons at the bottom of the page or swiping left /right. ELK-7TS Touchscreen Reference Guide - M1 Controls... -
Page 16: Tasks
Each page displays nine tasks at a time. If the system has more than nine tasks, additional pages can be accessed using the navigation buttons at the bottom of the page or swiping left /right. ELK-7TS Touchscreen Reference Guide - M1 Controls... -
Page 17: Custom Settings
12 hr. format with AM or PM indications. If the setting is a number, this page will allow you to enter a number between 0 and 65,535. ELK-7TS Touchscreen Reference Guide - M1 Controls... -
Page 18: Display Settings
Avoid Harsh Chemicals: Do not use harsh chemicals, such as ammonia-based cleaners or abrasive materials like paper towels, as they can damage the screen. Exit: Tap this button to exit the display settings page and return to the previously viewed page. ELK-7TS Touchscreen Reference Guide - M1 Controls... -
Page 19: Regulatory Statements
émetteur à l'exception de ceux approuvés pour la colocalisation avec cet appareil conformément aux directives multi-émetteurs. CAN ICES-3 (B)/NMB-3(B) ELK-7TS 7” Color Touchscreen for Alarm Engine & M1 Controls FCC ID: TMA-ELK7TS IC: 4353A-ELK7TS... -
Page 20: M1 Limited Warranty
M1 Limited Warranty The ELK-M1 and its associated component products are warranted by Elk Products, Inc. (“Manufacturer”) against defects in material and workmanship for a period of two (2) years from the date of manufacture. If product is found to be defective during the first 180 days, manufacturer may allow an over the counter exchange, subject to inspection and approval by one of it’s...
