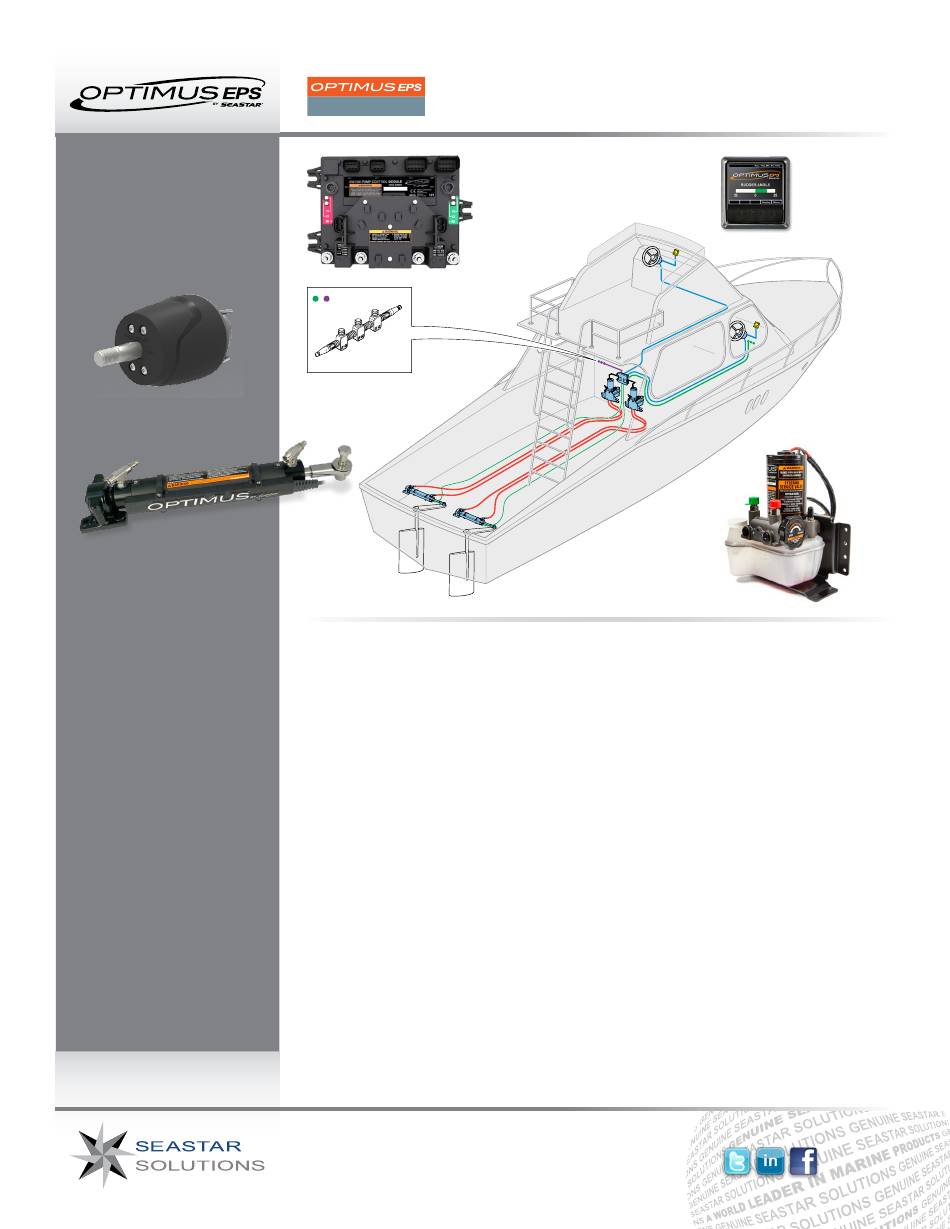

SeaSTAR OPTIMUS EPS 3000 Series Quick Start Manual

APPLICATIONS

Electronic Power Steering (EPS)
system suitable for vessels from
approximately 30 ft to 50 ft* with
single or dual rudders.
EH1512 Electronic Helm
Front mount 3/4 taper shaft shown
5 other options inc. 1" straight
shaft available
EC5380
Steering Cylinder
* Subject to submission of survey form and
rudder load calculation.

Environmental

• Operating temperature:
-18°C to +77°C [ISO 25197]
• Storage temperature:
-40°C to +85°C [ISO 25197]
• Corrosion resistance: 300 hours
salt spay [ASTM B117]
• Water ingress protection:
IPX7 [IEC 60529]
• Random vibration:
0.0284 g^2/Hz [ABYC P-27]
• Resonant vibration: 4 G zero-
peak, 20-2000 Hz [ABYC P-27]
• Mechanical shock:
50 G, 11 m-sec half-sine shape
[ISO 25197]
• Ignition protection: SAEJ-1171
• Meets EN60945 electro-
magnetic compatibility
requirement
Issue Date - August 2017
Issue Number - 469257B
3000
SERIES
=
CAN Tee's termination.

FEATURES

• Up to two helms stations
• Automatic battery management with sensing,
warnings & best battery selection
• On demand hydraulic steering pump
minimizing power consumption
• No oil at the helm
• Rugged electronics for 12 or 24 VDC
applications
• Color dash display showing rudder command
and rudder position graphic
• Displays system health
• Display provides system setup interface
• Communicates faults and any special
handling instructions to the operator
• No requirement for tie-bars depending on
rudder loads.
• Simple software updating via USB port
• Programmable number of turns lock to lock
with speed
• Auto-adjusting steering end stops and
resistance with speed
®
Inboard Yachts 30–50 Feet Range
EM1200
PCM
• Dual redundant position sensing on all
moving components
• Helm offers both 3/4" taper or 1" straight
shaft options
• Utilizes fault tolerant CAN network
• Full autopilot CANbus connectivity and
integration. No additional pumps or sensors
required
• Adjustable max rudder hard over angle with
speed range 25° to 40° Center to hard over
• Rudder toe in or out up to 5° with speed
• Position proportional rudder gain for faster
steering response near neutral rudder position
• RPM input: NMEA 2000, J1939 or analog
pulse compatible
• Pump features an Integrated service/
bypass valve allows a limp home mode
• Meets or exceeds ABYC, CE, ISO and SAE
electrical and environmental requirements
www.seastarsolutions.com
Page 1 / 2
ED1700
Color
CANtrak
EP15XX
Hydraulic
Pump
