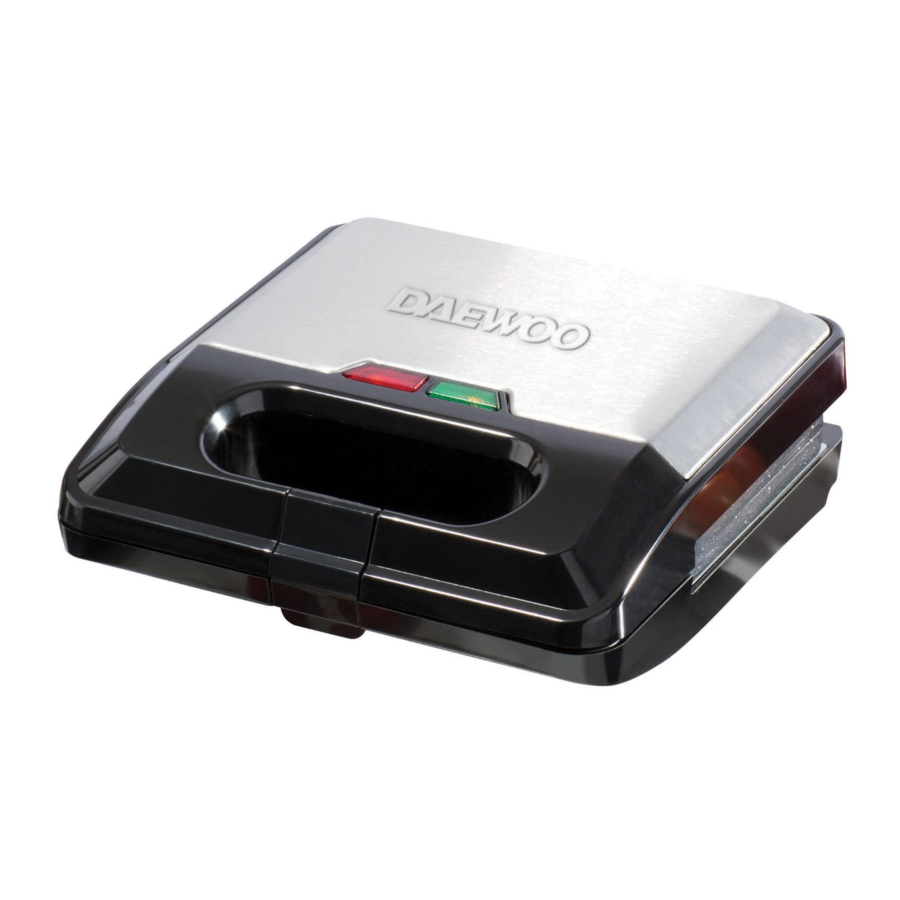

Daewoo SDA1562 - 3-in-1 Snack Maker Manual

Description of parts

1. Upper housing
2. Power indicator (red)
3. Ready indicator (green)
4. Latch
5. Lower housing
6. Plate release buttons
7. Non-stick cooking plates

The Non-Stick Cooking Plates

Before the first time you use your product

Please read these operating instructions thoroughly and keep them in a safe place for future reference.
Remove all packing materials including in between the plates inside the unit (if fitted) and dispose of responsibly.
Before using the Snack Maker for the first time, wipe all the plates using a soft, clean damp cloth.
To avoid damaging the non-stick coating use a non-metallic kitchen tool made of wood, silicone, etc. to remove the food from the cooking plates.

Instructions for use

• Ensure the Snack maker is not connected to the mains.
• Place the Snack Maker on a solid, level, non - flammable surface.
• Lift the Latch (4) and raise the Upper Housing (1) until fully upright.
• Select which type of Non-Stick Cooking plate you require: Waffle, Sandwich or Grill plate.
• Place the desired plates onto the Snack maker and gently push the plate down onto the Lower Housing (5) until a click is heard to confirm the plate is locked in place. Repeat the same process with the Upper Housing (1) and Plate.
• Preheat the plates on the Snack maker by plugging it into the mains socket. The red Power Indicator (2) and the Ready Indicator (3) lights will both illuminate to show power is connected and the plates are heating. Lower the upper housing (1) during the heating process.

Cooking

(Times may vary)

Using the Waffle Cooking Plate

Add a Teaspoon of oil to the surface of the non-stick Waffle Plate and place your desired mix onto the plate. Lower the Upper Housing (1) and latch it closed using the Latch (4) whilst the waffle cooks.
After 4-5 minutes the waffle should have cooked, though it is recommended to check the waffle during cooking.

Using the Sandwich Cooking Plate

Place the bread onto the hotplate and add filling, then place second slice of bread over the filling. Lower the Upper Housing (1) and latch it closed using the Latch (4) whilst the sandwich cooks.
After 4-5 minutes the sandwich should have cooked, though it is recommended to check the sandwich during cooking.
NB: It is recommended that the bread be buttered on the outside to prevent it sticking to the plates.

Using the Grill Cooking Plate

Add a Teaspoon of oil to the surface of the non-stick Grill Plate and place the Food to be grilled onto the grill plate. Lower the Upper Housing (1) and latch it closed using the Latch (4) whilst the food is being grilled.
After 4-5 minutes the food should be grilled, though it is recommended to check the food during the grilling process.

• NB during cooking, the green ready to cook light will cycle on and off to show that the temperature is being maintained at the correct cooking temperature. This is quite normal.

Removing the Cooking Plates

To remove the cooking plates from the snack maker after use, first allow the unit to cool completely. Press the Plate Release Buttons (6) and the plates can be lifted free.

Cleaning your device

• Always unplug the snack maker from the mains power supply before cleaning.
• Allow the unit to cool before cleaning.
• Do not clean any part of your snack maker in a dishwasher.
• Do not submerge any part of the main body or mains cable in water or any other liquids.
• Wipe excess oil/grease from the plates, with kitchen roll or similar.
• Wipe clean the outside of the main body and the plates with a soft damp cloth.
• Never clean any part of the snack maker with harsh or abrasive cleaners.

Technical Data

Electrical Connections

This appliance is fitted with a fused three-pin plug to BS 1363. If the plug has to be removed, it should be cut off and carefully disposed of immediately.

To avoid a possible shock hazard, do not insert the discarded plug into a mains socket.

Fitting a new plug

The mains lead must be connected as shown below. The wires are coloured with the following code - Brown wire = Live (L), Blue wire = Neutral (N), Green & Yellow = Earth (E).

• Ensure the outer sheath of the mains lead is securely held by the cable clamp
• The Blue wire must be connected to the terminal marked N or coloured Black.
• The Brown wire must be connected to the terminal marked L or coloured Red.
• The Green & Yellow wire must be connected to the terminal marked E or coloured Green.
• Check that there are no cut or stray strands of wire inside the plug.
• Use a 5 Amp BS 1362 fuse, only use BSI or ASTA approved fuses.
• If you are in any way unsure which plug or fuse to use, always refer to a qualified electrician.
• After replacing or changing a fuse on a moulded plug, the cover must be refitted to the plug; the appliance must not be used without a fuse cover.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed. These instructions should be saved for future reference:

• Read and familiarise yourself with all operating instructions before using this Snack Maker.
• Before plugging your unit into the mains, visually check that it is intact and has not suffered any transit damage.
• Check that the voltage indicated on the data plate corresponds with that of the local network before connecting the appliance to the mains power supply.
• Do not use this product with a programmer, timer, separate remote-control system or any other such device.
• Do not immerse this appliance in water or any other liquids.
• Cooking appliances should be positioned in a stable situation with the handles (if any) positioned to avoid spillage of liquids.
• DO NOT touch hot surfaces. Accessible surfaces are liable to get hot during use. Always use the handle.
• Oven gloves should be used whilst using the Snack maker.
• Close supervision is required when using this appliance near children.
• Never leave this appliance within reach of children.
• This appliance shall not be used by children from 0 to 8 years.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Cleaning and user maintenance shall not be made by children.
• Do not leave the appliance unattended during use.
• Do not leave the appliance unattended whilst connected to the mains supply.
• Always use this appliance on a solid, level, non-flammable surface.
• Do not use this appliance outdoors.
• It is imperative to unplug the power cord after the appliance has been used, before it is cleaned and whilst being repaired.
• Regular, periodic checks should be carried out on the supply cord to ensure no damage is evident. Should there be any signs of damage the appliance should not be used.
• If the supply cord is damaged it is to be replaced by a qualified person in order to avoid a hazard.
• Do not operate this appliance with a damaged plug or cord, after a malfunction or after being dropped or damaged in any way.
• Do not allow the mains cable to hang over sharp edges or come in contact with hot surfaces.
• Allow the unit to cool before storage.
• Never place the appliance near to flammable material or high pressure containers.
• This appliance is intended for household use only and should not be used for industrial purposes.
• Do not use any accessories or attachments with this appliance other than those supplied or recommended by supplier.
• Do not use this appliance for anything other than its intended use.
• Do not push objects into any openings as damage to the appliance and/or electric shock may occur.
• Ensure appliance is situated in an open area, do not allow it to come in contact with cupboards, curtains, wall coverings, clothing or other flammable materials.
• Unplug after each use. Grasp the plug, not the cord.
• Do not cover this appliance.
• Never place this appliance on an electric, gas, or any other type of hob.
• Ensure adequate ventilation whilst cooking foods that are prone to giving off smoke.
•
  do not attempt to move the snack maker whilst it is hot.
•
  this appliance must be earthed.
• Clean the plates with clean damp soft cloth – do not use harsh abrasives or chemicals.
