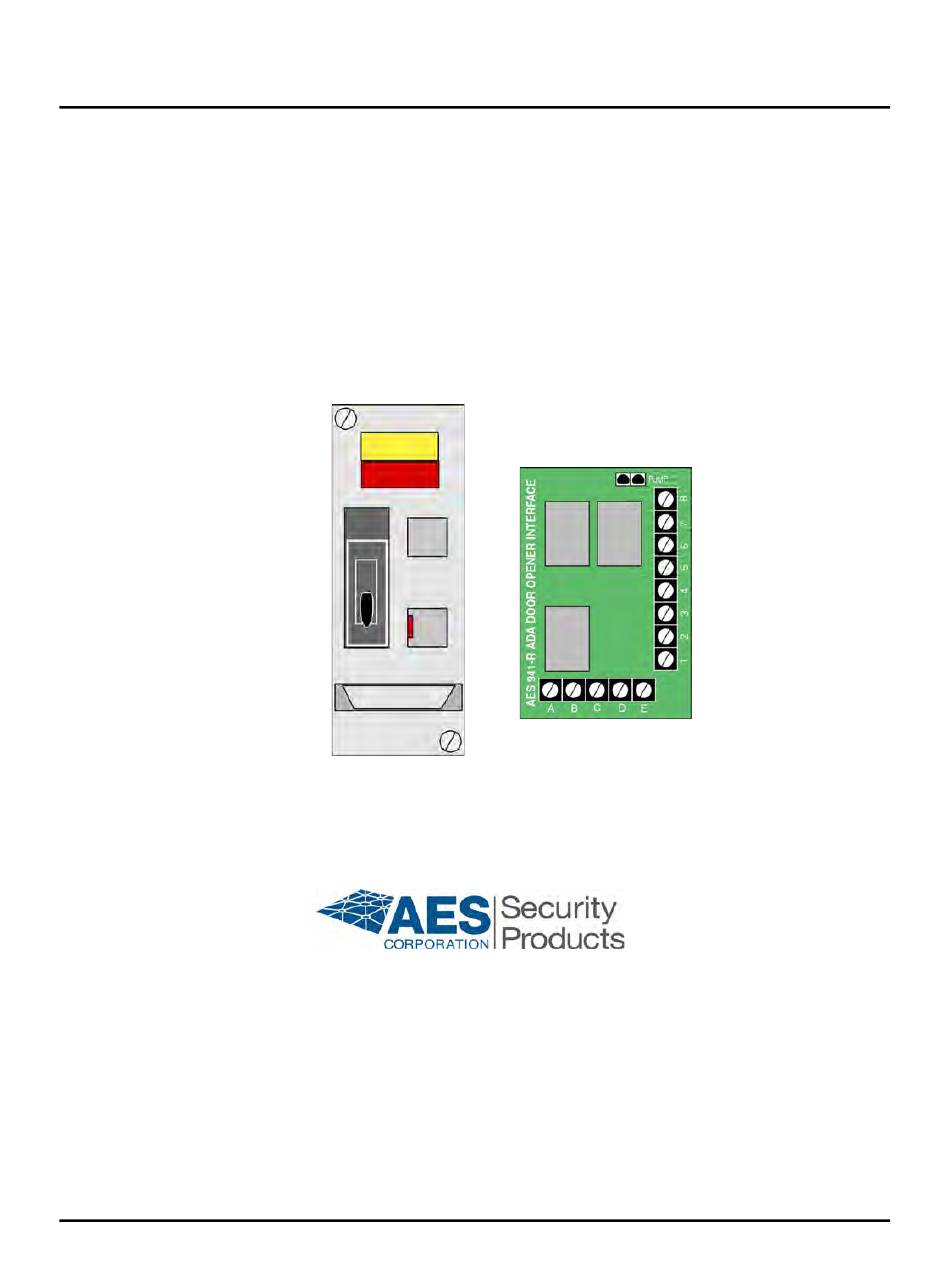

- Page 1 AES 941 ADA Door Control Technical Manual Model 941-PKG ADA Door Control Includes 941-M Control Module & 941-R Relay Interface 285 Newbury Street Peabody, MA 01960 USA www.aes-security.com 40-0941 Page 1 Rev 1.02, July 2008...
-
Page 2: Kit Contents
Manual and Typical Wiring Diagrams Ordering Information The AES #941-PKG is a “package” which includes one #941-M Control Module (fits in the AES 900 Control Rack), and one #941-R Interface to integrate with the door opener. The #941-M module and #941-R interface are also sold separately. -
Page 3: Table Of Contents
AES 941 ADA Door Control Table of Contents Kit Contents ........................ 2 Table of Contents ......................3 Safety Considerations ................... 4 Environmental Considerations ..............4 iii. Specifications ....................5 Product Description, Benefits ..................6 Theory of Operation ....................7 Wiring Diagram, Installation ..................8 Operation ........................ -
Page 4: Safety Considerations
AES 941 ADA Door Control AES 941 ADA Door Control Package Safety Considerations 1. Installation of the AES 941 ADA Door Control should only be carried out by a qualified electrical technician. 2. Switch off incoming electrical power before connecting any component. -
Page 5: Specifications
AES 941-M Door Control Module Dimensions: 5.125” H x 1.75” W x 3.5” D (approx) Mounting: Fits into standard (narrow) slot of AES 900 Door Control Rack Operative Voltage: 24VDC, provided by AES 726, 727 or 780 Series Power Supply Switches: •... -
Page 6: Product Description, Benefits
The AES 941 Door Control Package is a single, flexible solution that integrates “ADA” automatic door openers into the existing AES 900 Door Control System. The package consists of one 941-M Control Module and one 941-R Door Controller Interface. The parts work in tandem to provide an easy-to-integrate and fast-to-install system. -
Page 7: Theory Of Operation
1. At 900 rack terminal strip, when 941-M is in Day Mode, a low is placed on output terminal 10 to provide the common leg to the 941-R via terminal B. 2. From the AES 726 Power Supply Unit “PSU” terminal strip for the magnetic lock, terminal 5 provides a high to the 941-R interface via terminal D. -
Page 8: Wiring Diagram, Installation
AES 941 ADA Door Control Wiring Diagram, Installation 40-0941 Page 8 Rev 1.02, July 2008... -
Page 9: Operation
AES 941 ADA Door Control Operation 40-0941 Page 9 Rev 1.02, July 2008... -
Page 10: Warranty
Warranty. This Warranty does not cover replacement parts that are not approved by AES. This Warranty does not apply to any AES Product or any part thereof that has been altered in any way to affect its stability or reliability, or that has been subjected to abuse, misuse, negligence, accident or act of God, or that has had the serial number effaced or removed.
