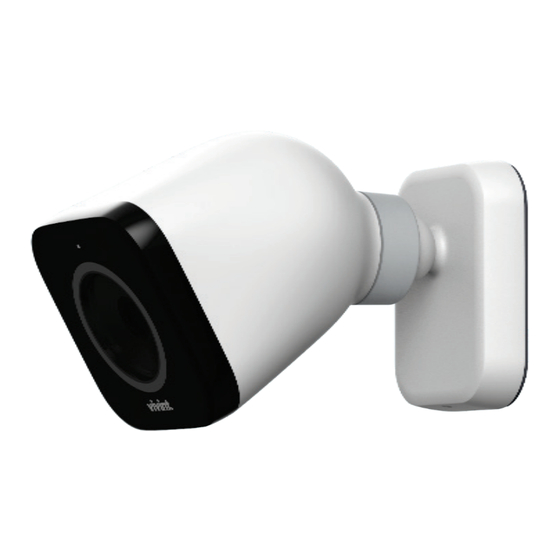

Vivint Outdoor Camera Pro
(VS-ODC300-WHT)
Quick Reference (User Manual — Installation & Operation)
The Vivint Outdoor Camera Pro is a state-of-the-art high-res camera that can be added to the
homeowner's integrated Vivint Smart Home system. The outdoor camera provides live and recorded
video that can be viewed at the control panel as well as remotely via the apps; microphones and speaker
for audio/communication capabilities; and an LED light ring that indicates camera function and status.
Professionally installed by a Vivint technician, the outdoor camera features a reliable hard-wired
connection to the Vivint system and the home's network router (for fast, smooth video playback) by
using either a Wi-Fi Bridge or PoE/PLC device-link that supplies both power and connectivity.
Other features include: Night vision; 140° FOV (field of view); Pinch-to-zoom video image; Person-
triggered app notifications; Speaker for two-way talk via the panel or apps.
This document includes a product description, installation and test instructions, basic functionality / user
operation overview, as well as technical specifications and regulatory notices and declarations.
Installation Instructions — For the Wiring and the Camera
Installing the Vivint Outdoor Camera Pro is a multi-step procedure involving different power/connectivity hardware options, but it is straightforward and can be quickly learned
and mastered. The Vivint technician should carefully read all of these steps (and tips below) in order to ensure a successful installation and optimal performance. For additional
information, including detailed instructions about the Wi-Fi Bridge and PoE/PLC device setup, refer to the Field Service Smart Home Pros website. (NOTE: The procedures outlined
below are comprehensive, meaning they cover all of the wiring and both the Wi-Fi Bridge and PoE/PLC install options. Read them closely in order to fully understand each part.)
To install the wiring and the camera, follow these steps:
1. Identify the best location to install the camera, consulting with the homeowner (see "Tips"). Also, locate the
nearest indoor outlet where you will run the Ethernet wire and plug in either the Wi-Fi Bridge or PoE/PLC device.
IMPORTANT: The Outdoor Camera Pro must be installed between 9 and 11 feet above the ground.
2. Run Ethernet Cat5e wire from the camera to the outlet, leaving excess wire at both ends.
3. At the outlet (for a W-Fi Bridge or PoE/PLC device), to terminate the Cat5e wire:
a) Drill a hole near the outlet, and pull the wire down through the wall.
b) Terminate the wire with an RJ45 jack according to the T-568B order. To do this, strip 1" of the jacket to expose
the 4 wire pairs, use the pull string to remove 2" more and cut away the jacket and string, trim the jacket
corners, untwist the wire pairs, line up the wires in the T-568B order (see Figure-1 below), cut the wires to ¾"
with a straight cut, and then slide the RJ45 jack down over the 8 wires.
c) IMPORTANT: Make sure the orientation is correct; push the wires completely under the pins so that they touch
the end; the jacket must be pushed under the strain-relief; securely crimp the RJ45 with the 8-pin tool.
4. At the camera mounting location, to terminate that end of the Cat5e wire:
a) Drill through the wiring hole in the mounting plate, drill a hole in the home's exterior surface, and run the Cat5e
wire through the rubber seal on the plate.
b) Terminate the wire on the inside of the mounting plate. To do this, strip 1" of the jacket to expose the 4 wire
pairs, untwist each pair and arrange them over the terminal that corresponds with their color (see Figure-2
below), use the provided punch-down tool to firmly connect each wire to its matching terminal.
c) IMPORTANT: Do not strip the wires; do not punch at an angle; inspect each terminal to ensure the wire is
completely inserted; cut off excess wire; make sure the rubber seal is tight around the wire for waterproofing.
5. Mount the camera, first attaching the mounting plate to the exterior surface with four screws (use either #6 1"
stainless steel self-drilling screws, or #6 1.25" galvanized deck screws) and anchors. Fill all of the holes with silicone
to ensure waterproofing. (Note that you should use a spacer if you're unable to place the mounting plate directly
over the wiring hole.)
6. Attach the camera to the mounting plate, using the T5 security screw (9 mm) as a hinge rotating the camera up until
it snaps into place (if necessary, remove the T5 screw, attach the camera, and reinsert the screw). NOTE: The pogo
pins will establish an electrical connection, supplying power when the Wi-Fi Bridge or PoE/PLC device is plugged in.
7. Adjust the camera to the desired angle, and then hand-tighten the ball-joint ring.
8. Add the camera to the system. With the wiring and camera installed, you should now proceed to "Adding the
Camera to the System" to finish setting up and using the camera.

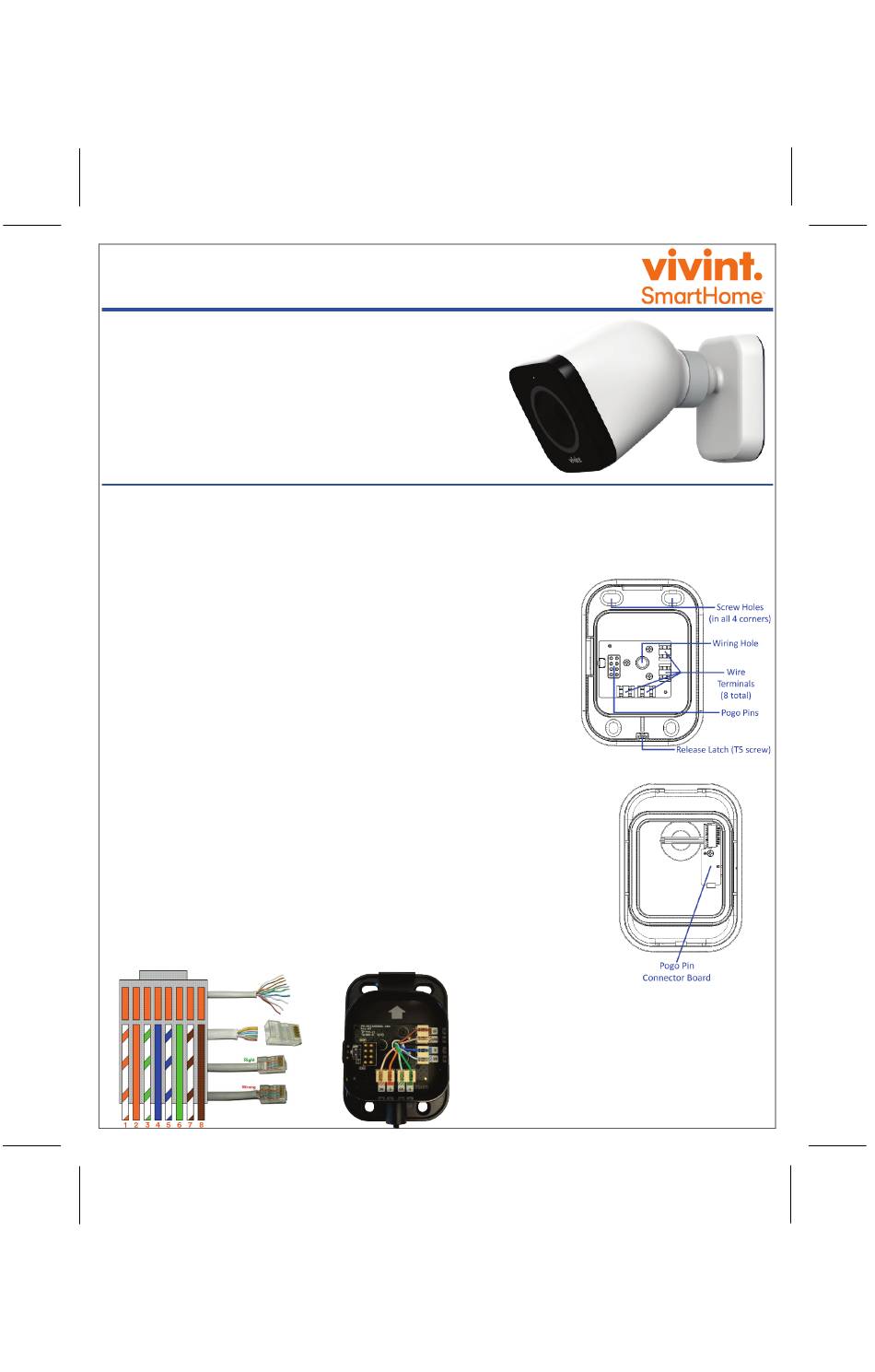

Figure-1: RJ45 Wires in T-568B Order — Figure-2: Wire Terminal Colors —
Mounting Plate (inside) —
Camera Base (inside) —
INSTALLATION TIPS / BEST PRACTICES:
• Install within the height restrictions — 9' min. to 11' max.
• Ensure the wire is undamaged and hidden, from the power
supply to the camera.
• Pay attention to the mounting surface (i.e., wood, brick, etc.).
• If installing under eaves/soffits, make sure to recess the
camera enough to protect it from any precipitation.
• To detach the camera, insert a narrow pointed tool into the
release latch opening and gently separate the camera from
the mounting plate.
