Summary of Contents for Scout MOBILITY R-NET

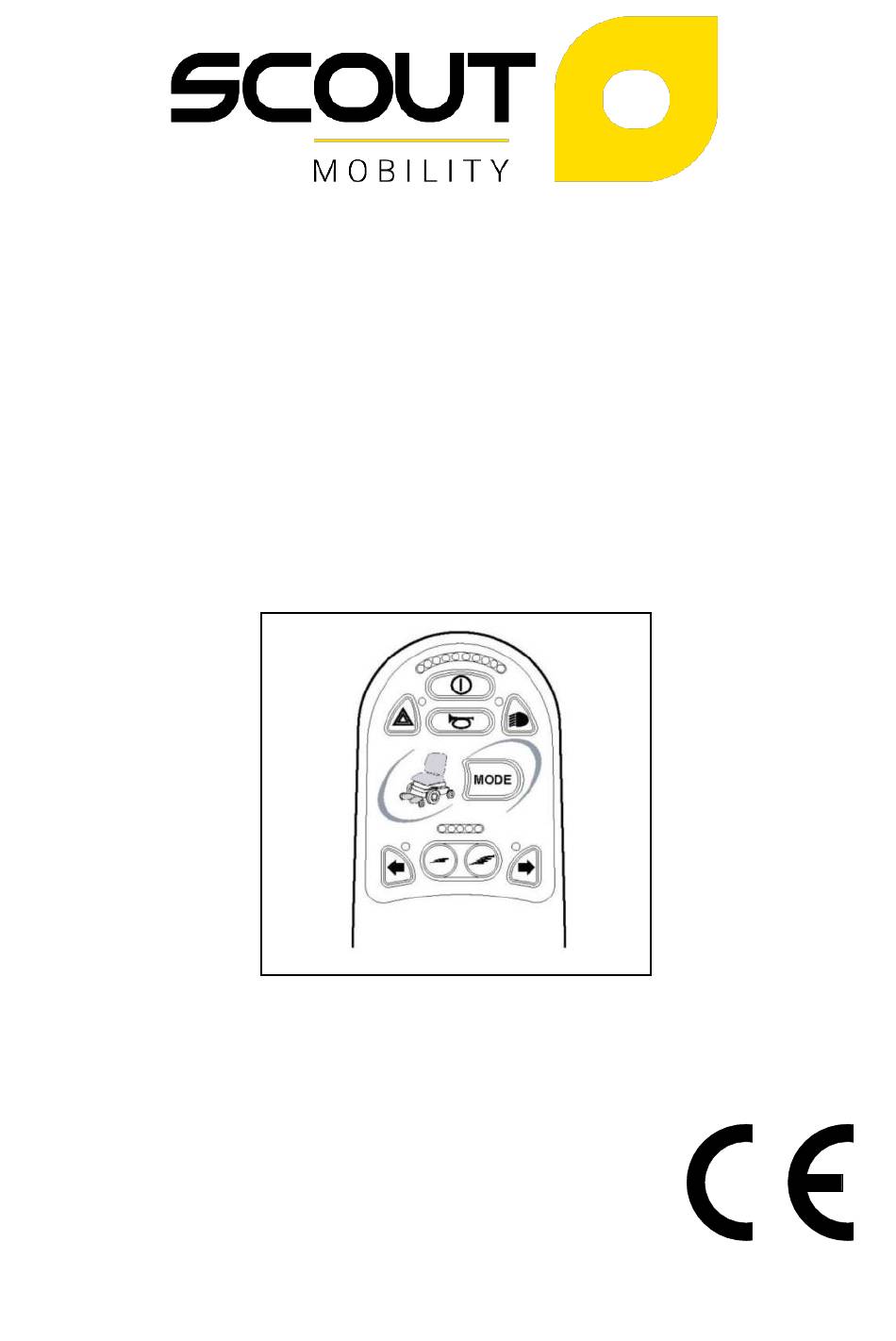

- Page 1 R-NET (LED) GEBRUIKSHANDLEIDING BEDIENINGSKASTEN MANUEL D’UTILISATION - BOÎTIER DE COMMANDE BEDIENUNGSANLEITUNG STEUERKASTEN USER MANUAL CONTROLS 4102665B...
- Page 2 English ..................4...
- Page 3 Scout Mobility B.V.. The information provided is based on general data concerning the constructions known at the time of the publication of this manual. Scout Mobility B.V. executes a policy of continuous improvement and reserves the right to changes and modifications.
-
Page 4: Table Of Contents
The controller Table of content Preface ......................... 05 The controller ...................... 06 1.1 R-net controller 1.2 Actuator Indicator ..................08 Driving the wheelchair with the controller ............09 2.1 Switching the controller on or off ..............09 2.2 Driving the wheelchair ................... 09 2.3 Speed...................... -
Page 5: Preface
The controller Preface This manual This user manual describes the use of the electric wheelchair via the controller. The total user manual for this electric wheelchair consists of three booklets. Read the entire user manual carefully before taking the product into use. The information provided by this manual is essential for the safe use and proper care (cleaning) of the wheelchair. -
Page 6: The Controller
1.1, contact your dealer. Figure 1.1 R-net by PG Drive Technologies (CW) is a collective name for the entire control system of the wheelchair. The wheelchair is operated by means of a controller, which includes... - Page 7 The controller Figure 1.2 Part Function In the ‘drive’ mode: driving and steering A. Joystick In the ‘adjustment options’ mode:: - Left/right to select the adjustment options - Front/back to select the adjustment options On/off switch Switching the controller on or off Horn Warning signal with sound Battery Indicator...
-
Page 8: Actuator Indicator
The controller Actuator Indicator Figure 1.3: Actuator Indicator: Picture Function Seat Tilt Function Seat Lift Function Recline (Backrest) Function Legrest Function. This can be either simultaneous or separately left and right Note : Seating functions that are not present or not connected will not be shown in the indicator. -
Page 9: Driving The Wheelchair With The Controller
Operating the electrical adjustment options 2. Driving the wheelchair with the controller Switching the controller on or off To be able to drive or operate the electronic adjustment options of the wheelchair, the controller must be switched on. Press the on/off button (B in figure 1.2). Driving the wheelchair Driving an electric wheelchair is done by operating a joystick. -
Page 10: Operating The Electrical Adjustment Options
Operating the electrical adjustment options 3. Operating the electrical adjustment options Not every wheelchair has been equipped with electronic adjustment options. We make a distinction between four different adjustment options to the seating system: • Tilt adjustments • High/low adjustments •... -
Page 11: Lights
To indicate a possible malfunction, R-net will use the battery indicator. A description of the malfunction will be showed using flash codes. Report this information to your dealer. -
Page 12: Locking The Controller
Technical specifications 6. Locking the controller To lock the controller : • While the control system is switched on, depress and hold the On/Off button. • After 1 second the control system will beep. Now release the On/Off button • Deflect the joystick forwards until the control system beeps. -
Page 13: Technical Specifications
200µA min. 1A max. Charger Connector: Use only Neutrik NC3MX Battery Charging Current: 12Arms max. Maximum Drive Current: R-Net 60 60A R-Net 80 80A R-Net 120 120A Indicator Outputs 45W per side Lighting Outputs 21W per side Brake Light Output... -
Page 14: Technical Diagrams
Technical specifications 8. Technical diagrams Technical Diagram The technical diagram can also be found in the Service manual. Figure 8.1:... -
Page 15: Technical Diagram Battery Charger
Technical diagrams Technical diagram battery charger The controller’s standard configuration includes a ‘3-pin connection’. Ensure that the battery charger is properly connected so that the ‘negative pole’ and the ‘inhibit’ are connected, enabling the system to prevent the wheelchair from moving when the battery is being charged. - Page 16 Dealer contact details: If there is no information here you can contact Scout Mobility B.V. for the nearest dealer address. Tiendschuur 5 5768 SB Meijel The Netherlands T +31(0)6 44500578 info@scoutmobility.nl www.scoutmobility.nl...
