Agilo Seating
USER MANUAL AGILO-EN
4102971B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Agilo and is the answer not in the manual?

Questions and answers

Related Manuals for Scout MOBILITY Agilo

Summary of Contents for Scout MOBILITY Agilo

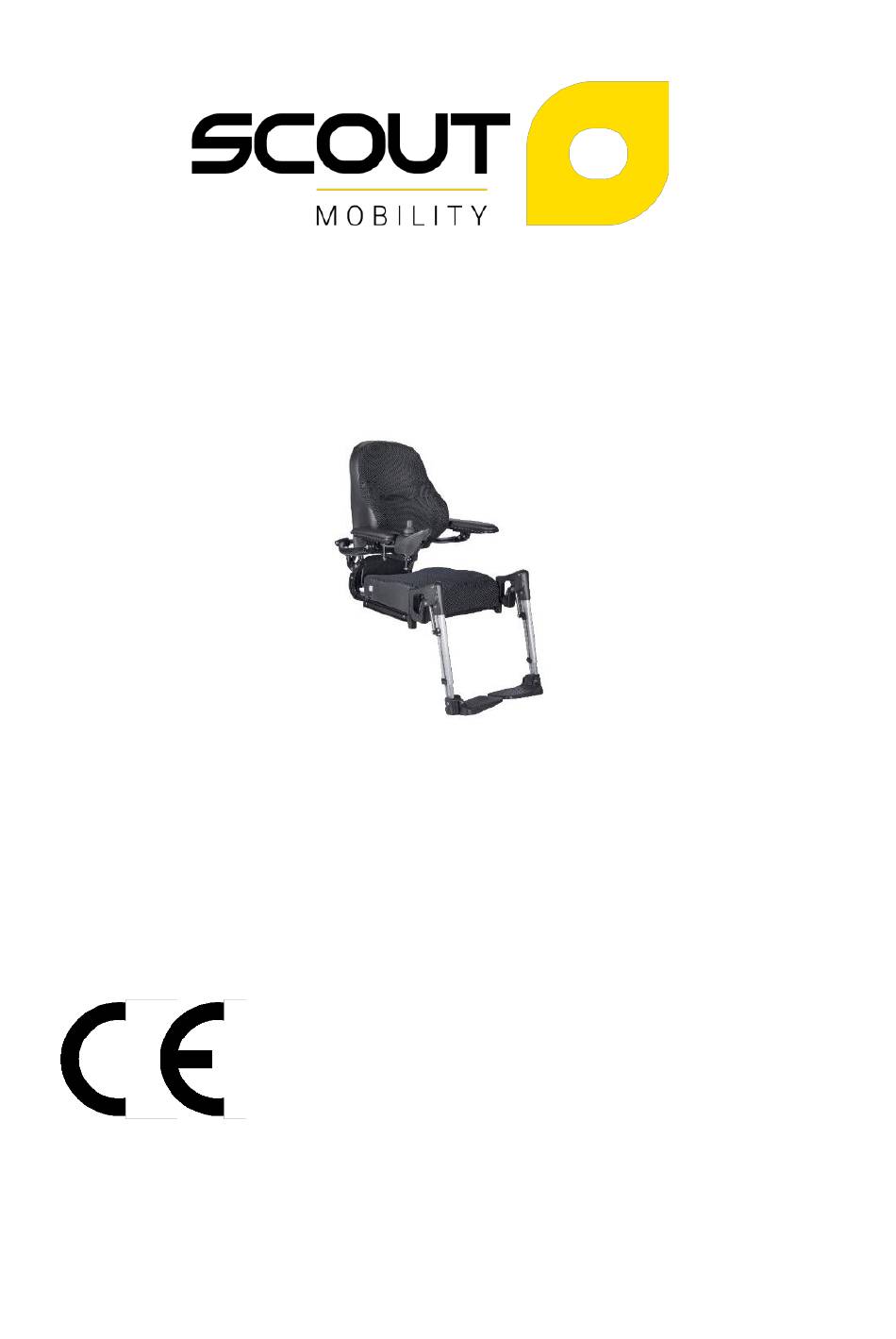

  • Page 1 Agilo Seating USER MANUAL AGILO-EN 4102971B...
  • Page 2 Scout Mobility BV accepts no liability for loss resulting from work executed by third parties. Names, trade names, etc. used by Scout Mobility BV may not, as per the legislation concerning the protection of trade names, be considered as being available.

  • Page 3: Table Of Contents

    ........... 4 ECLARATION OF ONFORMITY ARRANTY ................4 ISUAL IMPAIRMENT ..............4 ..............5 NCIDENT REPORTING GENERAL DESCRIPTION ............... 5 AGILO ............5 RODUCT DESCRIPTION GENERAL OPERATIONS ..............6 ......... 6 EAT CUSHION EMOVING REPLACING ..........7 ACKREST EMOVING REPLACING ..........

  • Page 4: Foreword

    If you have a visual impairment you can find a digital (PDF) version of this user manual at www.scoutmobility.nl. You can also request a large-print paper version by contacting Scout Mobility or your local dealer. Contact information can be found on the back of this user manual. 4102971 rev. B Scout Mobility BV pag.

  • Page 5: Incident Reporting

    General description Product description AGILO The wheelchair is equipped with the AGILO seating system. The AGILO seating system provides excellent support for the head, torso, arms and legs. Optimal body support ensures maximum independence for the wheelchair user.

  • Page 6: General Operations

    Replacing the seat cushion (fig 3.2). Click the seat cushion onto the seat frame. Make sure the rear end is hooked under the brackets. Figure 3.1 Always check if the seat is clicked in place securely. Figure 3.2 4102971 rev. B Scout Mobility BV pag. 6...

  • Page 7: Backrest: Removing / Replacing

    Remove the leg rest from its bracket by lifting. Figure 3.4 You should hear a click when re-placing the leg rest. This indicates that the leg rest has locked correctly into place. 4102971 rev. B Scout Mobility BV pag. 7...

  • Page 8: Armrest: Removing / Replacing

    Take the headrest (2) out. Replacing the headrest (fig 3.7). Place the headrest into the head rest holder. Lock the headrest by putting the lever in a vertical position. Figure 3.7 4102971 rev. B Scout Mobility BV pag. 8...

  • Page 9: Setting The Seating System

    Figure 4.2 Make sure that there is at least 2 cm of free space between the back of the knee and the front of the seat to ensure good blood circulation. 4102971 rev. B Scout Mobility BV pag. 9...

  • Page 10: Seat Width Setting

    Figure 4.4 Backrest angle setting See figure 4.5 Loosen the bolt (1) of the angle adjuster. Set the desired angle of the backrest (2). Place back and tighten the bolt. Figure 4.5 4102971 rev. B Scout Mobility BV pag. 10...

  • Page 11: Legrest Settings

    Legrests width setting (fig 4.4) See chapter 4.2 Figure 4.7 Angle of the leg rest (fig 4.8) Loosen the bolts (1). Set the leg rest in the desired angle (2). Tighten the bolts. Figure 4.8 4102971 rev. B Scout Mobility BV pag. 11...

  • Page 12: Armrest Settings

    Turn the bolt (2) to set the armrest in the desired position. Tighten the nuts (1). Losen the screws (3). Set the arm pad in the desired angle. Tighten the screws (3). Figure 4.11 4102971 rev. B Scout Mobility BV pag. 12...
  • Page 13 Slide the armrest in the desired position (2). Tighten the bolts. Figure 4.12 Remote depth setting (fig 4.13). Loosen the bolts (1). Slide the control in the desired position (2). Tighten the bolt. Figure 4.13 4102971 rev. B Scout Mobility BV pag. 13...

  • Page 14: Headrest Height (Fig 4.15)

    (2). Lock the headrest tightening the clamp screw. Figure 4.15 Position (fig 4.16). Loosen the bolts (1) (x3). Put the headrest in the desired position (2). Tighten the bolts (x3). Figure 4.16 4102971 rev. B Scout Mobility BV pag. 14...

  • Page 15: Hip Belt

    The belt and locking mechanism can be Figure 4.19 cleaned using a damp cloth. Never use the hip belt as a safety belt when transporting the user in the wheelchair. 4102971 rev. B Scout Mobility BV pag. 15...

  • Page 16: Adjustments

    Figure 5.2 Side profiles Width (fig 5.3). Remove the seat cushion. Loosen the screws at the bottom of the seat frame (1) Adjust the Side profiles (2) Tighten all screws. Figure 5.3 4102971 rev. B Scout Mobility BV pag. 16...

  • Page 17: Getting In And Out Of The Wheelchair (Transfer)

    If possible, swing the legrests to the side (fig 6.2). Seat yourself in the chair. Figure 6.2 Sideways transfer Flip up the armrest(s) (fig 6.3). Seat yourself in the chair. Figure 6.3 4102971 rev. B Scout Mobility BV pag. 17...

  • Page 18: Reducing The Wheelchair Size

    Clean the upholstery with a damp cloth and household soap. Then wipe the upholstery dry with a soft dry cloth. Do not use organic solvents such a thinner, benzene or white spirit. Do not dry clean, iron or spin-dry the upholstery 4102971 rev. B Scout Mobility BV pag. 18...
  • Page 19 Dealer: Scout Mobility BV B.V. Tiendschuur 5 5768 SB Meijel The Netherlands info@scoutmobility.nl www.scoutmobility.nl 4102971 rev. B Scout Mobility BV pag. 19...
