Summary of Contents for EFA VS200

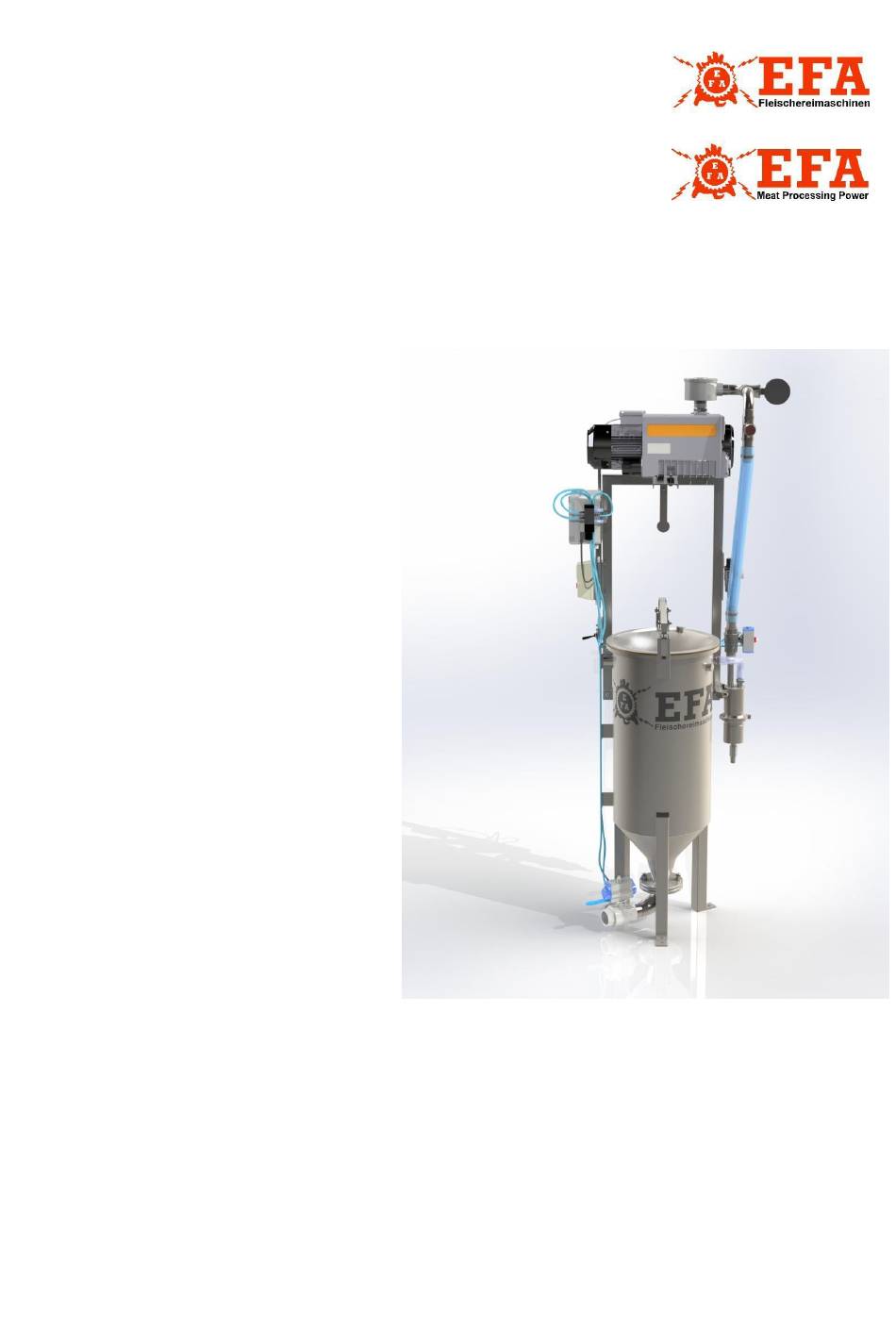

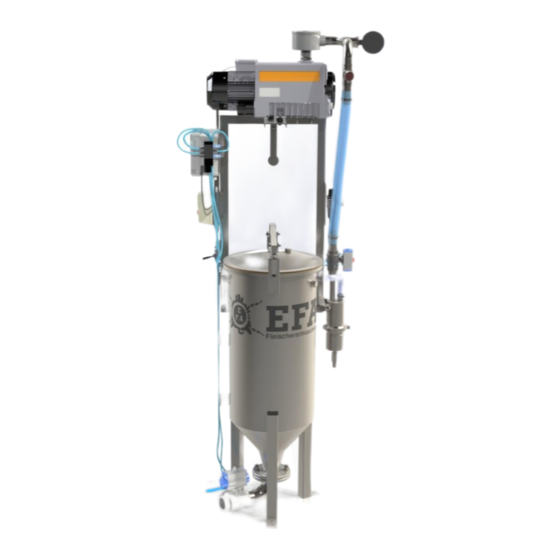

- Page 1 Operating instructions Maintenance instructions Spare part list EFA Vacuum unit Type VS200 Important Information: Please forward these operating instructions to your operating personnel! Schmid & Wezel Execution Page 1 D 75433 Maulbronn 03.2023...
-
Page 2: Table Of Contents
3.2.6 Vacuum Control Valve ..................6 Assembly ........................ 6 4.1 Transport ......................6 4.2 Before installing the Vacuum Extraction System for EFA 202 ........6 4.3 Set up ........................7 Cleaning and maintenance ..................8 5.1 Receiving tank (8) ....................8 5.2 Vacuum filter (1) .................... -
Page 3: Use, Scope Of Delivery, Accessories
The Keep the operating instructions with the user alone is liable in the event of non- vacuum unit. It must be available at all times. compliance. The EFA vacuum unit may only be operated: 1.2.2 Residual hazards technically perfect... -
Page 4: Behavior Of The Workspace
The limit values for pressures and 3. Functional description and temperatures must be permanently operation marked and must not be exceeded or fallen short of. The warning and safety notices on the Only use the vacuum unit for the extraction of animal excrement. -
Page 5: Operation
The vacuum pump (3) generates a vacuum in 3.2.2 Switch on the receiving tank (8) and in the suction lines Set the main switch (12) to 1 (green switch). directly connected to it. As a result of the 3.2.3 Switch off pressure compensation, the liquid and dirt Set the main switch (12) to 0 (red switch). -
Page 6: Vacuum Control Valve
(2), also shown at the and tipping. Photo 2 below. 4.2 Before installing the Vacuum Extraction System for EFA 202 Unpack the device and assemble it, as shown on the figure below. Connect vacuum pump frame (13) with tank (8). Use the enclosed 4 vacuum pump frame nuts (14) for this and tighten them with a torque of 12Nm. -
Page 7: Set Up
1" female thread. A 1/2" hose nipple is screwed into the suction connection. 1/2" hose Connect the EFA 202 with the tank (8) of nipple is screwed into the suction connection. EFA Vacuum Unit with appropriate couplings and a hose. -
Page 8: Cleaning And Maintenance
Cleaning and maintenance Open the oil filler plug (18). Disconnect the vacuum unit from Add oil until the oil level reaches the MAX the power supply before servicing mark on the oil sight glass (19). the vacuum pump. Ventilate the vacuum pump to ambient pressure. -
Page 9: Fan Cover
Recommended oil Ambient types temperature VM 032 < 0 °C VM 068 0 ... 12 °C VM 100 12 ... 30 °C Fig 5 – Vacuum pump details VS 100 > 30 °C 5.5 Fan cover The vacuum unit contains approx. 1 l of oil. Check the fan guards of the vacuum pump (3) for dirt. -
Page 10: Troubleshooting
5.6 Troubleshooting Malfunction Possible reason Remediation Vacuum unit does not run Power supply interrupted. Check the mains connection and fuses. Notify the customer Level is out service if none of the above errors are present. Motor protection in main switch Open the main switch box (12) (12) tripped due to overload of and check whether the motor... -
Page 11: Appendix
A. Appendix A.1 Technical Data Description Value Voltage 3 x 400 V /50 Hz / N / PE Current 3,2A Rated power 0,75kW Flow rate 25 m Contents of the receptacle 90 L Mass (net) 115 kg Ambient temperature +5°C - +35°C Schmid &... -
Page 12: Spare Part List
A.2 Spare part list Schmid & Wezel Execution Page 12 D 75433 Maulbronn 03.2023... - Page 13 Schmid & Wezel Execution Page 13 D 75433 Maulbronn 03.2023...
- Page 14 Schmid & Wezel Execution Page 14 D 75433 Maulbronn 03.2023...
- Page 15 Schmid & Wezel Execution Page 15 D 75433 Maulbronn 03.2023...
- Page 16 Schmid & Wezel Execution Page 16 D 75433 Maulbronn 03.2023...
- Page 17 OPTIONAL Schmid & Wezel Execution Page 17 D 75433 Maulbronn 03.2023...
- Page 18 OPTIONAL: Schmid & Wezel Execution Page 18 D 75433 Maulbronn 03.2023...
- Page 19 Page Index Part Z100173 Pneumatic hose Z084015 Separator-tank hose Z100449 Separator-tank hose clamp Z100450 Separator-pump hose clamp Z084016 Separator-pump hose Z084014 Vacuum pump Z100173 Pneumatic hose Z084018 ON/OFF Switch Z099878 Pneumatic Tee (optional) Z011057 Cable gland Z015247 Pneumatic fitting Z083927 Pneumatic valve Z084193 Pneumatic silencer...
-
Page 20: Electrical And Pneumatic Diagrams
A.2 Electrical and pneumatic diagrams Schmid & Wezel Execution Page 20 D 75433 Maulbronn 03.2023... - Page 21 National Laws and Regulations adopting these directives. Machinery Directive: 2006/42/EC Low Voltage Directive: 2014/35/EC EMC Directive: 2014/30/EU Product type: Vacuum Extraction System Model: VS200 Serial Number: _____________________ 15.03.2023 Board member Schmid & Wezel Execution Page 21 D 75433 Maulbronn 03.2023...
