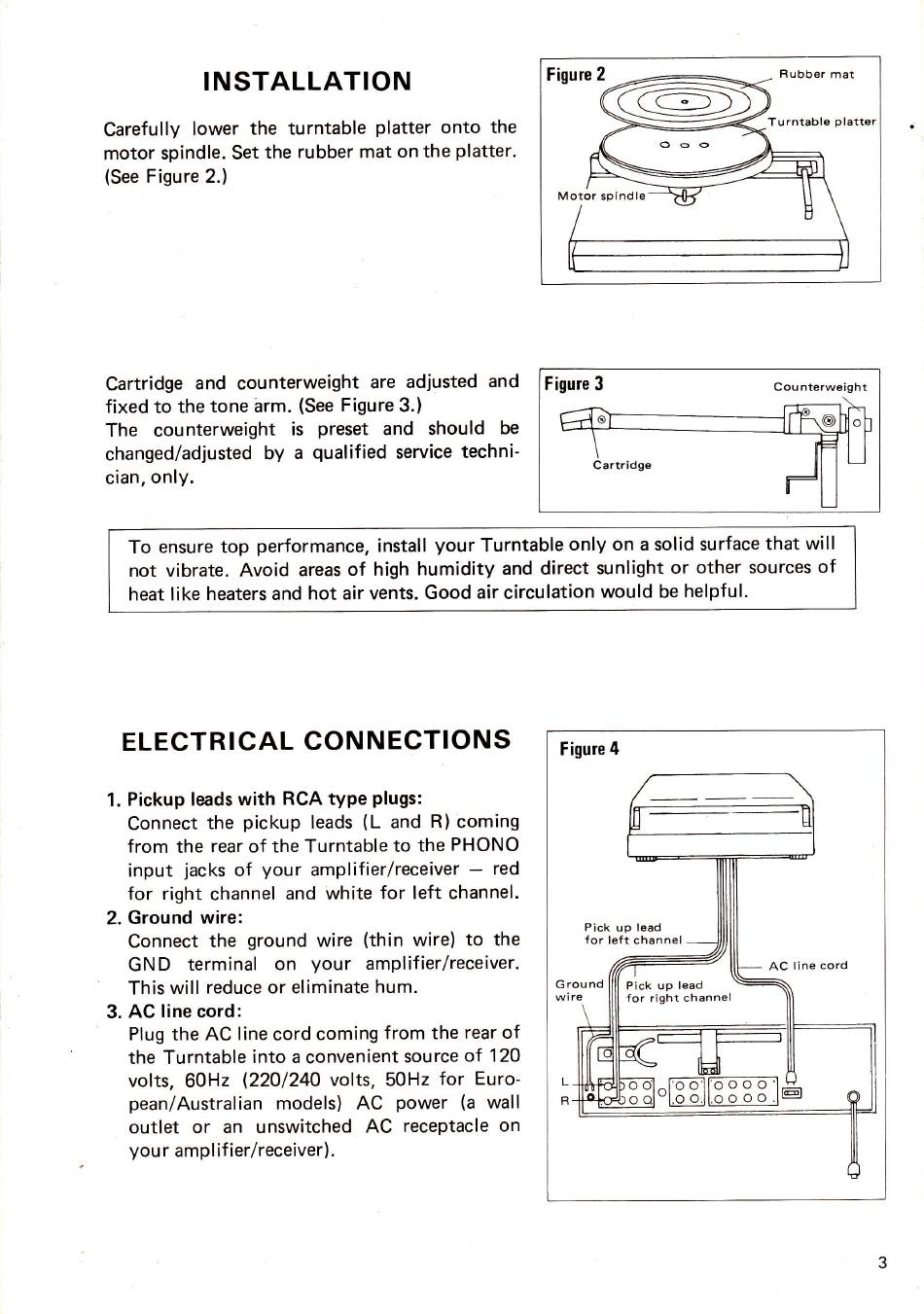

INSTALLATION
Carefully lower the turntable platter onto
the
motor
spindle. Set
the rubber mat
on
the platter.
(See Figure 2.)
Figure
3
Counterweight
To
ensure
top
performance, install your Turntable only on
a
solid surface that will
not vibrate. Avoid
areas
of
high humidity and direct sunlight or other
sources
of
heat
like
heaters
and
hot air
vents. Good
air circulation would
be
helpful.
Cartridge and counterweight are adiusted
and
fixed to the tone arm.
(See
Figure 3.)
The
counterweight
is
preset
and should
be
changed/adjusted
by a
qualified
service
techni-
cian,
only.
ELECTRICAL CONNECTIONS
1.
Pickup
leads
with
RCA
type plugs:
Connect
the pickup
leads
(L
and R) coming
from the
rear
of the Turntable to the
PHONO
input
jacks
of your
amplifier/receiver
- red
for
right channel and white
for left
channel.
2.
Ground wire:
Connect
the
ground
wire (thin wire)
to
the
GN
D
terminal
on
your
amplif ier/receiver.
This
will
reduce
or eliminate
hum.
3. AC line cord:
Plug
the AC line cord coming from the
rear
of
the Turntable into
a
convenient source
of
12O
volts, 60Hz (22O124O
volts, 50Hz
for
Euro-
pean/Australian models)
AC
power (a
wall
outlet
or
an
unswitched
AC
receptacle on
you r
ampl
if
ier/receiver).
Figure
4
Pick up
lead
for
left channel
Pick
up
lead
for right
channel
