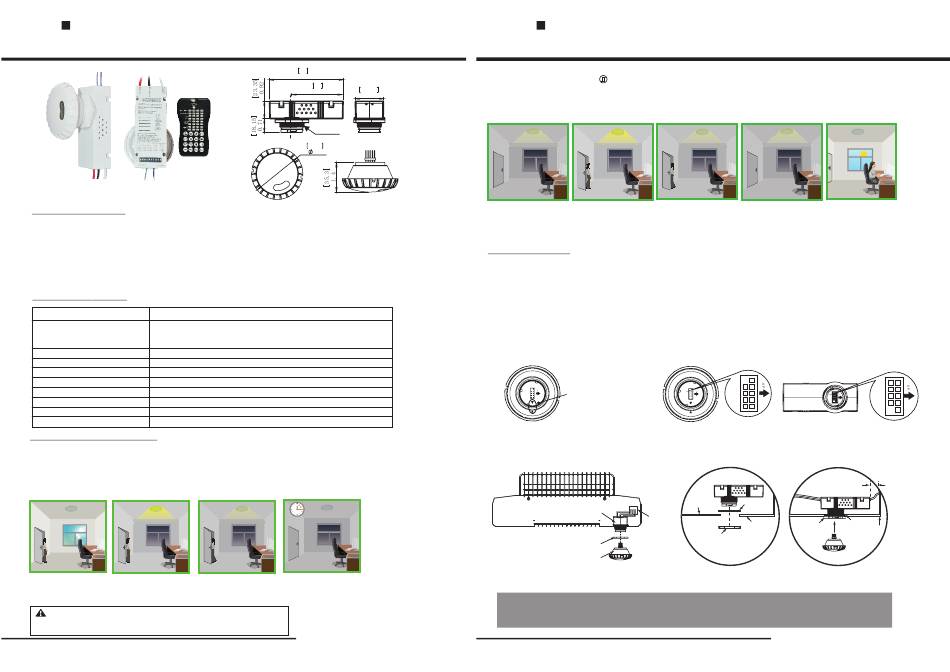

Westgate WEC-3MDR-42 Manual

Bi-level Microwave Sensor For High Bay Light
INTRODUCTION
The WEC-3MDR-42 is a motion sensor that dims lighting from high to low based on movement. This slim,
low- profile sensor is designed for installation inside the bottom of a light fixture body. The sensor plus
module connects to the BRI816-B-D sensor socket through a 1.30" diameter hole in the bottom of the fixture.The
sensors use microwave sensing technology that reacts to changes in movement within the coverage area.
Once the sensor stops detecting movement and the time delay elapses lights will go from high to low mode and
eventually to an OFF position if it is desired. Sensors must directly "see" motion of a person or moving object to
detect them, so careful consideration must be given to sensor luminaire placement and lens selection. Avoid
placing the sensor where obstructions may block the sensor's line of sight.
SPECIFICATIONS
Power supply
120/277VAC
Maximum load Resistive/Halogen - 800W/1200W@120/277V
@ - 40 °F ~ +158°F Fluorescent Ballast - 660W/1200W@120/277V
(-40°C ~ +70°C) Electronic Ballast (LED
HF System 5.8GHz CW
Dim control output 0-10V, max. 25mA sinking current
Detection radius/angle Max 30ft.(8 meters
Mounting height Max 50ft. (15meters)
Time setting 10sec.-15min. (adjustable)
Light-control 10-2000Lux (adjustable)
Humidity Max. 95% RH
Temperature - 40 °F ~ +158°F (-40°C ~ +70°C)
Function and options
1.Bi-Level control
The PIR sensor to achieve tri-level dimming control, for same areas that require a light change notice
before switch off.
If offers 3 levels of the light Control : 100%--dimming light (0,10%,30%,50%)--off;and 2 periods of
selectable waiting time: motion hold-time and stand-by time. Selectable daylight threshold and choice of
detection area.
With suffcient natural light, With insufficient natural light,
People left, light still dims to
the light does not switch on the sensor switches on the light
0/10%/30%/50% (options)
when presence detected. automatically when person
standby level after the hold
enters room . time.
WARNING
NOTE: Warm up time is 15seconds. After the sensor connects input power first time,the
light will on 15seconds,then goes dimming or off to work normally.
98
3.86
68
37.93
2.67
1.49
(32.9mm)
G1
66.5
2.6
50/60Hz
/CFL ) - 5A/5A@120/277V
)/360°
Light switches off automatically
after after stand-by time elapsed.
-1-
Bi-level Microwave Sensor For High Bay Light
2.Photocell(Daylight sensor) Control
In condition by setting, Press , the photocell(Daylight sensor) on/off setpoint is open.
level exceeds this setting, the lights will turn off even when the space is occupied. Once the light level exceeds this setting,
the sensor will wait and monitor for 1 min in order to confirm the light level increase is not temporary before forcing the lights
to go off. When light level goes below the settings, the light will turn on even without motion detection after 1min. This feature
is disabled by default.
If with insufficient natural With insufficient natural light, People left, light dims to 0/
10%/
light, the light automatically the sensor switches 100% on
standby level after the hold
dims to 0,10%, 30%, 50%. the light automatically when
time.
person enters the room.
INSTALLATION
1. Determine an appropriate mounting location inside the light fixture minimizing the electric light contribution
to the sensor's photocell. Allow a minimum distance of 0. 2" (5.1mm) from the wiring end of the sensor to
the wall of the fixture.
2. Drill a hole 1.30"(33. 0mm) in diameter through the sheet metal in the bottom of the fixture.
3. Add the rubber gasket to the threaded collar, and install the sensor face down, parallel to the mounting
surface. Ensure the rubber gasket touches the inside surface of the fixture. Install the plastic nut securely
against the fixture to a torque of 25-30 in-lbs to ensure IP rating is maintained.
4. Align the locking features between the sensor socket and the sensor plug and push the sensor plug forward
until the o-ring seals firmly. Turn the sensor plug clockwise to ensure it locks in place.
4-1: Align the arrow in bottom of 4-2:The arrow mark between sensor plug and
sensor plug
Attention: Align the arrow
before installation
Attention :Align the arrow before installation
Sensor plug
Attention: the arrow mark direction should be consistent
5. Connect wires as shown in wiring diagram.
6. Restore power from the circuit breaker.
BRI816-B-D
LED
Controller
Tightening Nut
Sensor module Assembly
Note: The Outside Fixture Wall thickness should be no greater than 0.125" (3.18mm) for optimal sensor
mounting and security.
Outdoor Use at the exposed Sensor Collar part only
Installation Instructions with a Listed Outdoor Enclosure.
When the light
The ligth still dims to 0/10%/30%
Light will switch off automaticallz
30%/50% (options)
/50% if still insufficient natural
even with presence detected, if the
light, the light never switch off
nature light is sufficient.
until sufficient natural light.
sensor socket should be consistent
Attention :Align the arrow
before installation
Sensor socket
Sensor plug
BRI816-B-D
0.2"(minimum)
Inside Fixture
Rubber
Wall
Gasket
Outside Rubber
Tightening
Fixture Wall Gasket
Nut
Tightening
Nut
sensor module Assembly
when installed at the specific location per
-2-
Fixture
Wall
