IMPORTANT NOTE
When correctly inserted, the 4 pin power connector will stand slightly proud of the 5GXtream's front panel. Use
of excessive force to push the power cable into the connector, should be avoided. Gently insert the power
cable and push until the retaining lever clips in to place.
5GXtream
5G/4G ROUTER
Installation and Instruction Manual
Advertisement
Table of Contents
Related Manuals for Digital deep sea 5GXtream
Summary of Contents for Digital deep sea 5GXtream
- Page 1 IMPORTANT NOTE When correctly inserted, the 4 pin power connector will stand slightly proud of the 5GXtream’s front panel. Use of excessive force to push the power cable into the connector, should be avoided. Gently insert the power cable and push until the retaining lever clips in to place.
-
Page 2: Before You Start
Wi-Fi reception in all areas of the boat. You should also consider the 7m coax cable length of the external 5G and 4G Antennas, which should not be extended. It is better to locate the 5GXtream unit within the 7m limit of the supplied 5G and 4G antenna cables, and then use a wireless repeater if Wi-Fi reception is poor in some areas of the vessel. -
Page 3: Dimensioned Drawing

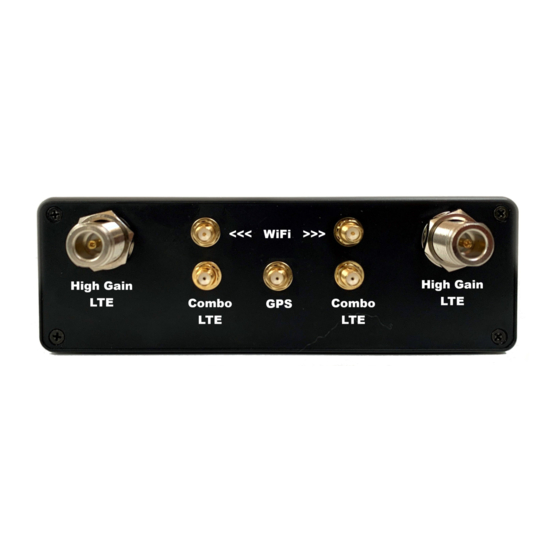

Dimensioned Drawing Figure 1 - Dimensions Figure 2 - Connector Positions Figure 3 - Network Connectors + LEDs Product Handbook for 5GXtream V1.00 TEL + 44 1179 554474 www.digitalyacht.co.uk sales@digitalyacht.co.uk... - Page 4 LMR200 cables through to the Router/Modem unit. Screw the N-Type connectors from the two LMR200 antenna cables, to the 5GXtream – it does not matter which LTE antenna goes to which LTE connector.
- Page 5 Figure 4 Figure 5 Figure 6 Dimensioned Drawing Product Handbook for 5GXtream V1.00 TEL + 44 1179 554474 www.digitalyacht.co.uk sales@digitalyacht.co.uk...
-
Page 6: Power Requirements
5GXtream wiring. The 5GXtream has a two-core power cable with a Red (+) and Black (-) wire. Be very careful to ensure that the correct supply voltage polarity is connected to the 5GXtream, as reverse polarity will damage the unit. Once connected to the vessel’s 12v/24v DC system, do not apply power but continue with the installation steps below. -
Page 7: Ethernet Port Leds
Double check that all power and Ethernet connections are correctly made and then apply power for the first time. A series of external LED indicators on the 5GXtream which illuminate to show the status of the unit as detailed below…. - Page 8 ≥ -51 dBm In many cases the 5GXtream will be installed behind a bulkhead or inside a locker, making it difficult to see the status of the unit. However, under normal circumstances after power is applied, the “5GXtream” wireless network (SSID) should appear within 50-60 seconds.
- Page 9 5GXtream login page appear (see Fig 8). Make sure you use the http:// pre-fix or your browser may try to do a web search. Figure 8 Now login to the 5GXtream by entering the default login password as below…...
- Page 10 We do not generally recommend changing the Admin password of the router, as this can be difficult to reset when forgotten. Also, this can only be used by someone wirelessly connected to the 5GXtream, so make sure your wireless security is good and that you trust the people you allow to connect to the network and there should be no need to change the default Admin password.
- Page 11 “Connected”, State “Registered” with the network operator shown, SIM Card Info “Ready” and the Bytes Received/Sent should be counting up, as shown in Fig.12. If everything is OK, you will now be connected to the internet. Product Handbook for 5GXtream V1.00 TEL + 44 1179 554474 www.digitalyacht.co.uk sales@digitalyacht.co.uk...
- Page 12 To change the default wireless network name and password of your 5GXtream, login to the web interface and click on the Network>Wireless menu options, which will take you to the page shown in Fig 13.
- Page 13 3) By using one of its two wireless adaptors to connect to a wireless hotspot By default the 5GXtream is designed to use the mobile network of the SIM in slot “SIM1” which in the web interface is referred to as MOB1S1A1. It also has a SIM2 slot (MOB1S2A1) which can have a second SIM card, from another mobile network operator, inserted.
- Page 14 Figure 15 There is also a “SIM Switch” feature that will make the 5GXtream automatically switch between the two SIMs, based on whatever connection conditions you choose, i.e. No Signal, Data Limit reached, etc. To enable this feature, go to NETWORK>MOBILE>SIM SWITCH and for each of the SIMs, set the switching condition that you wish to trigger a...
-
Page 15: Normal Operation
It is also possible to use one of the 5GXtream’s wireless interfaces as an Internet connection, by switching it to STATION mode and connecting it to a public hotspot such as you find in marinas. We recommend our optional Long Range WiFi kit which can be connected in place of one of the two internal WiFi antennas and which increases the range of the WiFi signal. - Page 16 Figure 18 If you want to monitor the performance of the 5GXtream, go to Status>Realtime Data and you will see the page shown in Fig 19 or if you want to monitor how much data you are using go to Status>Mobile Usage. Make sure to select SIM1 or SIM2, depending on which SIM card you have been using.
